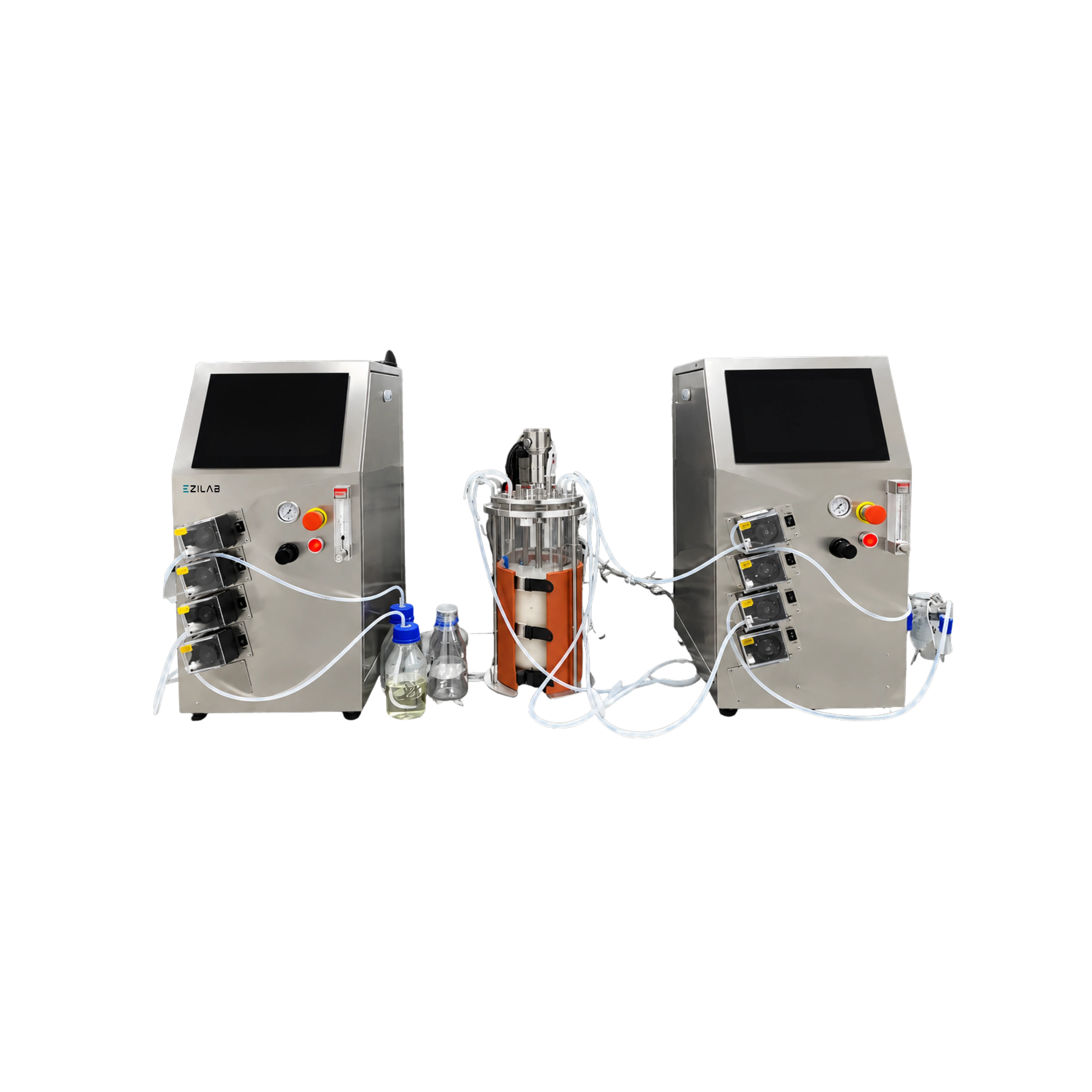

EziLab offers the Glass Fermenter EZL-GF100, a glass bioreactor with a 1 to 5 L borosilicate vessel, a 316L stainless steel lid with sterile ports, and a working volume of 50% to 70%. A top-mounted 90 W DC motor drives a height-adjustable 6-blade impeller from 50 to 1200 rpm, with a removable baffle cage. Temperature runs from 5°C to 80°C (±0.2°C) through a heating finger and PID-controlled cooling valve. pH control covers 2 to 12 (±0.05), and DO control spans 0 to 150% with cascade through aeration and agitation. Four peristaltic pumps handle media, feeding, and automatic antifoam dosing, while a rotameter sets aeration from 50 to 500 L/h. A Siemens S7-200 PLC runs from a 10-inch touchscreen, logging trends and exporting data by USB to Excel. As a benchtop fermenter, it lets scientists run batch and fed-batch cultures with tight control over growth conditions before scale-up. Optional ORP, biomass, OD, and online glucose sensors add process insight. Cell culture labs grow mammalian and microbial cells, while metabolic engineering and synthetic biology teams test modified strains. Vaccine developers produce early-stage material, and pharmaceutical groups optimize process parameters before production. See the Glass Fermenters and Glass Fermenter pages for full specifications.
| Total Volume | 1 to 5 Liters |
|---|---|
| Working Volume | 50% to 70% of total volume |
| Vessel Material | Borosilicate glass |
| Lid Material | Stainless Steel 316L with multiple sterile ports |
| Agitation System | Mechanical drive with DC motor and mechanical seal |
| Stirring Speed |
50 to 1200 rpm ±5%, adjustable via controller |
| Impeller |
6-blade impeller, height-adjustable, removable baffle cage |
| Motor Power | DC motor, 90 W, top-mounted |
| Temperature Range | 5°C to 80°C ±0.2°C |
| Temperature Control |
Heating finger + cooling water valve (PID control) |
| pH Control |
Range: 2 to 12 ±0.05 (auto); Sensor: Hamilton/Mettler-Toledo |
| DO Control |
Range: 0 to 150% ±3%; Cascade control via aeration and RPM |
| Anti-foam Control | Automatic detection & dosing via peristaltic pump |
| Feeding Control | PID-based auto feeding through peristaltic pump |
| Peristaltic Pumps |
4 total: 1 variable-speed (media), 3 fixed-speed (acid, base, antifoam) |
| Pump Material | Silicone tubing with GL45 bottles and sterile filters |
| Sampling System | Autoclavable sampling port with silicone diaphragm |
| Aeration System |
Manual rotameter (50 to 500 L/h), sterile air filter (0.2 μm) |
| Ventilation | Reflux cooler + sterile filter |
| Probes |
Autoclavable pH, DO, temp, antifoam probes with cables |
| Control System | Siemens S7-200 PLC |
| Display Interface | 10-inch LCD touch screen |
| Software | Siemens S7 + FORCE CONTROL |
| Data Handling |
USB export; Excel-compatible data logging, trend & historical curves |
| Construction Frame | Anodized aluminium alloy frame with lab stand |
| Sterilization Method | Off-site sterilization (autoclavable components) |
| Feature Area | Description |
| Controller | PLC-based touch screen controller for running the process. |
| Dosing Pumps | Built-in peristaltic pumps for media, acid, base and antifoam. |
| Impeller | Height-adjustable impeller with a removable baffle cage. |
| Feeding Control | PID-controlled feeding with automatic antifoam dosing. |
| Data Export | USB export of trend and historical curves to Excel-compatible files. |
Accessories | Quantity |
Remote control | 1 |
ORP sensor | 1 |
Weight system | 1 |
Biomass sensor | 1 |
Turbidity (OD) sensor | 1 |
Glucose Online analyzer | 1 |
Feeding balance | 1 |
