Description

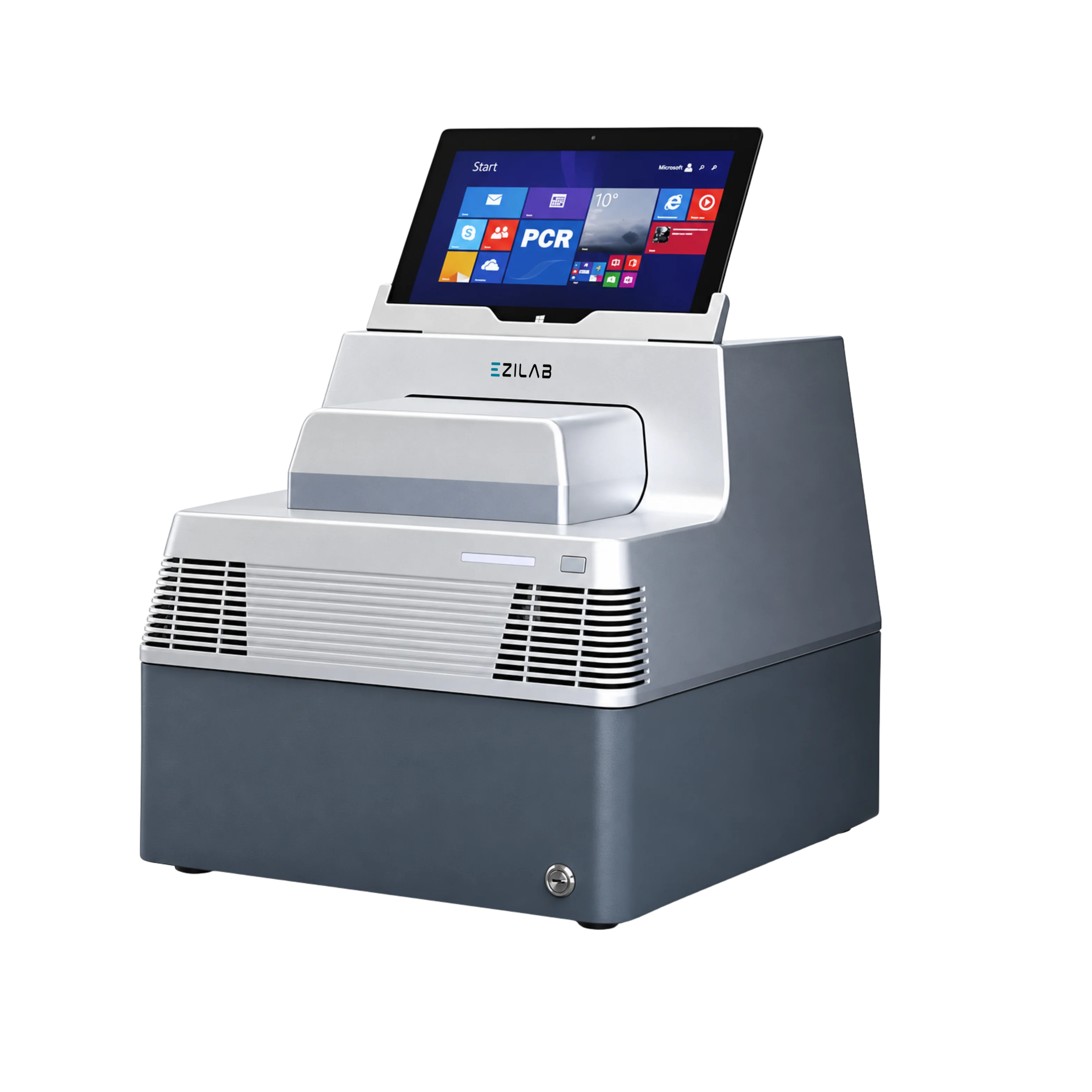

Quantitative PCR Detection System EZL-PC171 is a fully integrated fluorescence PCR amplification and data analysis system. It tests up to 96 samples within 5.5s optical scanning for 6 channels fluorescence detection operating under 105°C temperature range. The instrument operates in a 500 – 800nm detection wavelength range with full plate and designated line scanning. Large LCD touch screen has quick access for multiple functions with one-touch commands and built-in diagnostics assist in trouble shooting.
Specifications
| Sample Capacity |
96×0.2ml PCR tube 12×8 strip tubes 96×0.2ml single tube |
|---|---|
| Reaction Volume | 5 – 100µl |
| Channel | 4 |
| Detection Wavelength | 500 – 800nm |
| Excitation Wavelength | 300 – 800nm |
| Module Temperature Range | 4 – 105°C |
| Ramp Rate | 4°C/s |
| Temperature Control Accuracy | ± 0.1°C |
| Temperature Uniformity | ≤ ±0.3°C |
| Temperature Control Mode | Block and tube mode |
| Gradient Temperature Range | 1 – 36°C |
| Hot Liquid Temperature Range | 30 – 110°C |
| Fluorescence Detection Repeatability | 0.05 |
| Scanning Time | 5.5s |
| Scanning Mode | Full plate scanning and line scanning |
| Dynamics Range | 1 – 1010 copies |
| Operation Mode | Continuous |
| Programming | 20 segments for each program, max 99 cycles |
| Power | 600 W |
| Power Supply | 100-240V, 50/60Hz |
| Dimension (L×W×H) | 410×386×352 mm |
| Packing Size (L×W×H) | 720×680×640 mm |
| Gross Weight | 55 Kg |
