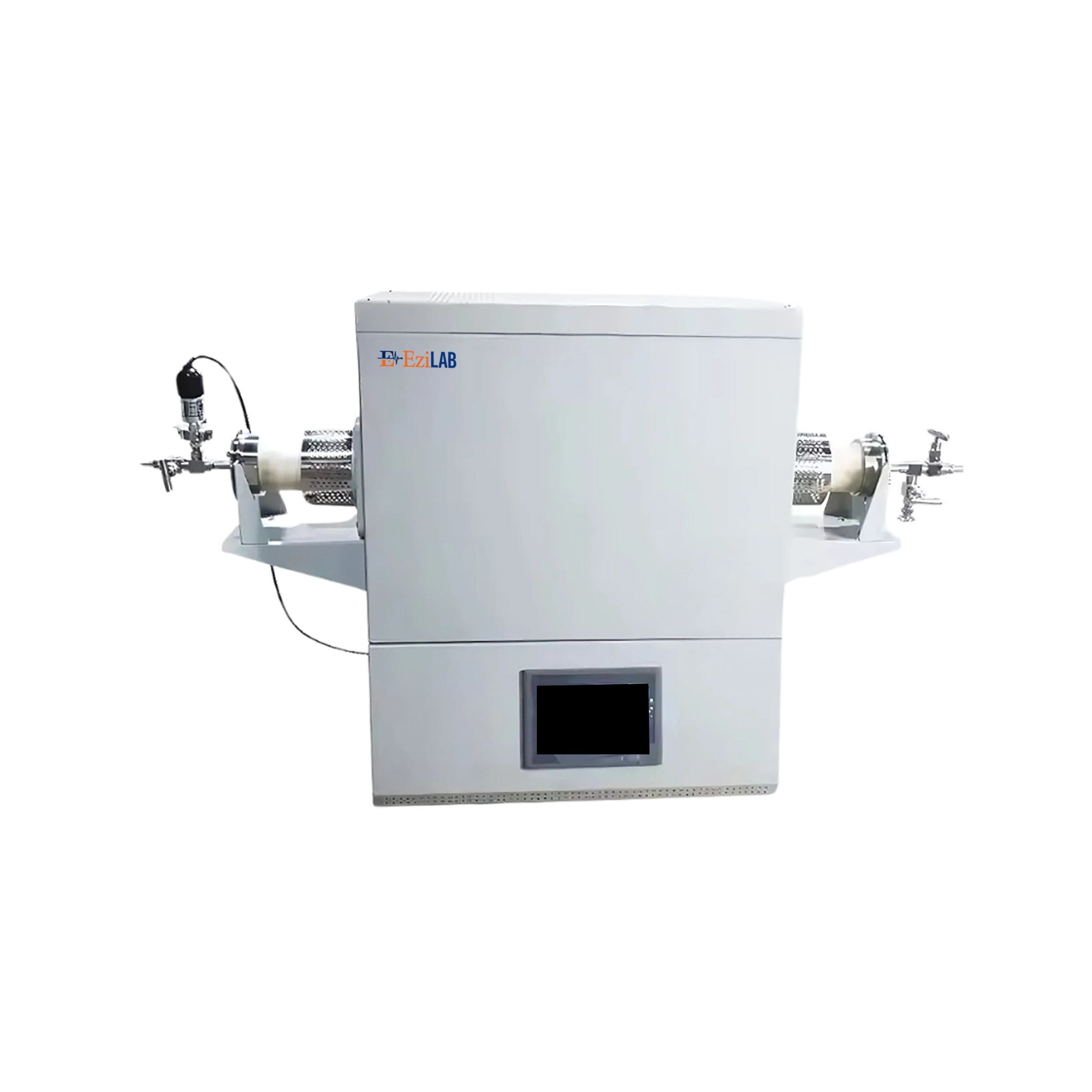

EziLab Tube Furnace EZL-TF201 operates up to 1500°C with a 50x700mm quartz tube and single 180mm heating zone, offering a high temperature tube furnace with PID control, 1°C variation, 0 to 20°C/min heating rate, and 0 to 60ml/min flow control for atmosphere regulation. The 50x700mm quartz tube supports stable thermal exposure across the 180mm heating zone, while 0 to 60ml/min flow control supports controlled atmosphere regulation. PID control with 0 to 20°C/min heating rate supports flexible ramp profiles for material synthesis, CVD research, advanced ceramics, and chemistry research workflows via Lab Equipment and EziLab's full range of furnaces for lab workflow integration.
| Tube Size | 50×700 mm |
|---|---|
| Maximum Temperature | 1500°C |
| Working Temperature | ≤1450°C |
| Temperature Accuracy | ±1°C |
| Heating Rate | 0 to 20°C/min |
| Heating Zone | Single zone |
| Length of Heating Zone | 180 mm |
| Gas Tightness | 4.03×10-3 Pa |
| Flow Control | 0 to 60ml/min |
| Tube Material | Quartz |
| Sealing Mode | Vacuum Flange |
| Thermocouple | S type |
| Pre-setting curve | 15 pre-setting curves |
| Heating Element | SiC rod |
| Chamber Material | Alumina fiber refraction insulation |
| Control Mode | PID control |
| Operating Interface | Graphical interface |
| Working Voltage | AC 208-240V 50/60Hz |
| Dimensions (W×D×H) | 850×420×680 mm |
| Net Weight | 30 kg |
Intelligent sensor alarm function
7-inch color touch screen
Storage up to 15 sintering curves
Durable molded fiber insulation
Vacuum sealing flange
Embedded heating element
Exhausted gas outlet port
Digital PID program controller
Auto-tuning function
Intuitive and easy to use operating menu
Excellent temperature accuracy
Simple to use and maintain
Over-temperature limit function
Less and low noise operation with gentle air currents
These furnaces are used for various purposes such as development of new materials, including industrial and biotechnology products are being used as the basis of a common laboratory equipment.
