Description

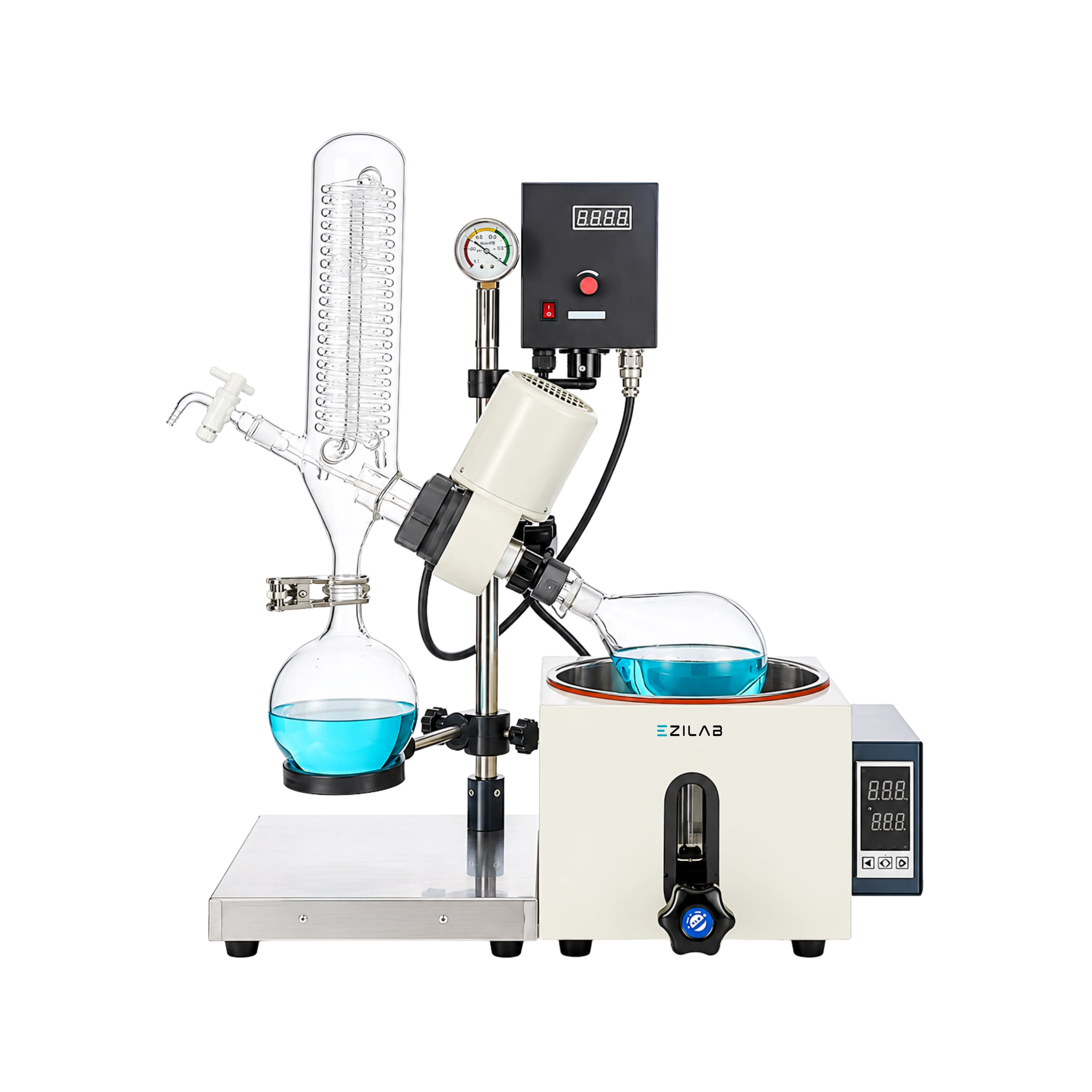

EziLab Rotary Evaporator EZL-RE24 manages mid-scale evaporation with a 5L rotating bottle and 3L collecting bottle for laboratory distillation workflows across pharmaceutical, chemical, and biological environments. Rotation speed runs from 0–120 rpm with electronic step-less control, while evaporation rate reaches 60 ml/min for higher throughput. Bath temperature range covers 0–180°C with 1°C variation for controlled heating, and achievable vacuum reaches 0.098 MPa for reduced-pressure operation. Manual elevating provides 220 mm stroke for flask positioning, and a vertical condenser improves vapor recovery during processing. Suited to evaporation, concentration, crystallization, separation, and solvent recovery in pharmaceutical, chemical, and biological laboratories via Lab Equipment and EziLab's full range of laboratory evaporators for lab workflow integration.
Specifications
| Rotary Bottle | 5 L |
|---|---|
| Collecting Bottle | 3 L |
| Rotary Speed | 0 to 120 rpm |
| Evaporating Speed | 60 ml/min |
| Achievable Vacuum | 0.098 Mpa |
| Bottom Plate Size | 350×330 mm |
| Elevating Stroke | 220 mm |
| Temperature Range | 0 to 180°C |
| Temperature Accuracy | ±1°C |
| Display | Digital display |
| Speed Regulation | Electronic step less speed regulation |
| Condensing Tube | Vertical type ɸ100×590 mm |
| Elevating function | Manual elevating |
| Vacuum Sealing | Double sealing with Teflon (PTFE) |
| Rotary Motor Power | 40 W |
| Heating Power | 2 Kw |
| Dimension (L×W×H) | 735×375×1100 mm |
| Packing Dimension (L×W×H) | 995×590×490 mm |
| Weight | 44 Kg |
