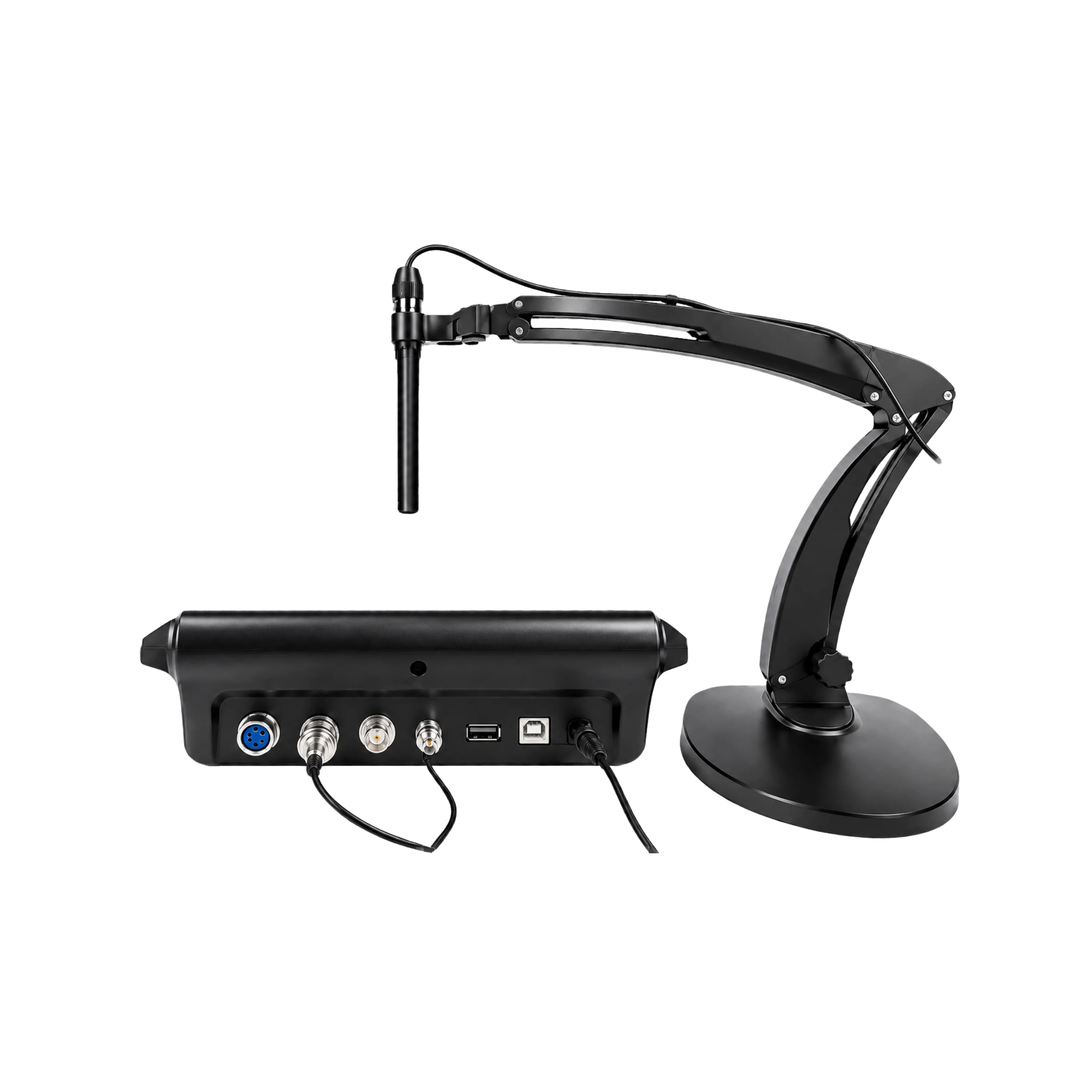

Desktop Ion Concentration Meter EZL-ICM126 is a microprocessor-based device designed for continuous measurement and determination of nitrate (NO3) ion concentration. Test nitrate ion and pH value of drinking water, food and sewage. The automatic temperature compensation (ATC) ranges from -10.0 °C to 110.0 °C maintains reading accuracy even with fluctuating temperatures, and a measurement range pH/pX of (-2.00 to 20.00) pH, (0.00 to 14.00) pX makes it suitable for the IC determinations.
| Measurement Range | -2.00 to 20.00 pH, 0.00 to 14.00 pX, -1999.9 to 1999.9 mV, 0 to 19990, Optional Units: mol/L, g/L, ppm, -10.0 °C to 110.0 °C |
|---|---|
| Resolution | 0.01 pH/pX, 1mV, 4 significant digits ( Expressed in scientific notation), 0.1 °C |
| Accuracy | ± 0.01 pH/pX, ± 0.1 % FS, ± 0.3 %, ± 0.1 °C |
| Power | DC 12 V/1 A, With standard power adaptor |
| Dimensions (W×D×H) | 270×170×70 mm |
| Weight | 600 g |
Tests ions in aqueous solutions
Large, dual-display LCD and a water-resistant keyboard
Measures pH, temperature, ORP, ion concentration and relative mV
7-inch colour capacitive screen with 1024×600 high resolutions
Auto-calibration, auto-temperature compensation and data storage
USB data export, clock, wireless printing, self-diagnosis
Data storage is of 1000 sets and can be edited and is transferable
Can switch between different units (g/L, mol/Land ppm)
Smart judge of electrode status provides accurate operation
Wireless Bluetooth block
Optional data transmission to PC and cell phone via wireless Bluetooth
Test and analysis of the different ions in: Drinking water, surface water, sea water, food, sewage, living sewage and industrial wastewater. And the ions in mineral, organic, and biological materials and many others.
Ion concentration meter LO-DICM100 Series 1 unit
Ion electrode 1pc
Reference electrode 1 pc
Temperature electrode 1 pc
Rotary electrode holder 1pc
12V Power adapter 1 pc
User manual 1 copy
USB flash drive 1 pc
