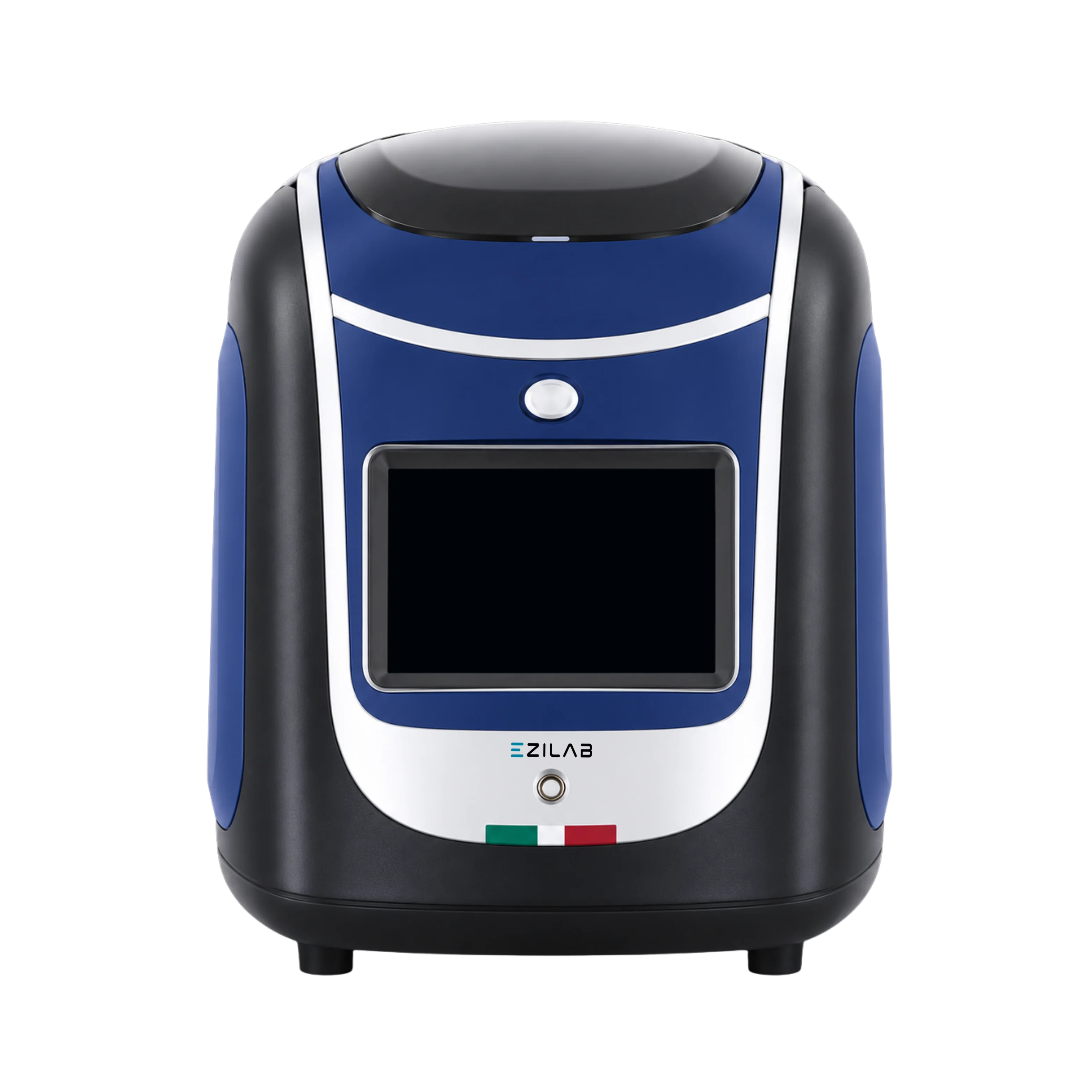

X-ray Fluorescence Sulfur in Oil Analyzer EZL-XRF101

www.ezilab.com | [email protected]

Description

EziLab X-ray Fluorescence Sulfur in Oil Analyzer EZL-XRF101 provides rapid sulfur measurement for petroleum products, petrochemical quality control, fuel compliance analysis, and laboratory research applications. Concentration range spans 5 ppm to 50,000 ppm with stable XRF sulfur analyzer accuracy, while testing time ranges between 30 and 130 seconds for efficient routine workflows. Compact dimensions allow easy placement in laboratory environments, and USB output enables simple data export across standard reporting systems. The analyzer operates across wide temperature and humidity conditions without additional environmental controls. EziLab's Lab Equipment and petroleum testing equipments list the full XRF sulfur analyzer and petroleum sulfur measurement selection for refinery and quality control use.

Specifications

Measurement Range 5ppm to 50,000ppm
Sample Cups 50
Working Temperature -20˚C to +50˚C
Humidity Less than equal to 90 %
Testing time 30 to 130 seconds
Detection Limit 20 ppm
External Output USB2.0
Power Supply 110-120V/50 Hz
Dimensions (L× H ×D) 212 × 258 × 258mm
Weight 4.5kg

Features

  • ✓ Quick testing operation
  • ✓ Advanced detection system
  • ✓ Multi-sample compatibility
  • ✓ Durable system design
  • ✓ Flexible sample handling

Standard Accessories

  • ✓ <figure class="table" style="width:482.1pt;"><table><tbody><tr><td style="border:1.0pt solid windowtext;height:16.4pt;padding:0cm;vertical-align:top;width:241.0pt;">
  • ✓ Sample Cup
  • ✓ </td><td style="border-bottom-style:solid;border-color:windowtext;border-left-style:none;border-right-style:solid;border-top-style:solid;border-width:1.0pt;height:16.4pt;padding:0cm;vertical-align:top;width:241.1pt;">
  • ✓ 50 pieces
  • ✓ </td></tr><tr><td style="border-bottom-style:solid;border-color:windowtext;border-left-style:solid;border-right-style:solid;border-top-style:none;border-width:1.0pt;height:16.4pt;padding:0cm;vertical-align:top;width:241.0pt;">
  • ✓ Sample Cup / Film Assembly Tools
  • ✓ </td><td style="border-bottom:1.0pt solid windowtext;border-left-style:none;border-right:1.0pt solid windowtext;border-top-style:none;height:16.4pt;padding:0cm;vertical-align:top;width:241.1pt;">
  • ✓ 1 Set
  • ✓ </td></tr><tr><td style="border-bottom-style:solid;border-color:windowtext;border-left-style:solid;border-right-style:solid;border-top-style:none;border-width:1.0pt;height:16.4pt;padding:0cm;vertical-align:top;width:241.0pt;">
  • ✓ X-Ray Film
  • ✓ </td><td style="border-bottom:1.0pt solid windowtext;border-left-style:none;border-right:1.0pt solid windowtext;border-top-style:none;height:16.4pt;padding:0cm;vertical-align:top;width:241.1pt;">
  • ✓ 1 Bag
  • ✓ </td></tr></tbody></table></figure>

Applications

  • ✓ X-ray Fluorescence Sulfur in Oil Analyzer EZL-XRF101 offers rapid and precise sulfur measurement in petroleum products, coal chemicals, and related materials supporting continuous quality control in petrochemical labs.
