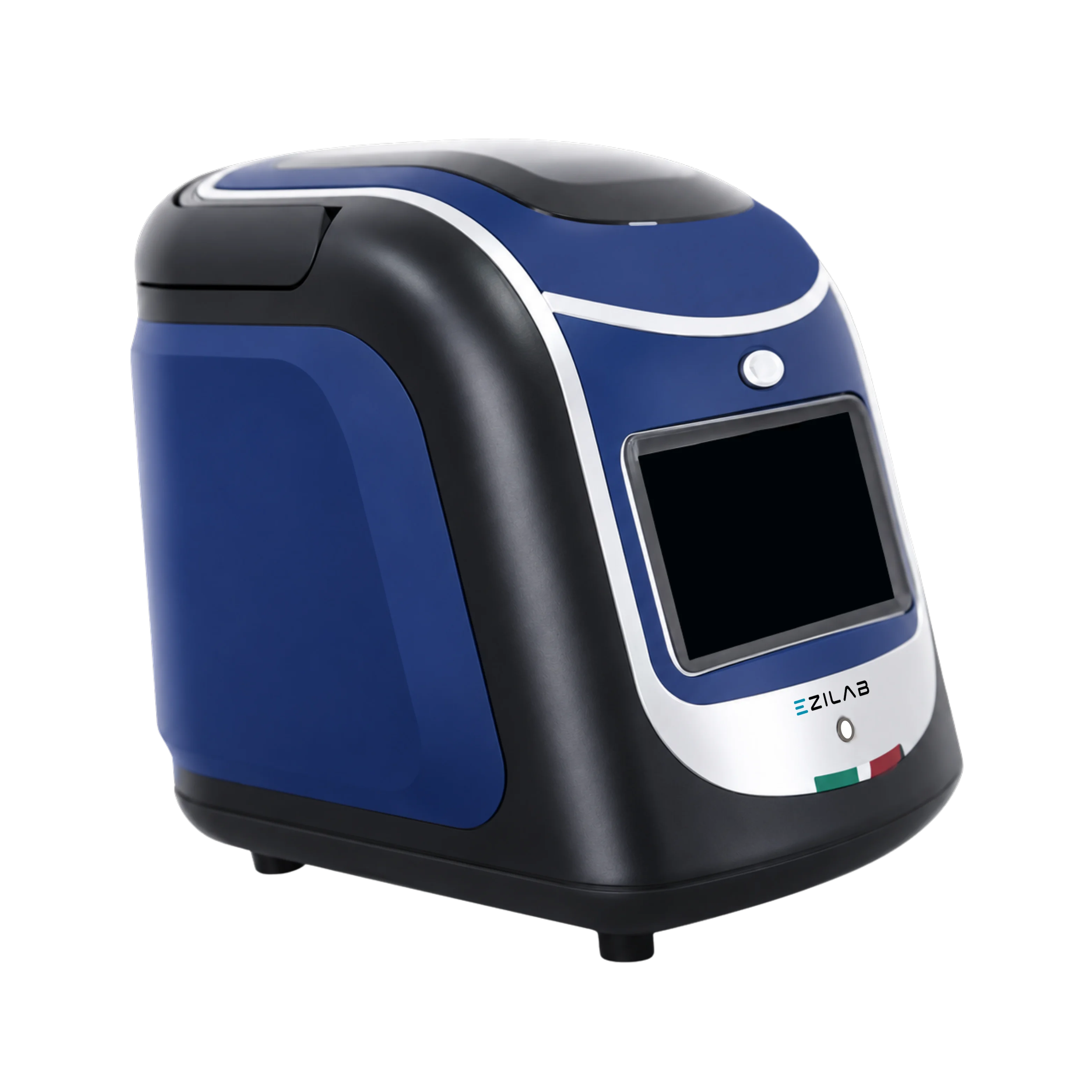

EziLab offers the X-ray Fluorescence Sulfur in Oil Analyzer EZL-XRF101, a 4.5 kg XRF analyzer that measures sulfur from 5 to 50,000 ppm with a 20 ppm detection limit. Each test takes 30 to 130 seconds, and results export over USB 2.0. The 212 × 258 × 258 mm unit works from -20°C to +50°C at up to 90% humidity, and ships with 50 sample cups, film assembly tools, and a bag of X-ray film. Its light weight and wide temperature window let crews carry it from the lab to terminals, tank farms, and field sites. Operators fill a cup, seal it with X-ray film, and load it for a non-destructive reading, so samples stay intact. Fast cycles let one sulfur analyzer screen incoming loads, blend components, and finished fuels in quick succession. XRF testing needs no combustion or reagents, keeping running costs low. Refineries confirm diesel, gasoline, and fuel oil meet sulfur limits before release, while fuel terminals verify incoming shipments. Coal chemical plants check feedstocks and products, and petrochemical QC labs and research centers run this XRF machine for routine sulfur control. Open the Lab Equipment and Petroleum Testing Equipment listings with one number in hand, your weekly sample count, since each test uses a cup and a film window and the 50 cups supplied last only so many weeks at that rate.
| Measurement Range | 5ppm to 50,000ppm |
|---|---|
| Sample Cups | 50 |
| Working Temperature | -20˚C to +50˚C |
| Humidity | Less than equal to 90 % |
| Testing time | 30 to 130 seconds |
| Detection Limit | 20 ppm |
| External Output | USB2.0 |
| Dimensions (L× H ×D) | 212 × 258 × 258mm |
| Weight | 4.5kg |
Quick testing operation
Advanced detection system
Multi-sample compatibility
Durable system design
Flexible sample handling
Sample Cup | 50 pieces |
Sample Cup / Film Assembly Tools | 1 Set |
X-Ray Film | 1 Bag |
| • | Refineries running release checks on diesel, gasoline and fuel oil, with results in 30 to 130 seconds per sample. |
| • | Fuel terminals verifying sulfur in incoming shipments before unloading, using the 5 to 50,000 ppm range to cover low and high sulfur grades. |
| • | Coal chemical plants checking sulfur in feedstock and products without combustion or reagents. |
| • | Petrochemical QC labs screening sample batches with the 50 included sample cups and X-ray film, exporting results over USB 2.0. |
| • | Research centers studying sulfur in petroleum products, with a 20 ppm detection limit and a 4.5 kg body that moves easily between benches. |
The X-ray Fluorescence Sulfur in Oil Analyzer EZL-XRF101 ensures accurate and repeatable results, making it highly suitable for daily use in petroleum labs. The instrument minimizes sample preparation, allowing laboratories to save time while maintaining precision. It provides quick sulfur content readings that help labs monitor product quality and meet regulatory compliance. The analyzer’s design is user-friendly, ensuring even routine technicians can operate it effectively without specialized training.
Our X-ray Fluorescence Sulfur in Oil Analyzer EZL-XRF101 is built to deliver consistent measurements across a wide range of petroleum-based samples. The system allows operators to set different testing durations, balancing speed and accuracy as required by industrial workflows. Its robust performance ensures laboratories can rely on the results for quality certifications and compliance checks. This makes it a dependable tool for continuous quality monitoring in refineries, chemical plants, and fuel distribution facilities.
The X-ray Fluorescence Sulfur in Oil Analyzer EZL-XRF101 incorporates shielding and built-in safety mechanisms to protect users from unnecessary exposure. The instrument automatically controls its operating state, ensuring that electrical and analytical components remain within safe parameters. This provides peace of mind for laboratories that need to run continuous or unattended operations. Safety features are designed to meet laboratory standards, allowing staff to focus on analysis without added risks.
The X-ray Fluorescence Sulfur in Oil Analyzer EZL-XRF101 offers flexibility by accommodating petroleum products, coal chemicals, and related samples. Laboratories can adjust test times depending on whether rapid screening or high-accuracy results are required. This adaptability makes it suitable for both research applications and production monitoring. Its versatility ensures laboratories do not need separate instruments for different testing scenarios, saving cost and space.
Our X-ray Fluorescence Sulfur in Oil Analyzer EZL-XRF101 is designed to withstand frequent operation without performance loss. The system’s durability and stability make it suitable for labs that run multiple tests daily, such as refineries or large research centers. Automated functions reduce operator workload and enable consistent results over extended periods. Its reliability ensures that even under high demand, laboratories can depend on uninterrupted testing.
