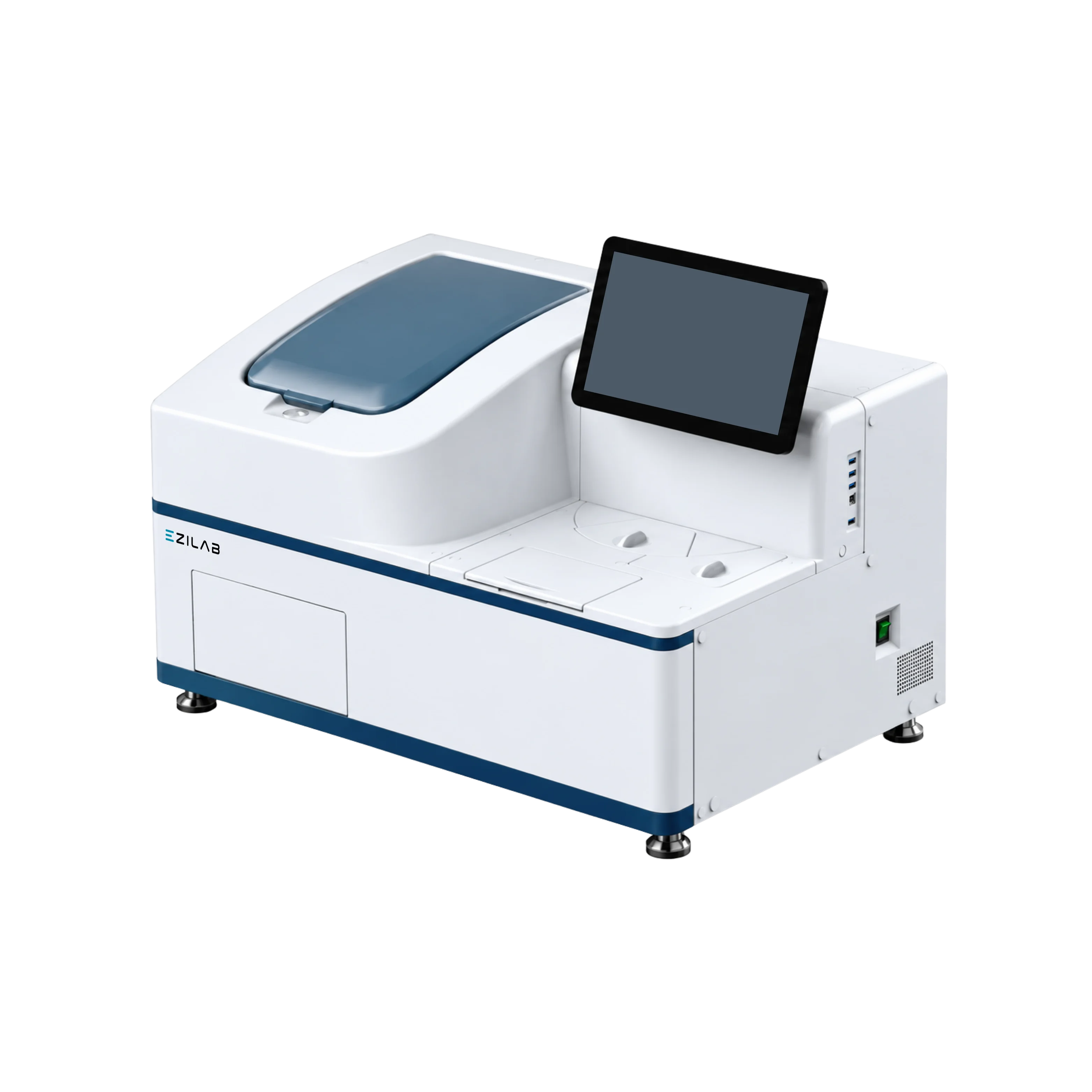

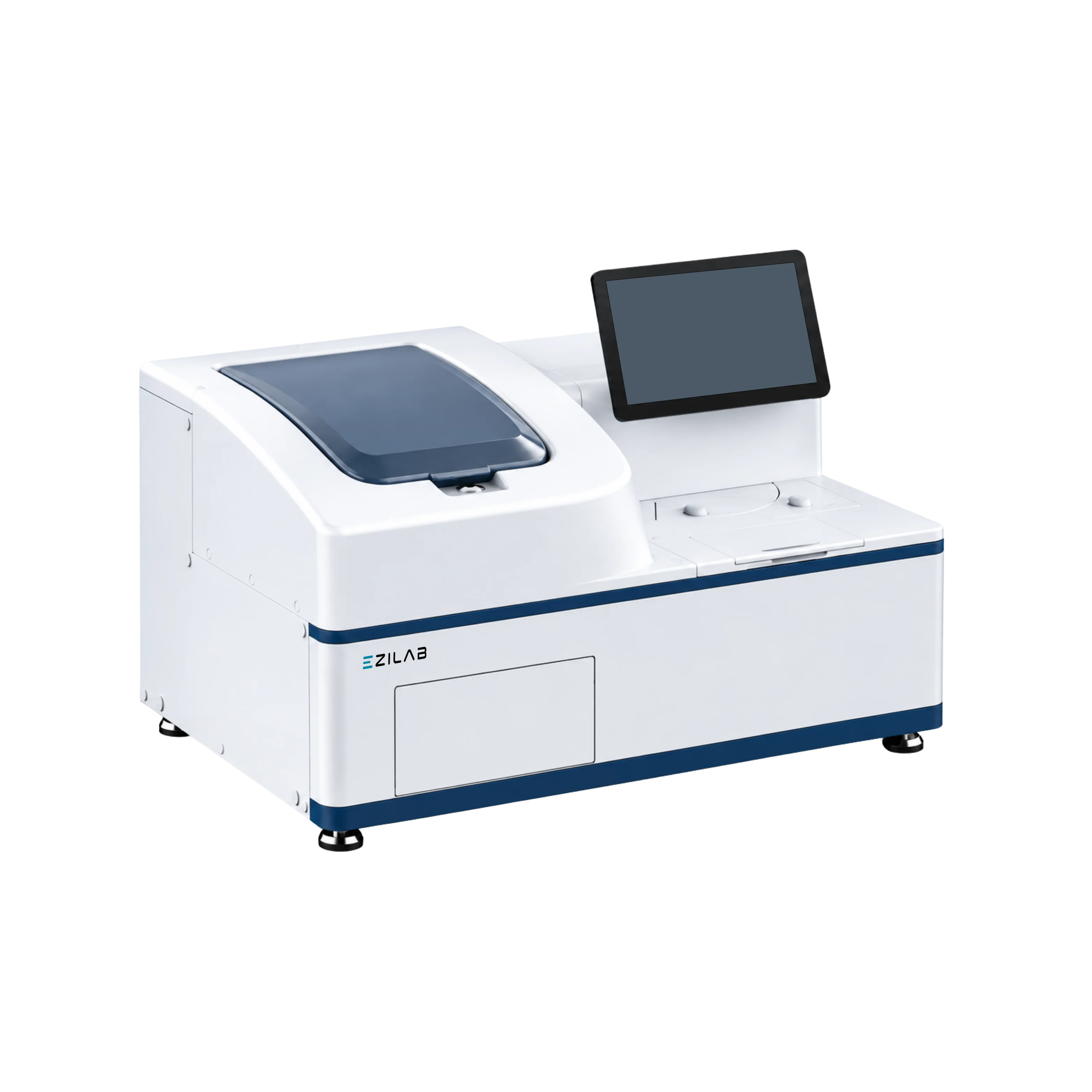

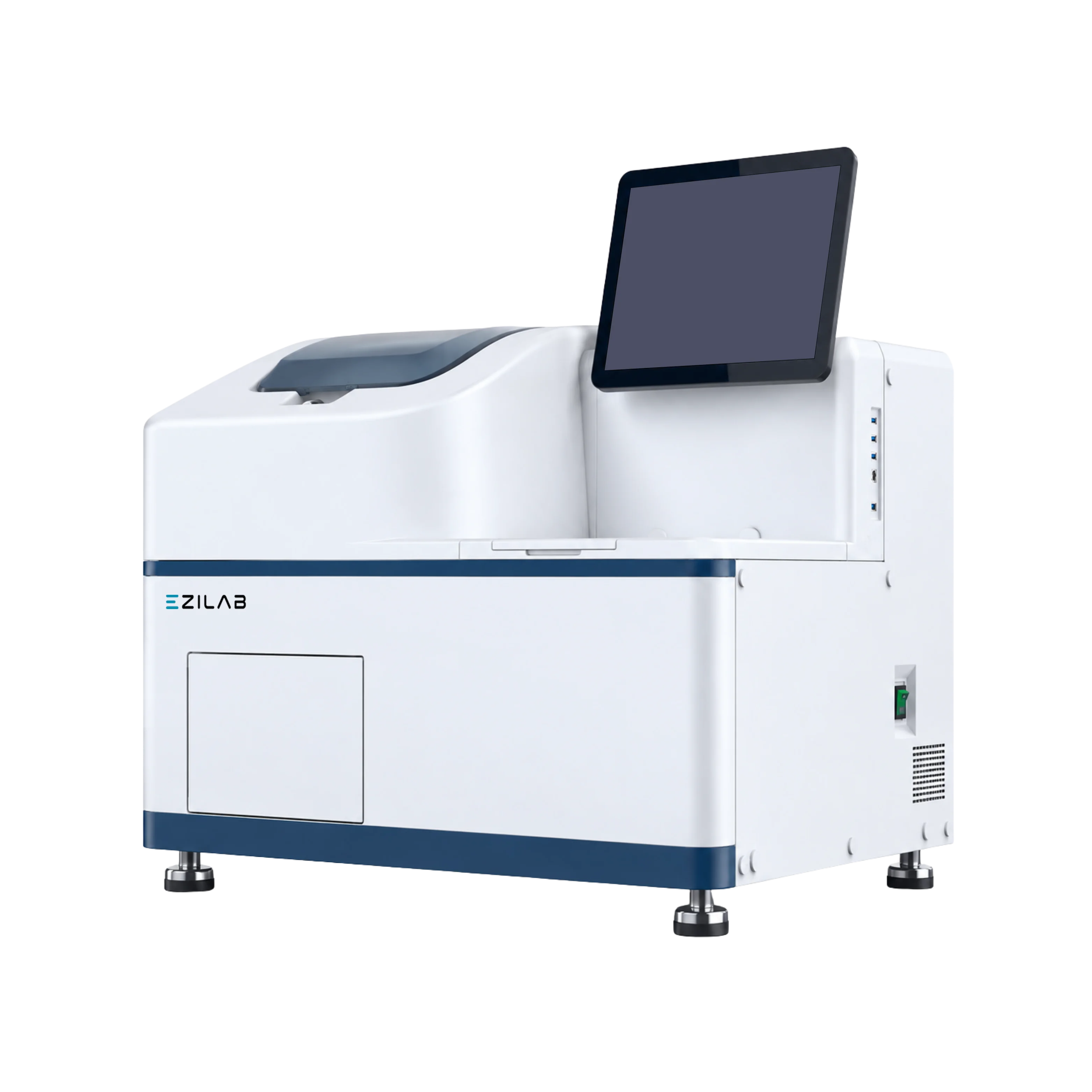

EziLab Automatic Chemiluminescence Immunoassay Analyzer EZL-CIA100 operates at 32 tests per hour with ALP chemiluminescence and magnetic separation, offering an immunoassay machine with 32-channel parallel testing, 16 sample and reagent positions, CV 5% variation, and HL7 bi-directional connectivity. The 32-channel parallel testing supports high-throughput batch workflows with stable analytical output across complex sample matrices. ALP chemiluminescence with magnetic separation supports sensitive detection, while HL7 bi-directional connectivity supports structured data handling for clinical diagnostics, hospital laboratories, blood banks, and research institute workflows via Lab Equipment and EziLab's full range of immunoassay analyzers for lab workflow integration.
| Throughput | 32 T/H |
|---|---|
| Principle | Enzymatic ALP chemiluminescence |
| Modes of Operation | Fully automated continuous-loading mode |
| Test batch size | 32-channel parallel test (random test item combination) |
| Sample type | Human plasma/Serum/Plasma/Urine(depends on reagent type) |
| Sample volume | 30-200ul（depends on reagent type |
| Spectrum | 300-650nm Data storage |
| Separation methodology | CLEIA and Magnetic separation methodology |
| Detection Precision | CV ≤ 5% for QC repeatability |
| Incubation temperature | 37 ℃ to 42℃（depends on reagent type |
| Calibration Data | Greater than 100000 |
| Sample Positions | 16 Positions |
| Reagent Positions | 16 Positions |
| Software | Windows 7/8/10, 32 or 64 bits, Bi-direction, support HL7 protocol and Linux |
| Power Supply | AC 100 to 240 V, 50 Hz |
| Exterior Dimension | 520 × 550 × 550mm |
| Packaging Dimension | 650 × 620 × 730mm |
| Net Weight | 55 Kg |
| Gross Weight | 75 Kg |
High-sensitivity detection
Fully automated operation
Secure data storage
Quiet operation design
Integrated reagent tracking
Automatic Chemiluminescence Immunoassay Analyzer EZL-CIA100 is widely used across clinical diagnostics, endocrinology, allergy testing, reproductive health, therapeutic drug monitoring, infectious disease research, public health and epidemiology, pharmaceutical research, veterinary diagnostics, etc.
| Markers | Product Name | Description | Quantity |
Cardiac Maker | NT-ProBNP | N-terminal pro b-type Natriuretic Peptide | 48pcs |
| D-Dimer | D-Dimer | 48pcs |
| MYO | Myglobulin | 48pcs |
| CK-MB | Creatine Kinase MB isoenzyme | 48pcs |
| hs-cTnI | Hypersensitive Troponin I | 48pcs |
Inflammation | PCT | Procalcitonin | 48pcs |
| IL-6 | Interlukin-6 | 48pcs |
| CRP | C-reactive protein | 48pcs |
| SAA | serum amyloid A protein | 48pcs |
Thyroid | TT3 | Total Triiodothyronine | 48pcs |
| FT3 | Free Triiodothyronine | 48pcs |
| TT4 | Total Thyroxine | 48pcs |
| FT4 | Free Thyroxine | 48pcs |
| TSH | Thyroid Stimulating Hormones | 48pcs |
| TPOAb | Thyroid Peroxidase Antibody | 48pcs |
| TGAb | Thyroglobulin Antibody | 48pcs |
Fertility Hormone | Total-hCGβ | Total Human Chorionic Gonadotropin β subunit | 48pcs |
| PRL | Prolactin | 48pcs |
| E2 | Estradiol | 48pcs |
| P | Progesterone | 48pcs |
| T | Testosterone | 48pcs |
| FSH | Follicle-stimulating Hormone | 48pcs |
| LH | Luteinizing Hormone | 48pcs |
| AMH | Anti-Mullerain Hormone | 48pcs |
TUMOR Markers | AFP | Alpha Fetoprotein | 48pcs |
| CEA | Carcinoembryonic Antigen | 48pcs |
| CA125 | Carbohydrate Antigen 125 | 48pcs |
| CA15-3 | Carbohydrate Antigen 153 | 48pcs |
| CA19-9 | Carbohydrate Antigen 199 | 48pcs |
| CA50 | Carbohydrate Antigen 50 | 48pcs |
| TPS | Tissue polypeptide specific antigen | 48pcs |
| S100 | S100 Protein | 48pcs |
| G17 | Gastrin 17 | 48pcs |
| PGI | Pepsinogen Ⅰ | 48pcs |
| PGII | Pepsinogen Ⅱ | 48pcs |
| f-PSA | Free Prostate Specific Antigen | 48pcs |
| t-PSA | Total Prostate Specific Antigen | 48pcs |
Allergy | IgE | Immunoglobulin | 48pcs |
Diabetes | HbA1C | glycosylated hemoglobin | 48pcs |
Infectious disease | HbsAg | hepatitis B surface antigen | 48pcs |
| HIV | human immunodeficiency virus | 48pcs |
| Anti-TP | treponema pallidum antibody | 48pcs |
| Anti-HCV | Hepatitis C Virus Antibody | 48pcs |
Intestina Inflammation | Calprotectin | fecal calprotectin | 48pcs |
Hypertension | Renin | Renin | 48pcs |
| Angiotensin II | Angiotensin II | 48pcs |
| ACTH | Adrenocorticotropic hormone | 48pcs |
| ALD | Aldosterone | 48pcs |
| Cortisol | Cortisol | 48pcs |
