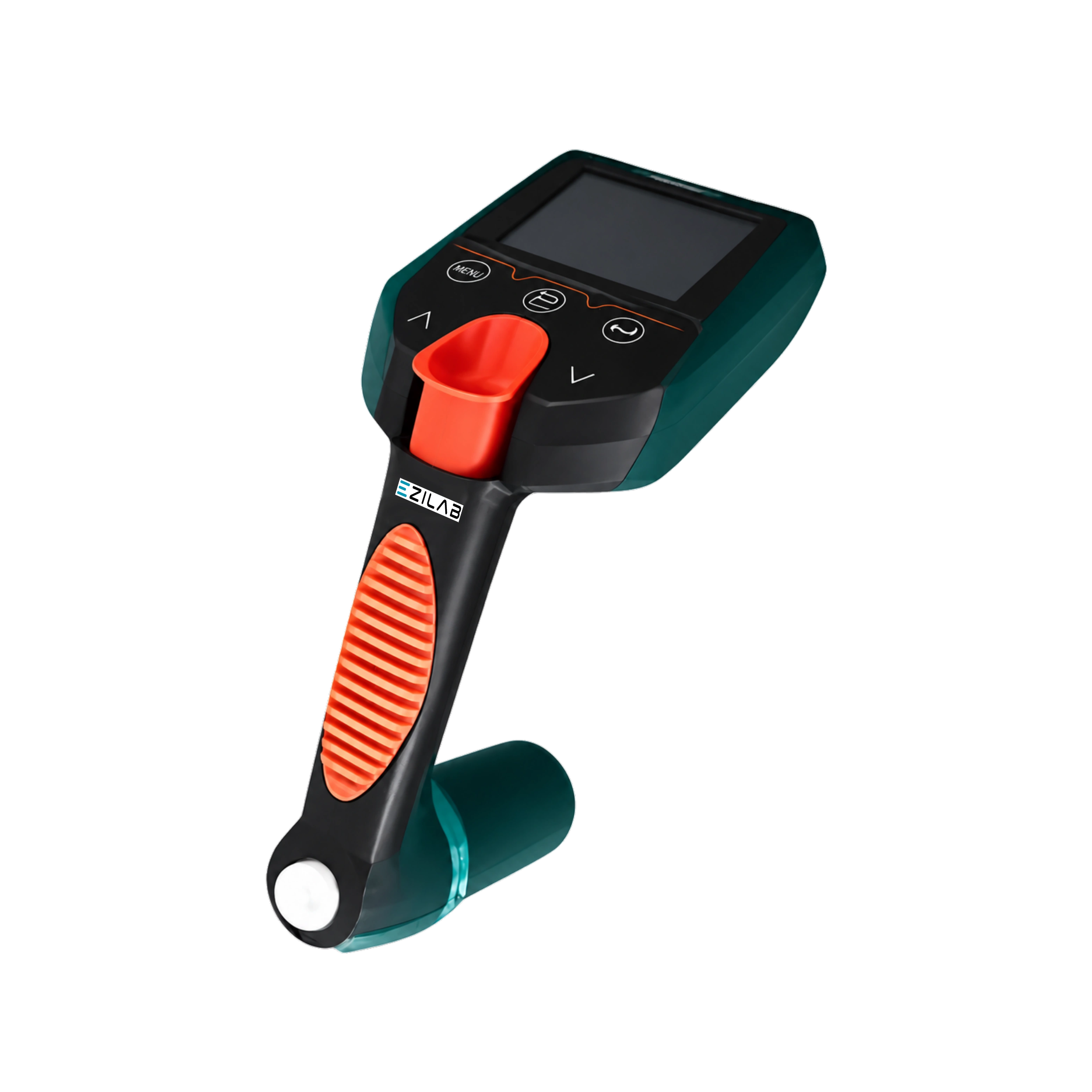

Ezilab's Portable Density Meter EZL-PDM101 serves field and laboratory teams that need density measurement outside a fixed bench setup, with connectivity built in for logging results without manual transcription. Covering a 0.65-1.0 g/cm³ range with IP67 protection and a Bluetooth interface, this lab density meter suits petroleum, fuel, and light-liquid applications where field testing matters as much as bench accuracy. That 0.65-1.0 g/cm³ range targets lighter fluids specifically — fuels, solvents, and similar low-density liquids — rather than the broader range a general-purpose density meter would need to cover, which lets this unit run tighter and more responsive readings within that specific band. IP67 protection is what makes field deployment realistic rather than theoretical: it survives dust exposure and temporary submersion, standing up to the actual conditions of a fuel depot, pipeline site, or outdoor sampling location rather than requiring a controlled indoor environment. The Bluetooth interface transmits readings directly to a phone or tablet on-site, cutting out the manual note-taking step that introduces transcription errors during field surveys where multiple samples are read back-to-back. EziLab's Lab Density Meter and Portable Density Meter cover field density testing needs across USA petroleum and fuel laboratory settings.
| Measuring Range | 0.65g/cm3 to 1.0g/cm3 |
|---|---|
| Operating Temperature | 5°C to 55°C |
| Ambient Temperature | 10°C to 60°C |
| Accuracy | ± 0.0005g/cm3 |
| Temperature Accuracy | ± 0.2℃ |
| Repeatability | 0.0002g/cm3 |
| Temperature Repeatability | 0.1°C |
| Resolution | 0.0001g/cm3 |
| Temperature Resolution | 0.01°C |
| Sample Volume | 2ml |
| Sample Weight | 550g |
| Internal Storage | 5000 Measurement results |
| Continuous Working Time | More than 10 hours |
| Explosion-Proof Grade | Ex ia IIC T4 Ga |
| Ingress Protection | IP67 |
| Interface | Bluetooth |
| Power | Rechargeable lithium battery 3.8V |
| Dimensions | 240 × 80 × 125 mm |
| Weight | 4 kg |
Allow data tracing and querying
Facilitates large data storage and transfer
Functions as both portable and desktop unit
Explosion-proof construction
Multi-purpose usage
No sample wastage
Includes a color screen for clear data visualization
Charger × 1 pc Magnetic charging cable × 1 pc Bluetooth receiver × 1 pc
Hand Pump × 1 pc Straw × 1 pc
Portable Density Meter is used measure the density of liquids or solids. It finds applications in various industries such as Petrochemical, pharmaceutical, food and research laboratories.
