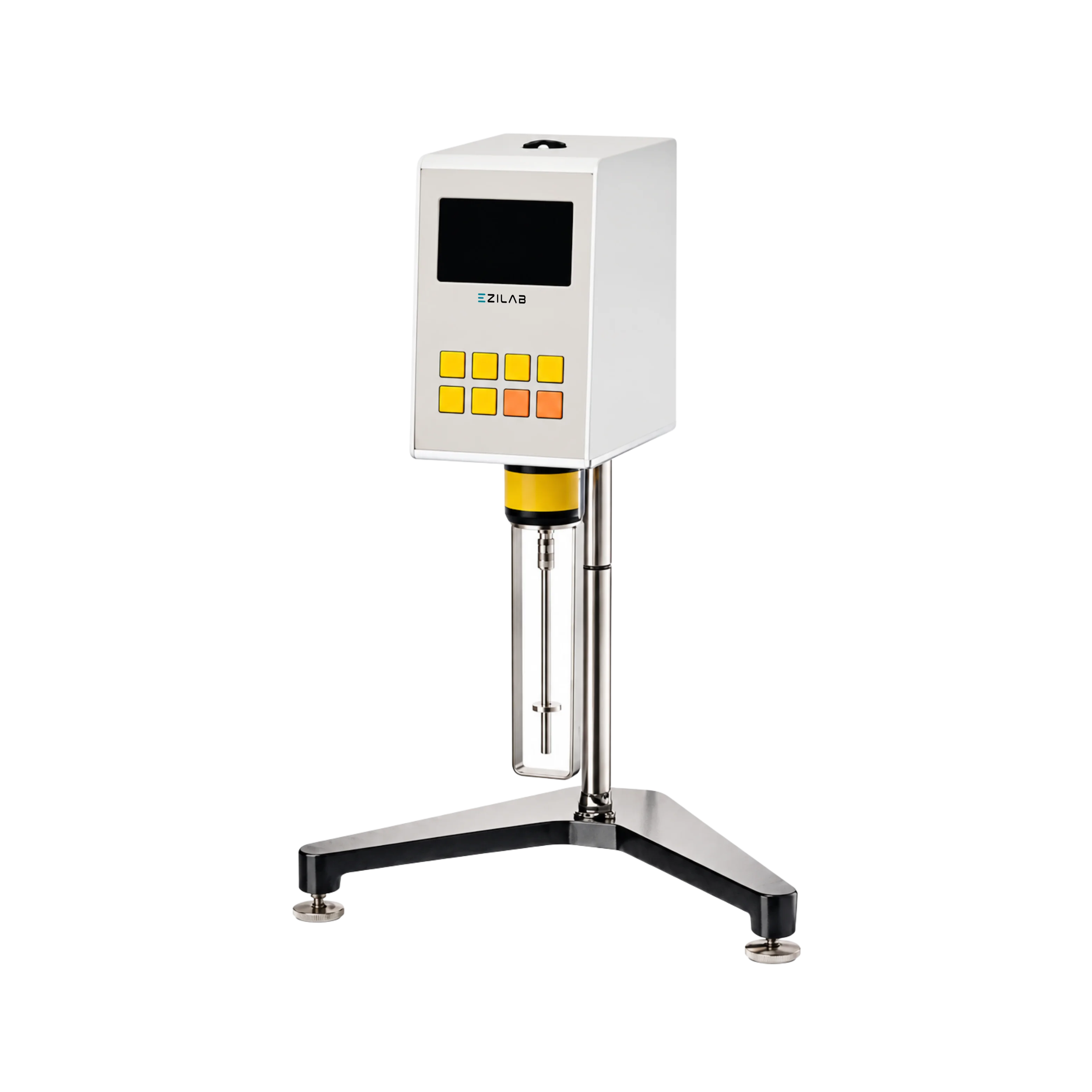

EziLab offers the Digital Viscometer EZL-DV413, a lab viscometer that reads from 1 to 6,000,000 mPa·s within ±3% at rotor speeds from 0.1 to 60 rpm. A 16-bit microprocessor drives the measurement, while a bright backlit digital display and a keypad that reaches all functions keep setup quick. At 95 × 130 × 155 mm and 2 kg, it fits crowded benches and works in rooms from 5°C to 35°C below 80% humidity. That 6,000,000 mPa·s ceiling is the widest in this line, three times the DV412 and sixty times the DV411 and DV414, so one viscometer handles thin emulsions through heavy pastes. The slow 0.1 rpm setting measures stiff gels, sealants, and greases that faster units cannot read, while higher speeds handle thinner fluids. Readings at fixed speeds make batch comparison simple, so drift shows before products ship. Paint, coating, and printing ink makers check batch consistency before filling, while adhesive and sealant producers confirm application viscosity. Cosmetic and pharmaceutical labs test creams, gels, and lotions, food plants monitor sauces, syrups, and pastes, and paper mills track pulp. Biochemical labs use this digital viscometer for routine viscosity measurement. See the Digital Viscometers and Digital Viscometer pages for full specifications.
| Measurement Range | 1-6×10(6) mPas |
|---|---|
| Speed | 0.1 to 60 rpm/min |
| Precision | ±3% |
| Working Condition | 5°C to 35°C |
| Relative Humidity | Less than 80°C |
| Outline Dimension (W×D×H) | 95mm×130mm×155mm |
| Out Packaging Dimensions (W×D×H) | 475mm×220mm×375mm |
| Net Weight | 2 Kg |
Select all functions from user friendly keypad
Simplifies user interface for more direct access to features
Employs 16 bit high performance chip micro processing technology
Contains bright easy to read digital display
Multi optional rotating speeds satisfy different measurement range
Compact design with no additional space requirement
Operator convenient back-lit display
It is widely used in measurement of viscosity in industrial and research applications, solvent based adhesives, emulsions, bio-chemicals, paints, coatings, cosmetics, printing inks, paper, pulp, food, etc.
