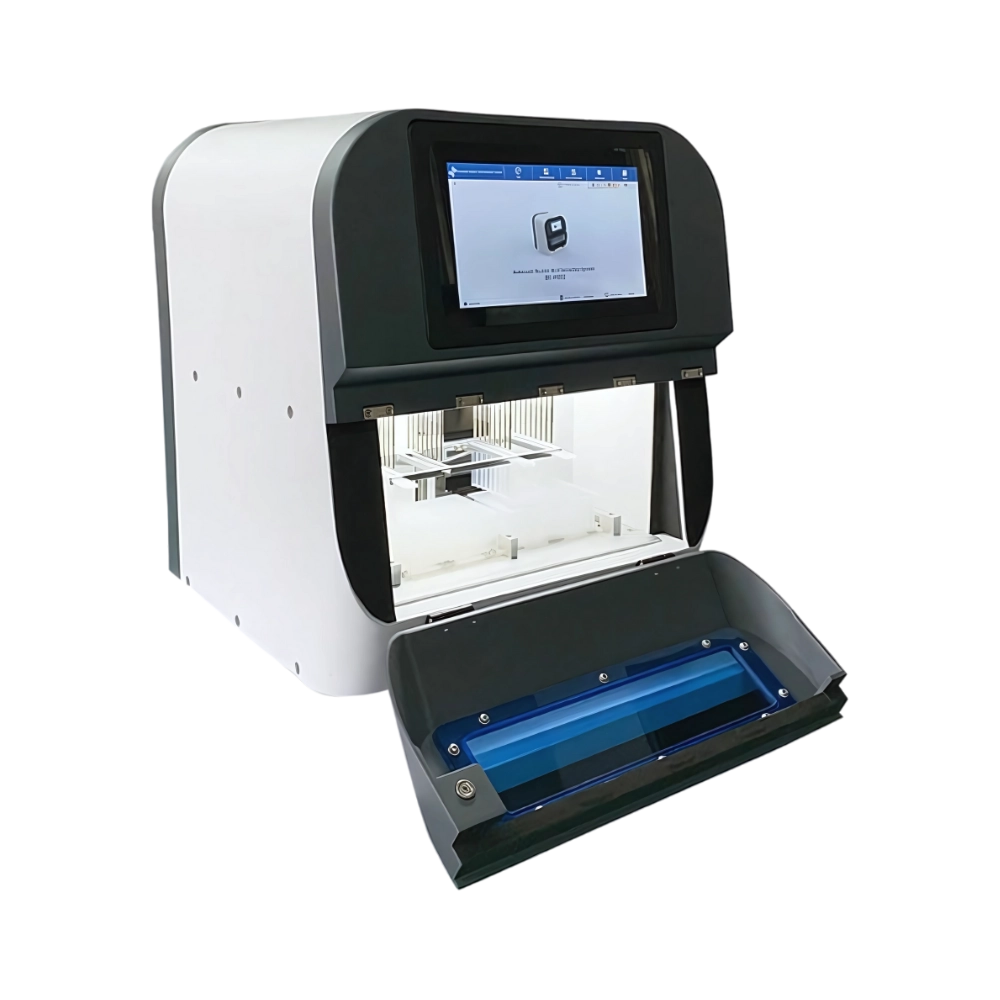

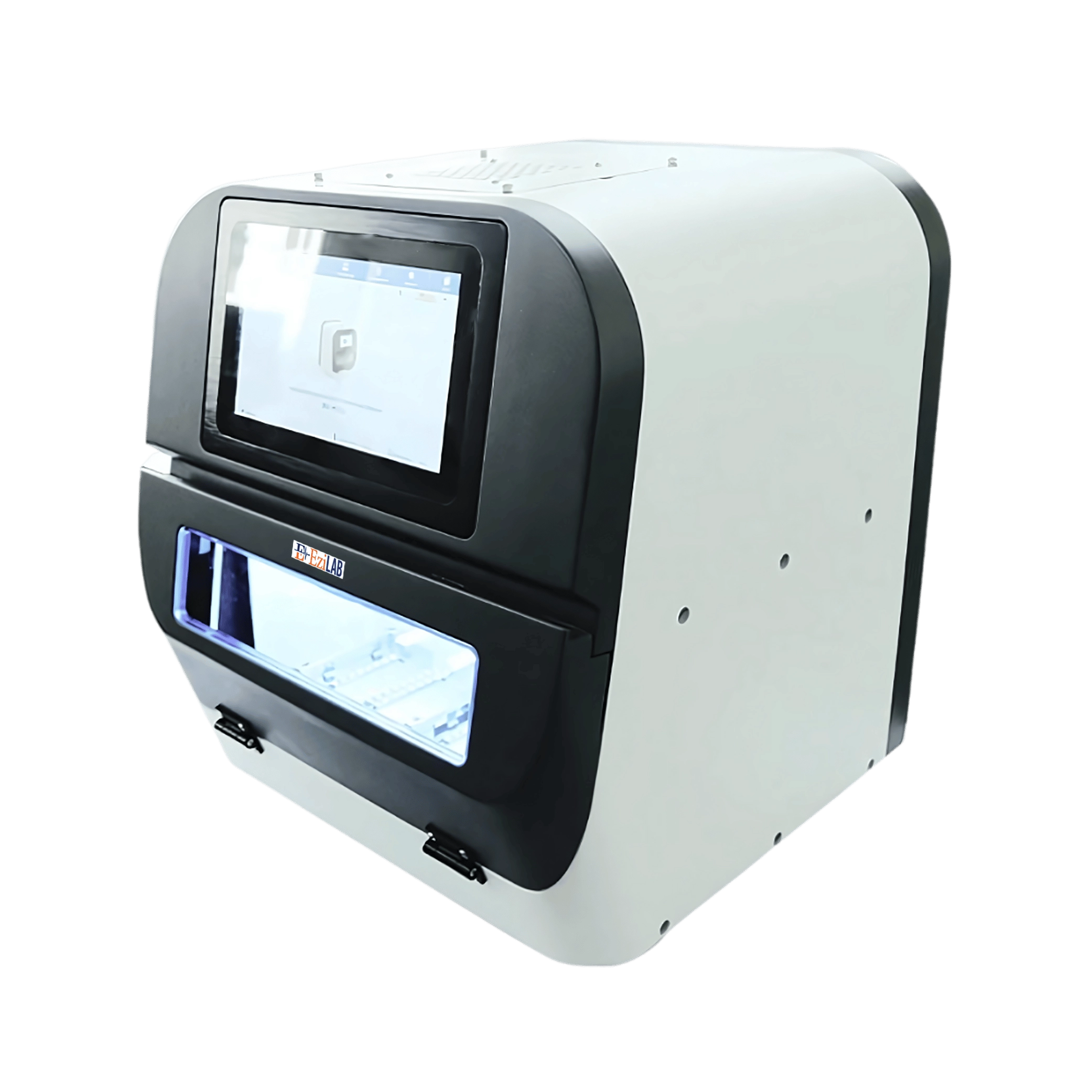

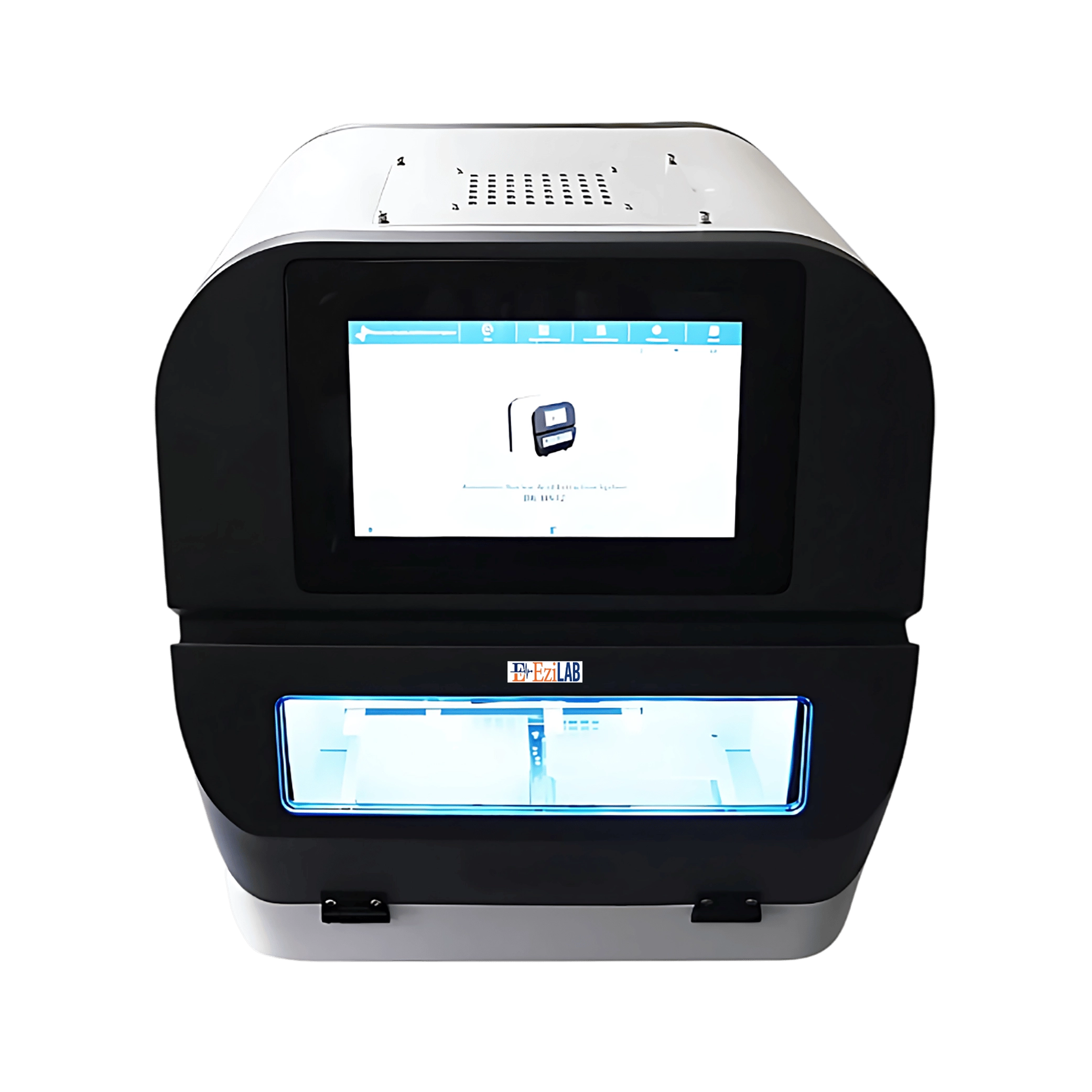

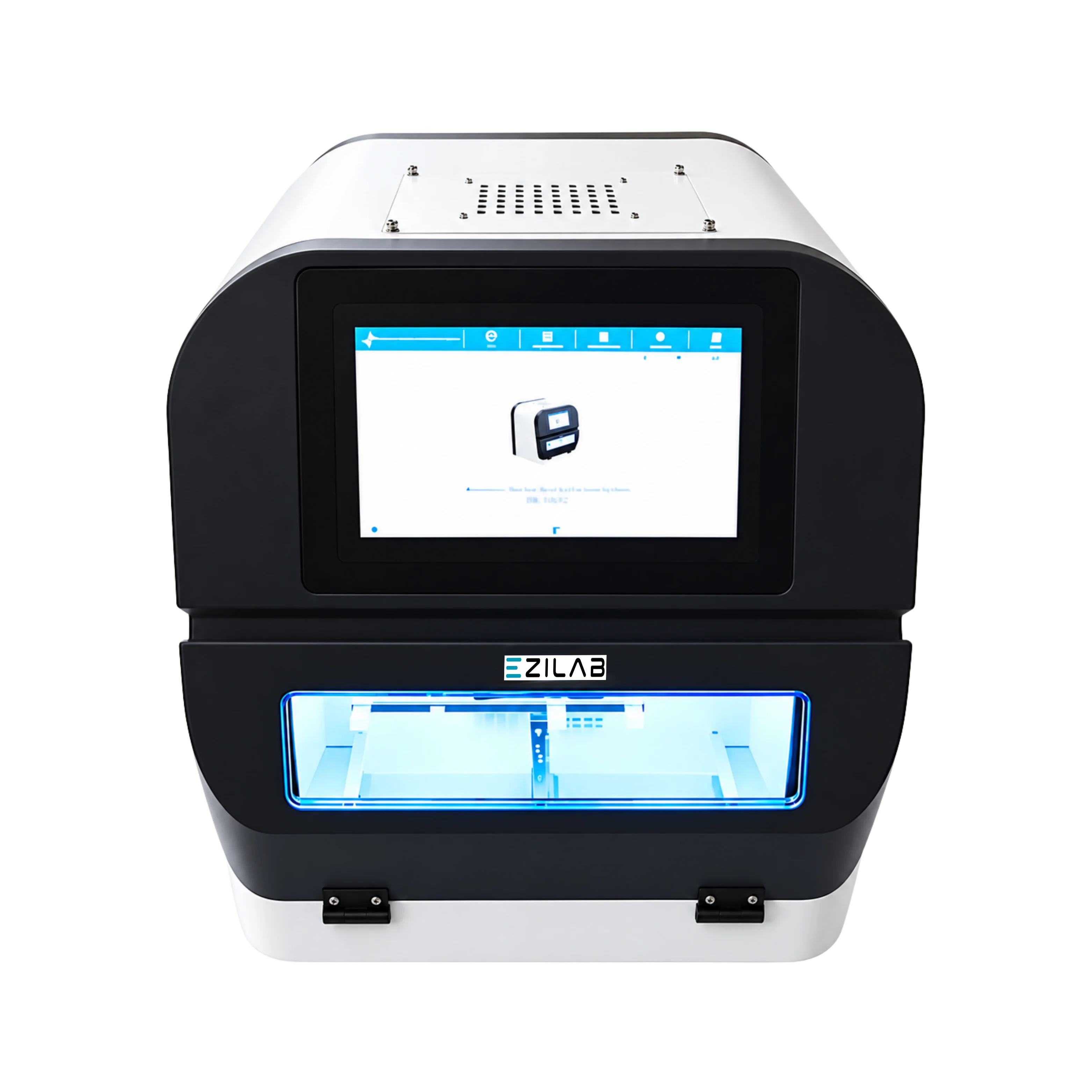

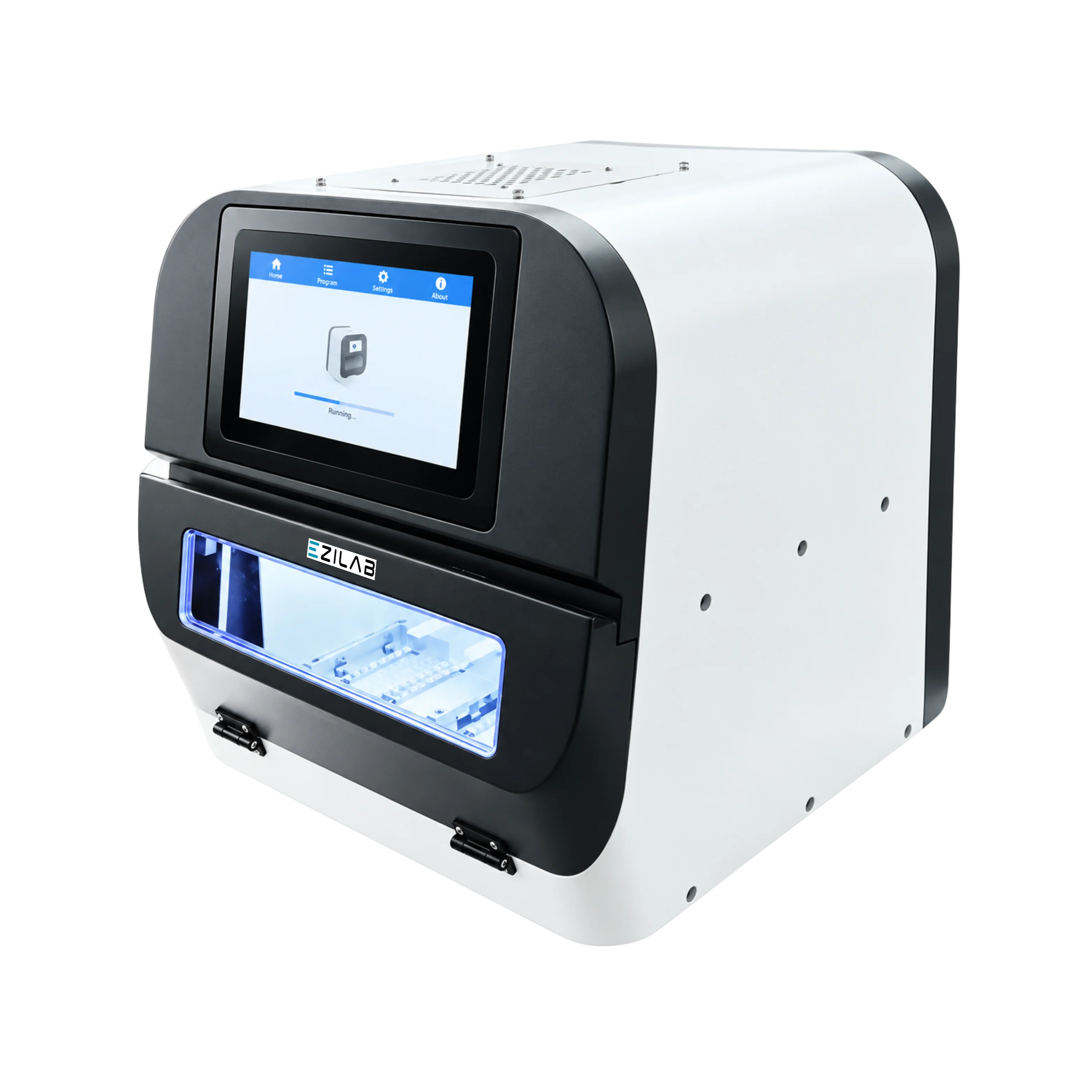

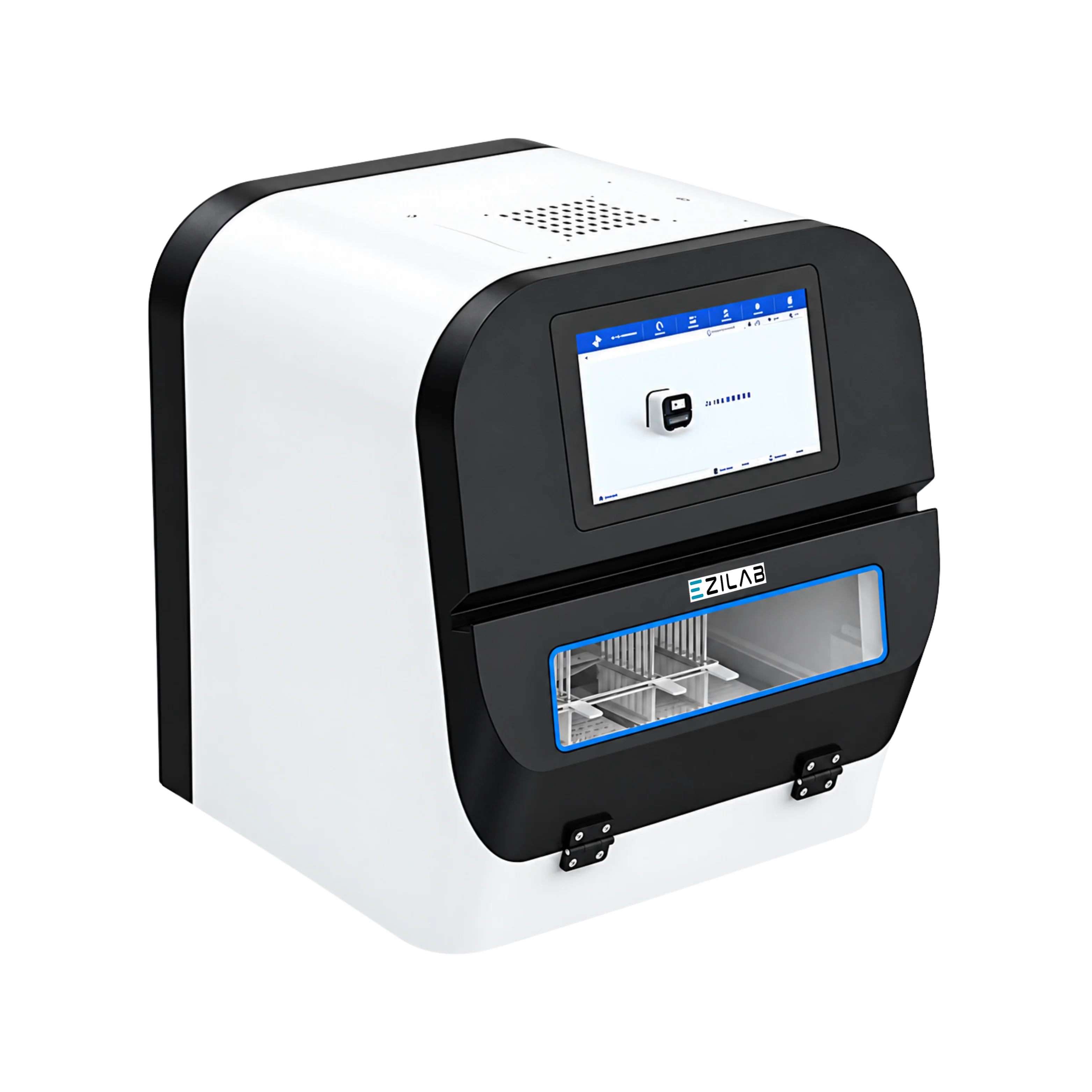

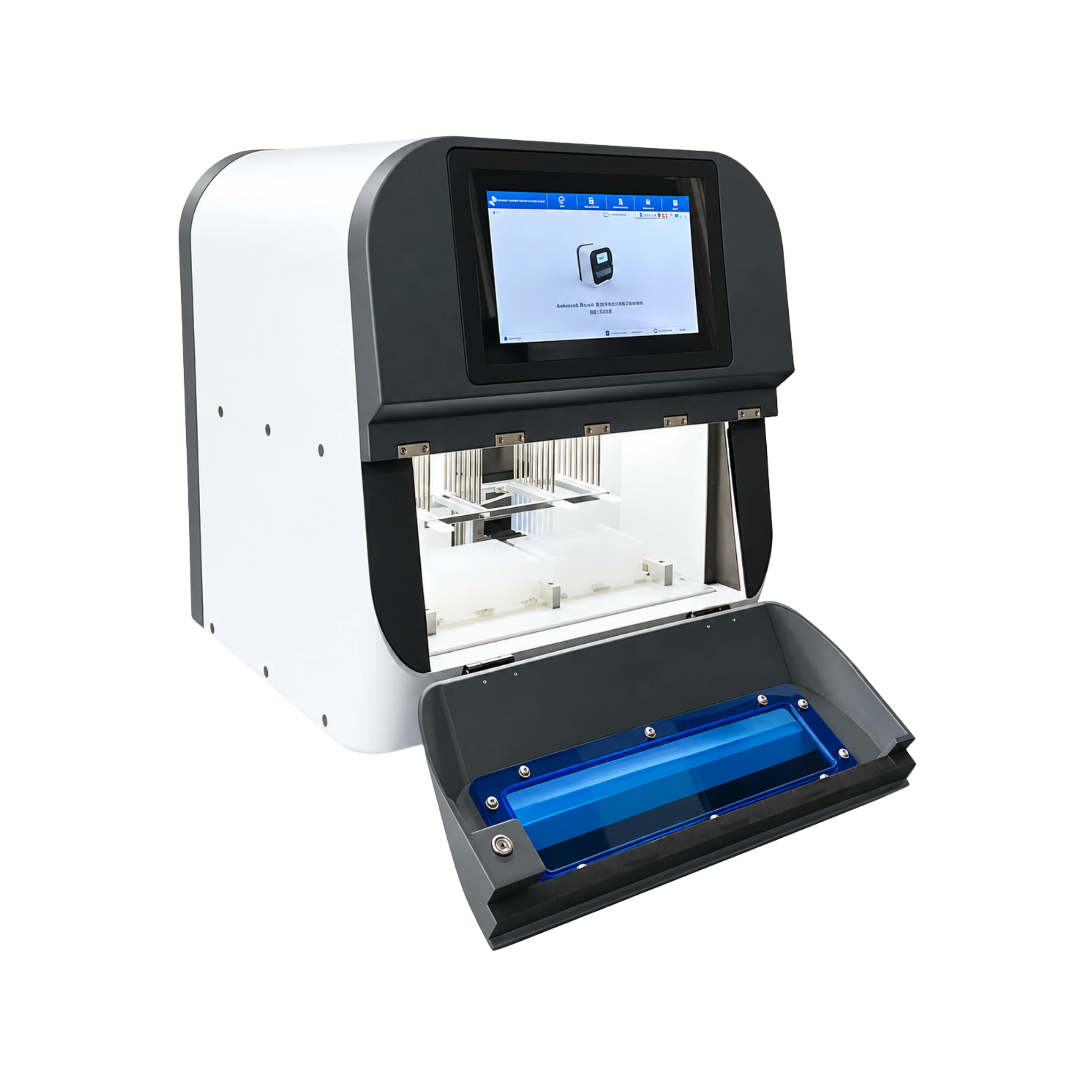

EziLab Nucleic Acid Extraction System EZL-NS105 processes up to 32 samples using magnetic bead technology with recovery above 98 percent across genetic screening, forensic testing, microbiology analysis, and genomic DNA and RNA extraction from blood, tissues, and cultured cells. Processing volumes range from 20 to 1000 uL with extraction times up to 60 minutes, while temperature control extends from room temperature to 100C for optimized lysis. Vertical oscillating mixing improves nucleic acid binding efficiency, and a capacitive touchscreen simplifies workflow control and protocol storage. Optional barcode scanning assists sample tracking for high-throughput nucleic acid extraction machine environments. EziLab's Lab Equipment and nucleic acid extraction systems bring together the full HEPA-filtered extraction range for your laboratory.
| Sample Capacity | 32 samples |
|---|---|
| Processing Volume | 20 to 1000 µl |
| Extraction Method | Magnetic Beads |
| Extraction Time | 15 to 60 mint |
| Storage | >1000 |
| Magnetic Bead Recovery | ≥ 98% |
| Magnetic Rod Flux | 4500 Gs |
| Temperature Range | RT to 100°C |
| Extraction Difference Between Wells | < 3% |
| Module Station | 2 |
| Oscillating Mixing | Vertical Mixing, low, medium and high 3 gears adjustable |
| Disinfection Lamp | 8W UV lamp |
| Illuminating Lamp | 3.4W LED lamp |
| Operation Interface | 10.1 inch capacitive touch screen |
| Barcode Scanning Function | Optional external barcode scanner |
| Interface | 2 USB port, optional LAN port |
| Contamination Control | Class II HEPA filter |
| Power Supply | AC 100 – 240V 50/60Hz |
| External Dimension (L×D×H) | 450×440×532 mm |
| Package Size (W×D×H) | 538×538×750 mm |
| Gross Weight | 37 kg |
Easy to use friendly user interface
Smart and intelligent display with 10.1 inch LCD touch screen
UV sterilization lamp for dis-infection purpose
High efficiency HEPA filter and auto safety door protection function
HEPA filter and UV lamp replacement alarm functions
High purity of product
Fully automated and easy to operate
Optimization of extraction process with professional extraction kit
Large capacity program
Constant temperature function to ensure best reaction speed during the purification process
Friendly operation interface
Portable, light-weight and durable
Versatile liquid handling options
Built-in touch screen
These devices are used in various fields such as, Genetic Screening, Transgene Screening, Paternity Testing, Forensic Testing, Microbiology Testing, Plant molecular biology research and also for Genomic DNA and RNA extraction from whole blood, tissues, and cultured cells etc.
