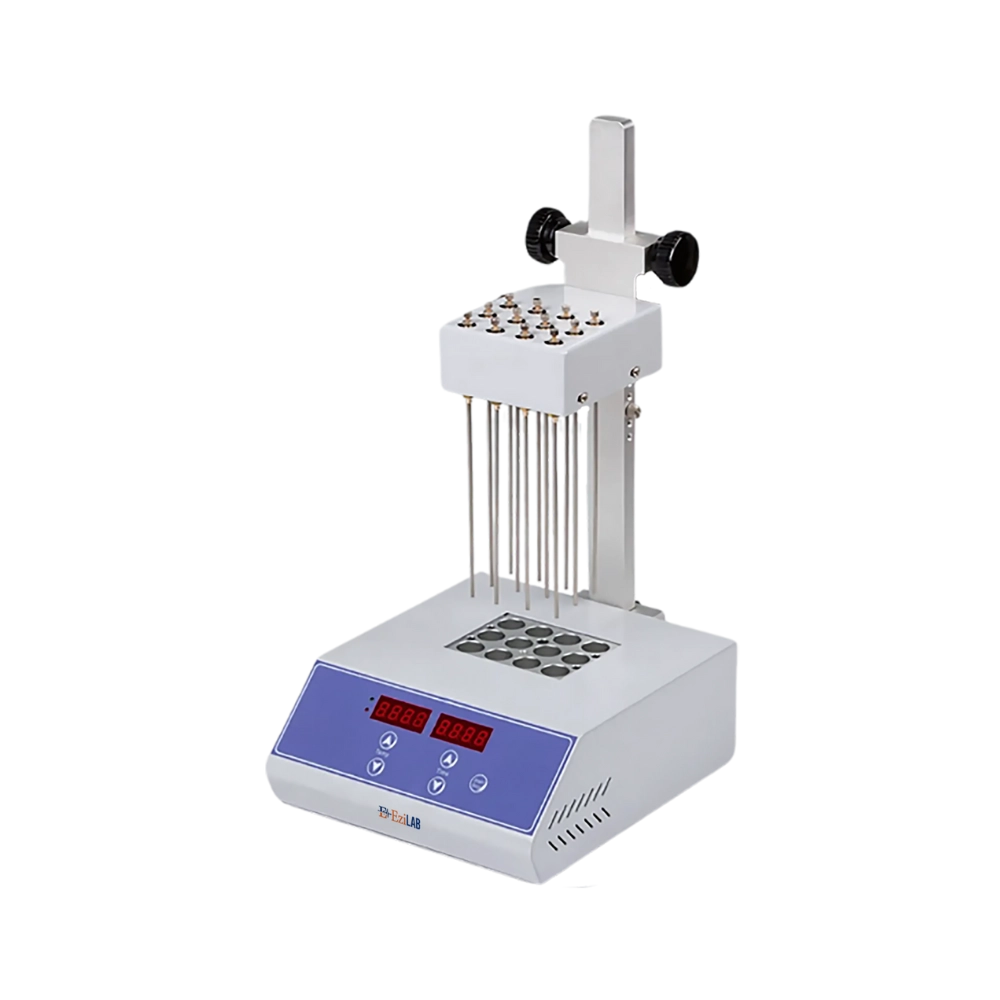

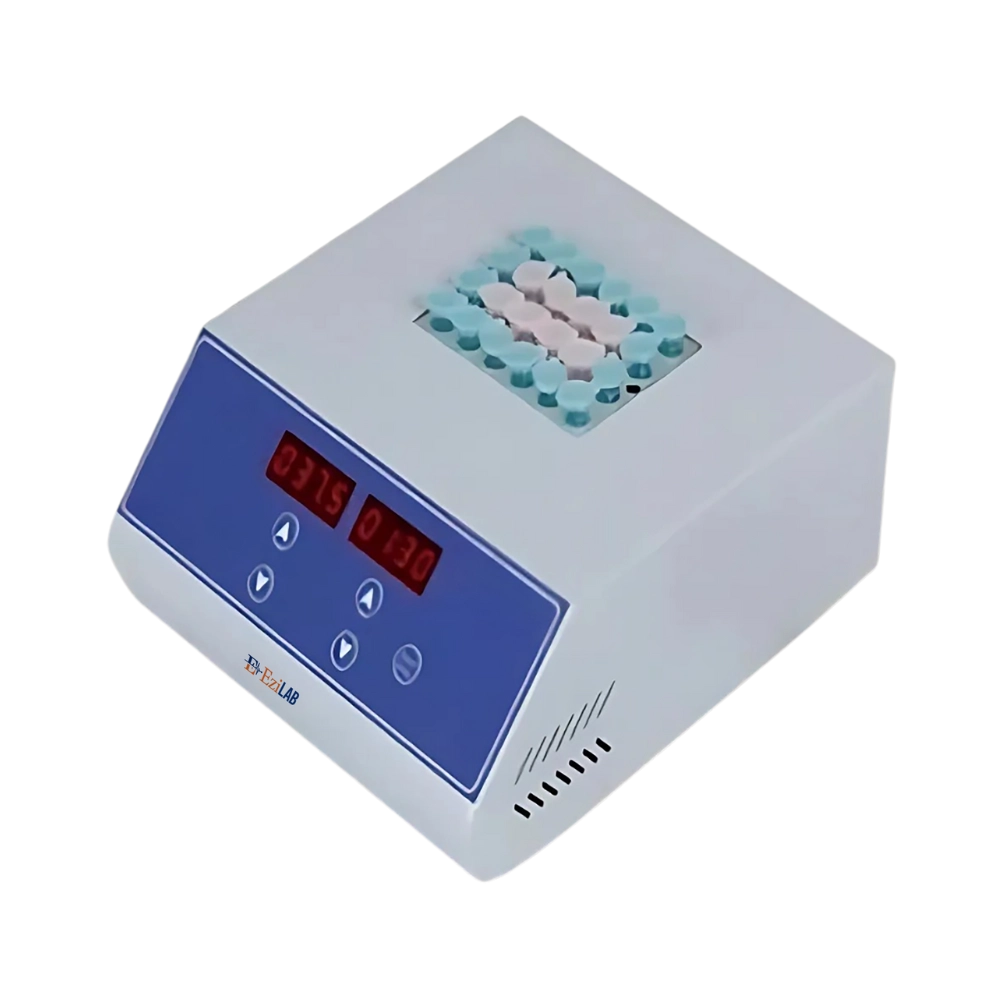

EziLab offers the Sample Concentrator EZL-SC123, a nitrogen blowdown evaporator that pairs a heated dry block with gas needles to concentrate many samples at once. The block heats from RT+5°C to 160°C, reaching 160°C from 25°C in 15 minutes or less, with ±0.5°C uniformity and 0.1°C display resolution. Temperature holds within ±0.5°C at 40°C and ±1°C at 120°C. A timer runs from 1 minute to 99 h 59 min or continuously. The 200 mm needles deliver up to 15 L/min of gas at a maximum of 0.1 MPa, blowing a gentle stream across each sample surface to speed solvent removal. The compact 260 × 220 × 450 mm, 6 kg unit draws 300 W at 110 V or 220 V. As a nitrogen evaporator, it dries and concentrates extracts before LC, LC-MS, and GC-MS analysis, so chemists can reconstitute residues in smaller volumes and lift detection limits. Toxicology and forensic labs prepare drug screening samples, and clinical labs concentrate steroid hormone extracts. Commodity inspection and food labs prepare residue and contaminant extracts, environmental labs process water and soil extracts, and pharmacy and biological product labs concentrate samples during development. See the Sample Concentrators and Sample Concentrator pages for full specifications.
| Temperature Range | RT+ 5°C to 160°C |
|---|---|
| Temperature Accuracy (@40 ℃) | ± 0.5℃ |
| Temperature Accuracy (@120 ℃) | ±1℃ |
| Temperature Uniformity | ± 0.5℃ |
| Display Accuracy | 0.1℃ |
| Time Range | 1 to 99 h 59min/∞ |
| Heating Time | ≤ 15min(from 25℃ to 160℃) |
| Needle Length | 200mm |
| Maximum Gas Usage | 15 L/min |
| Maximum Gas Pressure | 0.1 Mpa |
| Block Quantity | 1 |
| Maximum Power | 300W |
| Voltage | AC220V or AC110V/50 to 60Hz |
| Dimension ( W x L x H ) | 260 x 220 x 450mm |
| Weight | 6.0kg |
High accuracy with a wide range of control management
Blowing many samples simultaneously
Easy to set up and easy to use and definitive in function
Highly precise and having temperature control property
Maximum Gas Usage is 15 L/min for accurate results
It has 1 block to accommodate the samples
It can heat up the samples with temperature range of + 5°C to 160°C
It is used in some techniques like drug screening, hormone analysis, liquid phase and mass spectrometry, in the analysis of sample preparation. It is used in commodity inspection, food, environment, pharmacy, biological product and other industry
