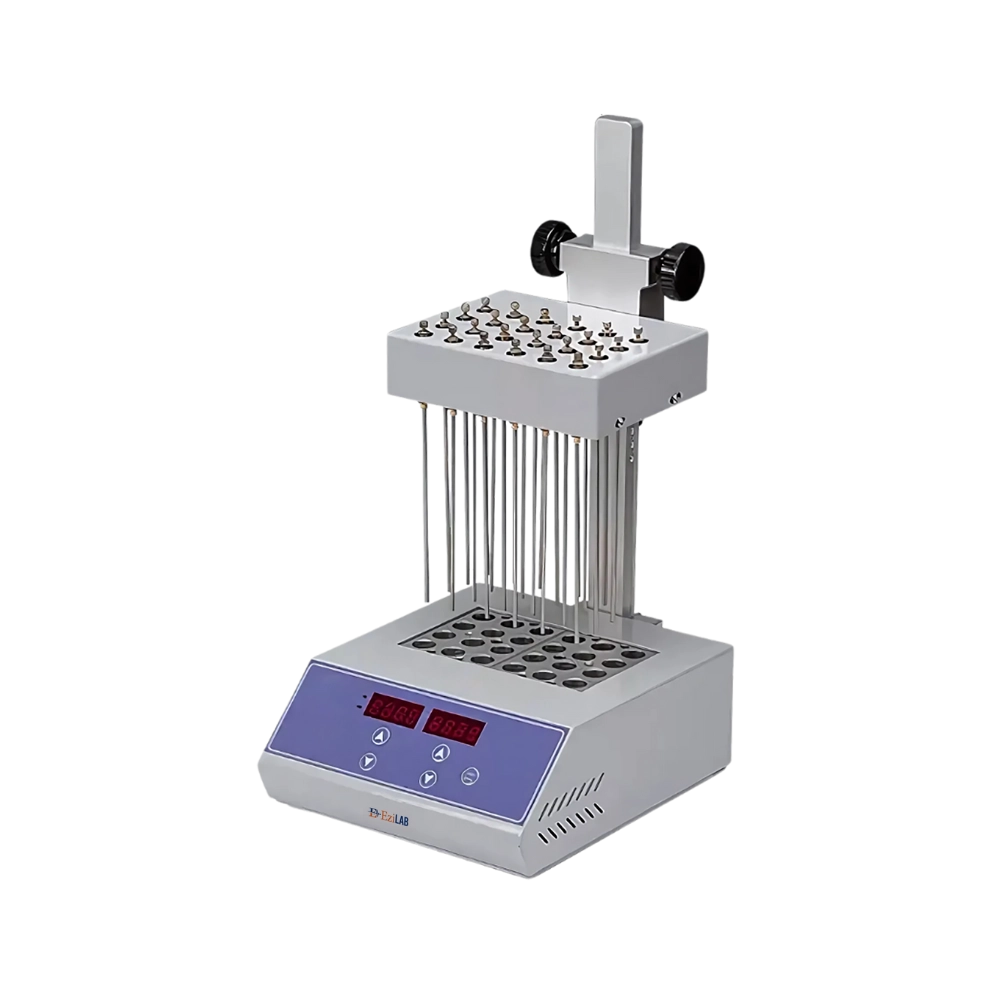

EziLab Sample Concentrator EZL-SC124 is designed for efficient concentration of multiple liquid samples across pharmaceutical testing, environmental analysis, food safety laboratories, chemical research, and quality control facility applications. Dual block heating allows parallel solvent concentrator processing with consistent temperature control, while the unit operates up to 160C for rapid solvent evaporation. Adjustable timing enables precise workflow management, and stable thermal uniformity improves result repeatability across extended concentration sessions. Gas-assisted concentration enhances processing efficiency for faster sample throughput. EziLab's Lab Equipment and sample concentrators list the complete solvent concentrator and dual block high-throughput evaporation range for laboratory use.
| Temperature Range | RT+ 5°C to 160°C |
|---|---|
| Temperature Accuracy (@40 ℃) | ± 0.5℃ |
| Temperature Accuracy (@120 ℃) | ±1℃ |
| Temperature Uniformity | ± 0.5℃ |
| Display Accuracy | 0.1℃ |
| Time Range | 1 to 99 h 59min/∞ |
| Heating Time | ≤ 15min(from 25℃ to 160℃) |
| Needle Length | 200mm |
| Maximum Gas Usage | 15 L/min |
| Maximum Gas Pressure | 0.1 Mpa |
| Block Quantity | 2 |
| Maximum Power | 500W |
| Voltage | AC220V or AC110V/50 to 60Hz |
| Dimension ( W x L x H ) | 260 x 220 x 450mm |
| Weight | 7.5kg |
High accuracy with a wide range of control management
Blowing many samples simultaneously
Easy to set up and easy to use and definitive in function
Highly precise and having temperature control property
Maximum Gas Usage is 15 L/min for accurate results
It has 1 block to accommodate the samples
It can heat up the samples with temperature range of + 5°C to 160°C
It is used in some techniques like drug screening, hormone analysis, liquid phase and mass spectrometry, in the analysis of sample preparation. It is used in commodity inspection, food, environment, pharmacy, biological product and other industry
