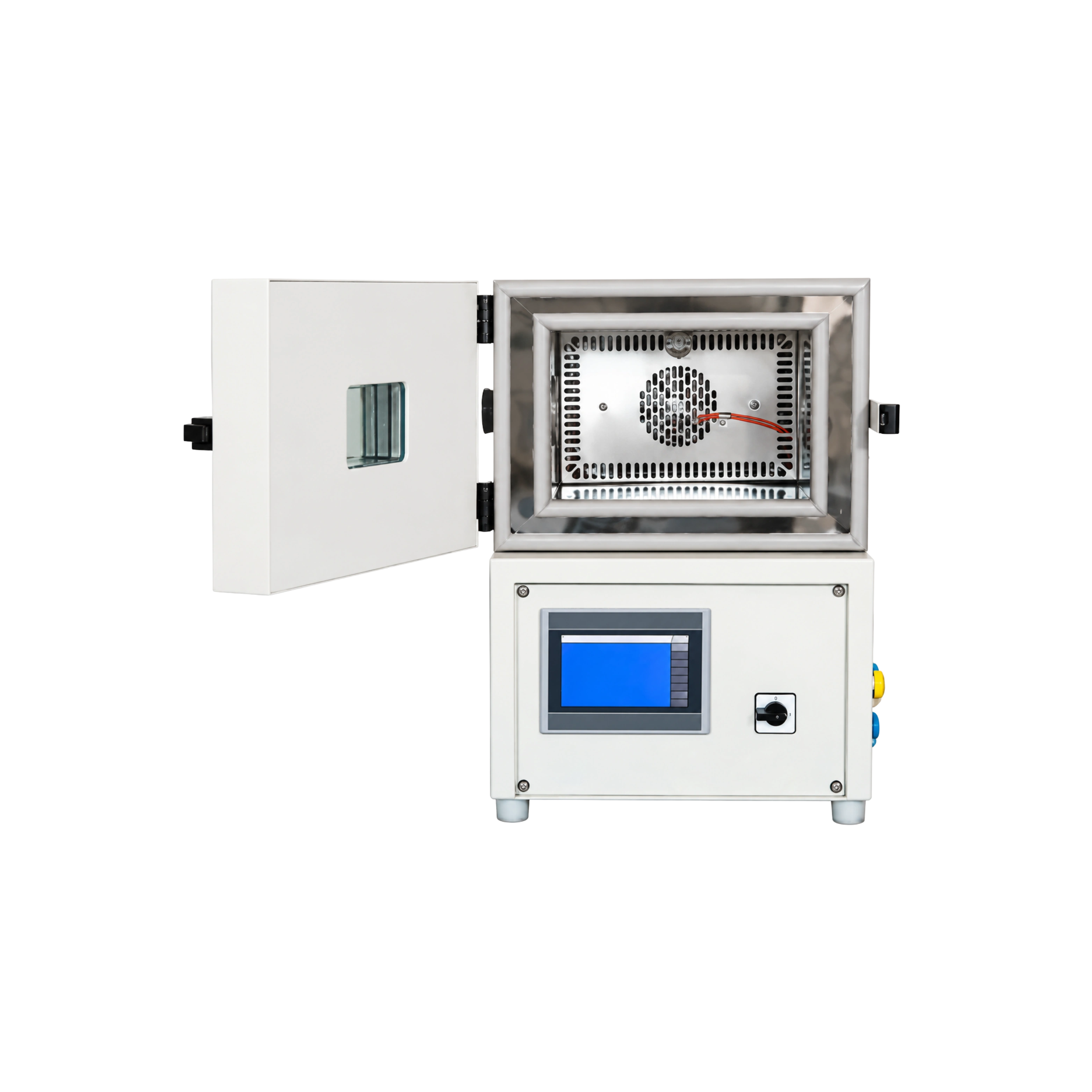

EziLab Temperature Test Chamber EZL-TC157 operates from -40C to 150C with a 22 L SUS304 stainless steel chamber for compact thermal and humidity testing applications. The 7-inch programmable touchscreen enables accurate parameter setting and process monitoring during testing cycles. A NiCr independent heating system supports stable thermal performance across extended operation. The reinforced steel exterior with electrostatic spraying finish enhances durability for continuous laboratory use. Its compact design supports efficient installation in space-limited environments without compromising testing capability. Suitable for electronics testing, material analysis, industrial quality control, and research laboratories. Explore complete Climate Test Chambers and advanced Temperature Test Chamber for thermal testing applications.
| Internal volume | 22 L |
|---|---|
| Temperature Range | - 40˚C to +150 ℃ |
| Temperature fluctuation | ≤ ± 0.5℃ |
| Temperature uniformity | ≤ ± 2.0℃ |
| Temperature deviation | ≤ 1.5℃ |
| Heating rate | +25℃ to +130℃ ≤ 30 minutes |
| Cooling rate | +25℃ to -40℃ ≤ 45 minutes |
| Inner chamber material | SUS304 stainless steel plate |
| Exterior Material | Reinforced Steel plate with electrostatic spraying |
| Insulation | Superfine fiberglass wool/polyurethane foam |
| Refrigeration mode | Refrigeration Compressors, air cooling |
| Controller | 7” Programmable touchscreen controller |
| Heating System | NiCr heater, independent system |
| Power supply | AC 110V/220V/230V , 50Hz / 60Hz |
| Internal dimensions (D×W×H) | 300 × 250 × 250 mm |
| External dimensions (D×W×H) | 520 × 560 × 730 mm |
Consistent air circulation
Over-temperature protection
Long-term data recording
RS485 data download
Clear viewing window
Temperature Test Chamber EZL-TC157 is widely used for testing in electronics, semiconductors, aerospace, telecommunications, pharmaceuticals, automotive components, research laboratories, quality control, and various industrial product validations.
