Description

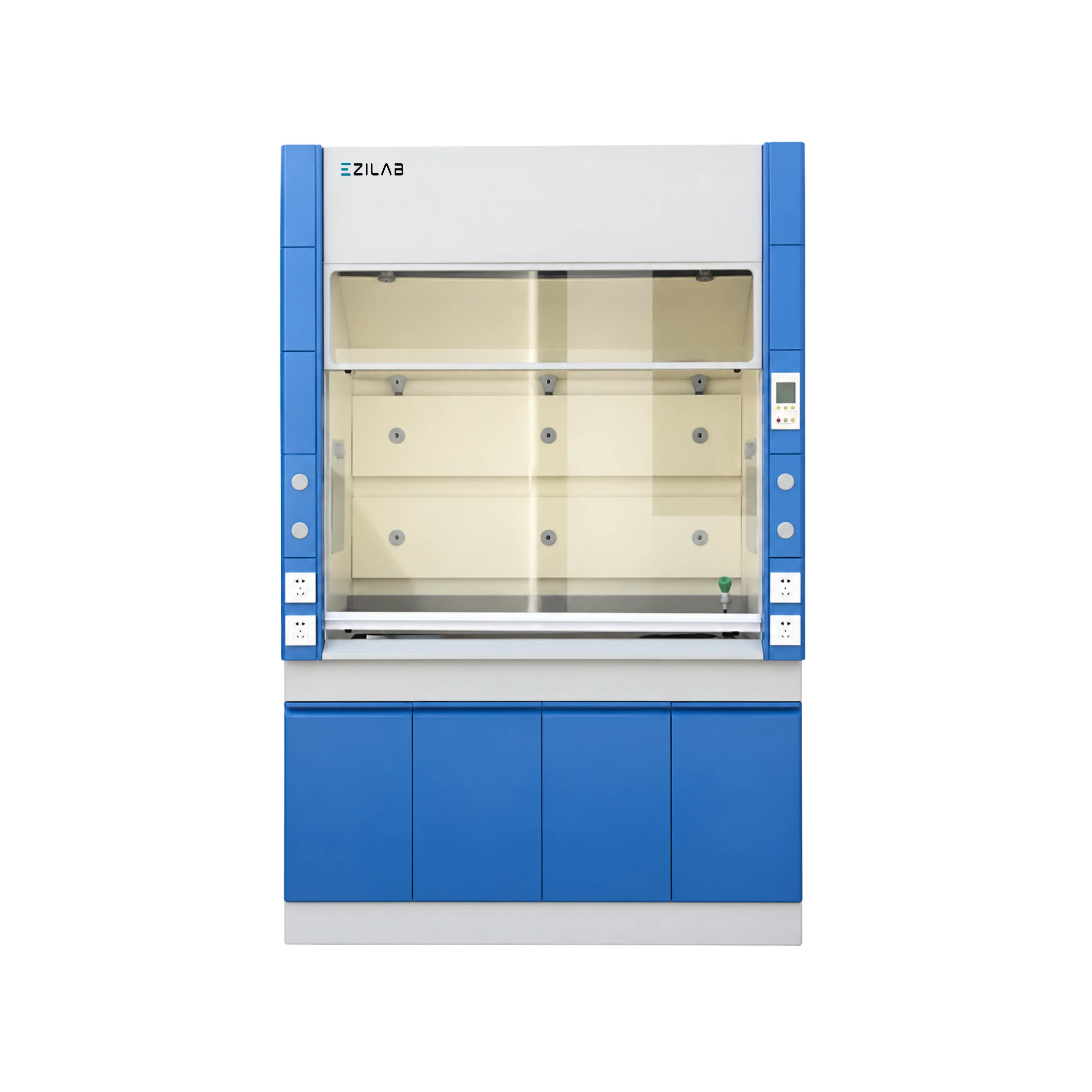

EziLab offers the Fume Hood EZL-FH102, a chemical resistant fume hood with a 1285 × 595 × 1185 mm work chamber inside a 1500 × 850 × 2350 mm cabinet. Exhaust volume runs from 1080 to 1700 m³/h, holding face velocity between 0.4 and 0.6 m/s while noise stays below 60 dB. Corrosion-resistant PP surfaces, a physiochemical epoxy resin worktop in 13, 16, or 19 mm thickness, and anti-explosion toughened glass that stops at any height come standard. Splash-proof safety sockets with self-closing lids and a PVC ergonomic handle complete the 270 kg unit. The tight 0.4 to 0.6 m/s face velocity band captures vapors without strong drafts that disturb flames, balances, or powders at the sash. Staff raise the glass for setup, then lower it to any working height to shield the face during reactions. The epoxy resin top resists acids, bases, and solvents. Chemical labs run acid digestions, solvent extractions, and reactions that release toxic vapors, while pharmaceutical teams weigh and dissolve volatile ingredients. University teaching labs house student experiments, and industrial QC departments contain dust and fumes from process samples in this laboratory fume hood. See the Laboratory Fume Hoods and Fume Hood pages for full specifications.
Specifications
| External Dimensions | 1500 × 850 × 2350 mm |
|---|---|
| Internal Dimensions | 1285 × 595 × 1185 mm |
| Exhaust Air Volume | 1080 to 1700 m³/h |
| Air Velocity | 0.4 to 0.6m/s |
| Viewable Window | Anti-explosion toughened glass, available to stop at any height of the rain slider, the main window can slide around |
| Top | solid physiochemical board/ Epoxy Resin board/ thickness 13/16/19mm/ catcher 26mm (optional) |
| Socket | anti-dust, splash proof safety socket with automatic closing lid |
| Control Panel | multi-function socket, lighting, fan and fan valve control |
| Sewer System | using high-density imported PP traps, corrosion resistant chemical resistant and organic resistant, with filtering and smelly odor blocking function |
| Noise | Less than 60db |
| Packaging Dimension (Box1) | 1590 × 970 × 1800 mm |
| Packaging Dimension (Box2) | 1570 × 870 × 1020 mm |
| Net Weight | 270 Kg |
| Gross Weight | 300 Kg |
