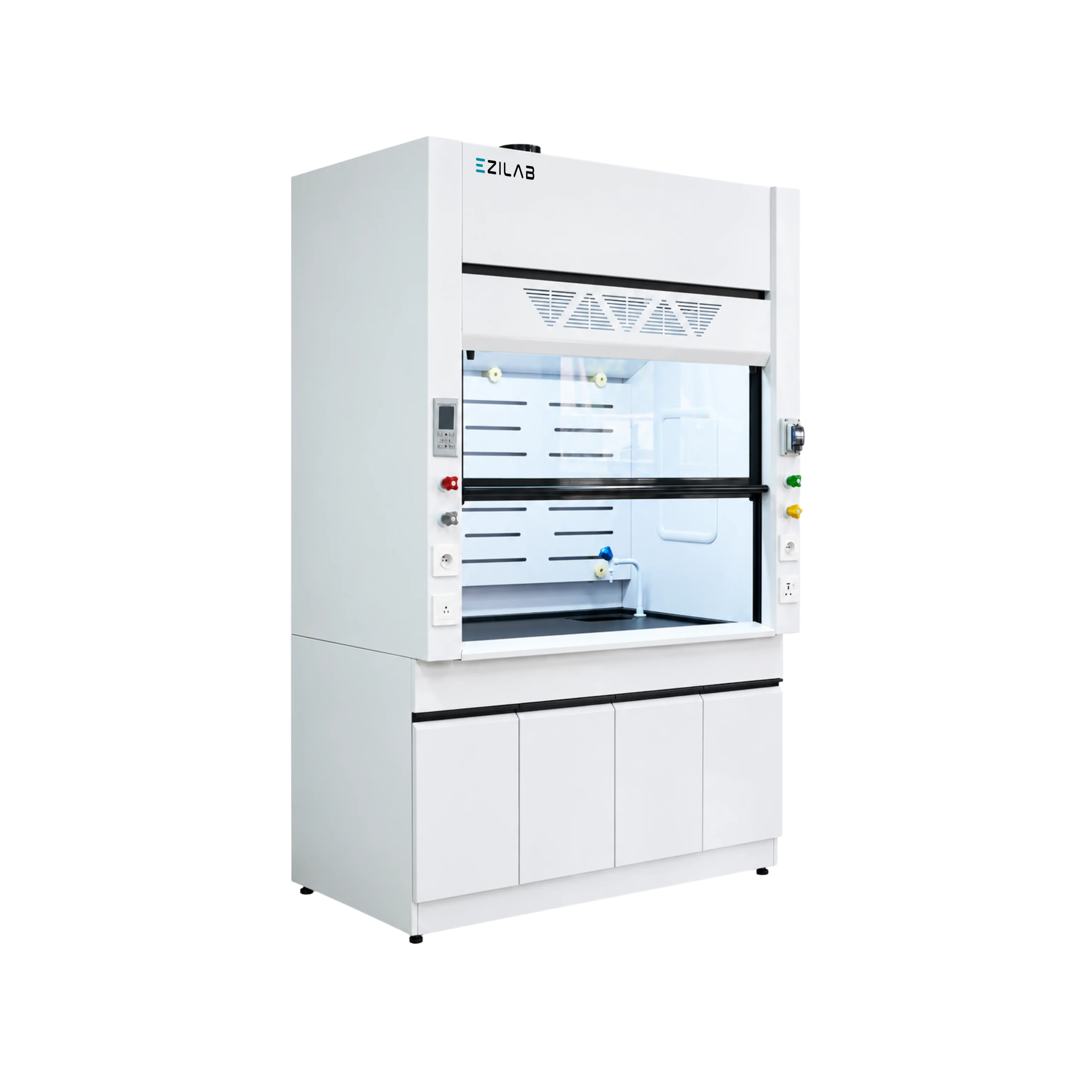

EziLab Fume Hood EZL-FH101 provides hazardous fume extraction with 900–1700 m³/h exhaust air volume and 0.3–0.8 m/s airflow for laboratory ventilation workflows across pharmaceutical, academic, and chemical environments. Tempered 5 mm glass sash improves visibility during procedures, while the epoxy powder coated steel body suits routine laboratory use. Phenolic resin work surface handles common chemical handling tasks, and an intelligent switch with digital display supports clear operation. LED 30 W lighting improves work area visibility, with power compatibility covering 110V to 230V. Suited to chemical handling in pharmaceutical, academic, and chemical laboratories via Lab Equipment and EziLab's full range of laboratory fume hoods.
| External Dimensions | 1500 × 850 × 2350 mm |
|---|---|
| Internal Dimensions | 1260 × 680 × 1150 mm |
| Exhaust Air Volume | 900 to 1700 m³/h |
| Air Velocity | 0.3 to 0.8 m/s |
| Body Construction | galvanized or cold-rolled steel (1.15 to 1.2 mm) |
| Coating | Epoxy powder coating |
| Glass Sash | 5 mm tempered/safety glass and aluminium frame |

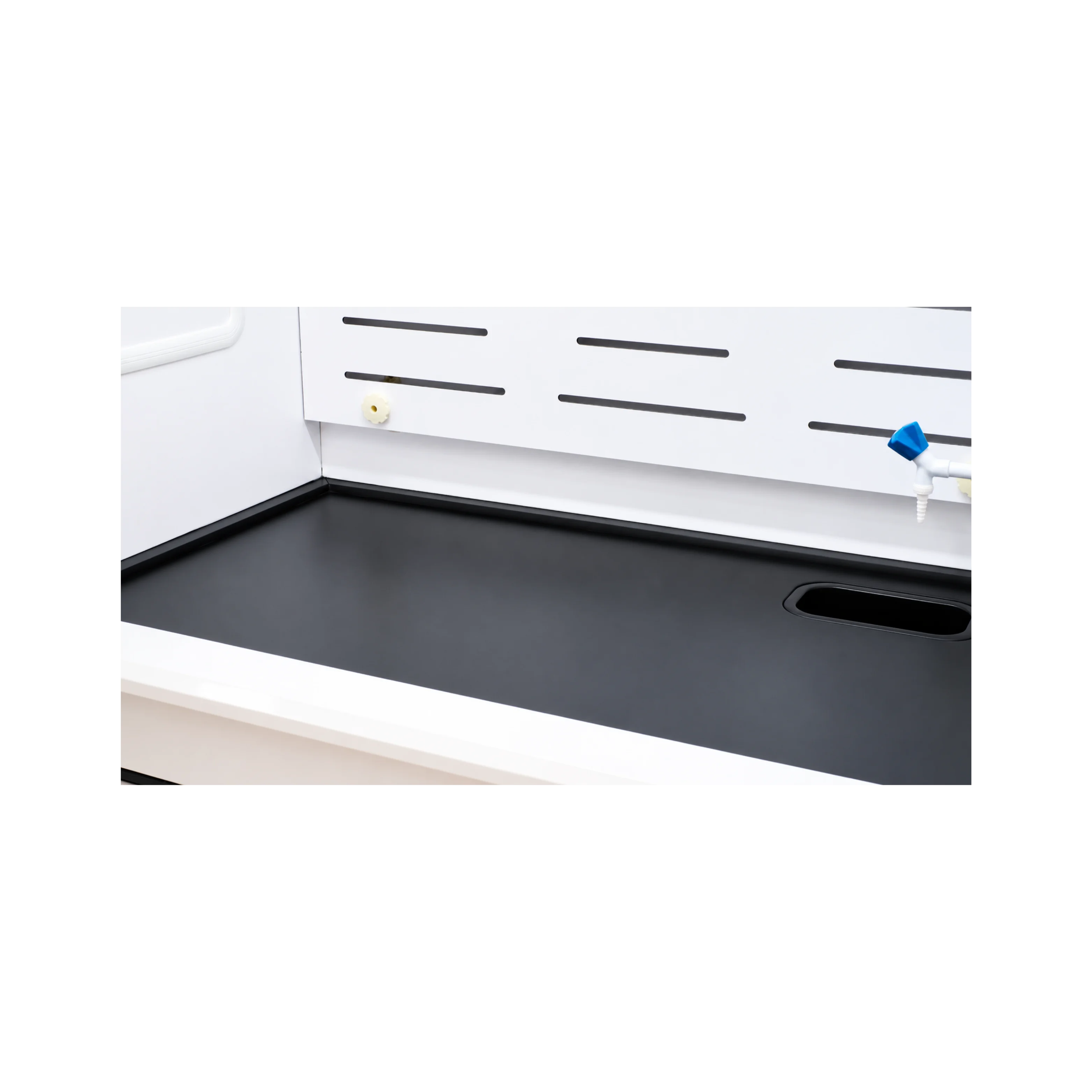

| Work Top Material | Phenolic Resin |
| Optional Work Tops | Ceramic Surface |
| Lightening | LED 30W purification lamp |
| Controller | Intelligent switch with digital display |
| Power supply | 110V to 230V |
| Weight | 450 Kg |
Intelligent digital controller
Built-in airflow monitors
Adjustable fan speed
Ergonomic user design
Quick-access controls
1x bench-mounted single water tap 1x PP oval cupsink4x Electrical Outlets 1x 250 or 315mmφ PP hood
Fume Hood EZL-FH101 is designed for safely removing hazardous chemical fumes. It is ideal for applications in pharmaceutical, academic, and chemical laboratories handling volatile substances.
