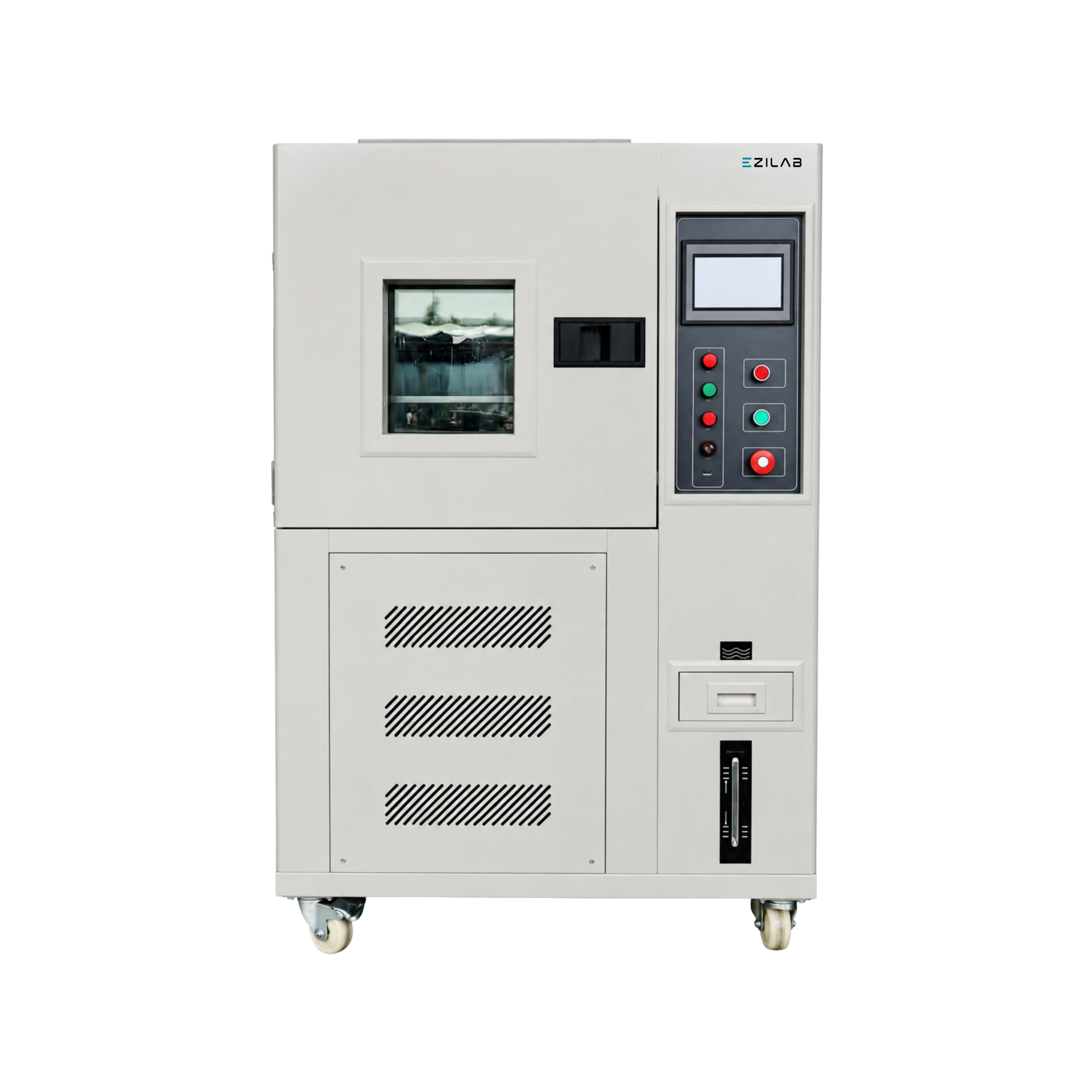

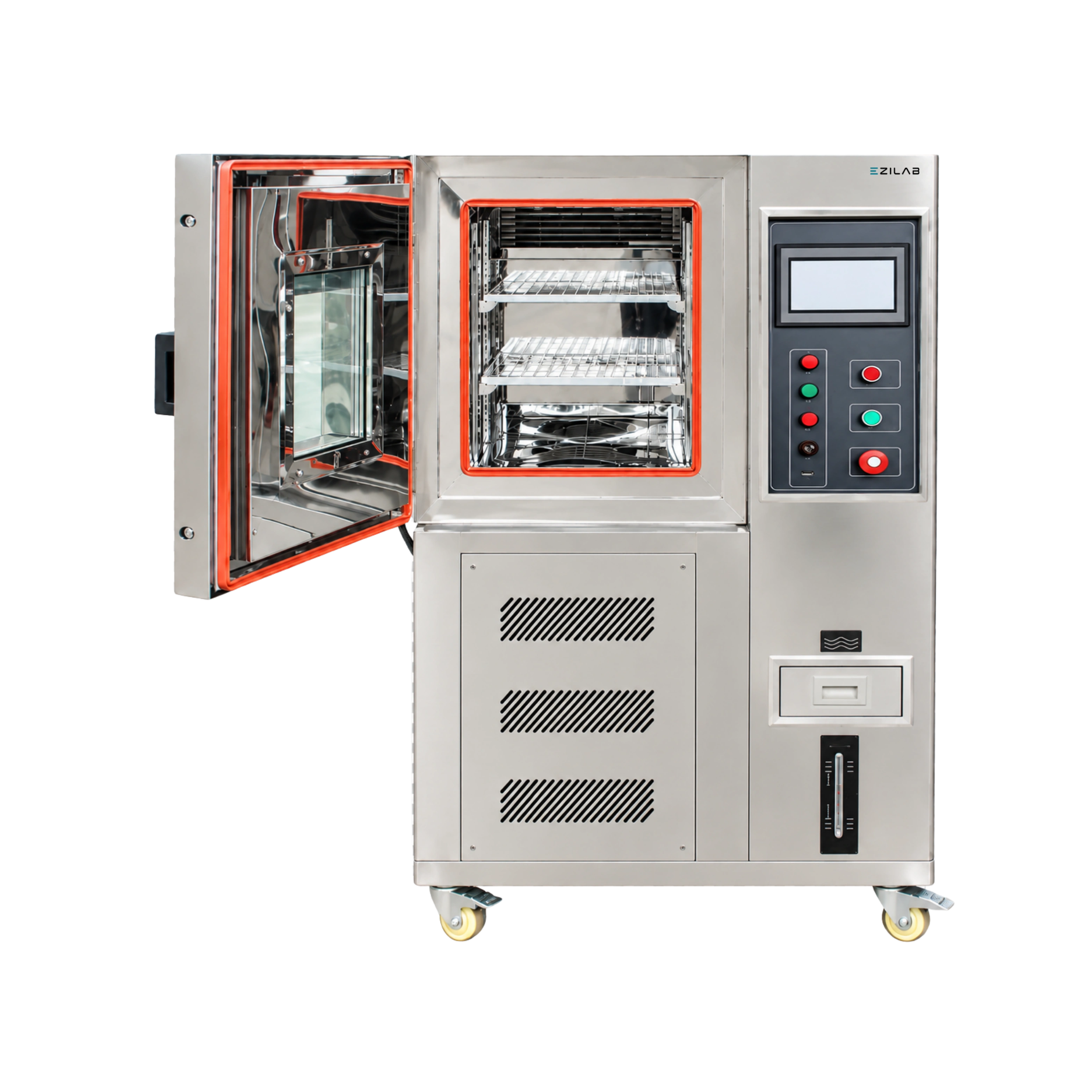

EziLab offers the Temperature and Humidity Test Chamber EZL-TH162, a 225 L environmental test chamber that spans -50°C to 180°C and 10% to 98% RH. It heats at 3°C to 5°C per minute and cools at 0.7°C to 1.2°C per minute, with 0.1°C resolution and humidity fluctuation within 1% RH. Pt100 sensors, stainless steel construction, silicone rubber door seals, anti-frost and anti-condensation protection, and a pressure relief balance port come standard. That wide window lets one thermal chamber run cold-start exposure, high-heat aging, and near-saturation damp heat cycles without moving samples between units. Engineers use it for product testing, quality assurance, and R&D, simulating conditions from arctic storage to tropical humidity, and the 225 L workspace holds component batches or small assemblies. Over-temperature protection and an audible alarm guard long runs in this humidity chamber. Aerospace suppliers qualify avionics and materials against extreme cold and heat, automotive teams validate sensors and connectors for cold-start and hot-soak conditions, and industrial electronics makers screen boards. Its test methods follow GB/T 2423 and GJB 150 procedures for compliance testing. It suits labs upgrading a climatic chamber. A -50C floor and 98% RH ceiling suit extreme profiles, so compare milder chambers on the Climate Test Chamber and Temperature and Humidity Test Chamber pages if your tests stay narrower.
| Capacity | 225L |
|---|---|
| Temperature Range | -50℃ to 180℃ |
| Humidity Range | 10%RH to 98%RH |
| Temperature Deviation | ≤ ±2.0 ℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ≤ ±2℃ |
| Humidity Fluctuation | ±1.0%R.H |
| Humidity Deviation | ≤ ±2%R.H |
| Humidity Uniformity |
>75%RH: ≤±2 to 3%RH <75%RH: ≤±3 to 5%RH |
| Humidity Resolution | 1.0%R.H |
| Heating Time | 3 to 5℃/min |
| Cooling Time | 0.7 to1.2℃/min |
| On-site Conditions |
Temperature: 5℃ to +28℃(average temperature within 24 hours ≤28℃) Relative Humidity: ≤85%RH |
| Frequency | 50±0.5 Hz |
| Standards |
GB/T2423.1-2008 Test A: Low-temperature test method GB/T2423.2-2008 Test B: High-temperature test method GJB150.3A-2009 high-temperature test GJB150.4A-2009 Low-temperature test GB3423.22-2008 Test method for speed of temperature change GBT2424.5-2006 Temperature test chamber performance confirmation GB/T 10589-2008 low-temperature test technical conditions GB/T2423.3-2008 Test method for constant greenhouse GJB150.9A-2009 Greenhouse test method G/BT2423.4-2008 Alternating humid heat method GB/T10586-2006 Wet heat test chamber technical conditions GB/T2424.6-2006 Temperature/humidity test chamber performance confirmation GB/T2424.7-2006 Measurement of temperature test |
| Power | Three-phase electricity, AC380V |
| Internal Dimension (W× H × D) | 50 × 75 × 60 cm |
| External Dimension (W× H × D) | 115× 190 × 97 cm |
| Net Weight | 230 kg |
| Gross Weight | 310 kg |
| Feature Area | Description |
| Capacity | 225 L chamber with 50 × 75 × 60 cm internal dimensions. |
| Temperature and Humidity Range | Covers -50 °C to 180 °C and 10% to 98% RH. |
| Ramp Rates | Heating rate of 3 to 5 °C/min and cooling rate of 0.7 to 1.2 °C/min. |
| Chamber Protection | Anti-frost and anti-condensation function, silicone rubber sealing strip on the door and a pressure relief balance port. |
| Test Standards | Listed test methods include GB/T 2423.1, GB/T 2423.2, GJB 150.3A and GJB 150.4A. |
Compressor Condenser Fin type equipped with cooling fan Evaporator Customized Expansion valve Electromagnetic valve Electromagnetic valve Pressure controller Oil separator Filter Refrigerant Copper pipes and other parts Measurement and control system Temp and humidity control instrument Over-temperature protection instrument Temperature Sensor Pt100 Humidity Sensor Pt100 Contactor Solid state relay Time delay relay Intermediate relay Heating rod (1 Kw) Switching power (leakage protection) Transformer Control switch panel Audible alarm Heater protection
