The Rotary Evaporator EZL-RE22 is a must-have evaporator that meets the basic necessities of economic evaporation and is built to high quality standards. It operates at 120 rpm speed and the hand wheel can be lifted with one hand for precise positioning of the glassware. The unique 1L bath design provides fast heat up, allowing for quicker experiments. Bath heats up to 180°C, adding versatility by allowing use of water or oil. It is designed for ease of use, while maintaining the highest level of safety. A digital display is included in this piece of equipment to monitor and control rotation speed parameters.
| Rotary Bottle | 1 L |
|---|---|
| Collecting Bottle | 1 L |
| Rotary Speed | 0 to 120 rpm |
| Evaporating Speed | 20 ml/min |
| Achievable Vacuum | 0.098 Mpa |
| Bath Size | 280×330 mm |
| Bath Volume | 6.3 L |
| Elevating Stroke | 220 mm |
| Temperature Range | 0 to 180°C |
| Ambient Temperature | ±1°C |
| Display | Digital display |
| Speed Regulation | Electronic step less speed regulation |
| Condensing Tube | Vertical type ɸ85×415 mm |
| Elevating function | Manual elevating |
| Vacuum Sealing | Double sealing with Teflon (PTFE) |
| Rotary Motor Power | 40 W |
| Heating Power | 1.5 Kw |
| Power Supply | 220V, 50/60Hz |
| Dimension (L×W×H) | 670×330×760 mm |
| Packing Dimension (L×W×H) | 590×460×460 mm |
| Weight | 21 Kg |
Double sealing with Teflon and fluorous rubber to ensure high vacuum degree
Air extraction nozzle of condenser is set down, and it is safer after connection with vacuum pipe
Borosilicate glass, which is resistant to high temperatures and corrosion
Continuous feeding is convenient for users
Electronic step less speed regulation

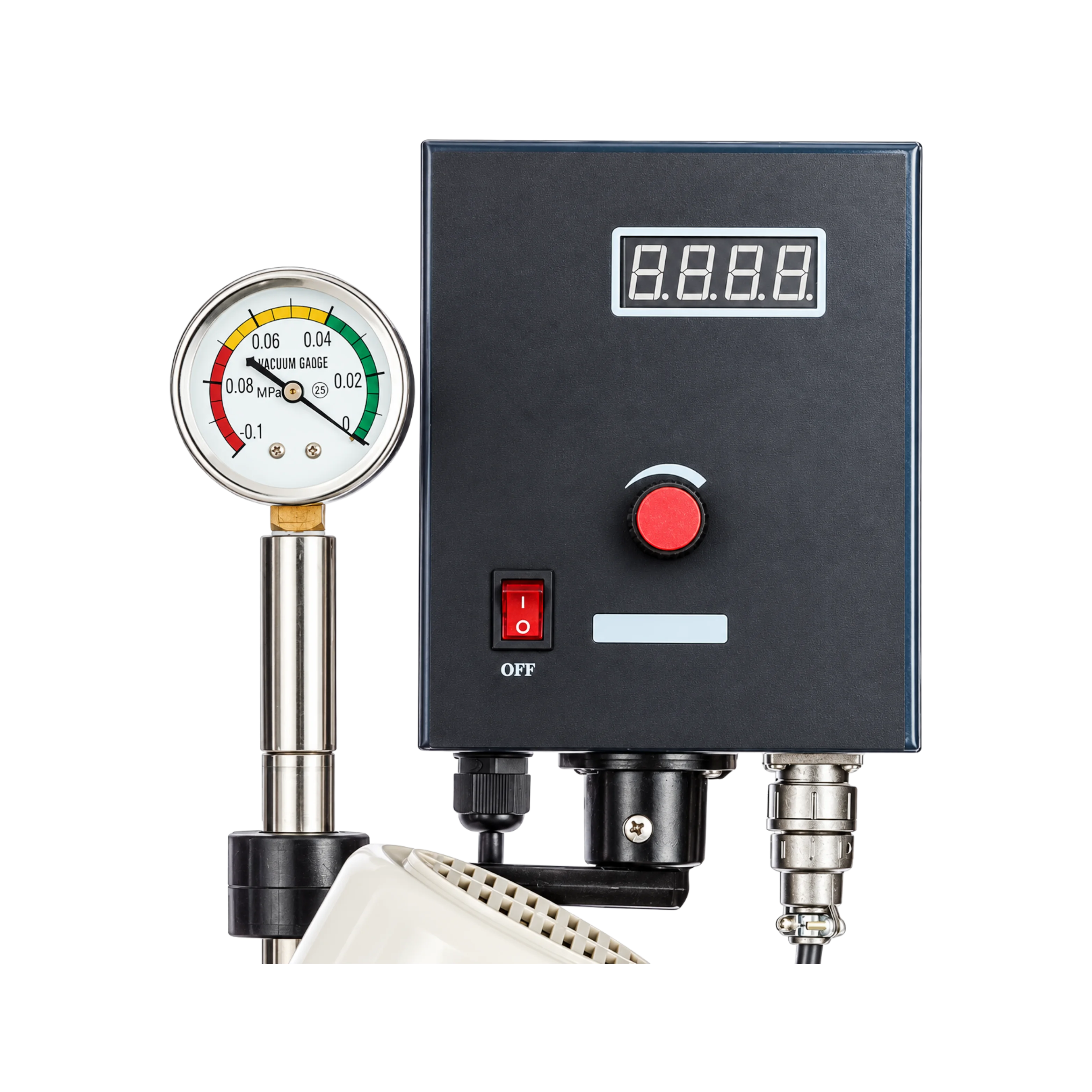

Vacuum pressure gauge displays real time vacuum degree

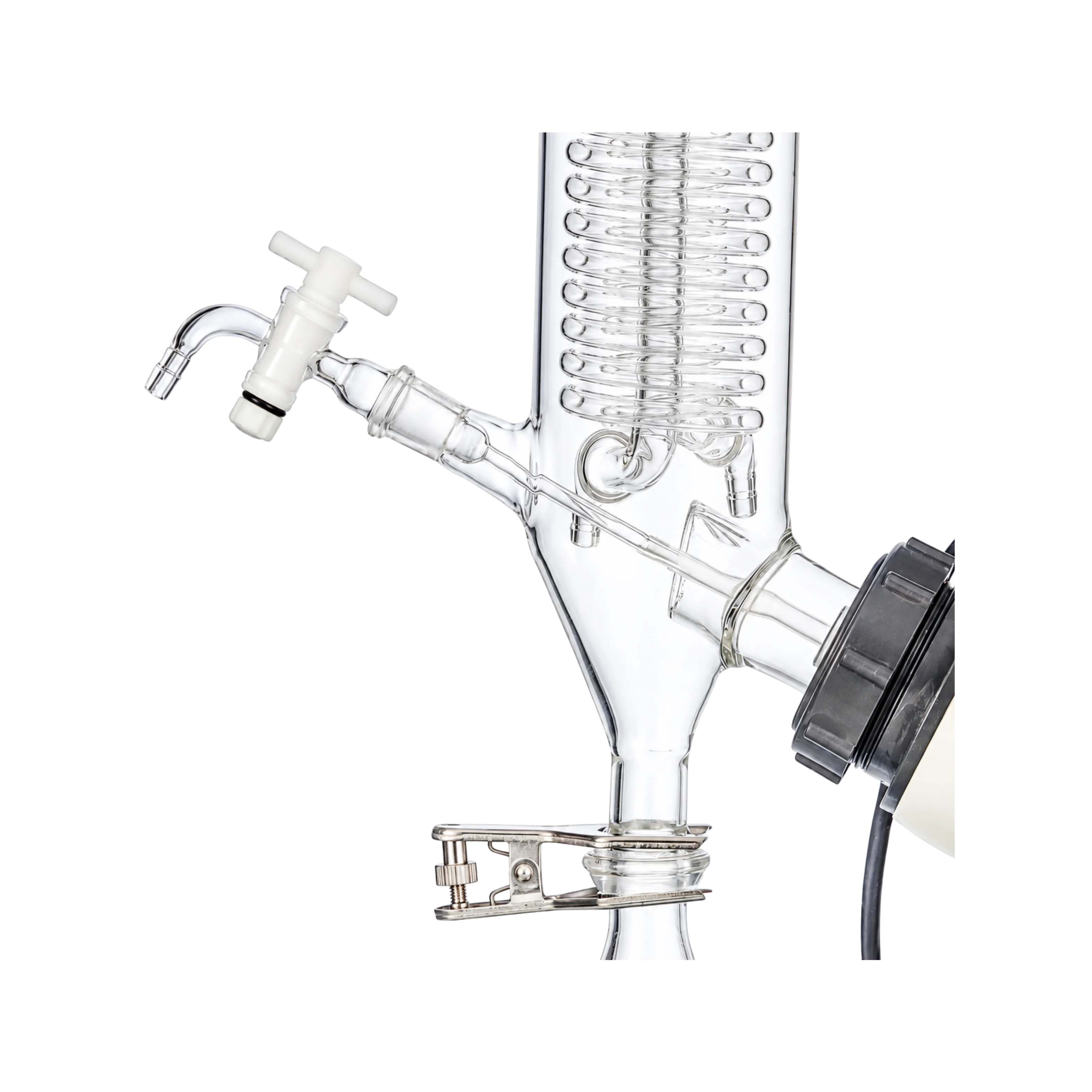

Up-right double layer serpentine coil condenser to ensure high recovery rate
Stainless steel and aluminum alloy main body bracket
Easy and smooth operation of lifting and moving
Separation of bath and mainframe makes configuration flexible
High rated condenser with exceptional cooling properties
Heats up quickly because of optimized bath volumes
Easy and jolt-free raising and lowering of rotary evaporator
Adjustable final position recognition to protect operator and sample against breaking

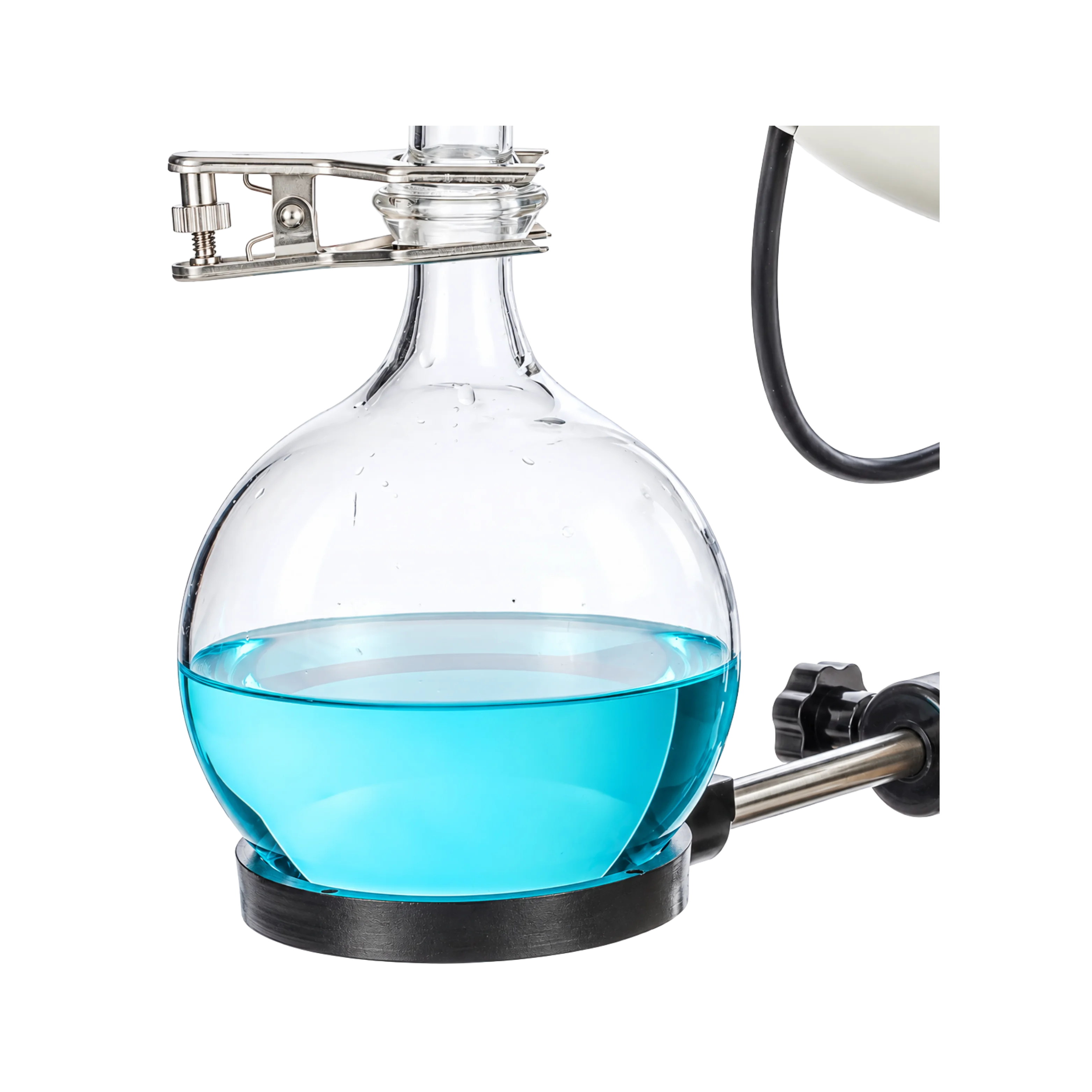

Evaporating flask with an ejector is very convenient to remove
It is an indispensable instrument for evaporation, concentration, crystallization, separation and solvent recovery in research and production of medicine, chemical and biological products etc.
