EziLab Rotary Evaporator EZL-RE23 handles larger solvent volumes using a 3L rotating bottle and 2L collecting bottle for laboratory distillation workflows across pharmaceutical, chemical, and biological environments. Rotation speed runs from 0–120 rpm with step-less electronic regulation, while evaporation rate reaches 50 ml/min for faster throughput on routine batches. Bath temperature range covers 0–180°C with 1°C variation for stable heating, and achievable vacuum reaches 0.098 MPa for reduced-pressure evaporation. Manual elevating provides 220 mm stroke for flask adjustment, and a vertical condenser improves vapor recovery during solvent removal. Suited to evaporation, concentration, crystallization, separation, and solvent recovery in pharmaceutical, chemical, and biological labs via Lab Equipment and EziLab's full range of laboratory evaporators for lab workflow integration.
| Rotary Bottle | 3 L |
|---|---|
| Collecting Bottle | 2 L |
| Rotary Speed | 0 to 120 rpm |
| Evaporating Speed | 50 ml/min |
| Achievable Vacuum | 0.098 Mpa |
| Bottom Plate Size | 350×330 mm |
| Elevating Stroke | 220 mm |
| Temperature Range | 0 to 180°C |
| Temperature Accuracy | ±1°C |
| Display | Digital display |
| Speed Regulation | Electronic step less speed regulation |
| Condensing Tube | Vertical type ɸ100×510 mm |
| Elevating function | Manual elevating |
| Vacuum Sealing | Double sealing with Teflon (PTFE) |
| Rotary Motor Power | 40 W |
| Heating Power | 2 Kw |
| Power Supply | 220V, 50/60Hz |
| Dimension (L×W×H) | 720×350×1100 mm |
| Packing Dimension (L×W×H) | 995×590×490 mm |
| Weight | 42 Kg |
Double sealing with Teflon and fluorous rubber to ensure high vacuum degree
Air extraction nozzle of condenser is set down, and it is safer after connection with vacuum pipe
Borosilicate glass, which is resistant to high temperatures and corrosion
Continuous feeding is convenient for users
Electronic step less speed regulation

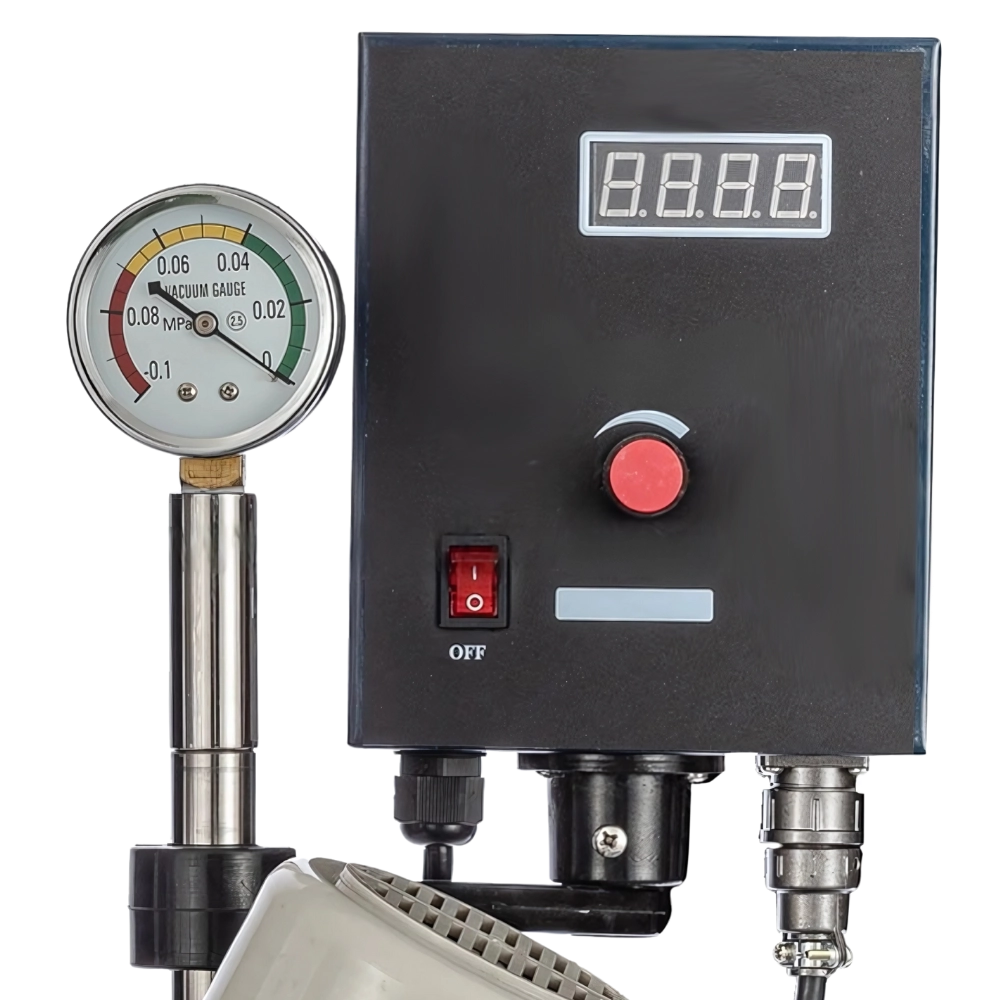

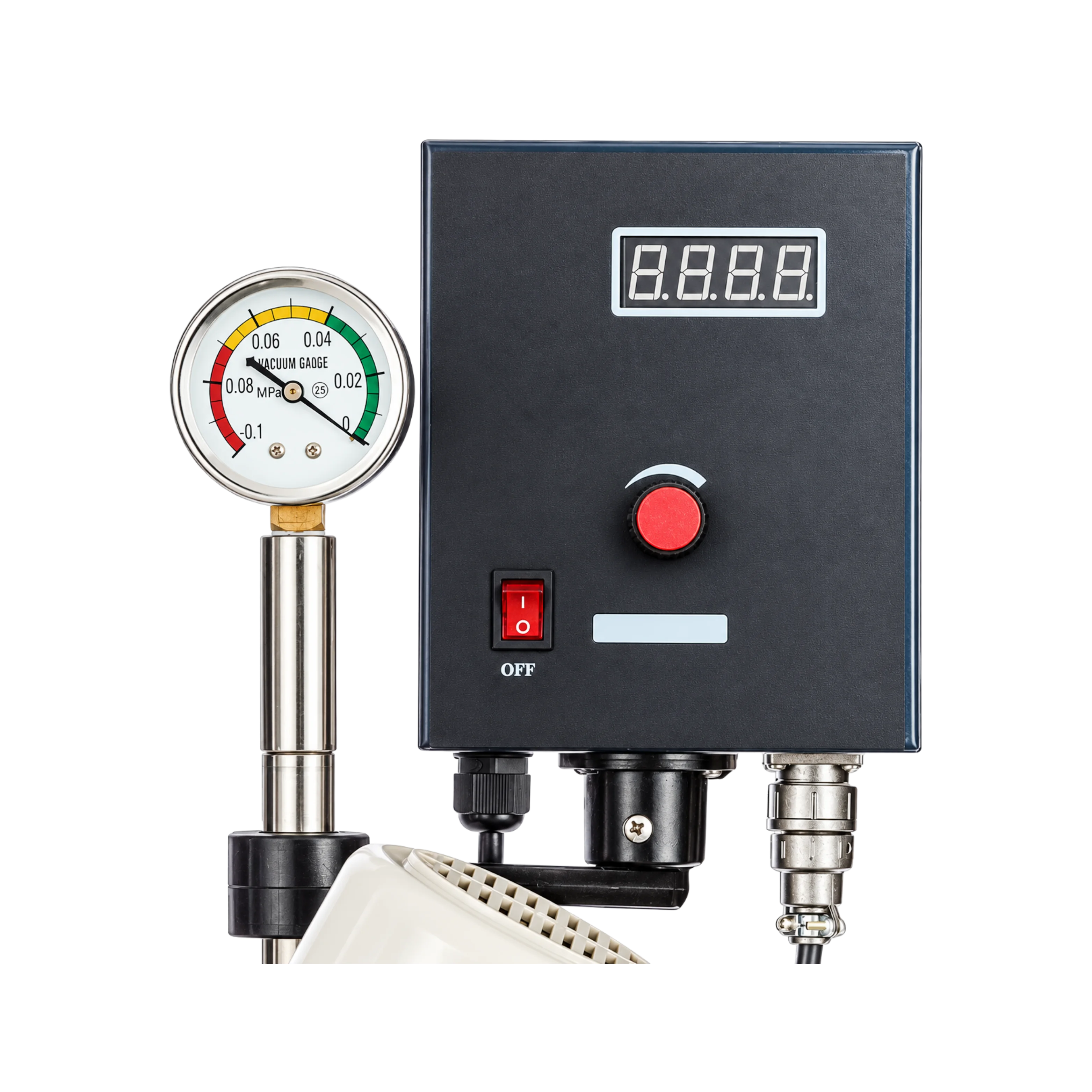

Vacuum pressure gauge displays real time vacuum degree

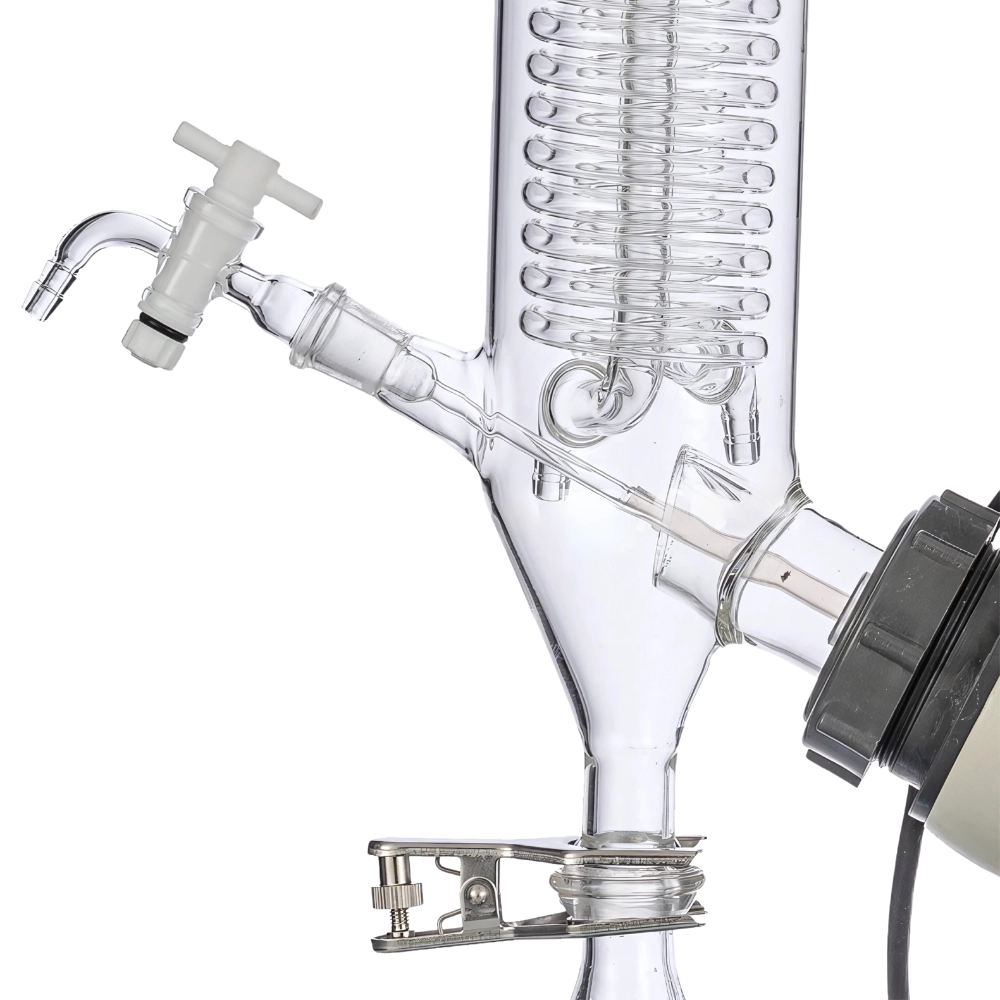

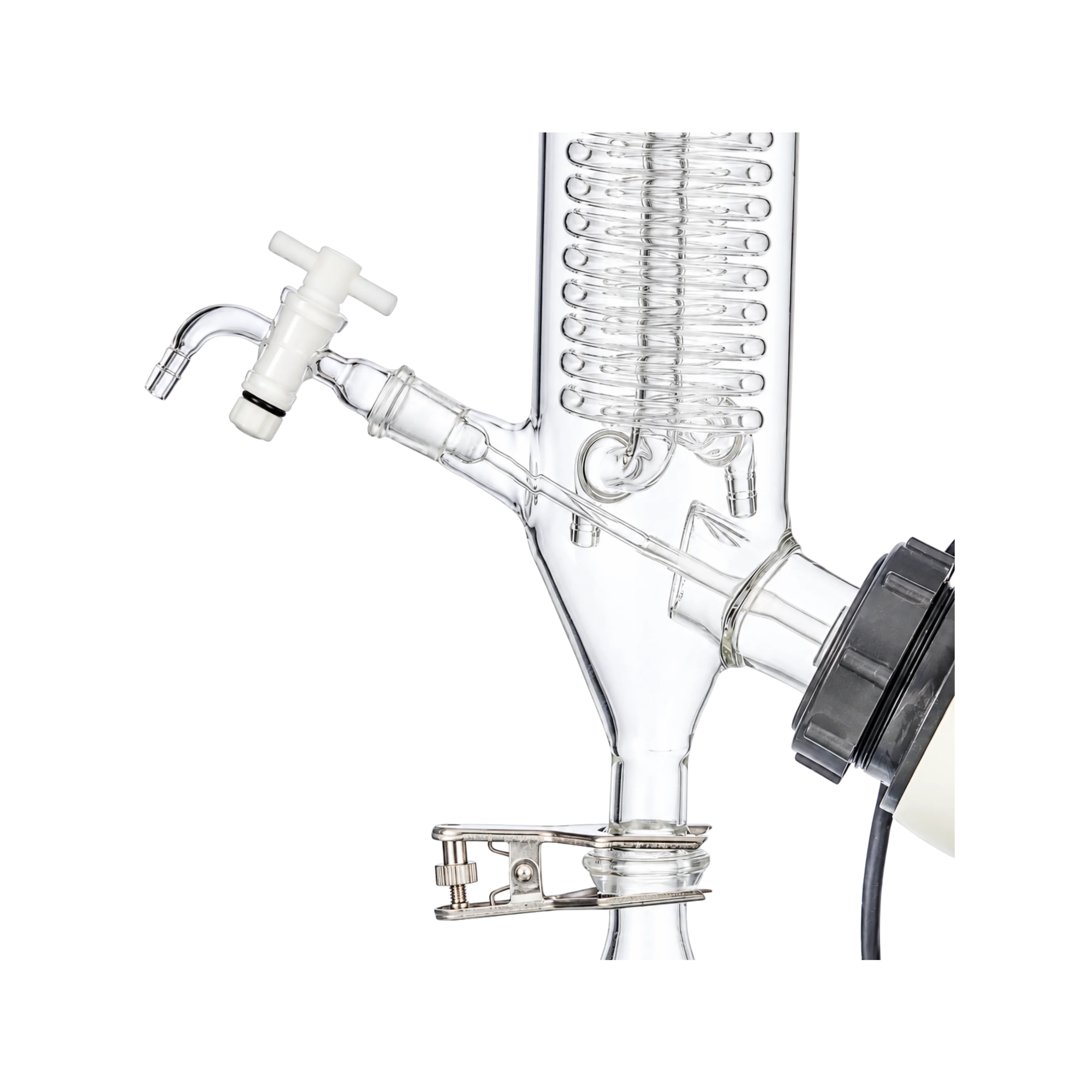

Up-right double layer serpentine coil condenser to ensure high recovery rate
Stainless steel and aluminum alloy main body bracket
Easy and smooth operation of lifting and moving
Separation of bath and mainframe makes configuration flexible
High rated condenser with exceptional cooling properties
Heats up quickly because of optimized bath volumes
Easy and jolt-free raising and lowering of rotary evaporator
Adjustable final position recognition to protect operator and sample against breaking

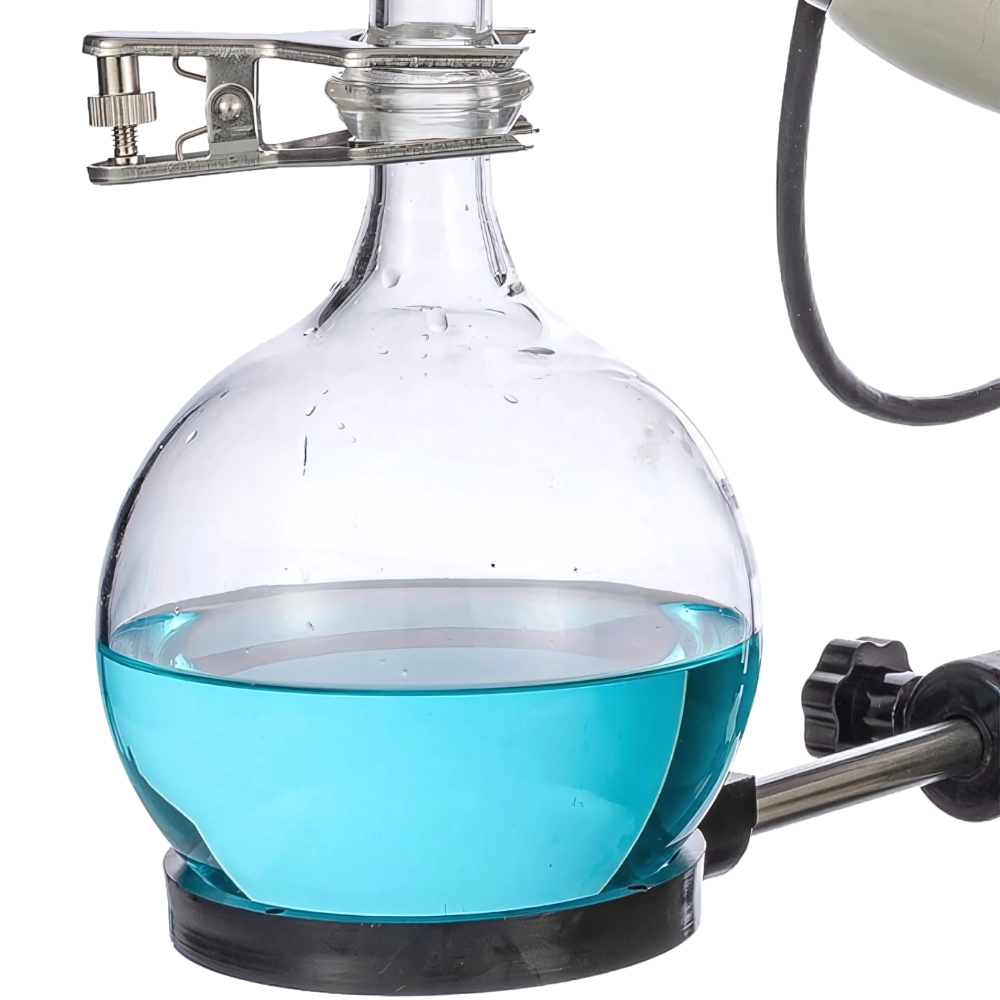

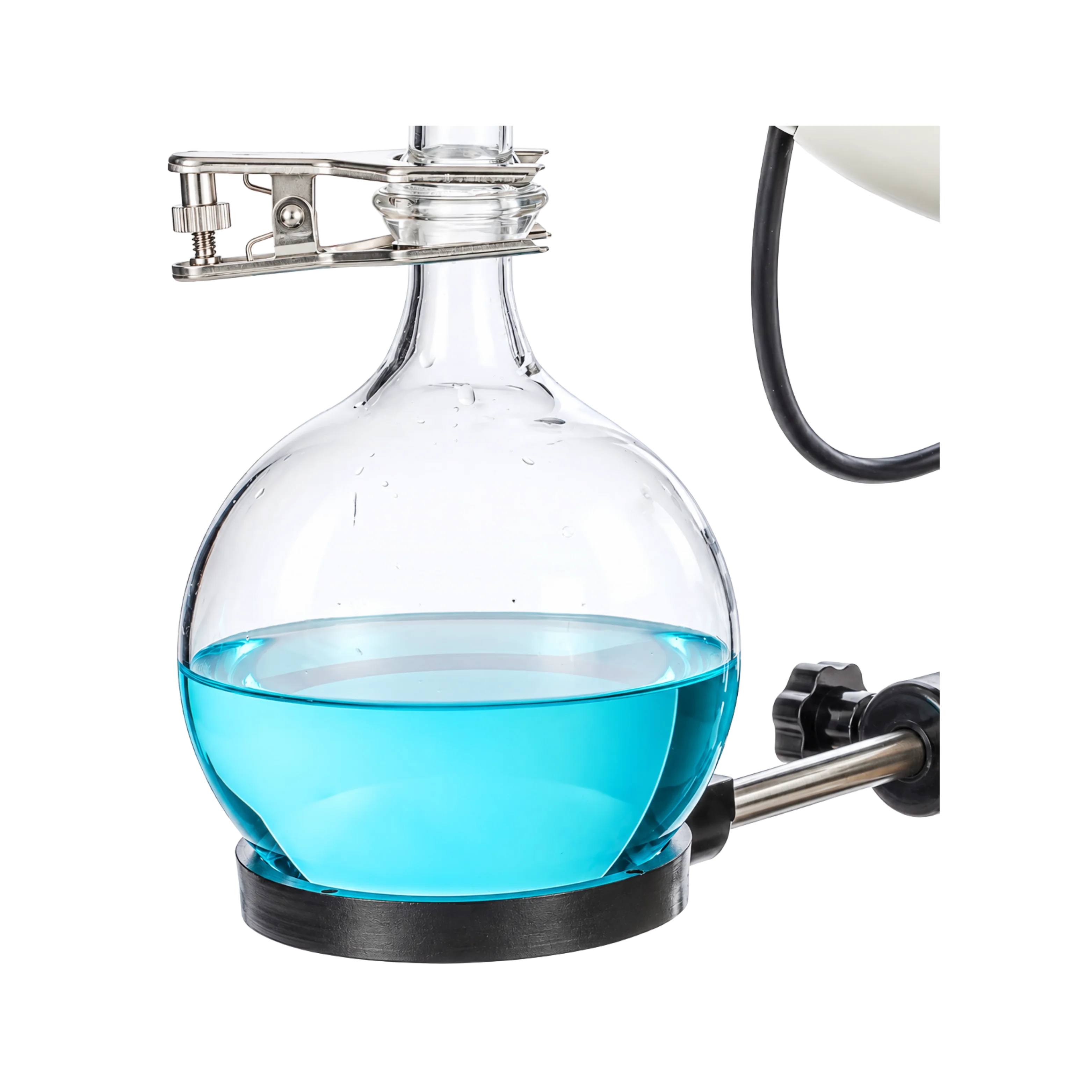

Evaporating flask with an ejector is very convenient to remove
It is an indispensable instrument for evaporation, concentration, crystallization, separation and solvent recovery in research and production of medicine, chemical and biological products etc.
