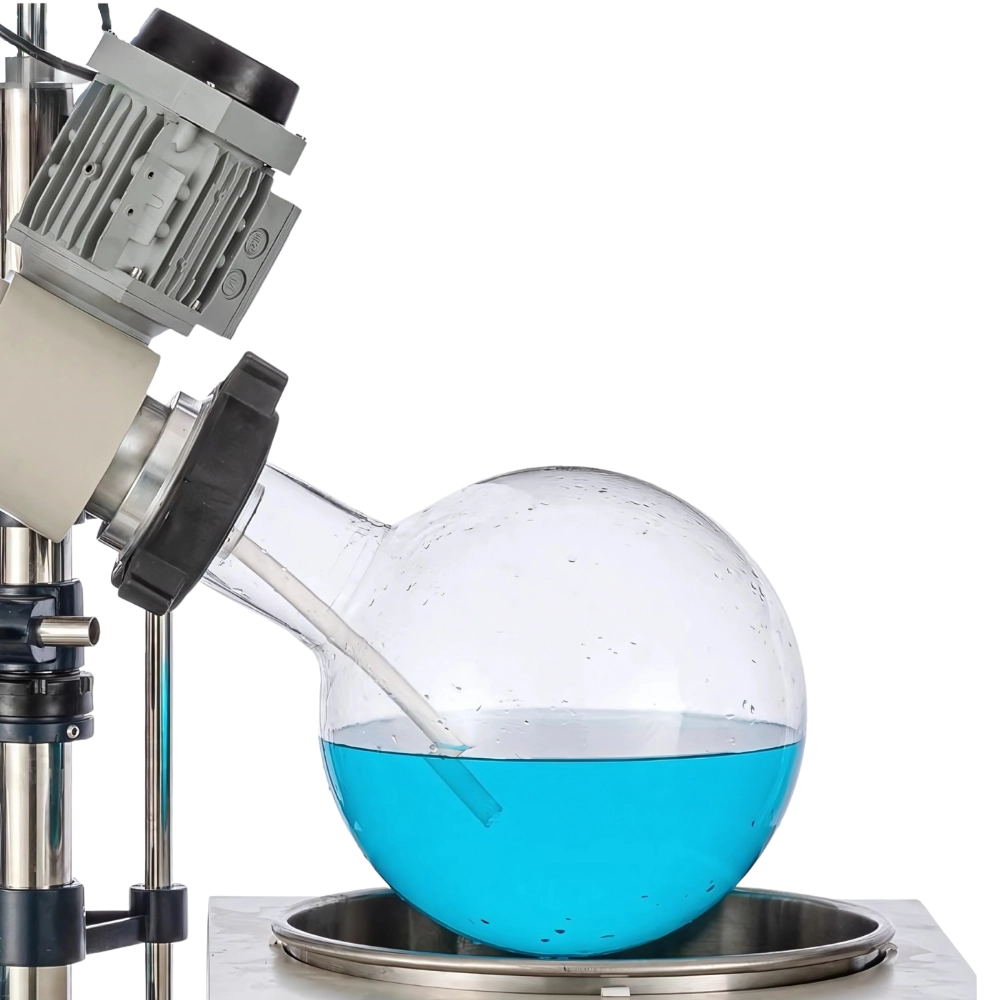

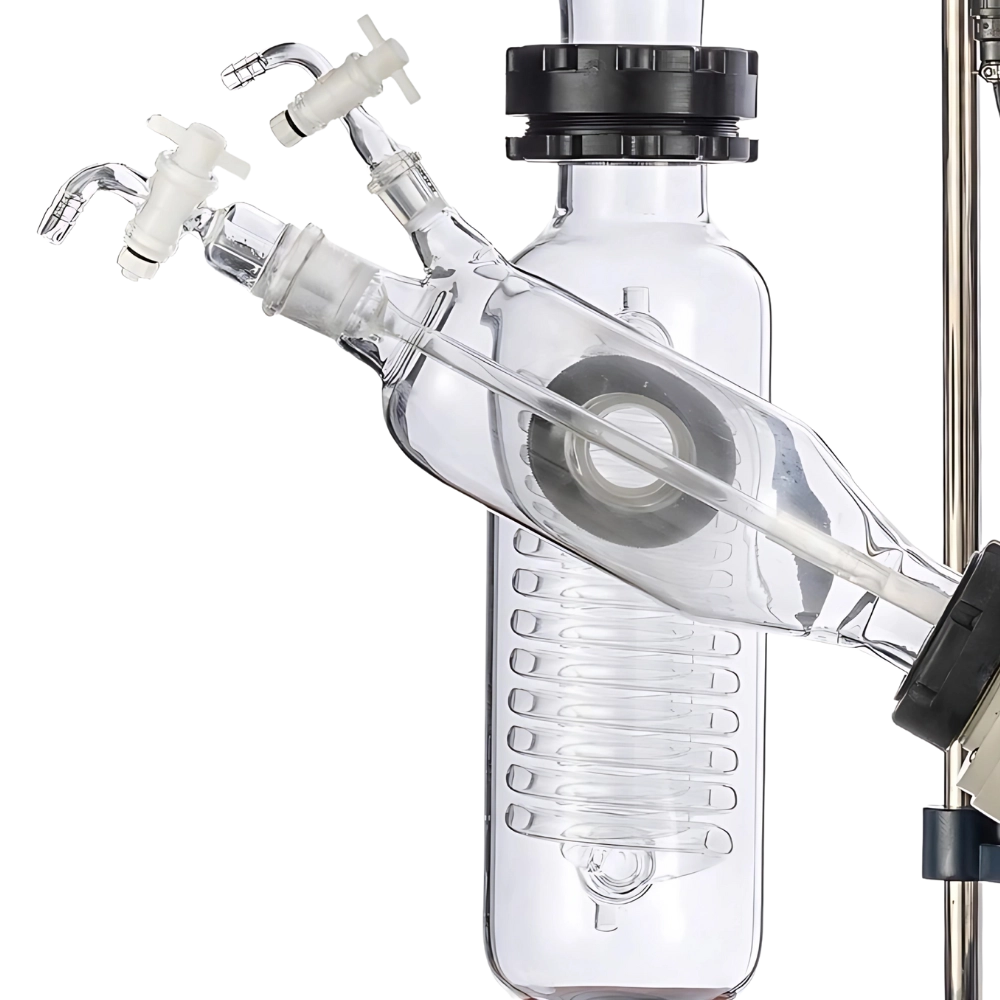

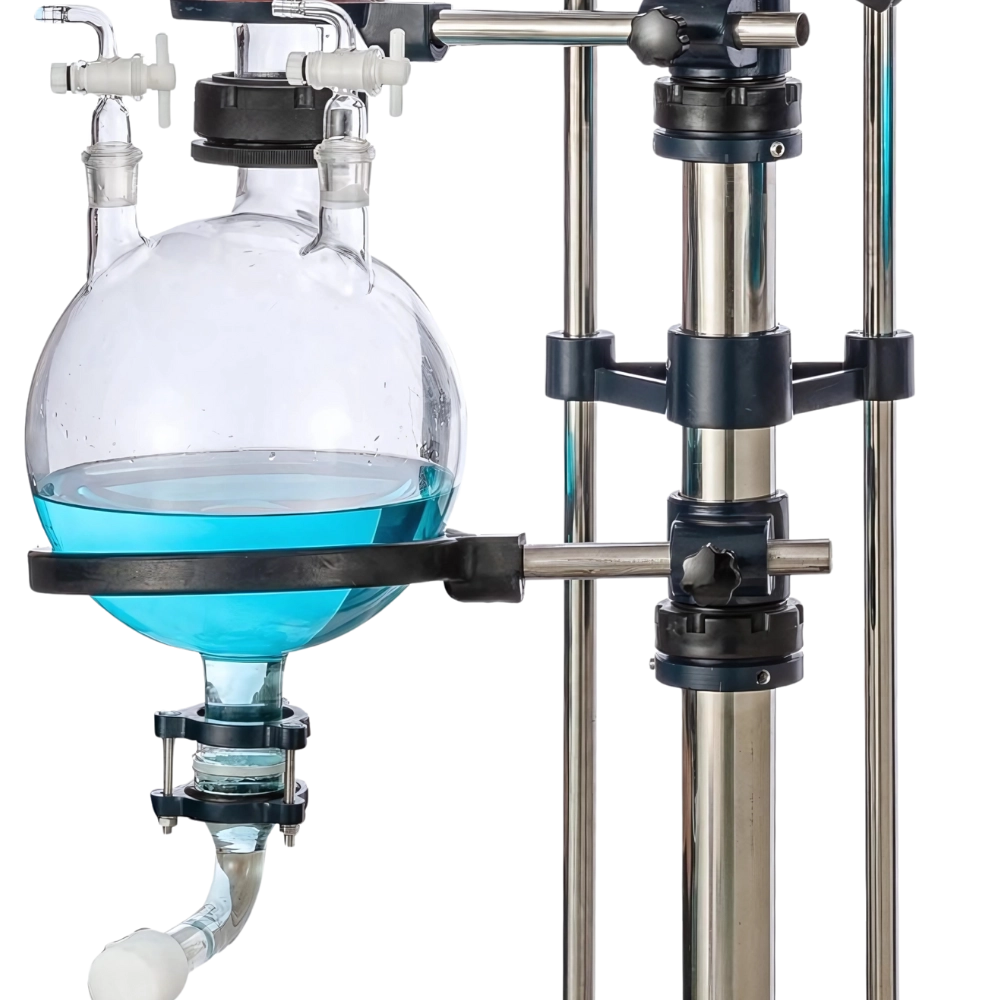

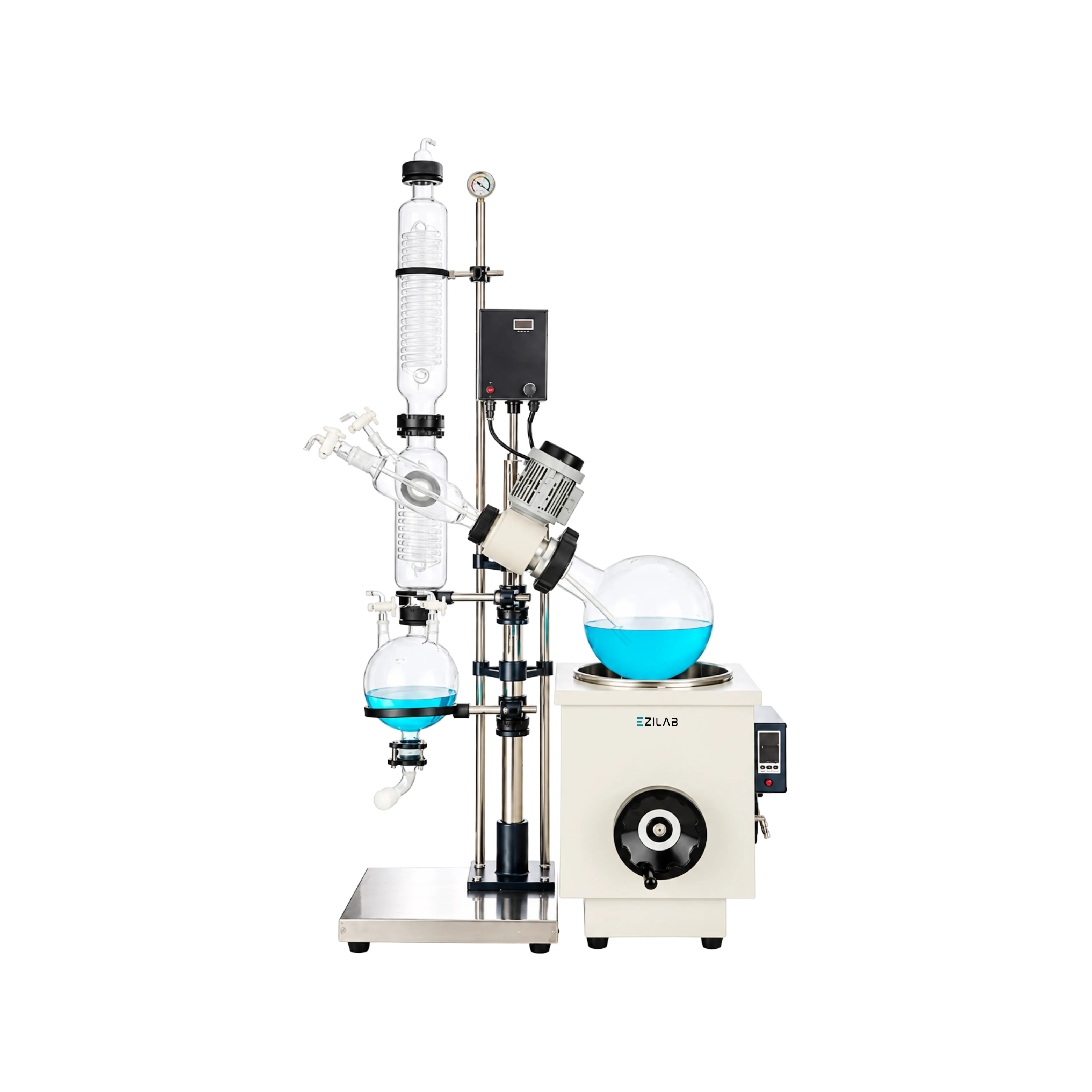

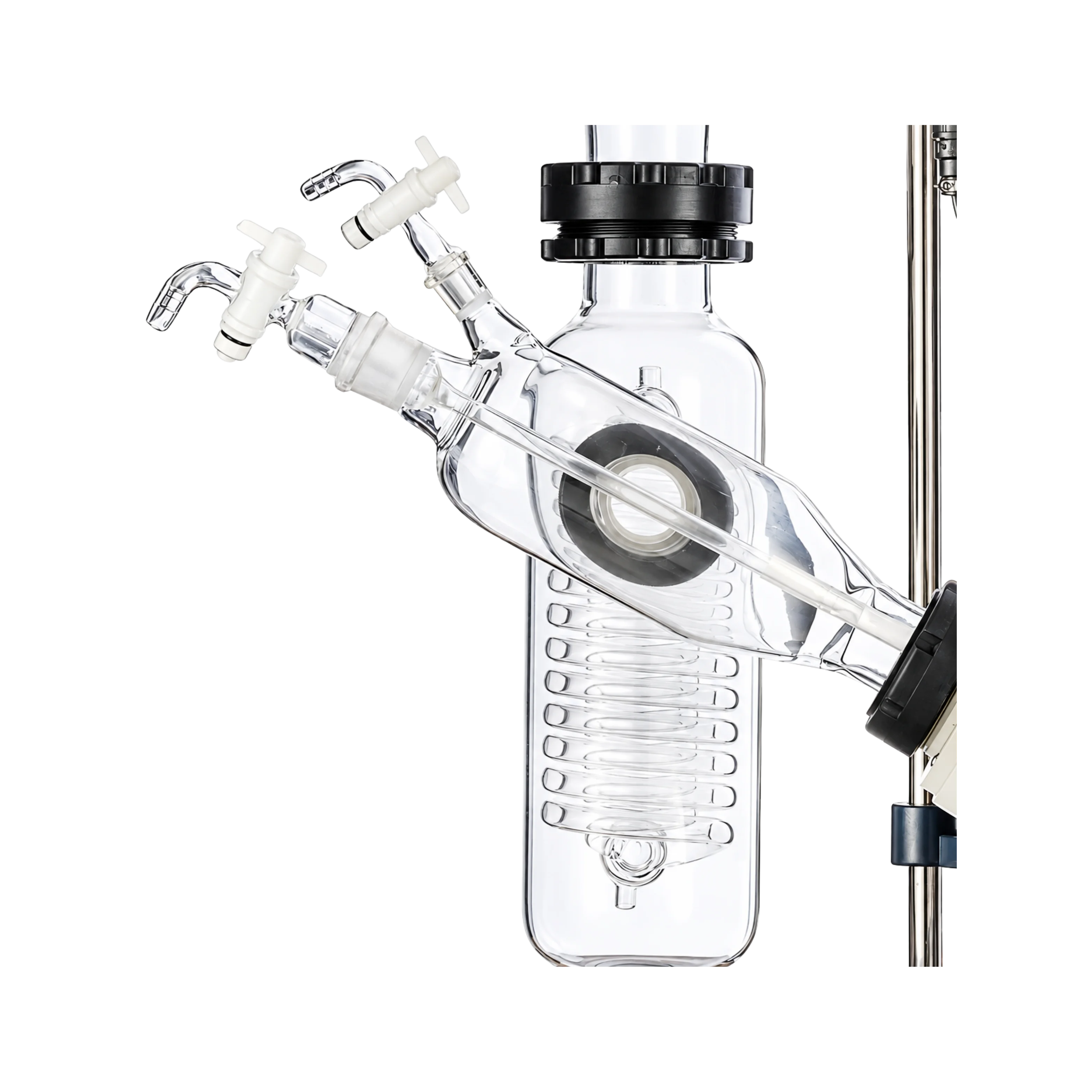

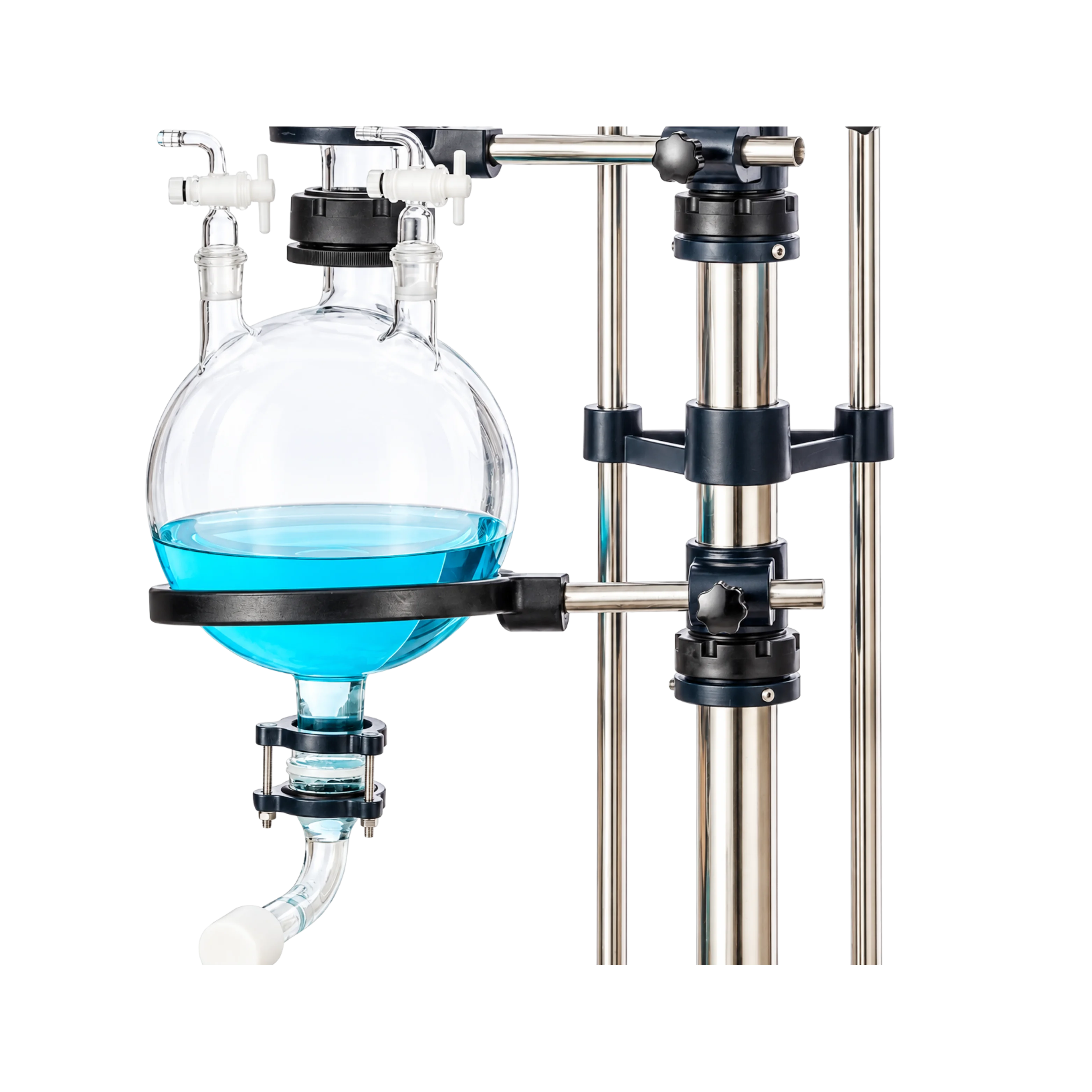

Rotary Evaporator EZL-RE26 is designed and engineered for ease of use while maintaining the highest level of safety. It operates at 110 rpm and allows for one-handed manual lift handling for precise positioning of glassware by using either water or oil. The unique 20 L bath design heats up quickly, allowing for faster experiments. Bath can reach temperatures of up to 400°C and is designed to be user-friendly while maintaining the highest level of safety. The transparent vertical condenser's small footprint makes efficient use of the cooling surface. This piece of equipment includes a digital display for monitoring and controlling rotation speed parameters.
| Rotary Bottle | 20 L |
|---|---|
| Collecting Bottle | 10 L |
| Rotary Speed | 0 to 110 rpm |
| Evaporating Speed | 60 ml/min |
| Achievable Vacuum | 0.098 Mpa |
| Bath Size | 450×250 mm |
| Bottom Plate Size | 534×504 mm |
| Elevating Stroke | 180 mm |
| Temperature Range | 0 to 400°C |
| Temperature Accuracy | ±1°C |
| Display | Digital display |
| Speed Regulation | Electronic step less speed regulation |
| Elevating function | Manual elevating |
| Sealing | Double sealing with Teflon (PTFE) |
| Rotary Motor Power | 120 W |
| Heating Power | 5 Kw |
| Power Supply | 220V, 50/60Hz |
| Dimension (L×W×H) | 1170×540×2200 mm |
| Gross Weight | 135 Kg |
It is an indispensable instrument for evaporation, concentration, crystallization, separation and solvent recovery in research and production of medicine, chemical and biological products etc.
Ezilab Manual Rotary Evaporators are crafted with borosilicate glass to provide resistance to high temperatures and corrosion. The high-rated condenser efficiently condenses vapors to ensure maximum condensation. They have separate baths and mainframes to allow flexible configuration options. Their double-layer serpentine coil condenser maximizes the surface area to improve the efficiency of solvent recovery. Our Manual Rotary Evaporators have a smooth operation of lifting and moving to reduce the risk of sample loss or breakage.
Ezilab Automatic Rotary Evaporators have large LCD screens for monitoring and controlling the speed and temperature. They adopt high-speed performance with single-chip microcontrollers to ensure efficient operation. Their optimized bath volumes increase the evaporation efficiency to reduce waiting time. The adjustable final position recognition protects the operator and sample from breaking. Our Automatic Rotary Evaporators have DC motors that provide automated lifting and lowering of the evaporator for user efficiency.
