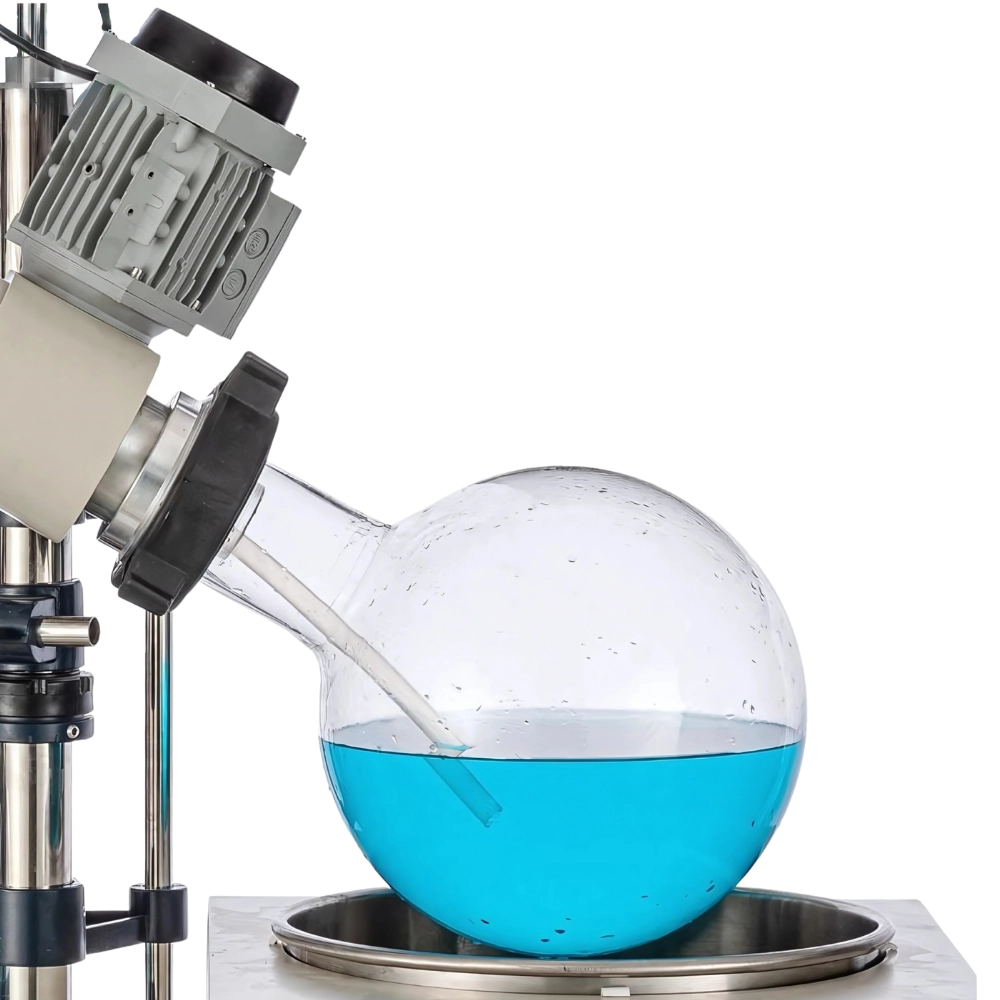

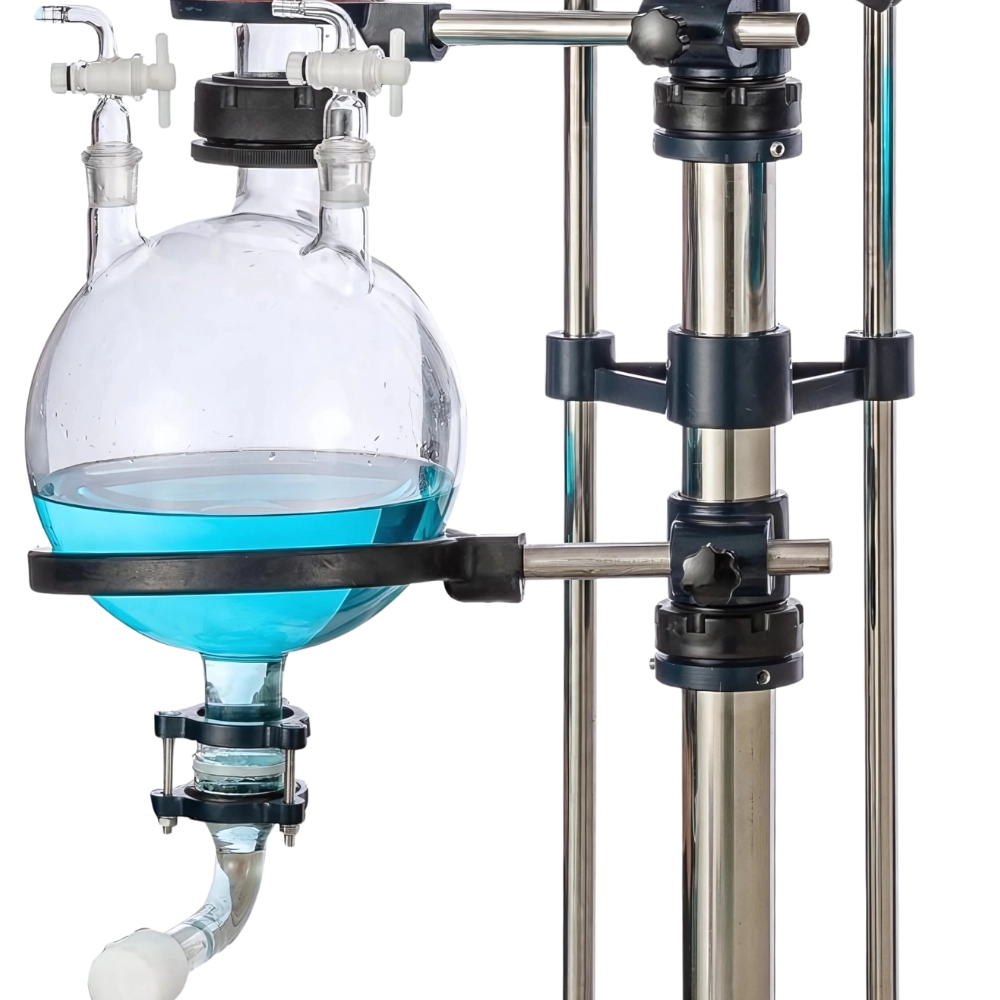

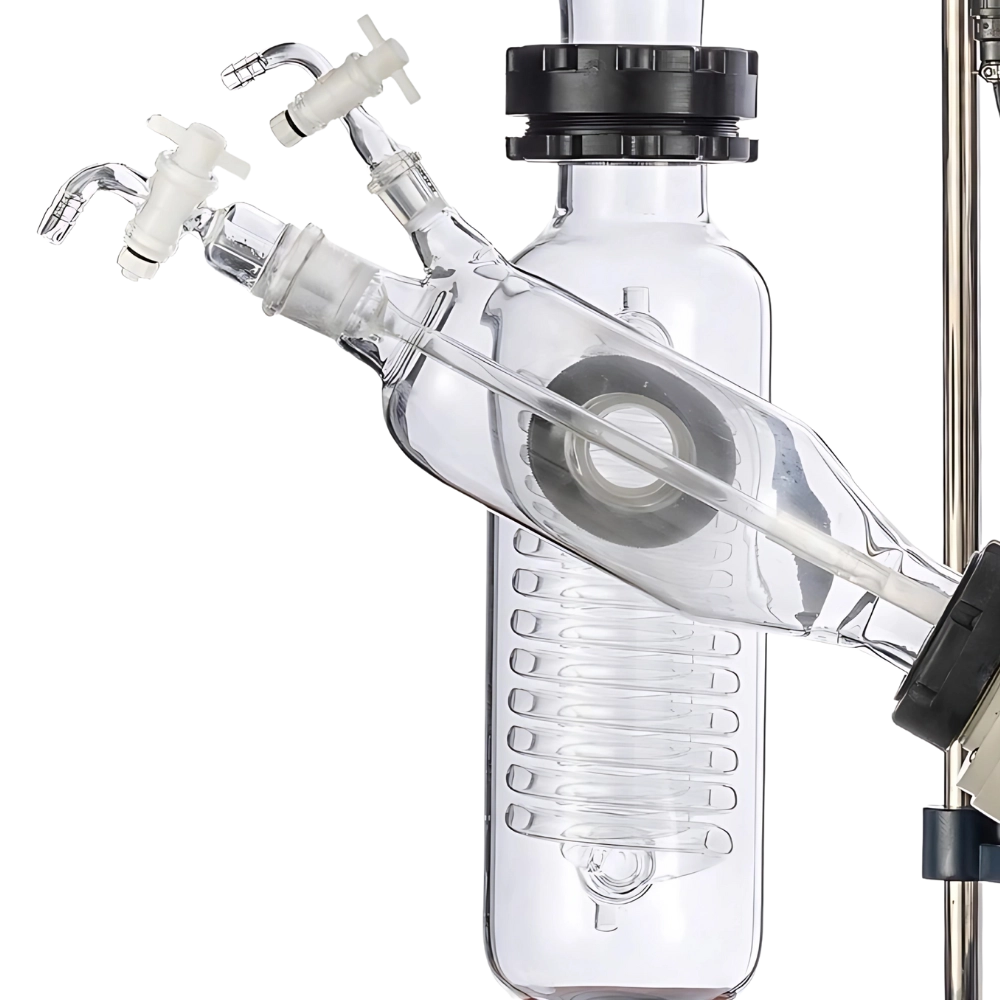

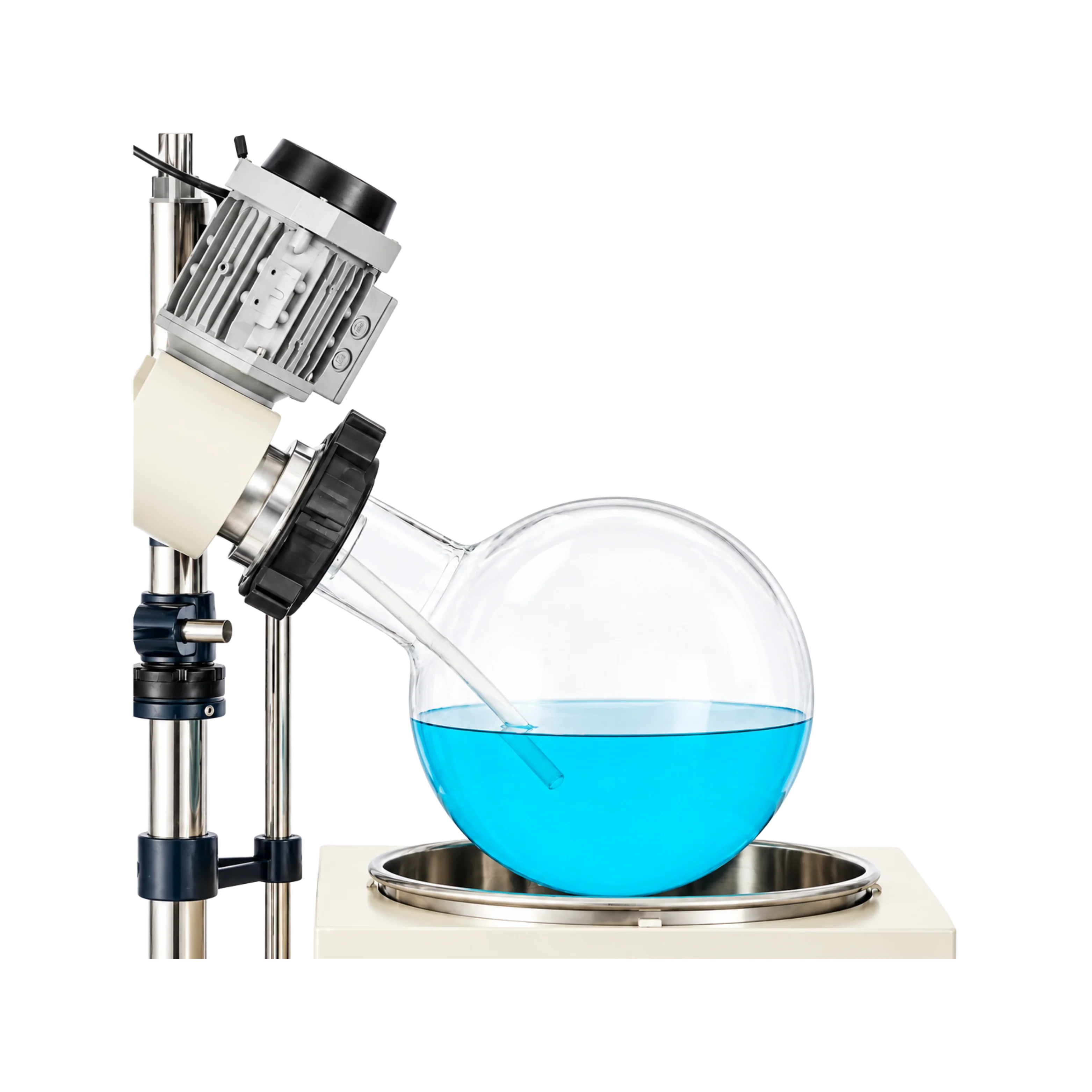

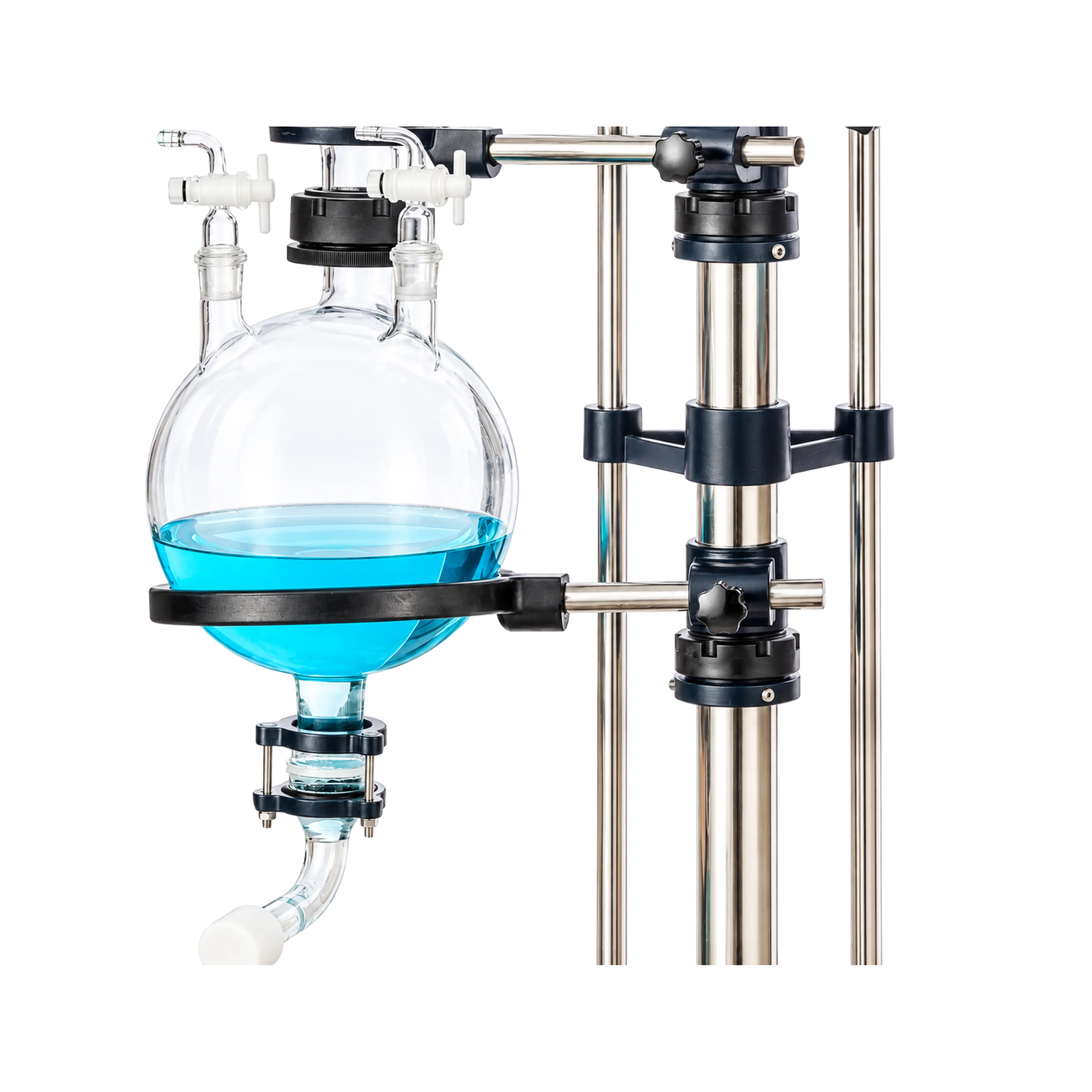

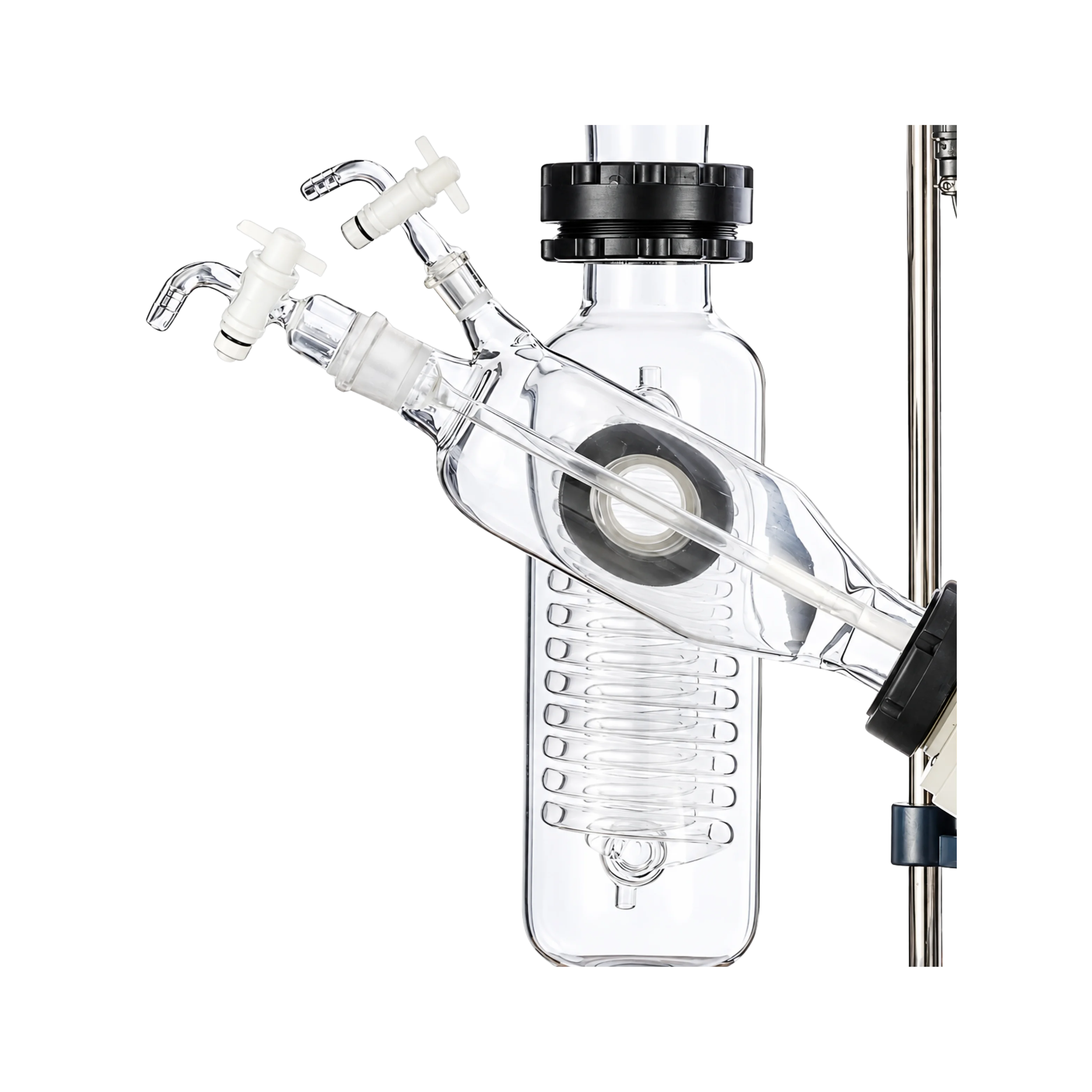

Rotary Evaporator EZL-RE25 is designed and engineered for simplicity of use while maintaining the highest level of safety. It runs at 110 rpm and allows for one-handed manual lift handling for precise positioning of glassware by allowing the use of either water or oil. The unique 10 L bath design quickly heats up, allowing for faster experiments. Bath can reach temperatures of up to 400°C and is designed to be simple to use while maintaining the highest level of safety. The small footprint of the transparent vertical condenser makes efficient use of the cooling surface. A digital display is included in this piece of equipment for monitoring and controlling rotation speed parameters.
| Rotary Bottle | 10 L |
|---|---|
| Collecting Bottle | 5 L |
| Rotary Speed | 0 to 110 rpm |
| Evaporating Speed | 60 ml/min |
| Achievable Vacuum | 0.098 Mpa |
| Bath Size | 350×220 mm |
| Bottom Plate Size | 474×474 mm |
| Elevating Stroke | 180 mm |
| Temperature Range | 0 to 400°C |
| Temperature Accuracy | ±1°C |
| Display | Digital display |
| Speed Regulation | Electronic step less speed regulation |
| Elevating function | Manual elevating |
| Sealing | Double sealing with Teflon (PTFE) |
| Rotary Motor Power | 120 W |
| Heating Power | 3 Kw |
| Power Supply | 220V, 50/60Hz |
| Dimension (L×W×H) | 970×480×1950 mm |
| Weight | 106 Kg |
It is an indispensable instrument for evaporation, concentration, crystallization, separation and solvent recovery in research and production of medicine, chemical and biological products etc.
Ezilab Manual Rotary Evaporators are crafted with borosilicate glass to provide resistance to high temperatures and corrosion. The high-rated condenser efficiently condenses vapors to ensure maximum condensation. They have separate baths and mainframes to allow flexible configuration options. Their double-layer serpentine coil condenser maximizes the surface area to improve the efficiency of solvent recovery. Our Manual Rotary Evaporators have a smooth operation of lifting and moving to reduce the risk of sample loss or breakage.
Ezilab Automatic Rotary Evaporators have large LCD screens for monitoring and controlling the speed and temperature. They adopt high-speed performance with single-chip microcontrollers to ensure efficient operation. Their optimized bath volumes increase the evaporation efficiency to reduce waiting time. The adjustable final position recognition protects the operator and sample from breaking. Our Automatic Rotary Evaporators have DC motors that provide automated lifting and lowering of the evaporator for user efficiency.
