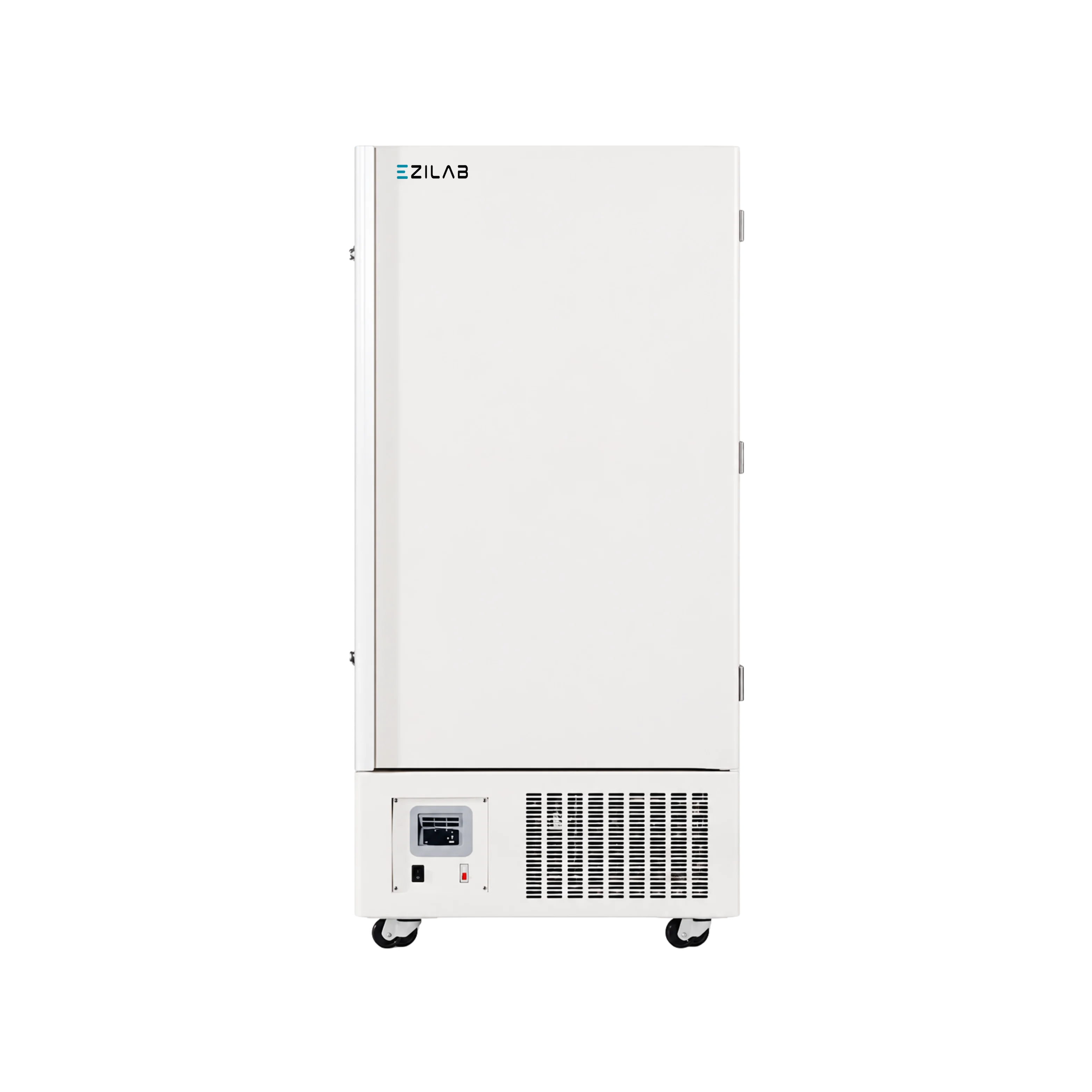

EziLab supplies the -86C Ultra-Low Temperature Freezer EZL-UF153 for pharmaceutical and clinical laboratories that need capacity between the 108L compact unit and the 338L mid-tier freezer in this catalog. At 160L capacity with a -65 to -86°C operating range, this lab freezer keeps the same narrow deep-cold focus found on the smaller 58L and 108L units rather than the wider -40 to -86°C span on the 338L and 408L models, giving facilities with a slightly larger inventory of genuinely ultra-low-sensitive samples more room than the 108L cabinet without stepping up to the broader-range 338L unit. That intermediate capacity suits satellite pharmaceutical sites or smaller research labs whose ultra-low sample inventory has grown past what the smallest units accommodate but doesn't yet need the wider temperature flexibility the mid-tier freezers offer. Facilities storing materials that specifically require -65°C or colder, at a moderate but growing inventory scale, get storage matched to both that temperature requirement and volume here. See the Lab Freezer and -86C Ultra-Low Temperature Freezer ranges for intermediate-capacity deep-cold-focused storage needs across USA pharmaceutical and clinical laboratory settings.



Capacity 160 L
Temperature Range -65° to -86°C
Maximum Ambient Temperature 30°C
Noise 55 dB
Defrost Manual
Insulation 120 mm
Refrigerant R404a
Sensor PT 100
Inner Material 304 Stainless steel
Outer Material Galvanized sheet spraying
Power Consumption 7.8 KW/Hr
Interior Dimension (W×D×H) 460×455×800 mm
Exterior Dimension (W×D×H) 700×700×1580 mm
Weight 123 Kg
  • Digital display for ease of operation

  • Adjustable shelves for sample holding

  • This freezer is used for storing all sorts of medical equipment

  • Independent inner door minimizing loss of cold temperature

  • Easy to use built-in handle design

  • Condenser requires no liquid cooling agent

  • CFC free refrigeration system

  • Multi-level security

  • Compressors are protected with constant flow of refrigerant

  • Rugged construction with cold rolled steel cabinets

  • Stainless steel interiors

  • Direct cooling for optimized temperature stability and uniformity

  • Used for storing and preservation of reagents, medicines, vaccines, disinfectant, liquid chemical Sterilants and also meets the requirements in the field of R&D, biomedical, electronic and chemical industries.
