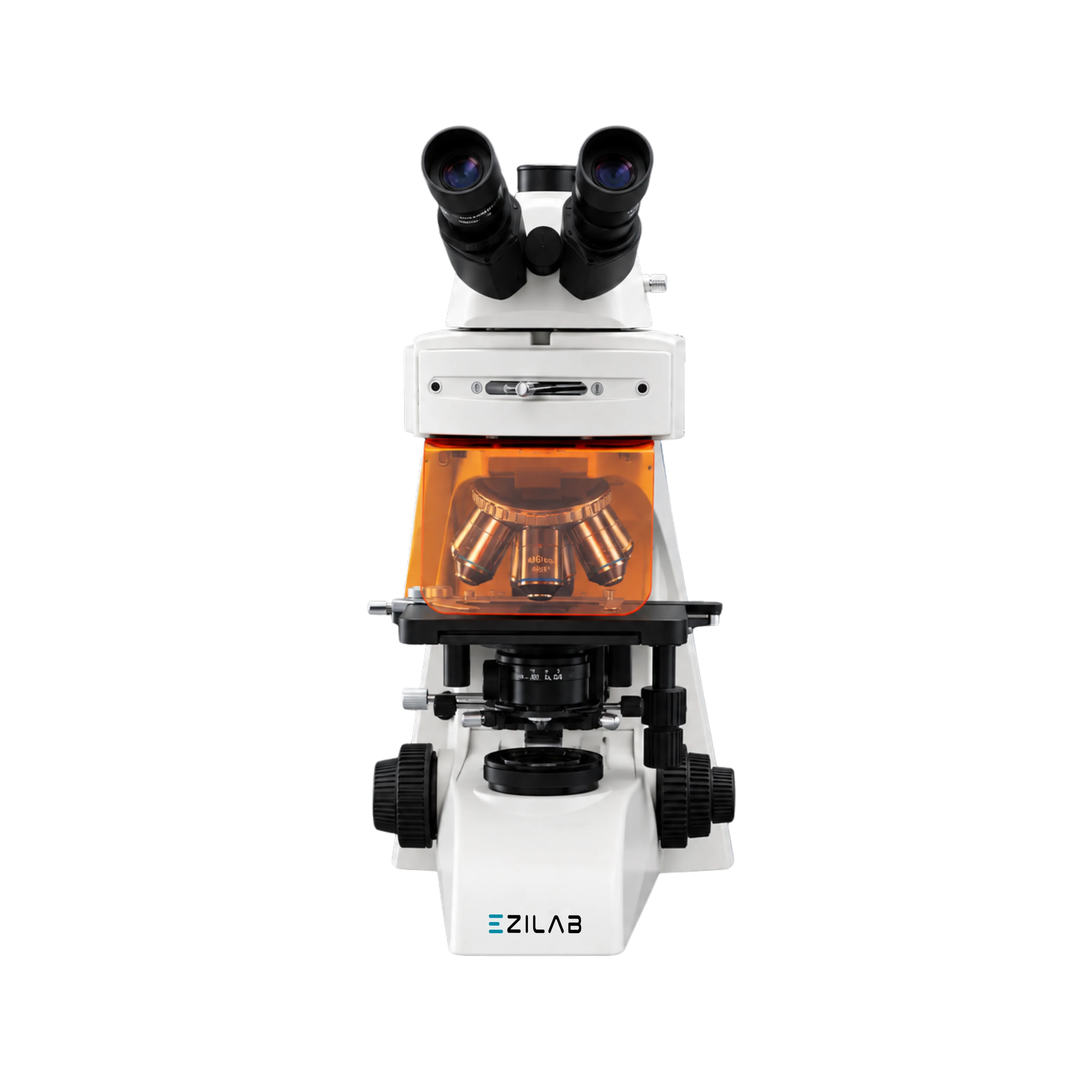

Fluorescence Microscope EZL-FM100 Catalog

EziLab offers the Fluorescence Microscope EZL-FM100, a trinocular microscope with a Siedentopf head inclined at 30° that rotates 360° and adjusts from 50 to 75 mm interpupillary distance. Five infinity plan objectives at 4x, 10x, 20x, 40x, and 100x oil sit on a quintuple ball-bearing nosepiece, paired with WF10x/20 mm eyepieces and an Abbe N.A. 1.25 condenser with iris diaphragm. Built-in Kohler illumination uses a 3 W LED or 6 V/20 W halogen lamp, and a 3 W LED epi-fluorescence lamphouse carries blue and green excitation filters. Coaxial coarse and fine focus, an antifungal coating, and an 18 kg stand complete it. The trinocular port takes a C-mount camera for documenting stained samples, and LED excitation avoids the warm-up and short life of mercury lamps. Researchers image cells, track GFP-tagged proteins, and run immunofluorescence and FISH, switching filter modules between dyes. Optional phase contrast and dark field kits add live-cell and unstained viewing. University and biological research labs study cell structure and protein expression, while hospital pathology labs examine tissue sections. Microbiology groups identify stained bacteria, and life science teams use this LED fluorescence microscope for imaging and teaching. See the Fluorescence Microscopes and Fluorescence Microscope pages for full specifications.

• ✓ Stable and durable structure
• ✓ Smooth mechanical stage movement
• ✓ High-contrast image output
• ✓ Low-maintenance optical system
• ✓ Easy filter module switching

• ✓ Eyepiece pointer Battery pack
• ✓ Binocular phototube 50%: 50% (vis: doc) Dark field equipment (DF slider 0.65) Camera adapters: C mount adapters 2/3 Software with camera driver
• ✓ Original OMEGA excited filters
• ✓ Tilting removable mirror (only for fixed Kohler stand variable) Phase contrast equipment: 10×/Ph1, 20×/Ph2, 40×/Ph2, 100×/Ph3 Halogen lamp 6V/30W with phase sliders

• ✓ Fluorescence Microscope EZL-FM100 is ideal for biological and medical research, enabling fluorescence microscopy with enhanced clarity and reliable performance. It is widely used in cellular imaging, microbiology, pathology, and life sciences.
