EziLab’s Cassette Printer EZL-CP100 uses a 1060 nm fiber laser to mark text, numbers, QR codes, and symbols on tissue cassettes across a 200 x 200 mm field, holding repeat accuracy within 0.01 mm and line widths as fine as 0.01 mm. A 1-micron beam delivers sharper print quality than older marking methods, while digital code support, automatic batch printing, and an automatic alarm system keep large runs consistent with minimal input. The air-cooled laser rates over 100,000 hours of service life, and friction-resistant marking keeps codes legible through solvents and handling. As a tissue cassette printer built for histopathology workflows, this unit links cassette IDs directly to LIS records for faster specimen tracking. Clinical laboratories and hospital pathology departments use it to print patient and case identifiers before tissue embedding, while pharmaceutical and medical device makers apply the same laser marking machine to traceability coding on components. Electronics manufacturers and food and beverage producers rely on this laser marking system for batch codes and QR traceability tracking. Logistics and warehousing operations increasingly add a histology cassette printer style unit for permanent, tamper-resistant, solvent-proof asset labeling. See the Lab Equipment and Cassette Printer pages for further specifications and ordering details.
| Printing Method | Laser |
|---|---|
| Printing Speed | Up to 30,000 mm/s |
| Marking Range | 200 × 200 mm |
| Marking Depth | Less than 3mm (depending on material) |
| Print Content | Text, numbers, QR code, symbols |
| Minimum Line Width | Greater than 0.01mm |
| Minimum Character Size | Greater than 0.15mm |
| Print Quality | High clarity with 1 micron beam resolution (10x better than traditional) |
| Repeat Accuracy | ±0.01mm |
| Field Information | Greater than 8 editable fields |
| Connectivity | Standard USB interface |
| QR Code Size | Greater than 6 × 6 mm |
| Laser Wavelength | 1060 nm |
| Fiber Laser Life | Greater than 100,000 hours |
| Working Environment Temperature | 10 to 40℃ |
| Working Environment Humidity | 10% to 90% (non-condensing) |
| Average Power Consumption | Less than 300W |
| Total Power Consumption | Less than 500W |
| Cooling Method | Air cooling |
| Dimension | 400 × 435 × 420 mm |
| Packing Dimension | 630 × 575 × 600 mm |
| Net Weight | 40 Kg |
| Gross Weight | 45 Kg |
| Feature Area | Description |
| Marking | Laser printing with a 200 × 200 mm marking range and a marking depth of less than 3 mm. |
| Speed | Printing speed of up to 30,000 mm/s with automatic batch printing. |
| Laser | 1060 nm fiber laser with a life of over 100,000 hours and air cooling. |
| Content | Prints text, numbers, QR codes and symbols, with more than 8 editable fields. |

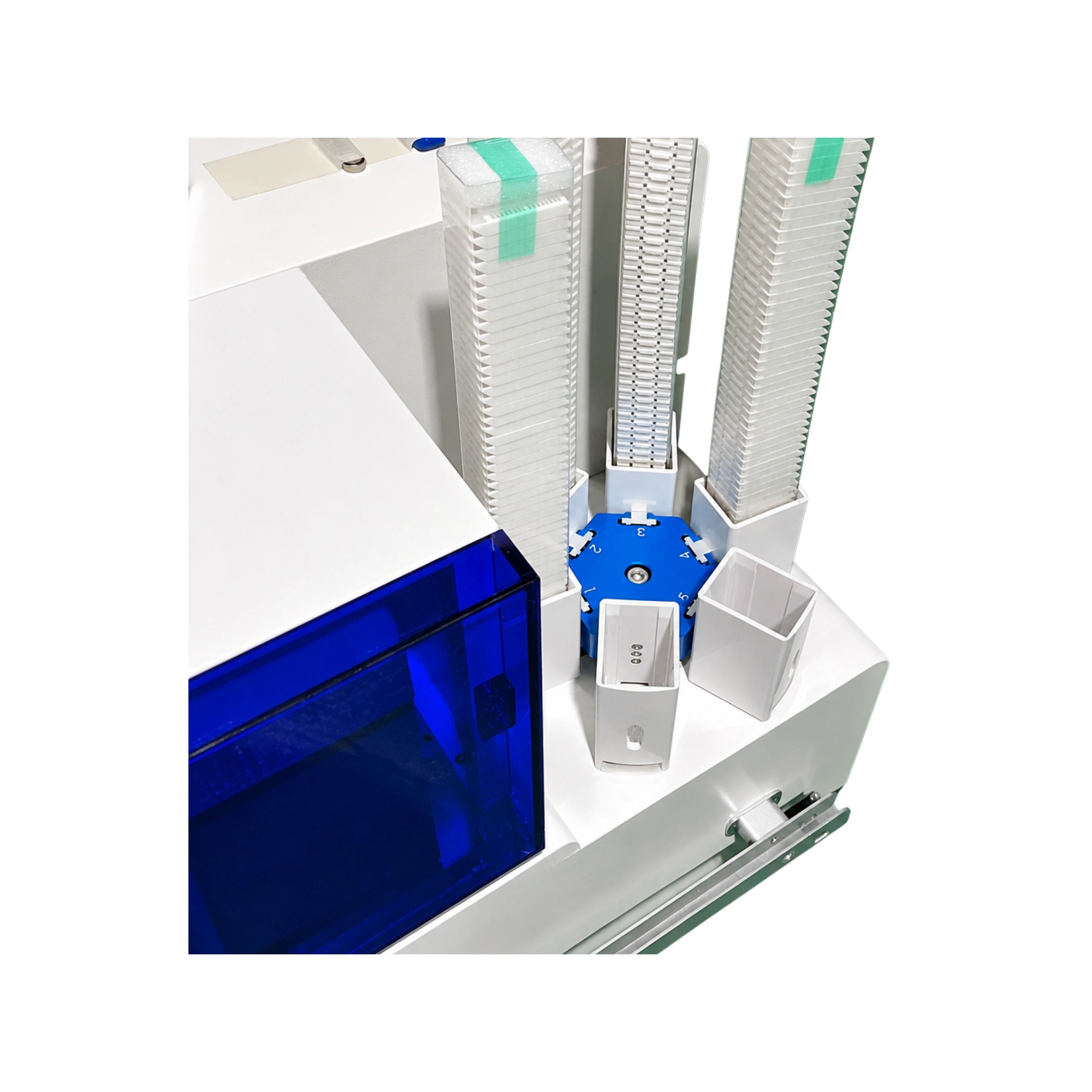

| Loading | 6 embedding cassette loading slots and 6 embedding strips, each holding 50 embedding boxes, with a standard USB interface. |
Accessory | Quantity |
Power Cord | 1 |
Data Cable | 1 |
Embedding a cassette loading slots | 6 |
Embedding strips (50 embedding boxes per strip) | 6 |
