EziLab Horizontal Electrophoresis EZL-HE100 operates with 150mL buffer capacity across a compact multi-lane gel box, offering a horizontal electrophoresis system with transparent lid for in-run observation, standard power supply compatibility, and lightweight build for easy handling. The 150mL buffer capacity supports routine multi-lane separation across compact batch workflows, while the transparent lid supports in-run sample observation without interrupting active cycles. Lightweight build supports easy handling across molecular biology research, DNA/RNA analysis, protein separation, and clinical laboratory workflows via Lab Equipment and EziLab's full range of electrophoresis for lab workflow integration.
| Gel Dimension | 48 × 75 mm |
|---|---|
| Buffer Volume | 150 ml |
| Sample Capacity | 3 to 18 |
| Rows Of Combs | 1 to 2 |
| Gel Making Mode | Gel box |
| Comb Thickness and number of wells | 1 mm and 1.5 mm for 3, 5, and 9 well comb |
| Dimension | 250 × 90 × 50 mm |
| Weight | 0.4 kg |
Stable pH maintenance
Buffer leakage prevention
Corrosion-resistant material
Adjustable run time
Uniform gel migration

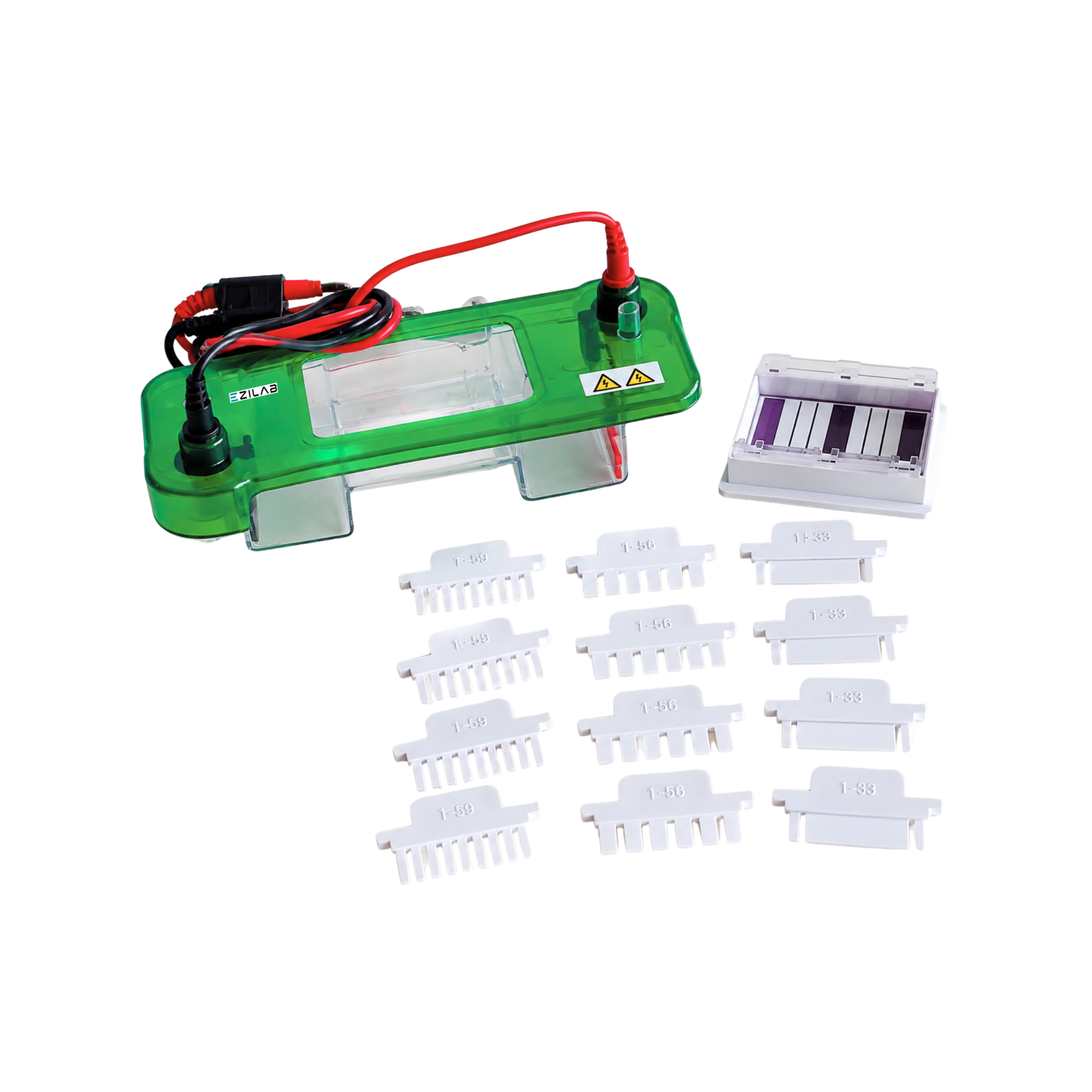

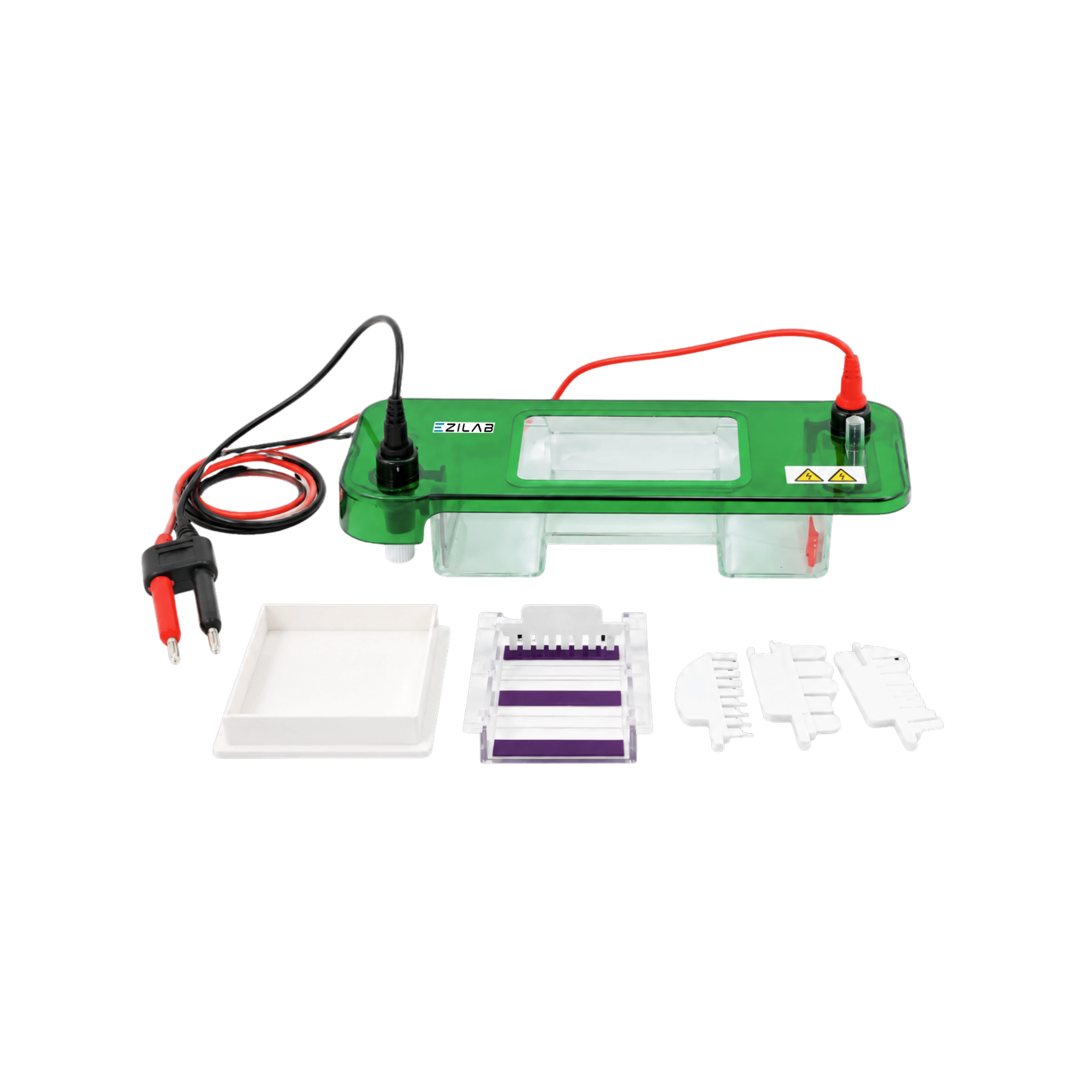

Sl.No | Accessories | Unit |
1 | Lid with cables | 1 |
2 | Body tank with electrodes | 1 |
3 | 48 × 75 mm Gel tray | 1 |
4 | Gel casting stand | 1 |
5 | 1.0 mm thickness 3-well comb | 2 |
6 | 1.5 mm thickness 3-well comb | 2 |
7 | 1.0 mm thickness 5-well comb | 2 |
8 | 1.5 mm thickness 5-well comb | 2 |
9 | 1.0 mm thickness 9-well comb | 2 |
10 | 1.5 mm thickness 9-well comb | 2 |
Horizontal Electrophoresis EZL-HE100 is used for high resolution analytical and preparative studies of numerous samples of nucleic acids, screening PCR products, cloning and RFLP analysis.
