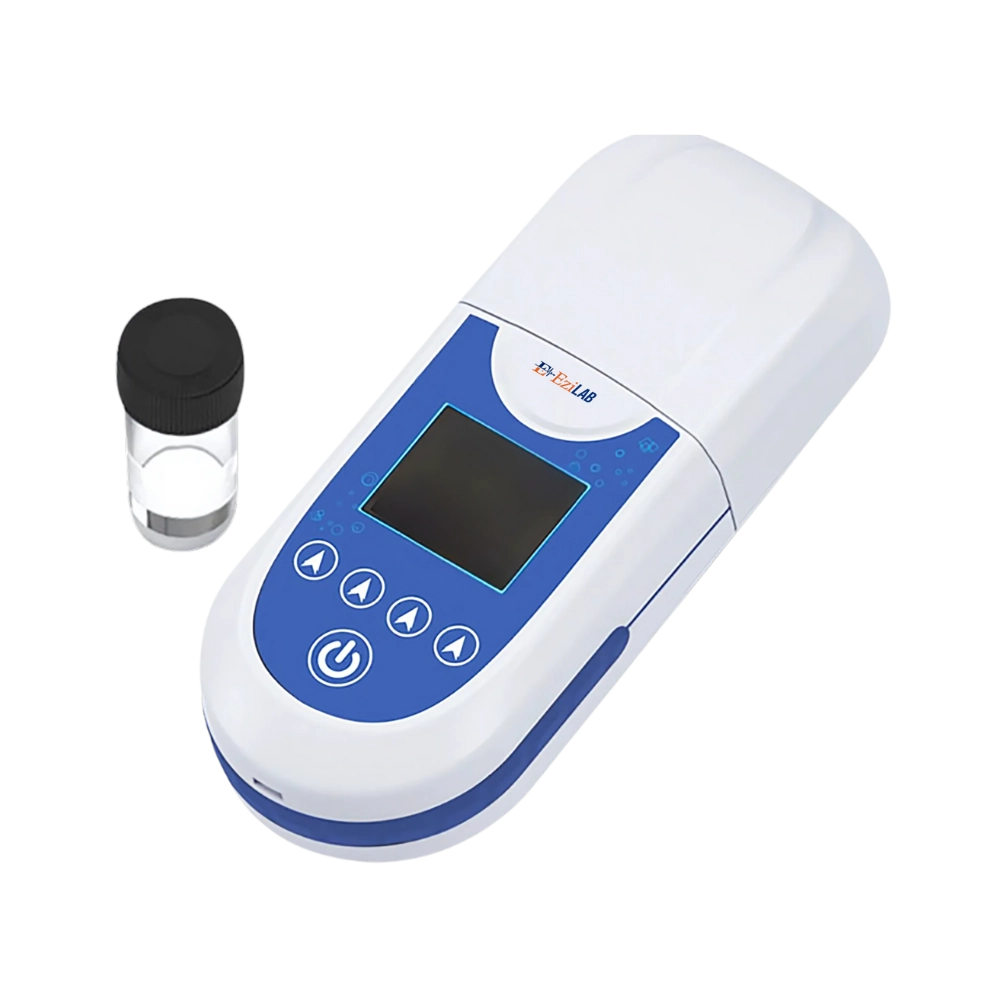

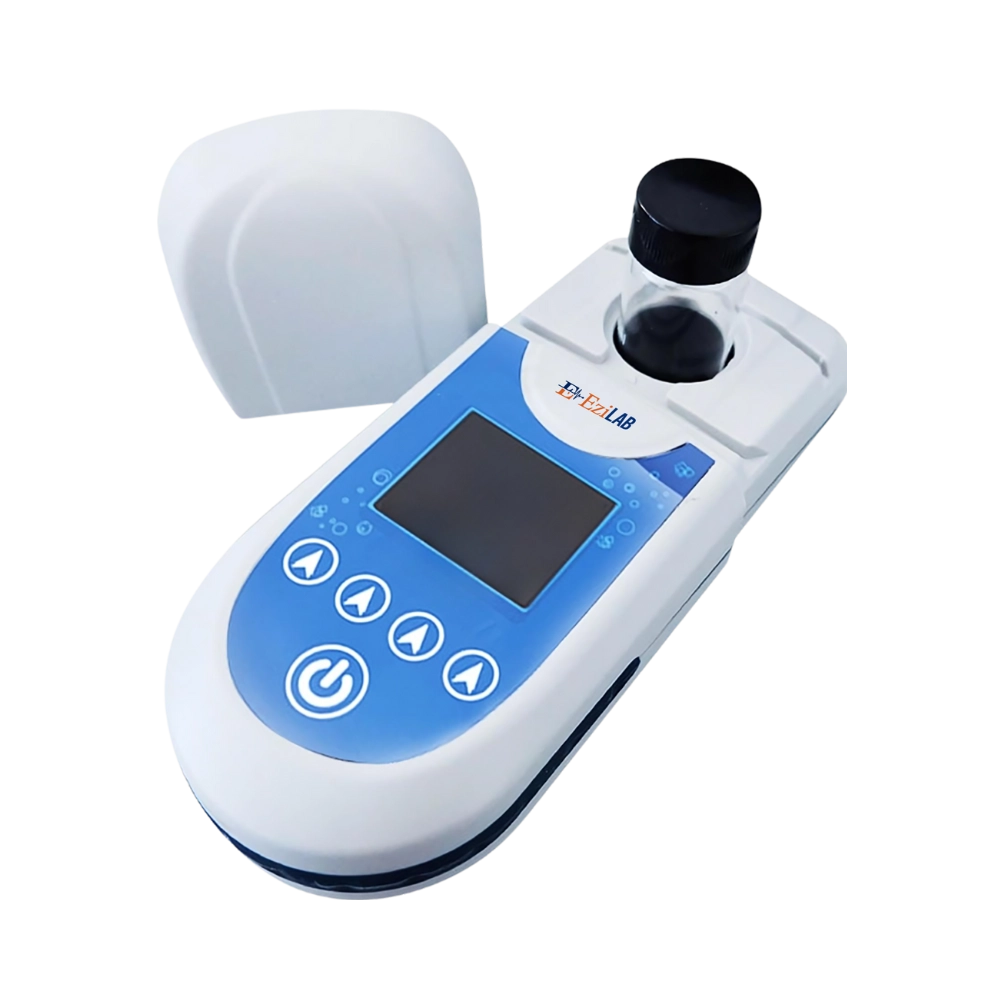

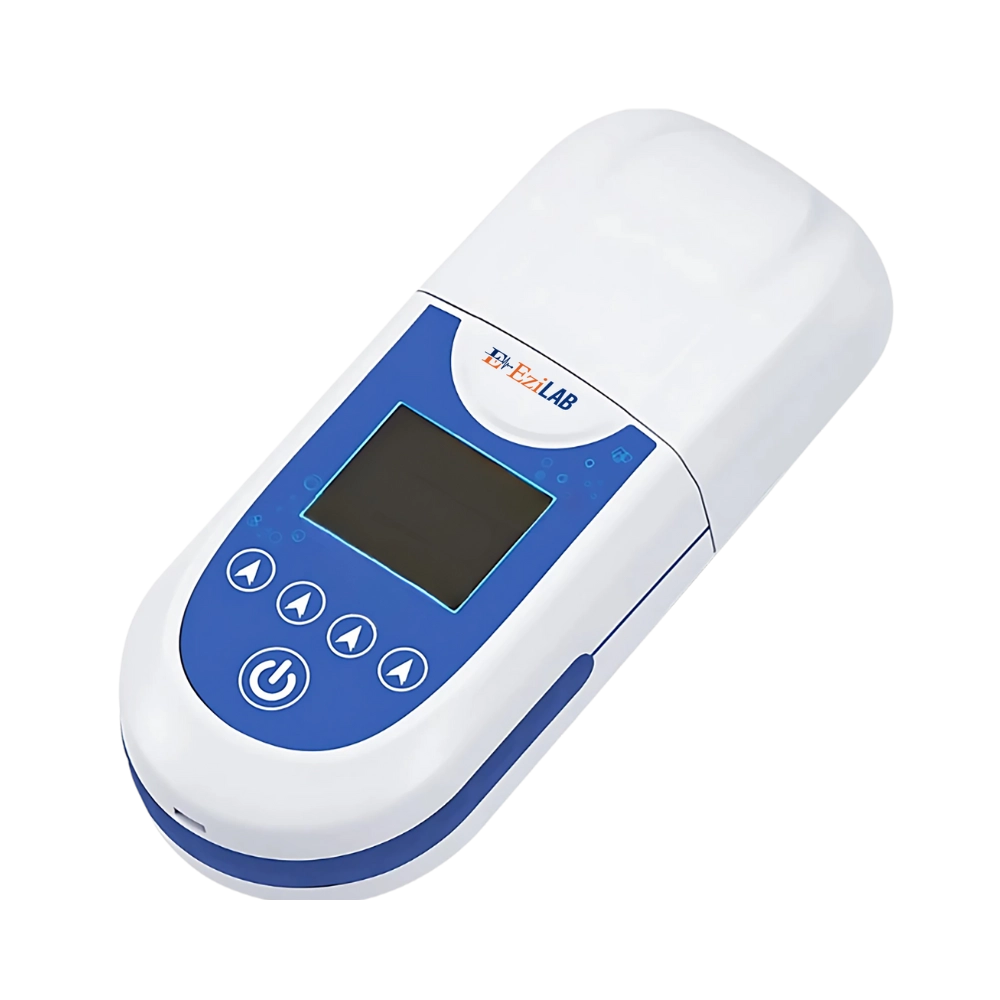

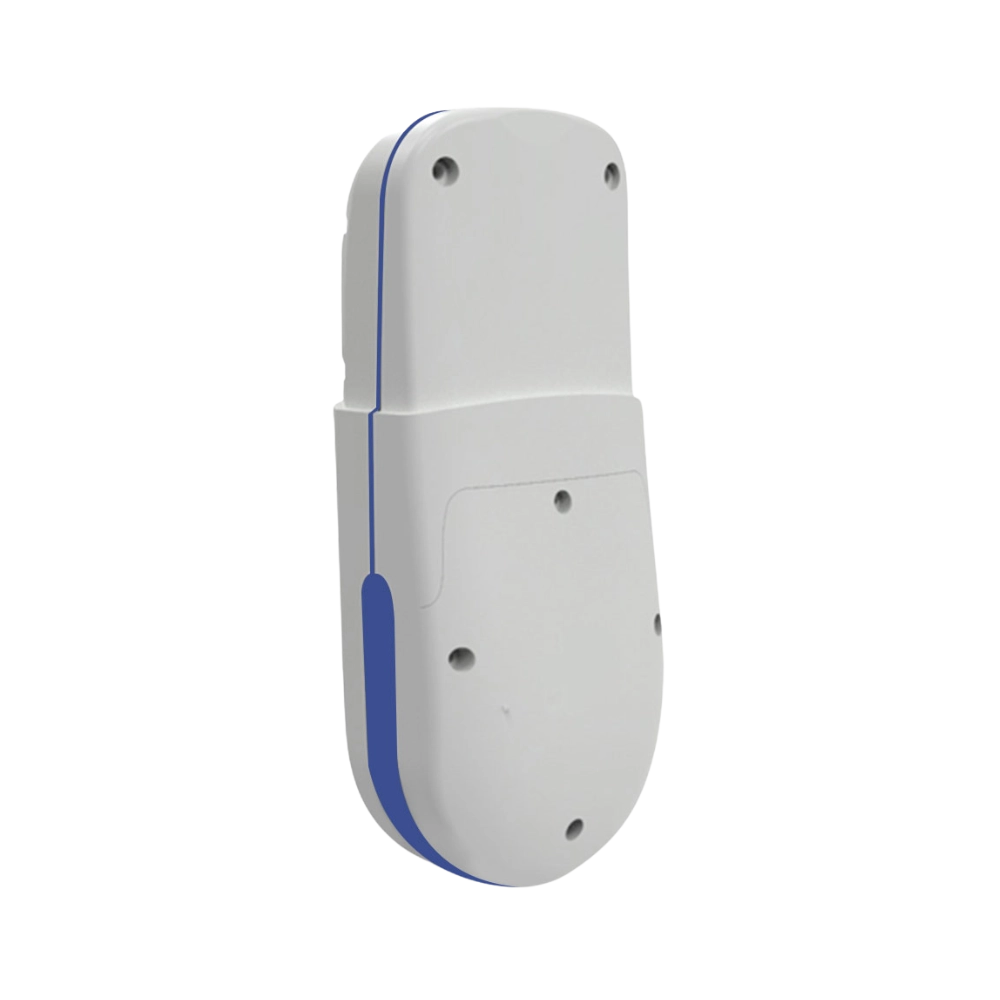

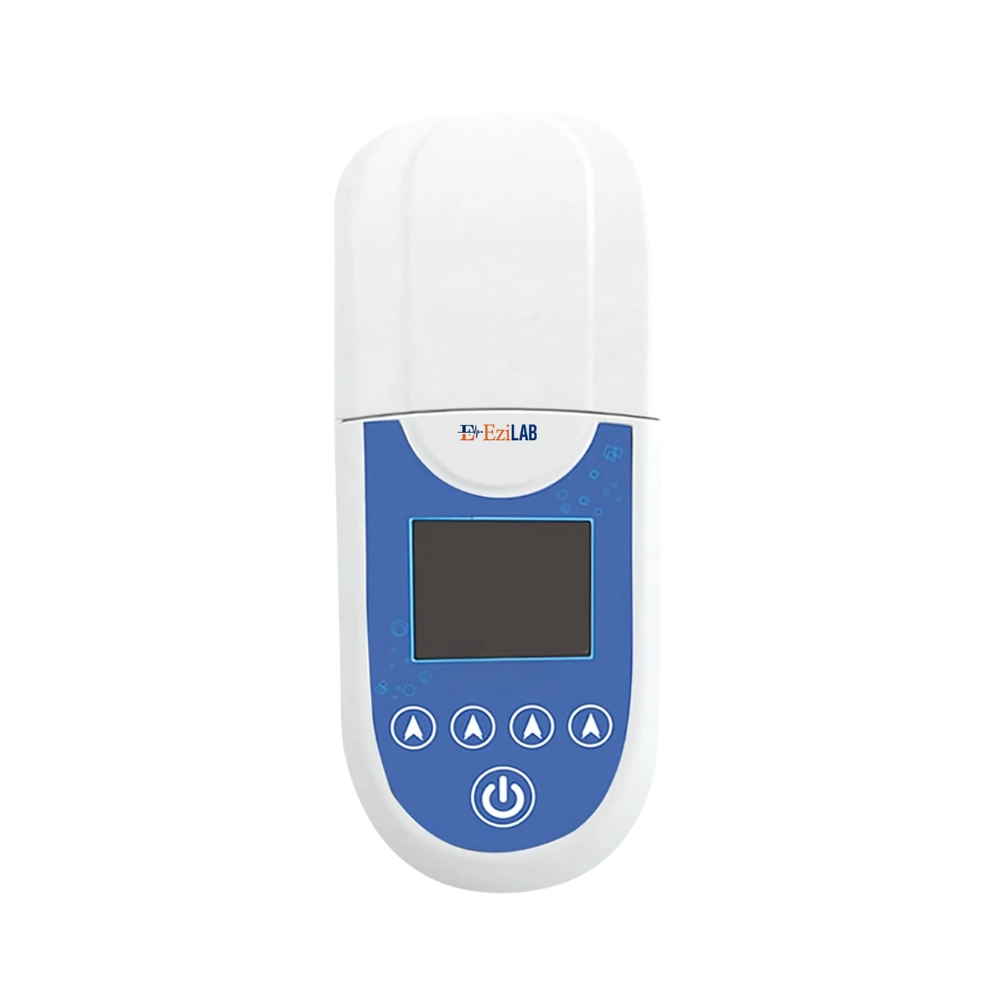

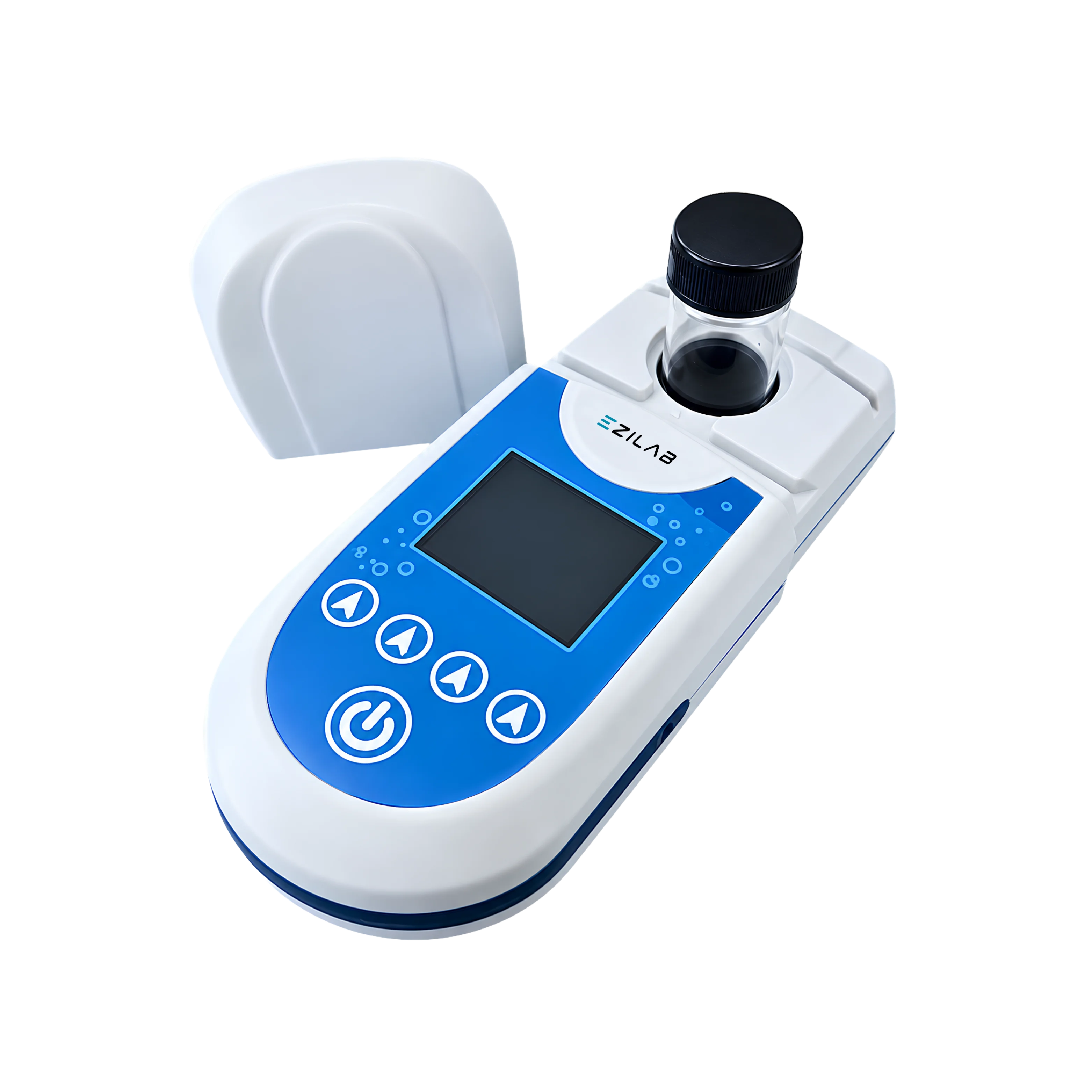

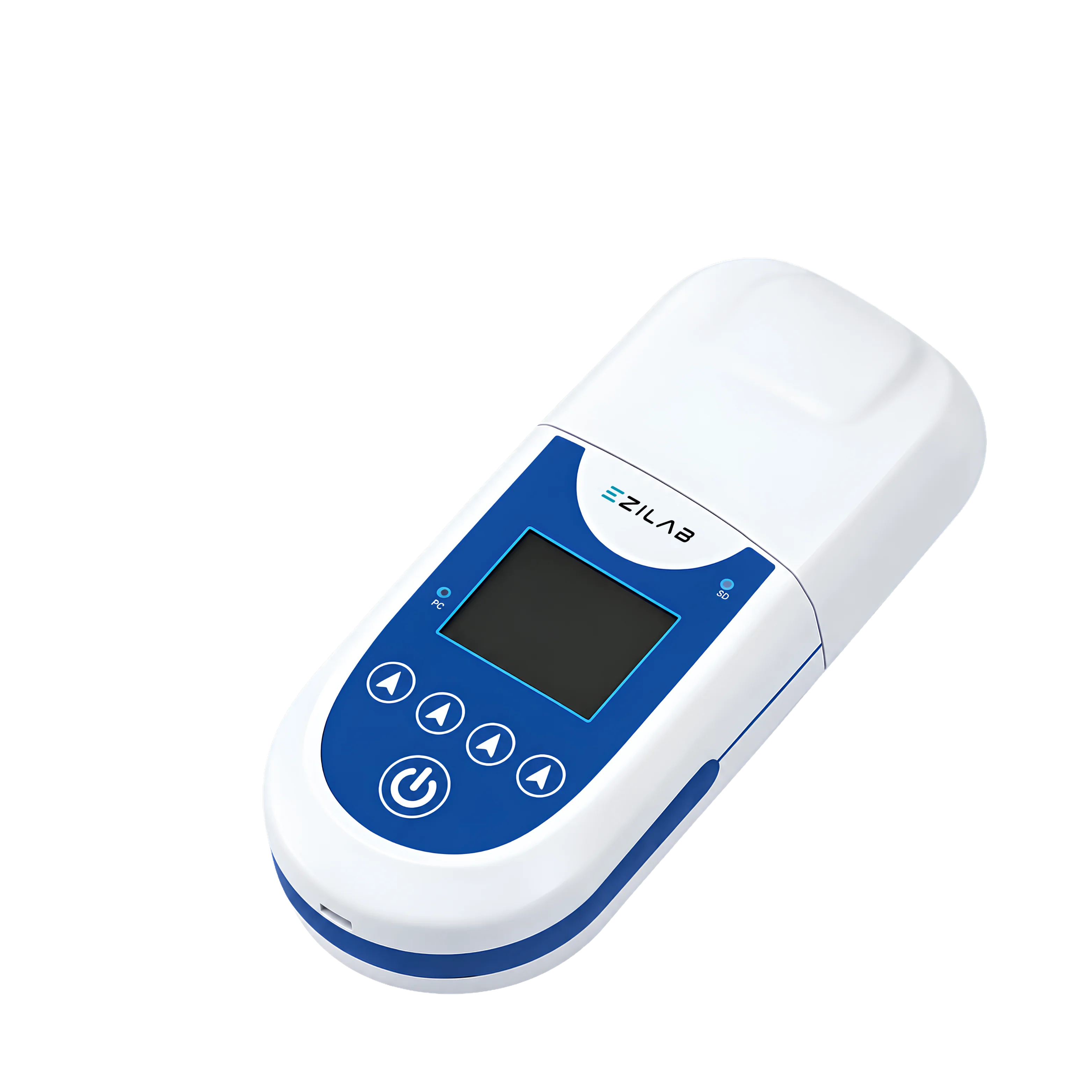

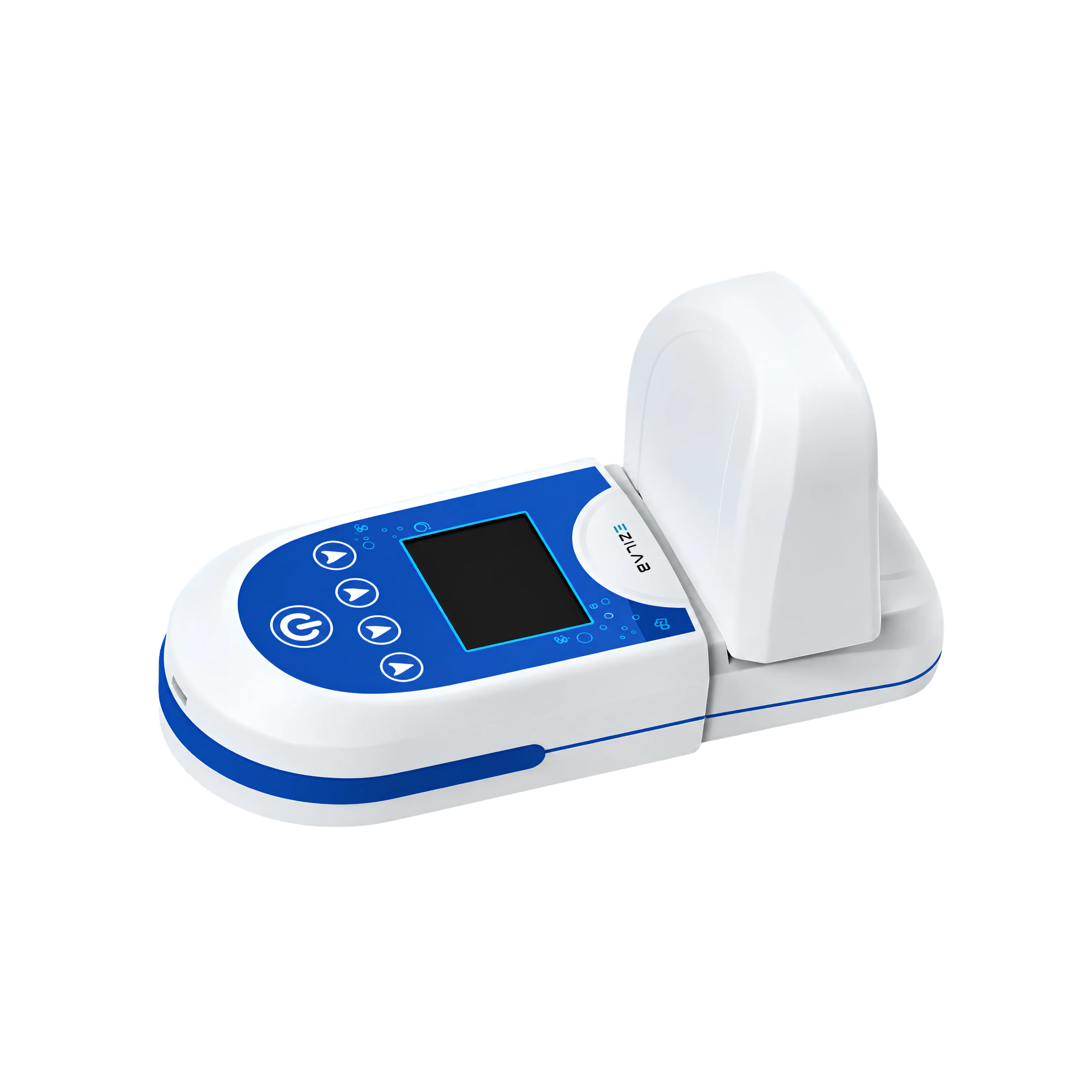

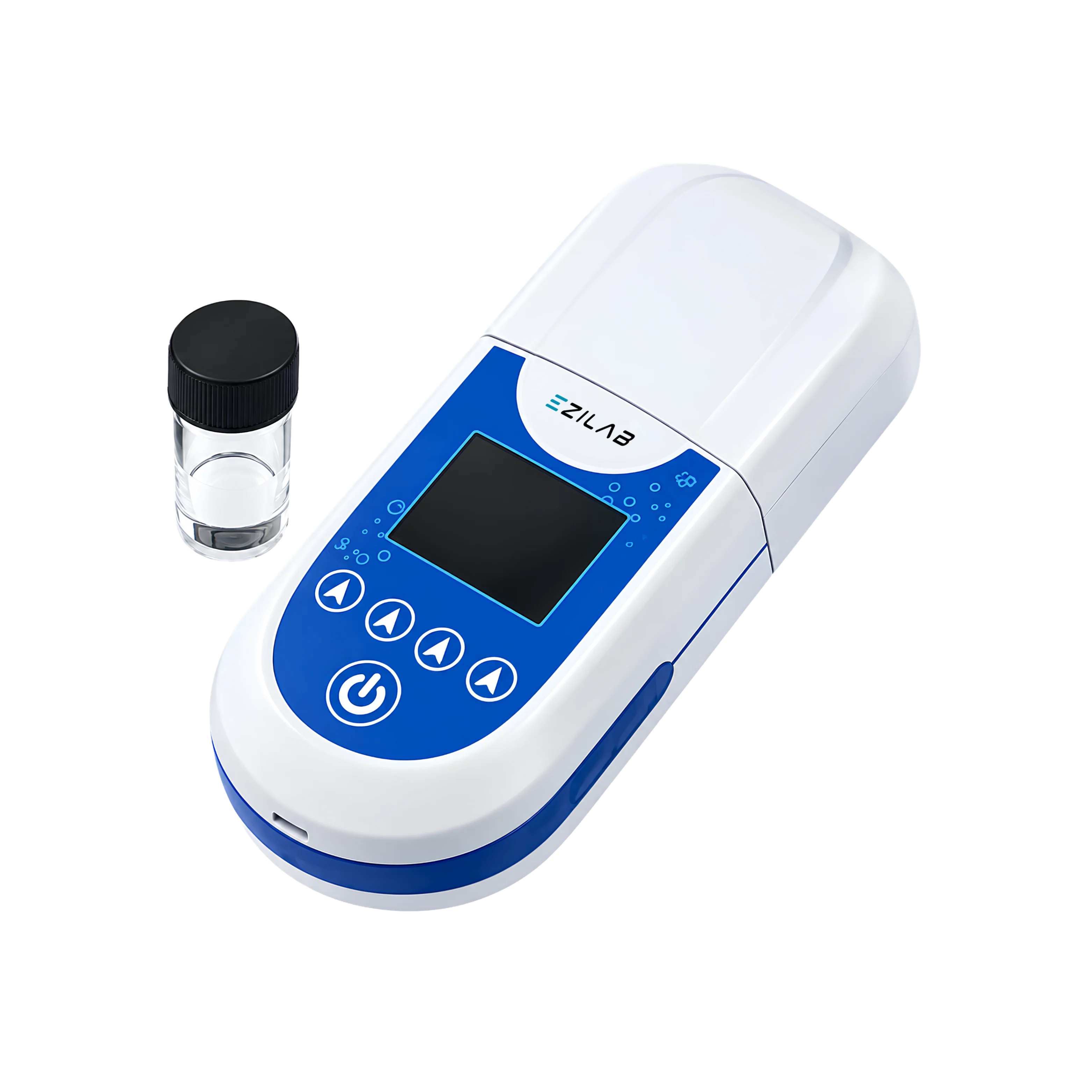

EziLab offers the Portable Water Turbidity Test Analyzer EZL-PTA10, a handheld NTU tester that shines light through a water sample and reads the scatter with two detectors set at 180° and 90° to cancel color effects. The dual-path optics measure 0–20 NTU down to a 0.10 NTU detection limit, hold ±0.1 NTU or 5% tolerance, and repeat within ±0.05 NTU below 5 NTU. Calibration takes up to four standards, zero drift stays within ±0.3% of full scale over 30 minutes, and a suspended solids mode reports mg/L. The 290 g IP65 body carries 5,000 records in memory, charges and transfers data over one USB port, and draws little power. Municipal water authorities, drinking water plants, environmental monitoring agencies, industrial wastewater operators, bottling companies and aquaculture farms use this portable turbidity meter for quick on-site clarity checks. Field tasks include reservoir and intake checks, filter breakthrough monitoring, distribution network spot tests, effluent discharge compliance, membrane integrity checks and pond clarity surveys. Choose it over benchtop turbidimeters when readings are needed at the source within minutes of sampling. Air bubbles and a fingerprint on the sample vial both inflate an NTU reading; let a sample stand a moment, wipe the glass, and invert gently before measuring. Field instruments are filed from Lab Equipment through Water Quality Analyzer.
| Measuring Range | 0-20 NTU |
|---|---|
| Indication Error | ±0.3 NTU or ±8% turbidity;±0.3 mg/L or ±8% total suspended solids |
| Accuracy | ±0.1 NTU or ± 5% NTU |
| Repeatability | < 5 NTU, ≤ ± 0.05 NTU≥ 5 NTU, ≤ ± 1% NTU |
| Calibration Method | Calibration up-to 4 points |
| Zero Drift | ≤ ±0.3% FS/30 minutes |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -10°C to 55°C |
| Humidity | 0 to 80% RH |
| Protection Grade | IP65 |
| Dimension (W×D×H) | 170×72×44 mm |
| Weight | 290 g |
Multi-functional USB port with data transmission and charging functions
Professional optical path design, good optical stability
Smart size and light weight, classified protection IP65
Multi-parameter configuration, strong expansion ability and low expansion cost
Low power consumption
Intelligent and environmental protection
Compact size, light weight and easy to carry
Using 180°×90° optical path and dual detector technology to avoid backlight or tone interference
Accurate and reliable results
Lowest detection limit can reach 0.10NTU
The high performance processing core provides super-computing motion
Up-to 5000+ data storage capacity
| • | Checks reservoir and intake water clarity for municipal water authorities, reading 0 to 20 NTU with a 0.10 NTU detection limit. |
| • | Monitors filter breakthrough and membrane integrity at drinking water plants, with dual 180° and 90° detectors that cancel color effects. |
| • | Spot-tests distribution network points and bottling company water, with up to 4 calibration points. |
| • | Verifies effluent discharge compliance for industrial wastewater operators and environmental monitoring agencies, with a suspended solids mode that reports mg/L. |
| • | Surveys pond clarity on aquaculture farms, storing 5,000+ records in a 290 g IP65 body that charges over a single USB port. |
