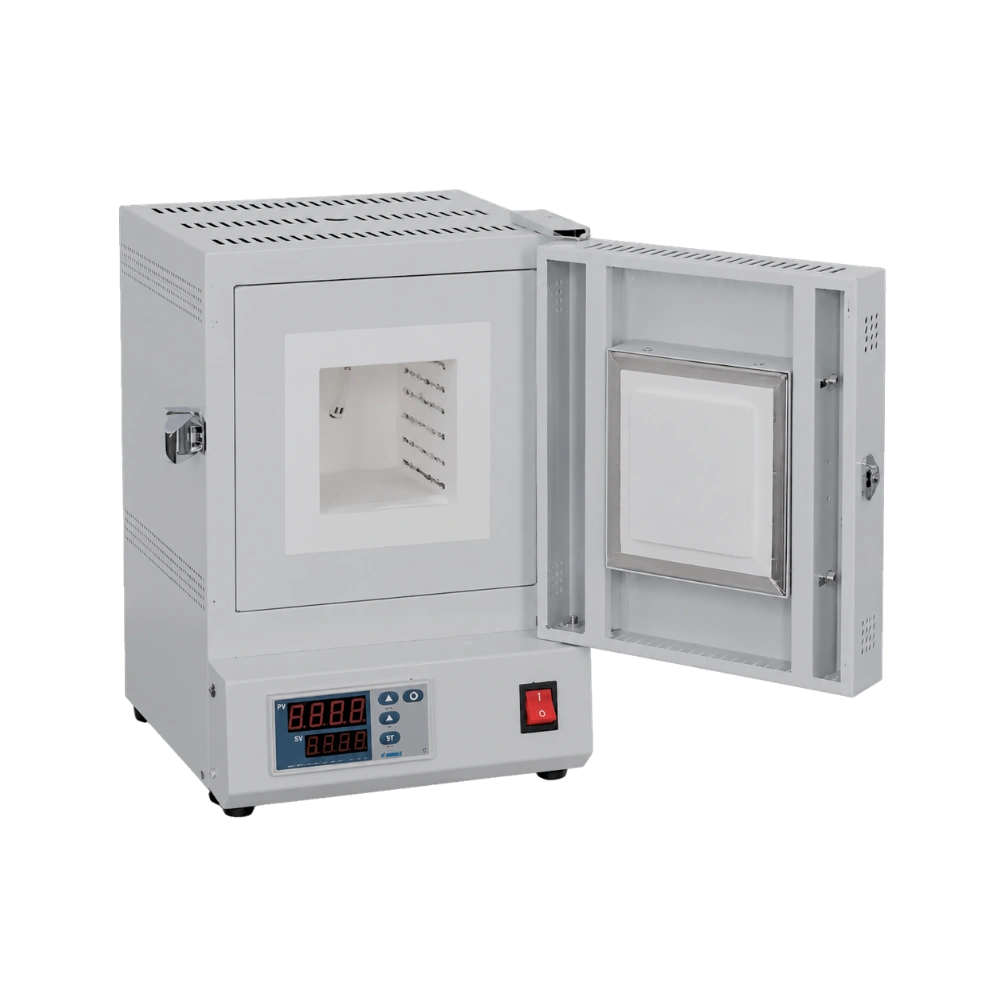

EziLab offers the Muffle Furnace EZL-MF102, a compact laboratory ashing furnace with a 4.5 L box chamber that reaches 1200°C and runs continuously up to 1150°C. Choose it over a tube furnace when crucible or tray samples need no controlled atmosphere, and when bench space calls for a 390 × 600 × 430 mm footprint. The ceramic fiber chamber heats at up to 20°C/min, so a 1000°C ashing cycle reaches temperature in under an hour, while low thermal mass cuts power use from the 3 kW element. A K type thermocouple and PID control hold temperature within ±1°C, and the 7-inch colour touch screen shows set and current temperatures side by side for programmable ramp-and-soak profiles. A double-layer steel casing with fan cooling keeps the outer surface below 50°C, and over-temperature limits and sensor alarms protect samples and staff. A vent hole releases waste gas during sintering. Materials science labs use this 1200°C muffle furnace for calcination, sintering, and heat treatment of ceramics and metals, analytical labs determine ash content and loss on ignition, dental labs fire and process restorations, and research facilities run general high-temperature sample preparation. See the Muffle Furnaces and Muffle Furnace EZL-MF102 pages for full specifications.
| Capacity | 4.5 L |
|---|---|
| Maximum Working Temperature | 1200°C |
| Continuous Working Temperature | RT to 1150°C |
| Heating Rate | Maximum Heating Rate: 20°C/min |
| Temperature Accuracy | ±1°C |
| Thermocouple | K type |
| Heating Element | Resistance Wire |
| Temperature Control | PID automatic control |
| Furnace Material | Double layer steel casing |
| Display | 7” colour touch screen |
| Rated Power | 3 Kw |
| Working Voltage | AC 208V-240V, 50/60Hz |
| Chamber Dimension (W×D×H) | 150×150×200 mm |
| Overall Dimension (W×D×H) | 390×600×430 mm |
| Net Weight | 40 kg |
Ceramic fiber furnace chamber to ensure fast heating rate and save power
Double layer steel casing with fan cooling assistance to ensure the surface temperature is below 50C
Intelligent sensor alarm function
Digital PID controller
Intuitive and easy to use operating menu
Easy to open door handles
Current temperature and setting temperature are displayed separately on control panel
Highly efficient fan motor ensures uniform air circulation
Excellent temperature accuracy
Simple to use and maintain
Over-temperature limit function
Less and low noise operation with gentle air currents
Vent hole on top is a perfect solution for waste gas during material sintering
It is an ideal device for research labs and dental labs to prepare small size samples with maximum energy saving.
