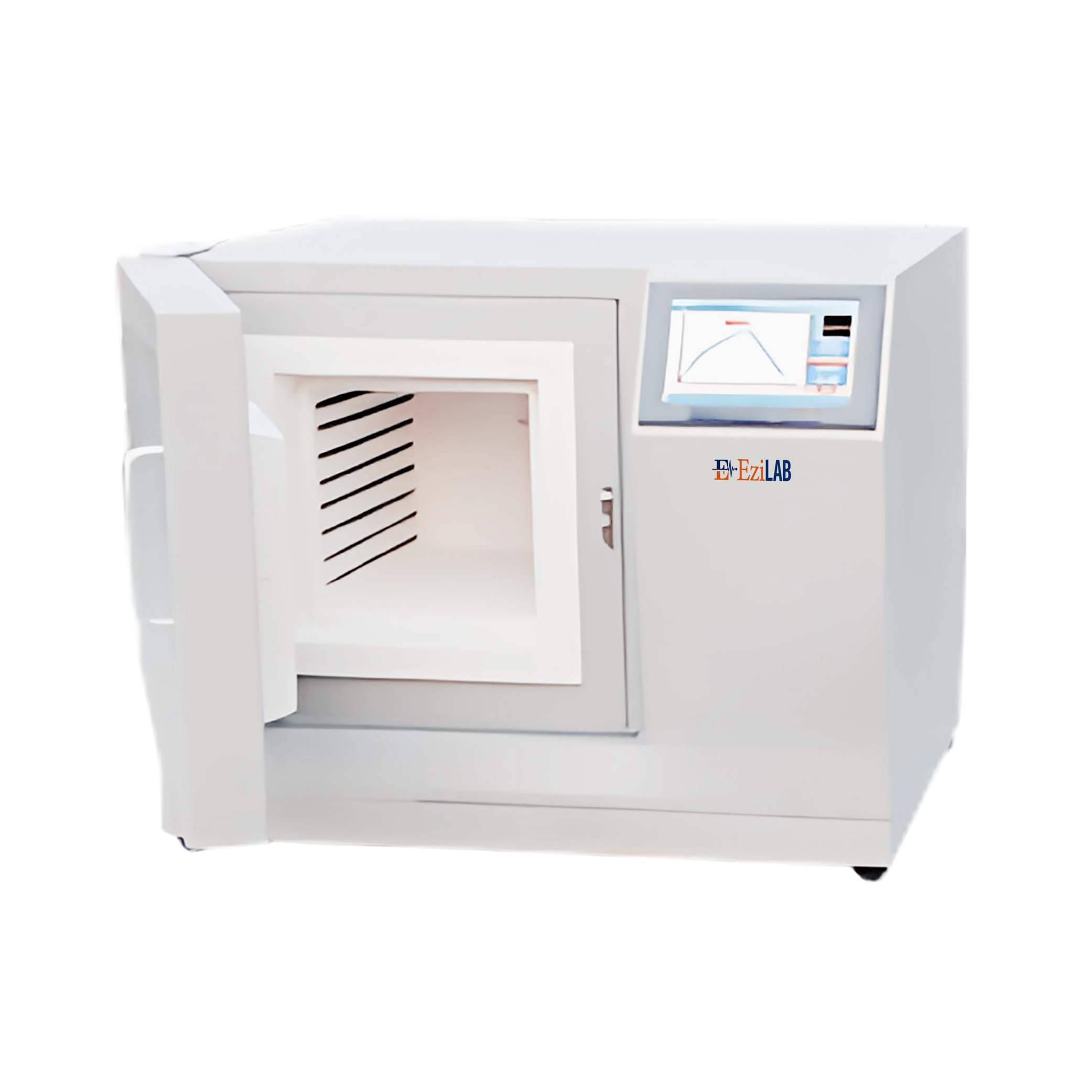

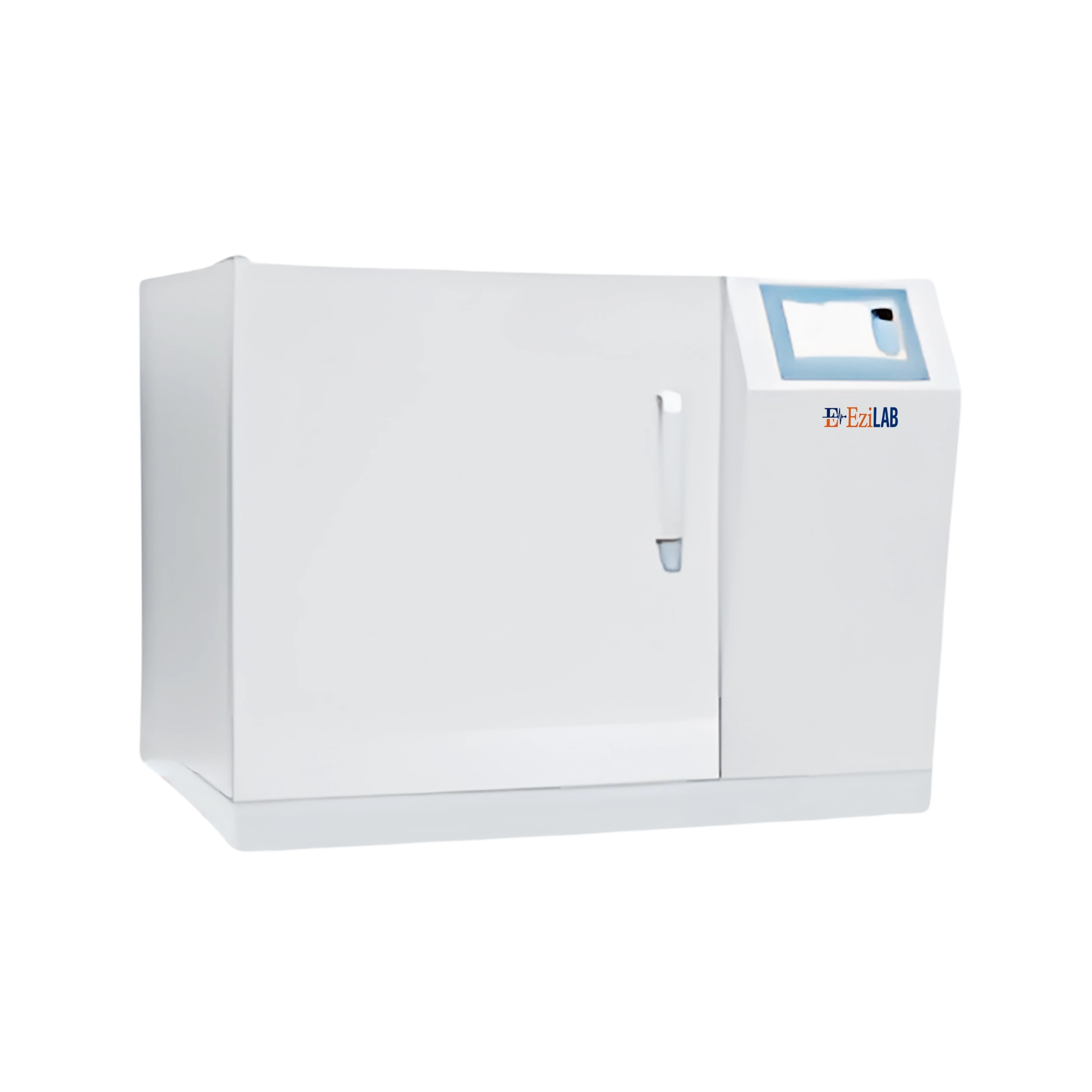

EziLab Muffle Furnace EZL-MF103 operates up to 1200°C with 12L chamber capacity and PID automatic control, offering a lab muffle furnace with 1°C variation, 20°C/min heating rate, K-type thermocouple feedback, and 7-inch colour touchscreen for cycle monitoring. The 12L chamber supports larger batch loads with stable thermal exposure across the work zone. 20°C/min heating rate supports flexible ramp profiles, while K-type thermocouple feedback supports stable temperature regulation across extended cycles for material analysis, ash content testing, ceramics research, and metallurgical workflows via Lab Equipment and EziLab's full range of furnaces for lab workflow integration.
| Capacity | 12 L |
|---|---|
| Maximum Working Temperature | 1200°C (<3 hours) |
| Continuous Working Temperature | RT to 1150°C |
| Heating Rate | Maximum Heating Rate: 20°C/min |
| Temperature Accuracy | ±1°C |
| Thermocouple | K type |
| Heating Element | Resistance Wire |
| Temperature Control | PID automatic control |
| Furnace Material | Double layer steel casing |
| Display | 7” colour touch screen |
| Rated Power | 4 Kw |
| Working Voltage | AC 208V-240V, 50/60Hz |
| Chamber Dimension (W×D×H) | 200×200×300 mm |
| Overall Dimension (W×D×H) | 650×520×600 mm |
| Net Weight | 60 kg |
Ceramic fiber furnace chamber to ensure fast heating rate and save power
Double layer steel casing with fan cooling assistance to ensure the surface temperature is below 50C
Intelligent sensor alarm function
Digital PID controller
Intuitive and easy to use operating menu
Easy to open door handles
Current temperature and setting temperature are displayed separately on control panel
Highly efficient fan motor ensures uniform air circulation
Excellent temperature accuracy
Simple to use and maintain
Over-temperature limit function
Less and low noise operation with gentle air currents
Vent hole on top is a perfect solution for waste gas during material sintering
It is an ideal device for research labs and dental labs to prepare small size samples with maximum energy saving.
