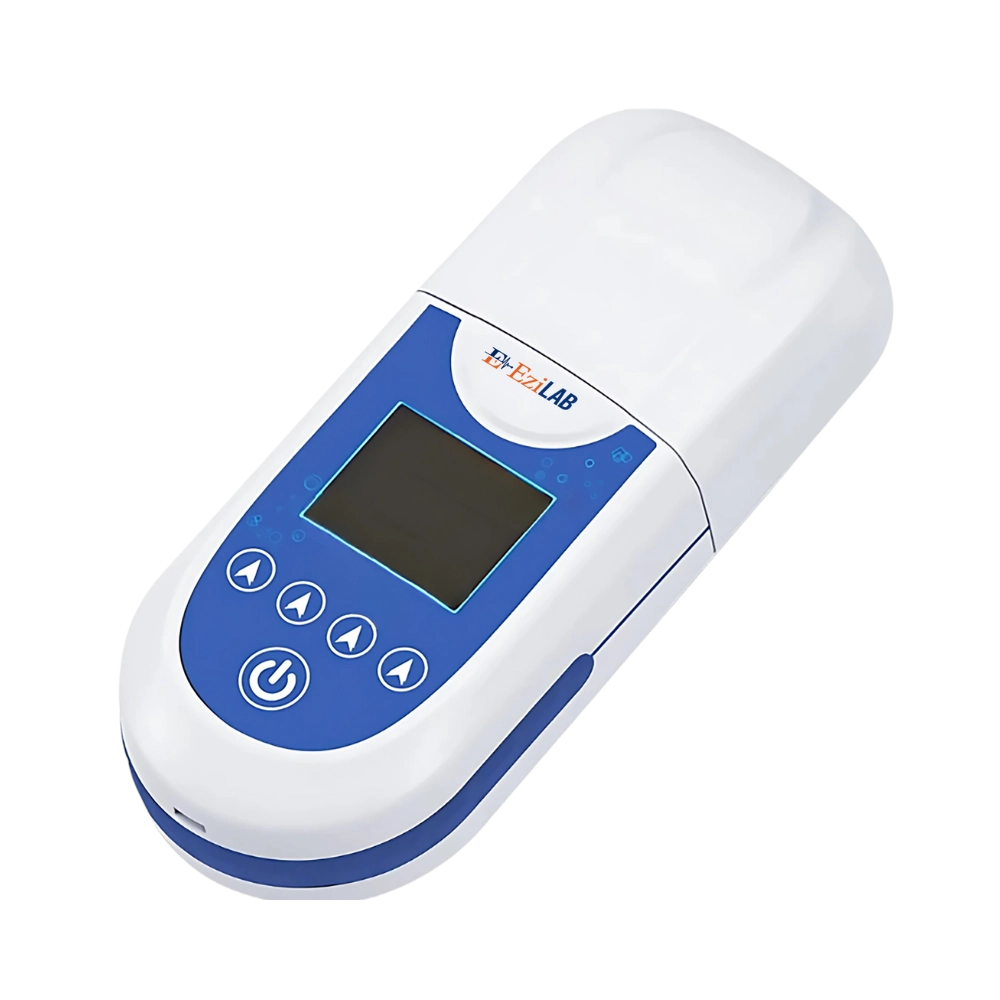

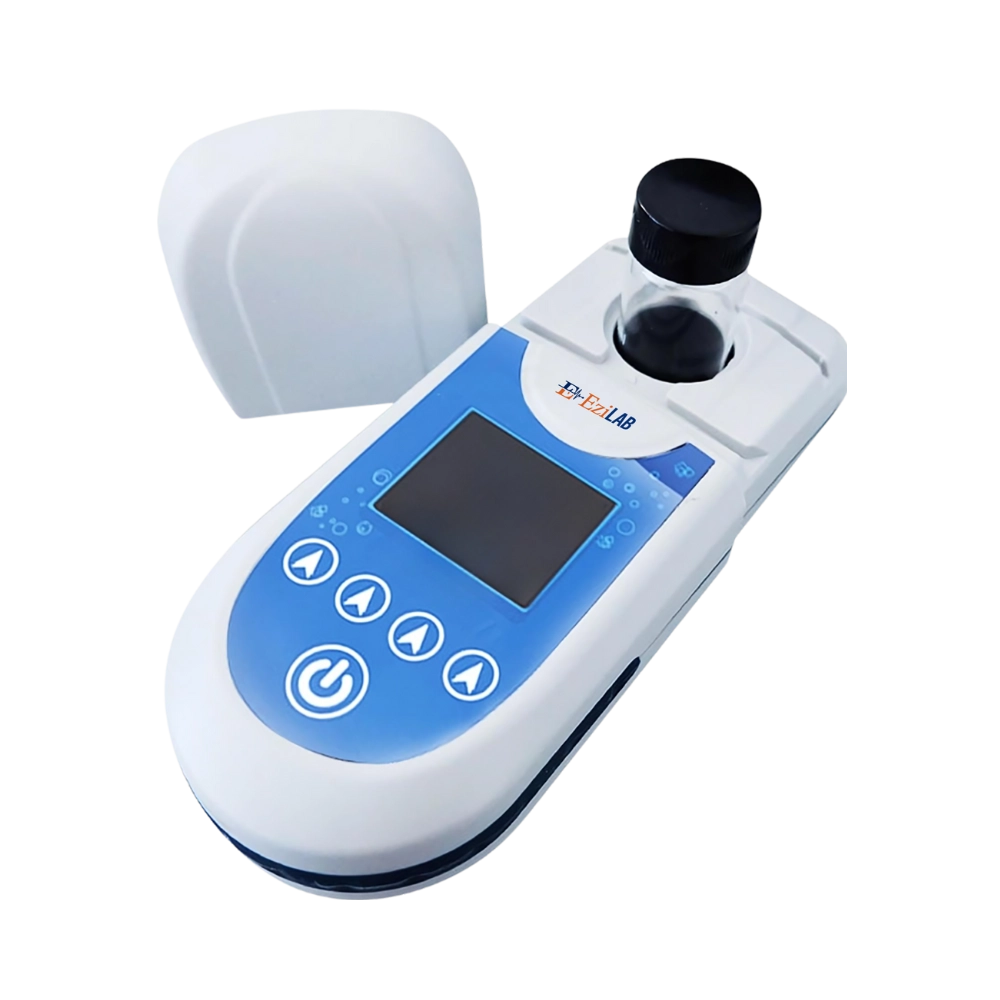

Portable Water Turbidity Test Analyzer EZL-PTA11 is built specifically for water quality tests, offering consistent and precise readings, particularly in the low turbidity range, with a low detection limit of 0.10NTU. The measuring range is 0 to 1000 NTU, with automated changeover between ranges. The instrument is equipped with two 90° and 180° detectors, with the 90° detector receiving scattered light and the 180° detector receiving transmitted light.
| Measuring Range | 0-1000 NTU |
|---|---|
| Indication Error | ±0.3 NTU or ±8% turbidity;±0.3 mg/L or ±8% total suspended solids |
| Accuracy | ±0.3 NTU or ± 8% NTU |
| Repeatability | < 10 NTU, ≤ ± 0.1 NTU ≥ 10 NTU, ≤ ± 1% NTU |
| Calibration Method | Calibration up-to 7 points |
| Zero Drift | ≤ ±0.3% FS/30 minutes |
| Operating Temperature | 5°C to 40°C |
| Storage Temperature | -10°C to 55°C |
| Humidity | 0 to 80% RH |
| Power Supply | Lithium Battery |
| Protection Grade | IP65 |
| Dimension (W×D×H) | 170×72×44 mm |
| Weight | 290 g |
