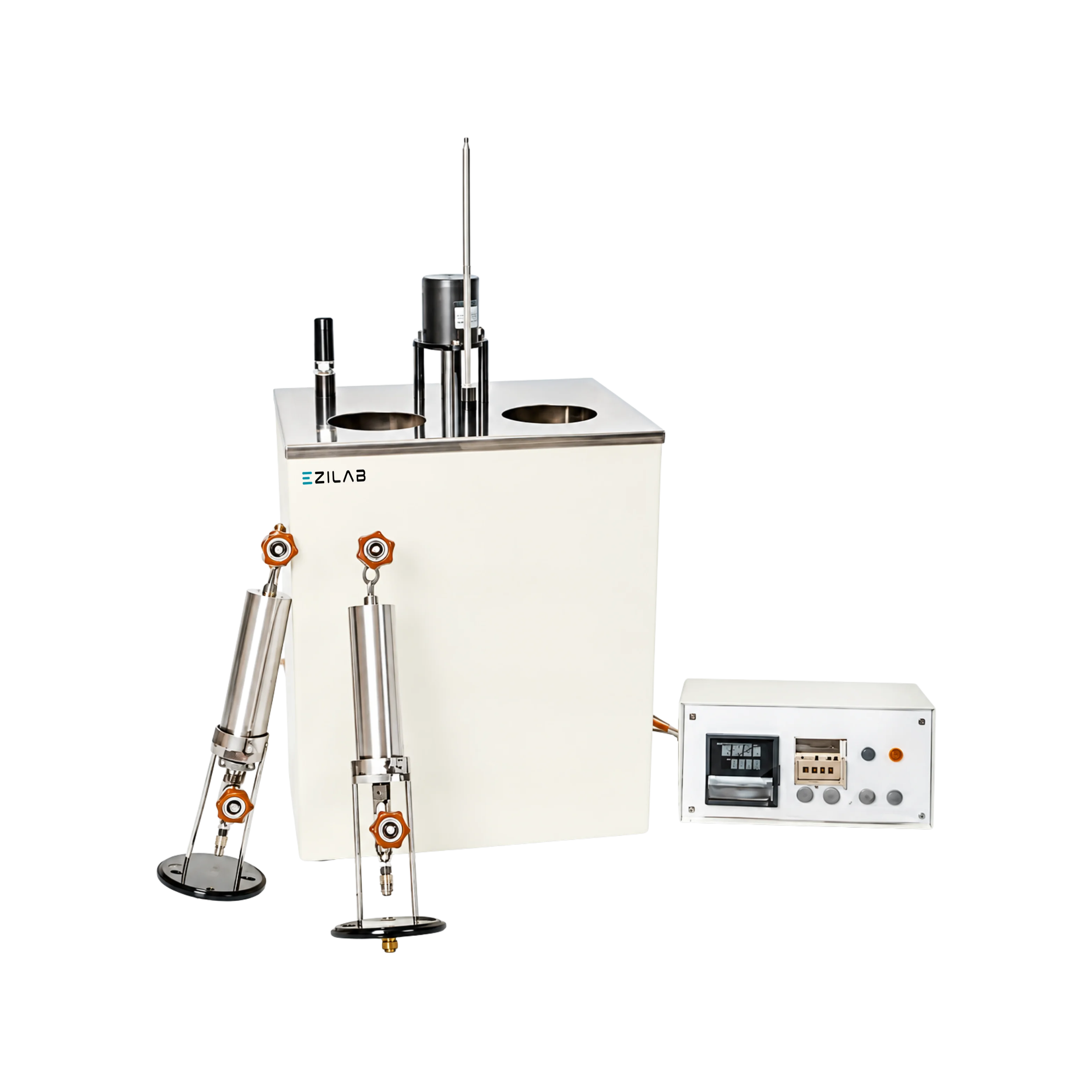

EziLab offers the Liquefied Petroleum Gas Copper Corrosion Tester EZL-RCT61, an LPG copper strip corrosion tester that immerses polished copper strips in sample and grades the resulting tarnish against a color board. A Pt100 RTD holds the bath anywhere from ambient to 100 °C within ±1 °C, uniform circulation keeps each position at the same temperature, and a timer from 1 minute to 24 hours ends the soak with an audible completion alarm. Between four and twelve test pieces run in one batch, the US-sourced color board matches the standard rating scale, and the 16 kg cabinet draws no more than 1800 W. Refineries, LPG bottling plants, fuel terminals, lubricant blenders, aviation fuel suppliers and petroleum inspection laboratories use this copper corrosion tester to confirm products will not attack copper fittings. Typical samples include liquefied petroleum gas, aviation gasoline and jet fuel, automotive gasoline, diesel and tractor fuels, kerosene distillates, washing solvents and lubricating oils. Choose it over a general water bath when strip holders, timing and the rating board must meet the test method. LPG and liquid fuels follow different copper strip methods, one in a sealed pressure cylinder and the other in a tube bath; ask the supplier which standards this tester’s holders and cylinders cover. Test gear of this kind is grouped from Petroleum Testing Equipment through Rust and Corrosion Tester.
| Temperature Range | Ambient to 100 ℃, can be set at will |
|---|---|
| Temperature Sensor | RTD, Pt100 |
| Temperature Control Accuracy | ±1 ℃ |
| Time Controlling Range | 1 minute to 24 hours, can be set at will. |
| Sample Quantity at One Test | 4 pieces to 12 pieces |
| Ambient Temperature | 15℃ to 35℃ |
| Relative Humidity | ≤ 85% |
| Total Power Consumption | ≤ 1800W |
| Dimension | 440mm × 330mm × 560mm |
| Net Weight | 16Kg |
The bath temperature is uniform
Four sample testing positions are available
It have four sample testing positions
It alerts with an alarm upon completion
The test efficiency is high
It’s US-imported color board meets test standards
Copper Strip Corrosion Tester × 1 Test Bomb Bracket × 2 Test Tube Bracket × 2 Copper Strip × 8 Test Tube × 8 Test Bomb × 2 Observation Tube × 5 Griding Device × 1 Thermometer 0℃ to 100℃, Scale Division is 0.5℃ × 1 3# Silica Gel Plug × 1 Temperature Sensor × 1 Fuse 10A (Φ5 × 20) × 2 O Type Ring (Φ40mm × 3.5 mm, Φ42mm × 3.5 mm) × 2 each Standard Color Board × 1 Stopping Ring for Thermometer (1#) × 4 Stopper of Test Tube × 8 Operation Manual × 1 Temperature Control Device Usage Manual × 1 Quality Certificate × 1 Repair Guarantee × 1
| • | Grades copper strip tarnish on LPG samples at bottling plants against a standard color board, with ASTM D1838 as the reference method. |
| • | Tests aviation gasoline, jet fuel and automotive gasoline for refineries and fuel terminals, with a settable bath temperature from ambient to 100 °C. |
| • | Checks diesel and tractor fuels and kerosene distillates in petroleum inspection laboratories, with a timer from 1 minute to 24 hours. |
| • | Evaluates lubricating oils and washing solvents for lubricant blenders, with a Pt100 RTD sensor controlling the bath. |
| • | Supports aviation fuel suppliers with four sample positions and an audible alarm when the test finishes. |
