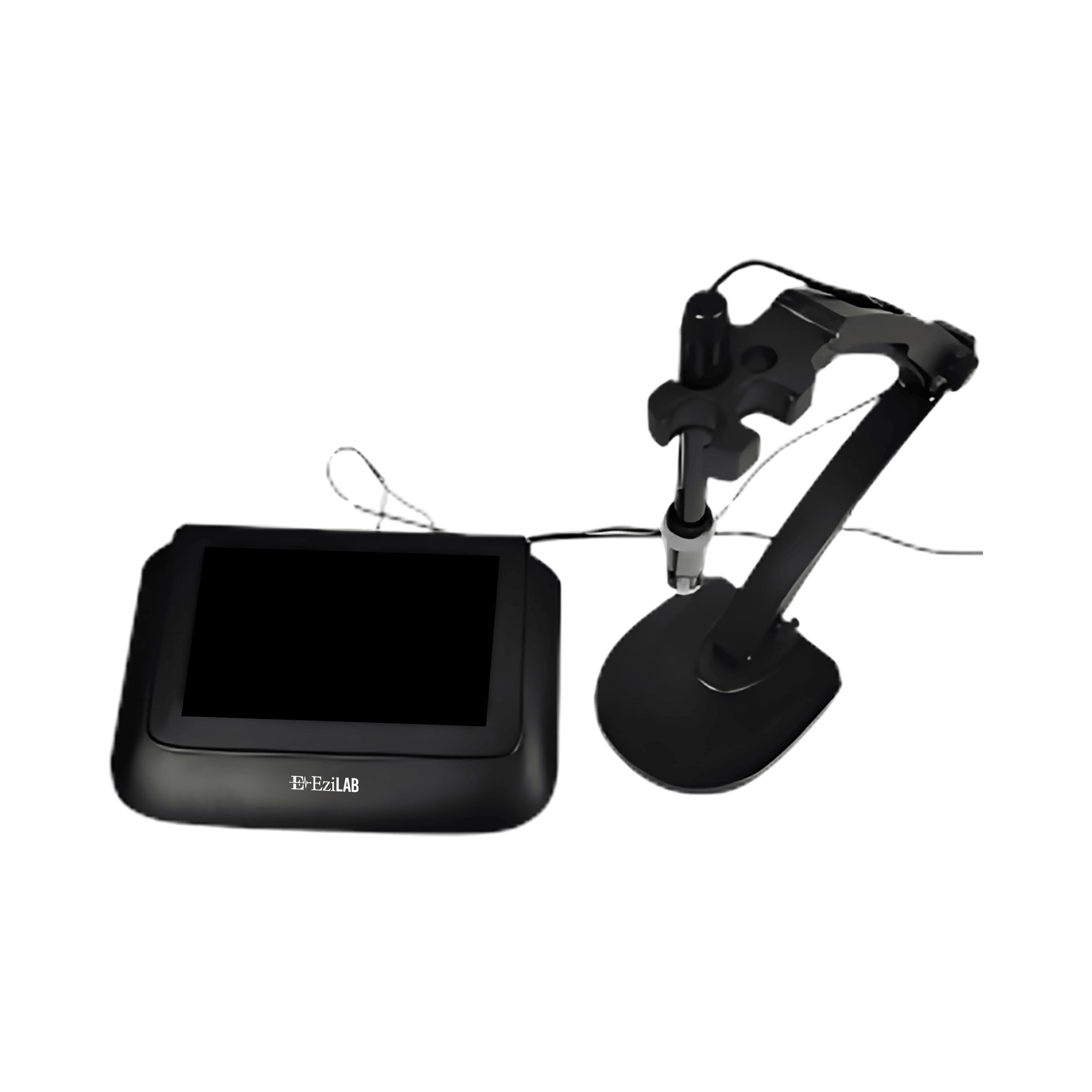

EziLab Desktop Conductivity Meter EZL-DCM123 delivers detailed conductivity and salinity analysis across fine resolution ranges for conductivity tester workflows in research and analytical environments. The instrument measures conductivity, TDS, salinity, and resistivity with automatic temperature compensation from 0°C to 100°C for stable results. High variation electrodes improve analytical confidence throughout the measurement range. Desktop setup supports routine laboratory workflows with stable DC power input for uninterrupted operation. Suited to biotechnology, fine chemistry, quality control, and laboratory water analysis via Lab Equipment and EziLab's full range of conductivity meters for lab workflow integration.
| Measuring Range |
0.00 to 20.00 µS/cm 20.0 to 200.0 µS/cm 200 to 2000 µS/cm 2.00 to 20.00 mS/cm 20.0 to 200.0 mS/cm 200 to 2000 mS/cm |
|---|---|
| Resistivity | 0 to 100 MΩ.cm |
| TDS | 0 to 100 g/L |
| Salinity | 0 to 100 ppt |
| Resolution | 0.01/0.1/1 µS/cm 0.01/0.1 mS/cm |
| Accuracy |
Electrode: ± 0.5 % FS Instrument: ± 1.00 % FS |
| Temperature Compensation | 0 °C to 100 °C (Automatic) |
| Electrode Constant | 0.1/1/10 cm-1 |
| Temperature Measuring Range | 10 °C to 110 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | 5 °C to 60 °C: ± 0.3 °COthers: ± 0.5 °C |
| Ambient Temperature | 5 °C to 35 °C |
| Ambient Humidity | ≤ 80 % |
| Power | DC 12V/1A |
| Dimensions (W×D×H) | 240×170×70 mm |
| Weight | 600 g |
7-inch high resolution capacitive touch screen
Auto-calibration, automatic temperature compensation electrode, data storage, USB port, self-diagnosis functions
Bilingual operation
Data storage of 1000 sets of measurement data and is transferable
Auto-recognition of 8 conductivity standard solutions
Bluetooth module and wireless printer
Optional PC software and cell phone APP
1 point calibration of electrode meet accuracy for 0.5µS/cm – 200mS/cm
Switch between conductivity, TDS, salinity and resistivity
Multinomial calculation of TDS, salinity
Smart judge electrode status for accurate results
Dustproof and waterproof meter meet IP54 Grade
Has a “ready” indicator and HOLD function
It has a wide range of applications, including high precision conductivity measurements in scientific research, quality control, biotechnology, and fine chemistry, such as measuring the conductivity of common water solutions, high purity water, reverse osmosis water, and distilled water.
Desktop Conductivity Meter LO-DCM100 Series 1 pc
Composite Conductivity Electrode 1 pc
Power Adapter 1 pc
Electrode Holder and Base 1 set
Instruction Manual in USB 1 copy
