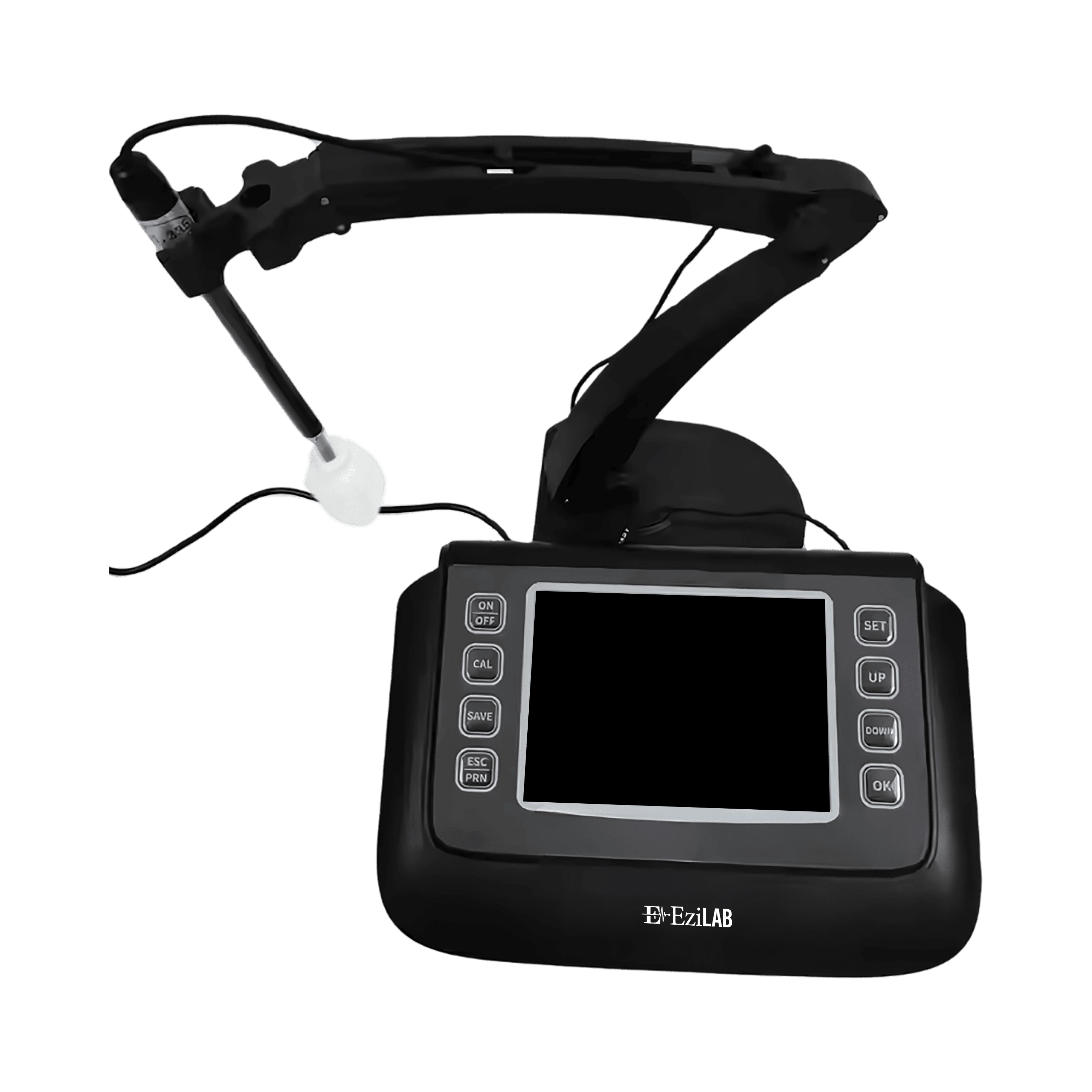

Tabletop Conductivity Meter EZL-TCM123 has a compact LCD screen that displays all of the required parameters. This has a conductivity measuring range of 0.00 µS/cm to 20.00 µS/cm, 200 mS/cm to 2000 mS/cm (K=10), and 0 to 100 g/L TDS with a resistivity measuring range of 0 to 100 MW.cm. Functions at ambient temperatures ranging from 5 °C to 40 °C, providing greater precision, and controls temperature variations with an automatic temperature compensation range of 0 °C to 100 °C.
| Conductivity |
0.00 to 20.00 μS/cm 20.0 to 200.0 μS/cm 200 to 2000 μS/cm 2.00 to 20.00 mS/cm 20.0 to 200.0 mS/cm 200 to 2000 mS/cm (K=10), 0.01/0.1/1 µS/cm 0.01/0.1 mS/cm, Electrode: ± 0.5 % FS Instrument: ± 0.8 % FS |
|---|---|
| Resistivity | 0 to 100 MΩ.cm |
| TDS | 0 to 100 g/L |
| Salinity | 0 to 100 ppt |
| Temperature | 0 °C to 100 °C, 0.1 °C, ± 0.5 °C |
| Working Conditions | 5 °C to 40 °C, 5 to 85 % |
| Power | 12V/1A |
| Dimensions (W×D×H) | 240×170×70 mm |
| Weight | 600 g |
6.5 to inch LCD screen displaying all parameters
Long lasting Omron and light touch panel
Auto to calibration, automatic temperature compensation, data storage, USB port, self to diagnose are its functions
Data storage of 500 sets of test data can be edited and is transferable
Auto to recognition of 8 conductivity standard solutions
1 to point calibration of conductivity electrode meet accuracy for test 0.5 µS/cm to 200 mS/cm
Switch between conductivity, TDS, salinity and resistivity
Multinomial calculation of TDS, salinity
Bluetooth block, supports wireless Bluetooth printer and optional data transfer to cell phone
Dustproof and waterproof meter meet IP54 Grade
It has a wide range of applications, including high precision conductivity measurements in scientific research, quality control, biotechnology, and fine chemistry, such as measuring the conductivity of common water solutions, high purity water, reverse osmosis water, and distilled water.
Tabletop Conductivity Meter LO-TCM200 Series 1 unit
Conductivity electrode (Subject to different models) 1 pc
Rotary electrode holder 1 pc
12V Power adapter 1 pc
USB with User manual 1 pc
