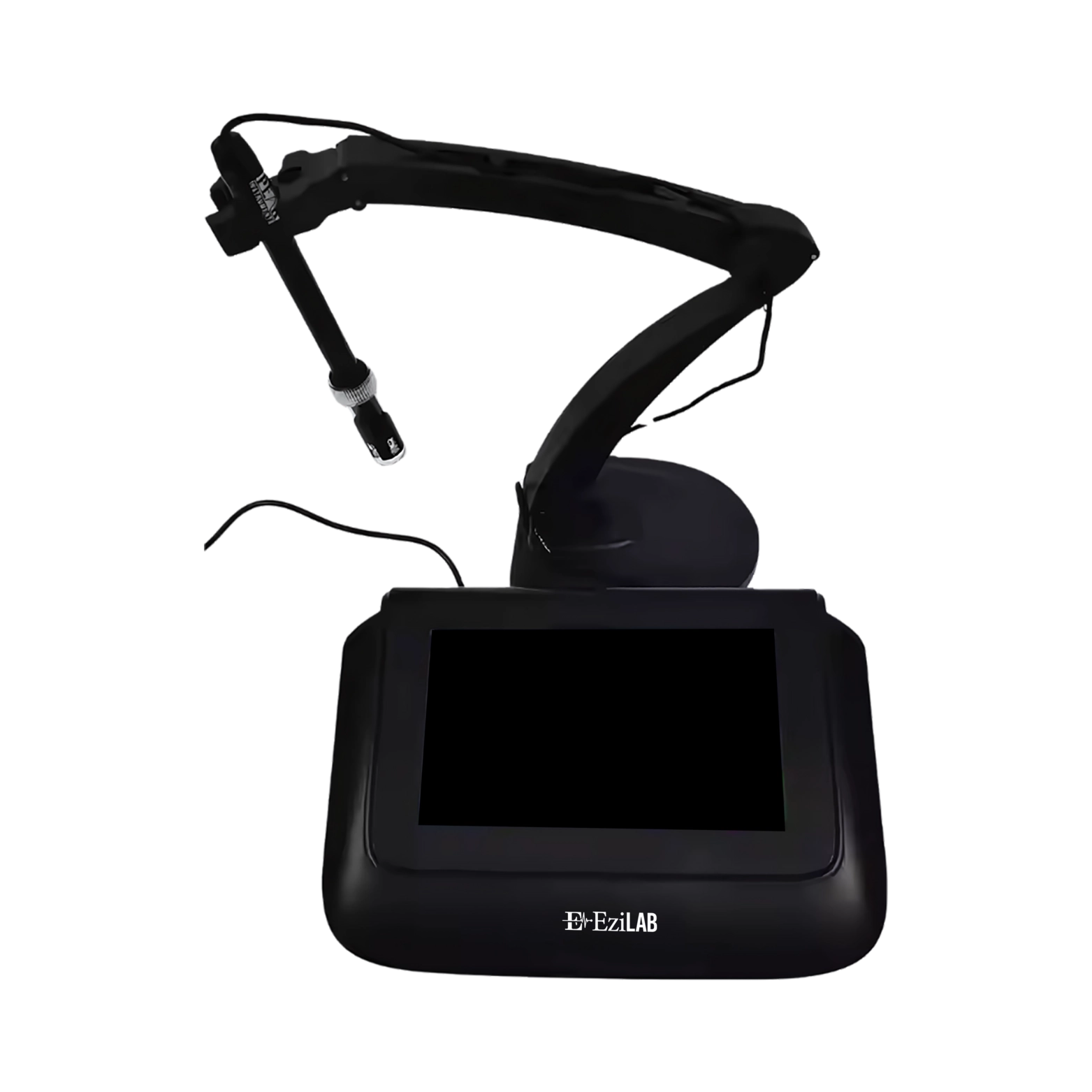

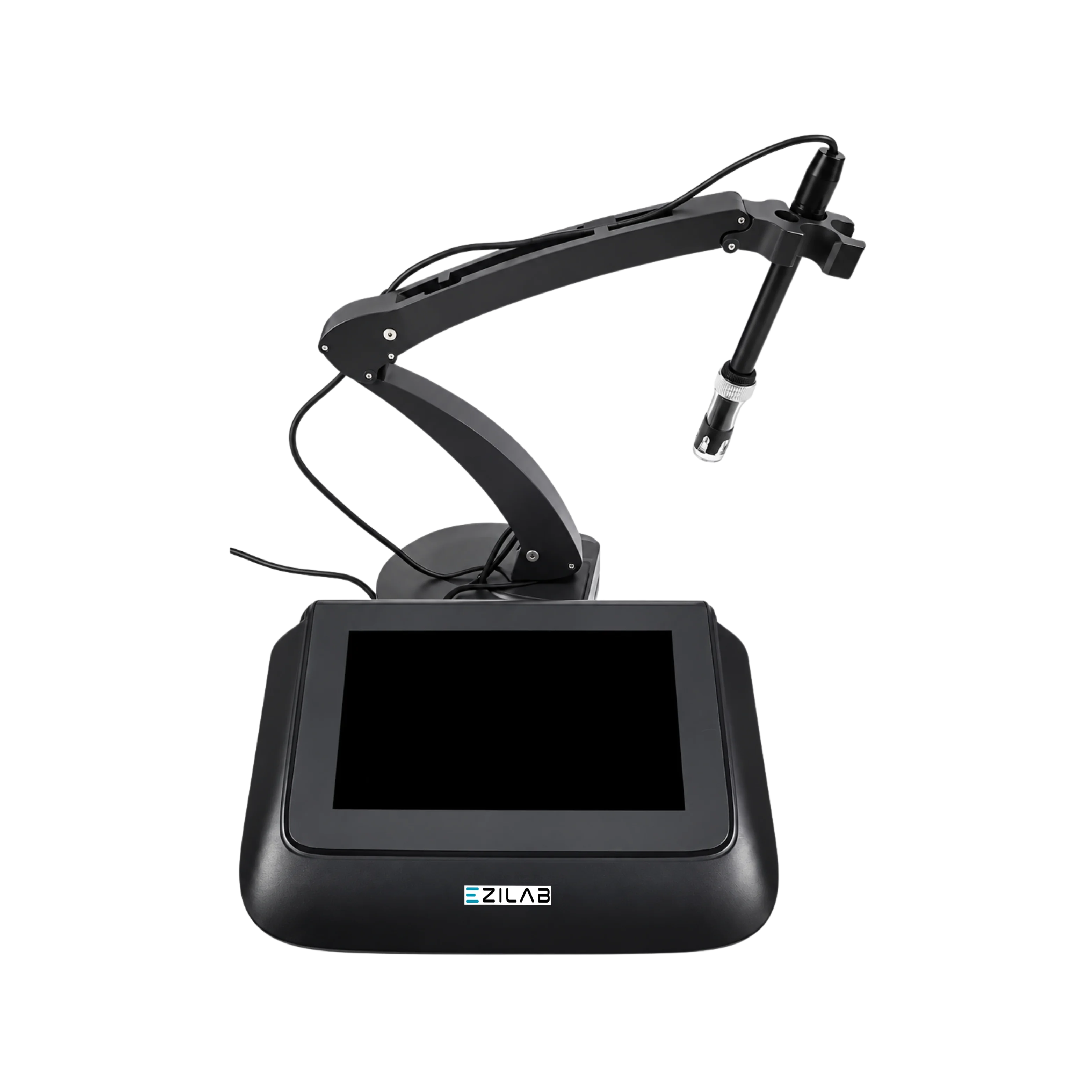

EziLab Desktop Conductivity Meter EZL-DCM122 delivers stable conductivity testing across extended ranges including high-salinity samples for conductivity meter workflows in analytical environments. Automatic temperature compensation supports consistent readings across temperature variations. Enhanced electrode variation improves measurement consistency throughout the operating range. Stable DC power operation suits continuous laboratory use without interruption. Compact housing fits analytical setups for standard bench placement. Suited to high-purity water testing, reverse osmosis monitoring, distilled water analysis, and quality control laboratories via Lab Equipment and EziLab's full range of conductivity meters for lab workflow integration.
| Measuring Range |
0.00 to 20.00 µS/cm 20.0 to 200.0 µS/cm 200 to 2000 µS/cm 2.00 to 20.00 mS/cm 20.0 to 200.0 mS/cm 200 to 2000 mS/cm |
|---|---|
| Resistivity | 0 to 100 MΩ.cm |
| TDS | 0 to 100 g/L |
| Salinity | 0 to 100 ppt |
| Resolution | 0.01/0.1/1 µS/cm 0.01/0.1 mS/cm |
| Accuracy |
Electrode: ± 0.5 % FS Instrument: ± 1.00 % FS |
| Temperature Compensation | 0 °C to 100 °C (Automatic) |
| Electrode Constant | 0.1/1/10 cm-1 |
| Temperature Measuring Range | 10 °C to 110 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Accuracy | 5 °C to 60 °C: ± 0.3 °COthers: ± 0.5 °C |
| Ambient Temperature | 5 °C to 35 °C |
| Ambient Humidity | ≤ 80 % |
| Power | DC 12V/1A |
| Dimensions (W×D×H) | 240×170×70 mm |
| Weight | 600 g |
7-inch high resolution capacitive touch screen

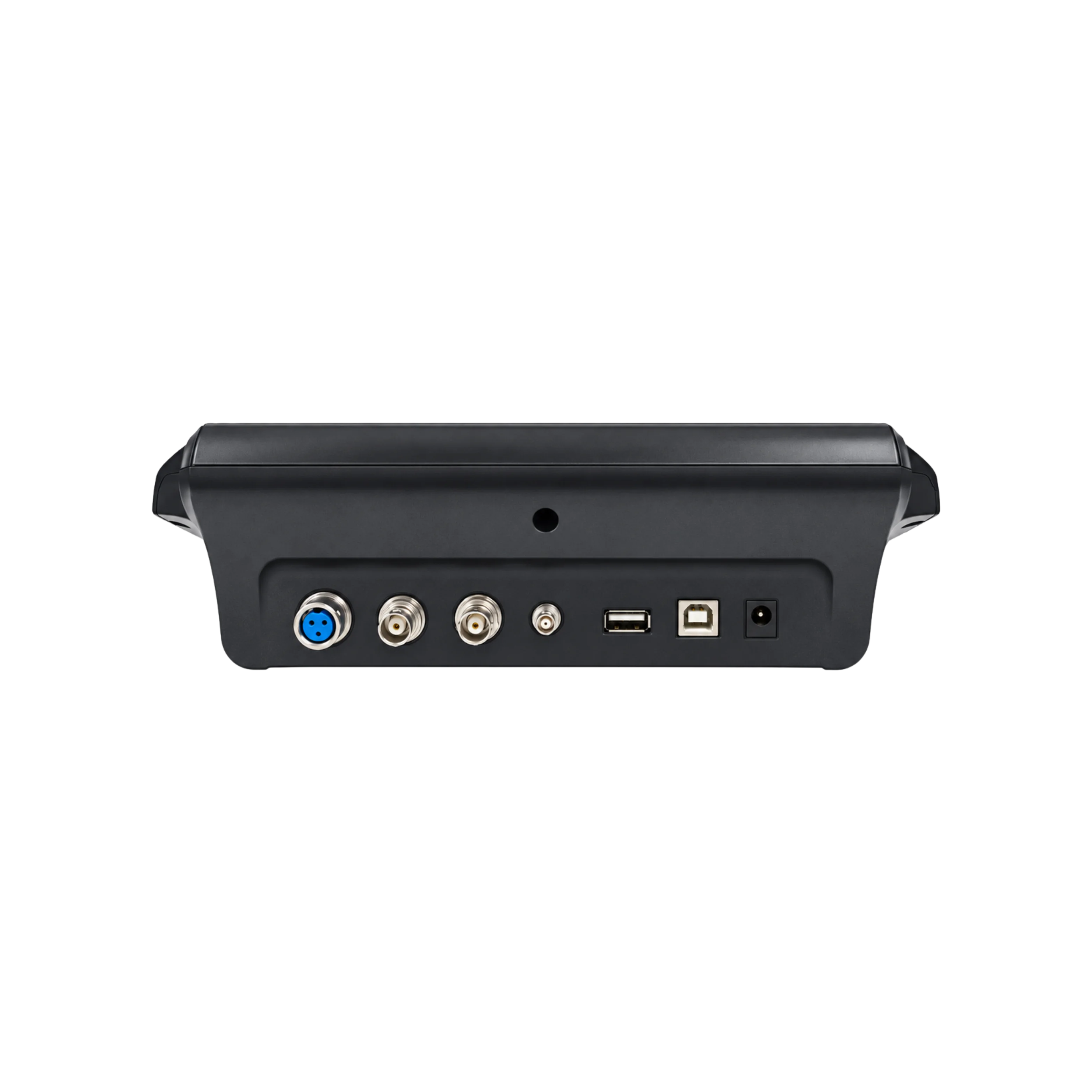

Auto-calibration, automatic temperature compensation electrode, data storage, USB port, self-diagnosis functions
Bilingual operation
Data storage of 1000 sets of measurement data and is transferable
Auto-recognition of 8 conductivity standard solutions
Bluetooth module and wireless printer
Optional PC software and cell phone APP
1 point calibration of electrode meet accuracy for 0.5µS/cm – 200mS/cm
Switch between conductivity, TDS, salinity and resistivity
Multinomial calculation of TDS, salinity
Smart judge electrode status for accurate results
Dustproof and waterproof meter meet IP54 Grade
Has a “ready” indicator and HOLD function
It has a wide range of applications, including high precision conductivity measurements in scientific research, quality control, biotechnology, and fine chemistry, such as measuring the conductivity of common water solutions, high purity water, reverse osmosis water, and distilled water.
Desktop Conductivity Meter LO-DCM100 Series 1 pc
Composite Conductivity Electrode 1 pc
Power Adapter 1 pc
Electrode Holder and Base 1 set
Instruction Manual in USB 1 copy
