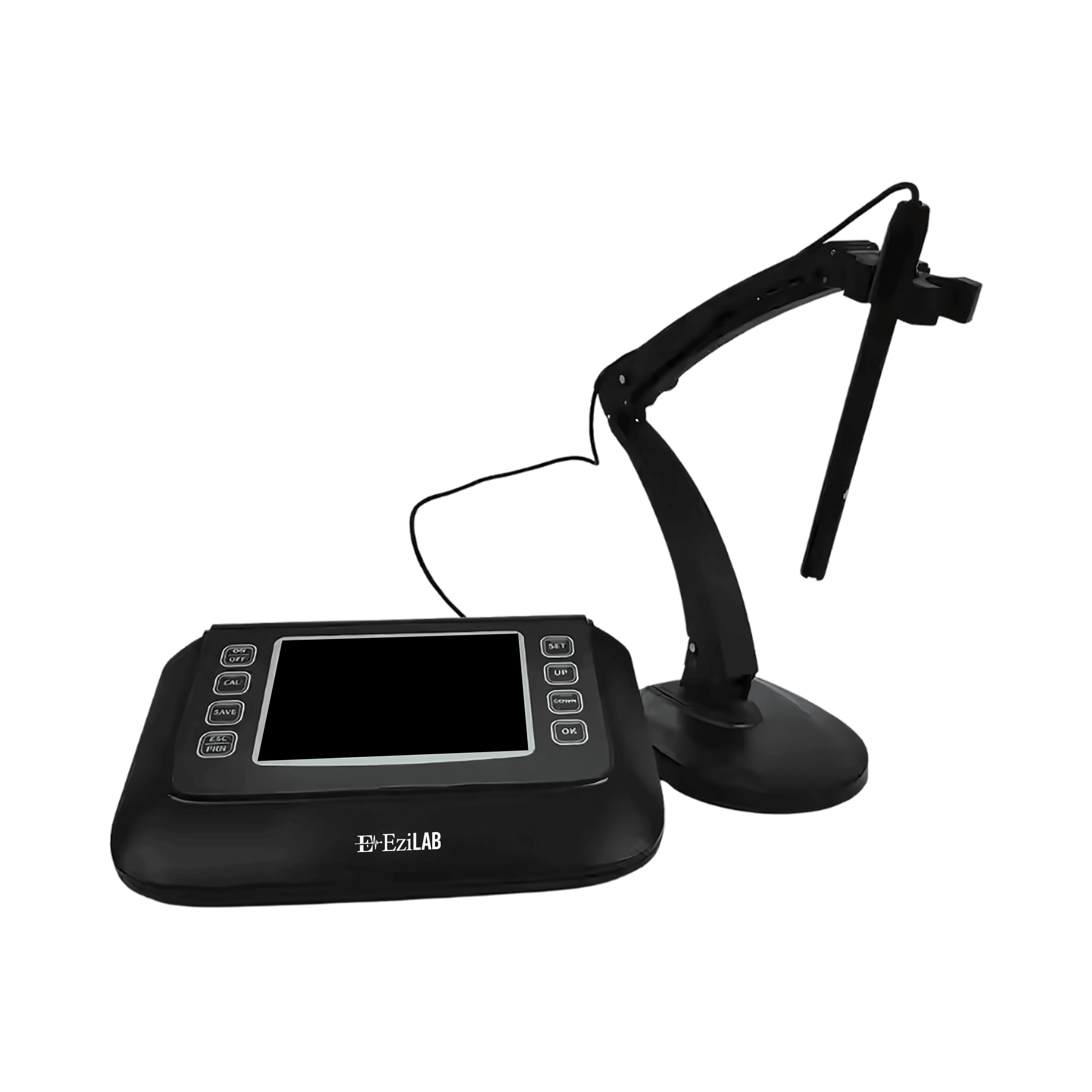

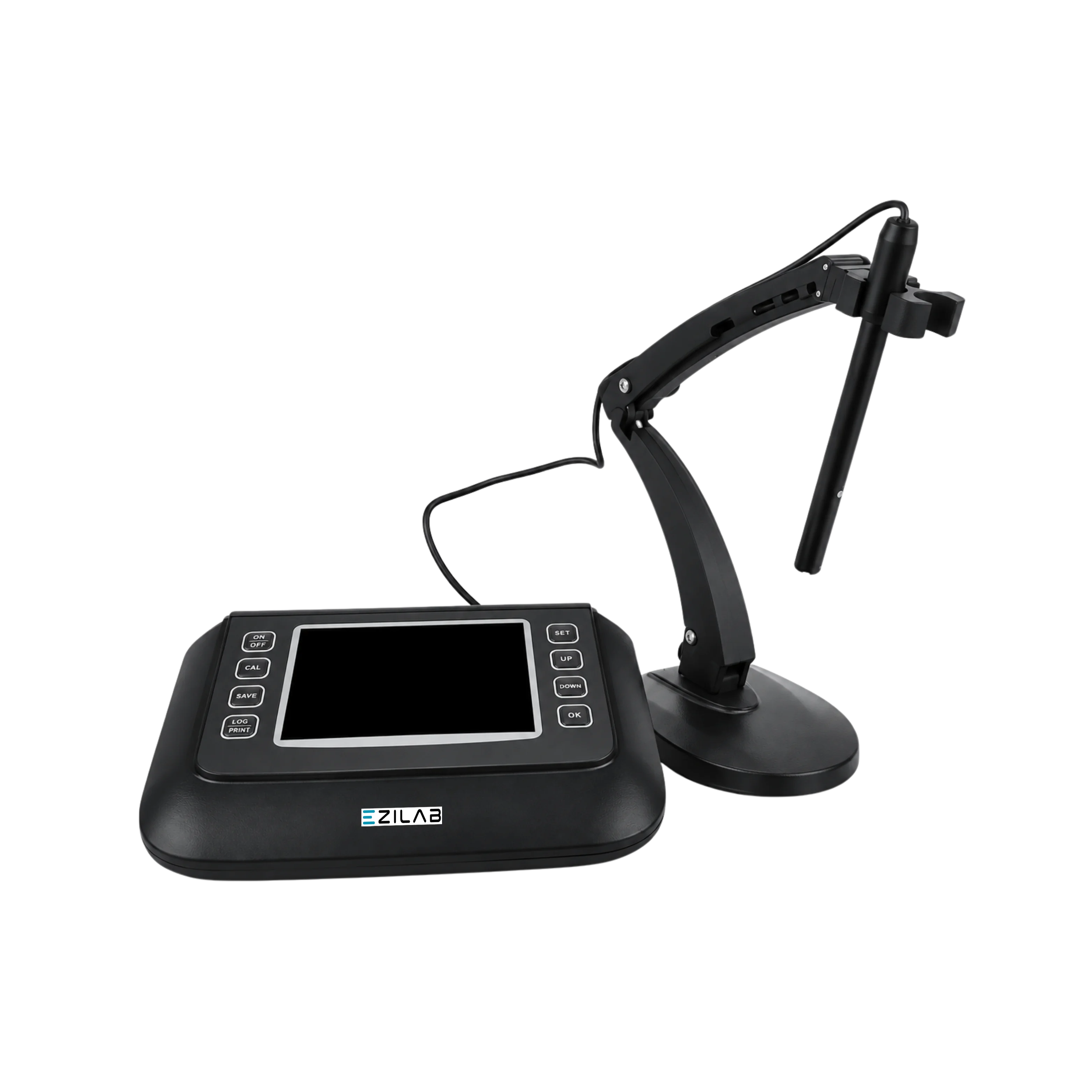

Tabletop Conductivity Meter EZL-TCM122

Tabletop Conductivity Meter EZL-TCM122

Tabletop Conductivity Meter EZL-TCM122 has a compact design and an LCD screen that displays all of the necessary parameters. This meter measures conductivity from 0.00 µS/cm to 20.00 µS/cm, 2.00 mS/cm to 200.0 mS/cm, 0 to 100 g/L TDS, and 0 to 100 MW.cm resistivity. Controls temperature variations with an automatic temperature compensation range of 0 °C to 100 °C and works at ambient temperatures ranging from 5 °C to 40 °C, providing greater precision.

Catalog Buy Now
Conductivity
Measuring Range 0.00 to 20.00 μS/cm
20.0 to 200.0 μS/cm
200 to 2000 μS/cm
2.00 to 20.00 mS/cm
20.0 to 200.0 mS/cm
Resolution 0.01/0.1/1 µS/cm 0.01/0.1 mS/cm
Accuracy Electrode: ± 1.0 % FS
Instrument: ± 1.50 % FS
Resistivity 0 to 100 MΩ.cm
TDS 0 to 100 g/L
Salinity 0 to 100 ppt
Temperature
Measuring Range 0 °C to 100 °C
Resolution 0.1 °C
Accuracy ± 0.5 °C
Working Conditions
Temperature 5 °C to 40 °C
Humidity 5 to 85 %
Power 12V/1A
Dimensions (W×D×H) 240×170×70 mm
Weight 600 g
  • 6.5 to inch LCD screen displaying all parameters
  • Long lasting Omron and light touch panel
  • Auto to calibration, automatic temperature compensation, data storage, USB port, self to diagnose are its functions
  • Data storage of 500 sets of test data can be edited and is transferable
  • Auto to recognition of 8 conductivity standard solutions
  • 1 to point calibration of conductivity electrode meet accuracy for test 0.5 µS/cm to 200 mS/cm
  • Switch between conductivity, TDS, salinity and resistivity
  • Multinomial calculation of TDS, salinity
  • Bluetooth block, supports wireless Bluetooth printer and optional data transfer to cell phone
  • Dustproof and waterproof meter meet IP54 Grade

It has a wide range of applications, including high precision conductivity measurements in scientific research, quality control, biotechnology, and fine chemistry, such as measuring the conductivity of common water solutions, high purity water, reverse osmosis water, and distilled water.

Tabletop Conductivity Meter LO-TCM200 Series 1 unit
Conductivity electrode (Subject to different models) 1 pc
Rotary electrode holder 1 pc
12V Power adapter 1 pc
USB with User manual 1 pc

Table Top Conductivity Meter

Ezilab Table Top Conductivity Meter includes functions like auto-calibration, and automatic temperature compensation ensuring efficient operation. Their LCD screen displays all parameters clearly for easy monitoring. The multinomial calculation for TDS and salinity enhances measurement accuracy. They have auto-recognition of 8 conductivity standard solutions that simplify calibration for precise measurements. Our Table Top Conductivity Meter have long-lasting Omron and a light touch panel that enhances durability.

Ezilab Desktop Conductivity Meter have a high-resolution capacitive touch screen for easy user interaction. The dust and waterproof meter meets IP54 grade standards, ensuring protection against dust and water. Their bilingual operation allows users to interact with two languages, enhancing user accessibility. Their Bluetooth module and wireless printer enable convenient data transfer and printing for user convenience. Our Desktop Conductivity meter includes a ready indicator and hold function for improved measurement control.

Ezilab Compact Conductivity Meter have non-linear temperature adjustments to enhance measurement features. They have large LCD screens with a white backlight that provides a clear display ensuring easy data visibility. Their auto-recognition of conductivity solutions ensures accurate measurements without manual inputs. The series of standard buffers provides flexible and precise calibrations. Our Compact Conductivity Meter includes multinomial calculations for TDS and salinity ensuring measurement accuracy.
