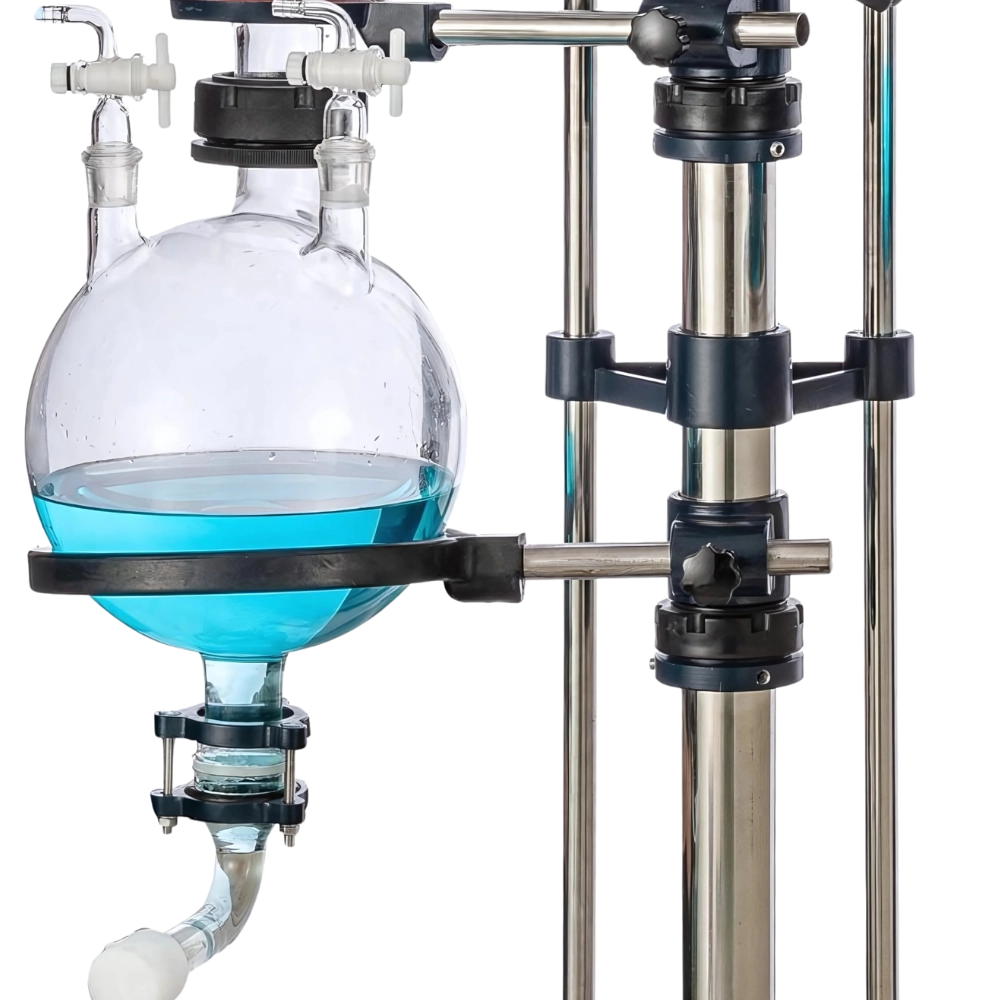

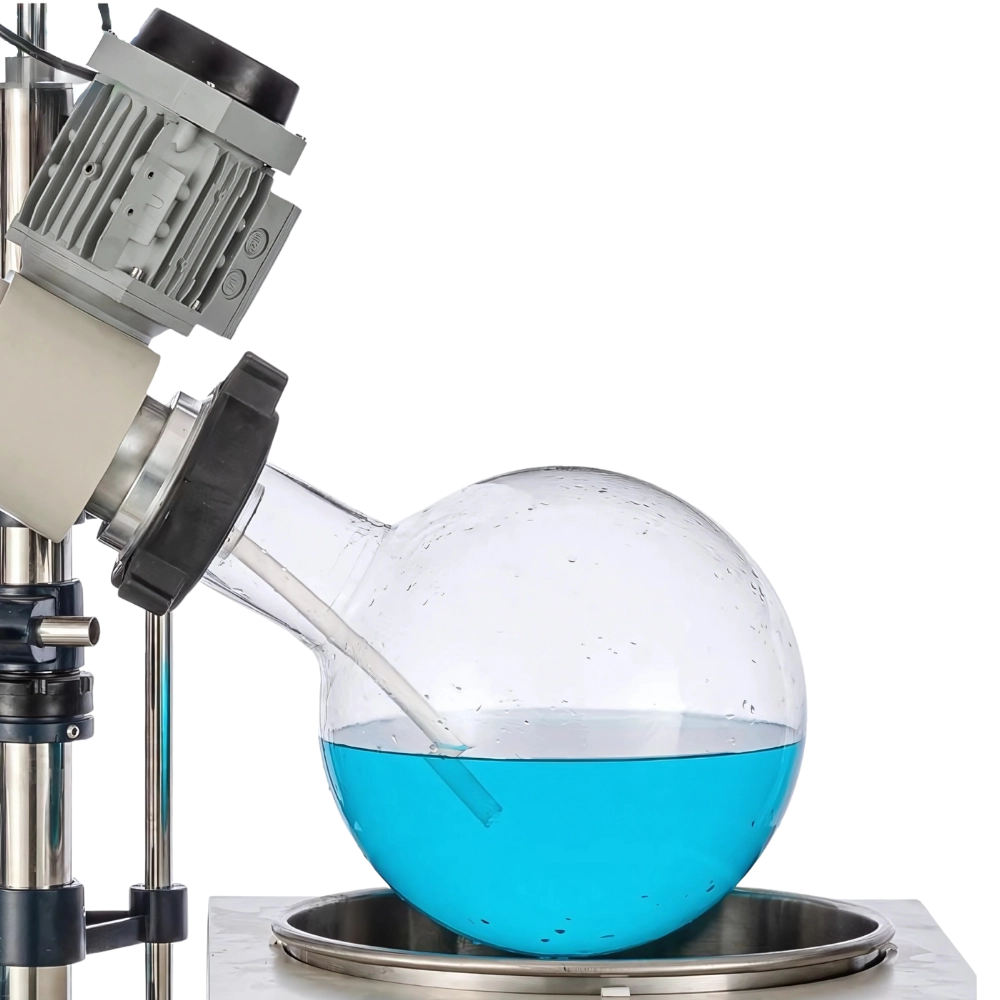

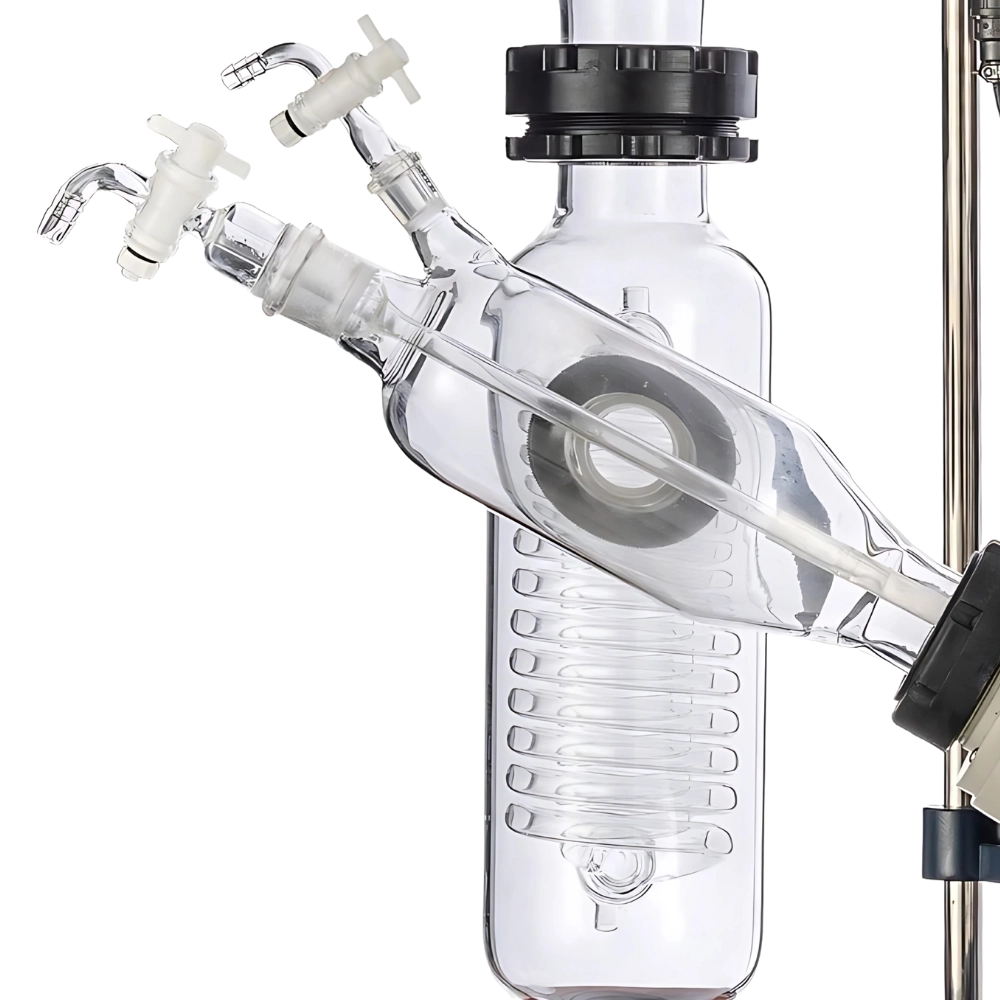

Rotary Evaporator EZL-RE27 is designed and engineered for ease of use while maintaining the highest level of safety. It operates at 110 rpm and allows for one-handed manual lift handling for precise positioning of glassware by using either water or oil. The unique 50 L bath design heats up quickly, allowing for faster experiments. Bath can reach temperatures of up to 400°C and is designed to be user-friendly while maintaining the highest level of safety. The transparent vertical condenser's small footprint makes efficient use of the cooling surface. This piece of equipment includes a digital display for monitoring and controlling rotation speed parameters.
| Rotary Bottle | 50 L |
|---|---|
| Collecting Bottle | 20 L |
| Rotary Speed | 0 to 110 rpm |
| Evaporating Speed | 60 ml/min |
| Achievable Vacuum | 0.098 Mpa |
| Bath Size | 550×320 mm |
| Bottom Plate Size | 804×574 mm |
| Elevating Stroke | 180 mm |
| Temperature Range | 0 to 400°C |
| Temperature Accuracy | ±1°C |
| Display | Digital display |
| Speed Regulation | Electronic step less speed regulation |
| Elevating function | Manual elevating |
| Sealing | Double sealing with Teflon (PTFE) |
| Rotary Motor Power | 120 W |
| Heating Power | 8 Kw |
| Power Supply | 380V, 50Hz |
| Dimension (L×W×H) | 1520×620×2470 mm |
| Gross Weight | 179 Kg |
