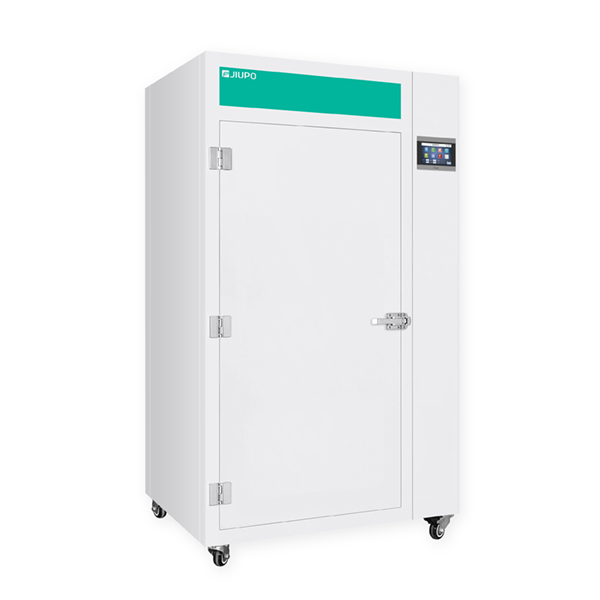

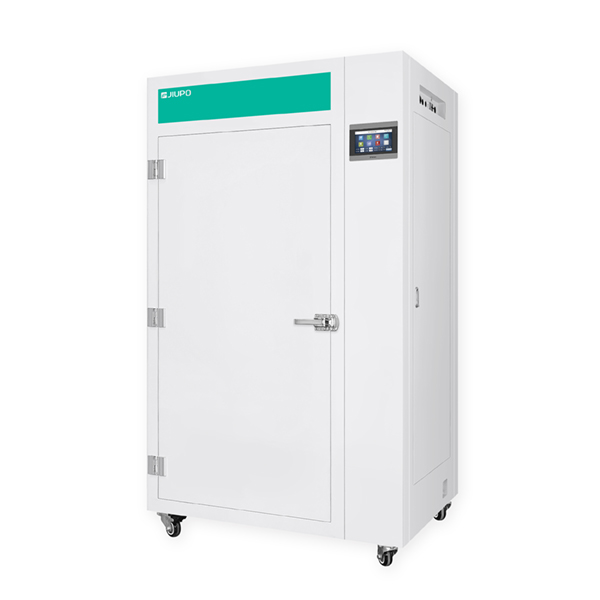

Plant Growth Chamber EZL-PG414 offers a spacious 790 L chamber volume enabling simultaneous cultivation of multiple species. Operates within a temperature range of 3 °C to 45 °C, ensuring suitability for diverse plant growth. Provides a humidity range of 50% to 90% RH supporting moisture-sensitive plant applications. Four adjustable modular shelves allow flexible arrangement of samples and uniform light distribution. Our Plant Growth Chamber are used in research and testing in Biotechnology and Agricultural Research Laboratories.
| Capacity | 790 L |
|---|---|
| Temperature Range | Temperature Range |
| Temperature Fluctuation | ±0.5°C |
| Temperature Uniformity | ±0.5°C |
| Humidity Range | 50% RH to 90% RH (lights ON/OF) |
| RH Fluctuation | RH Fluctuation |
| RH Uniformity | ±3.0% RH |
| Illumination | LED lights |
| Intensity | 300 µmol/m²/s @10 cm |
| Shelves | 4 modular lighting shelves |
| Air Flow | Equipped with fresh air recycling system |
| Remote Control | Smartphone APP remote control |
| Power Supply | 220VAC/50HZ |
| Interior Dimensions (W × D × H) | 781 × 656 × 1515 mm |
| Exterior Dimensions (W × D × H) | 1165 × 800 × 1940 mm |
Stainless steel construction
PlD temperature control
Advanced air circulation system
Built-in insulated door
Adjustable light intensity
Accessory | Description | Quantity |
CO2 Control module | Ambient to 2000/5000 PPM | 1 |
Observation Window | - | 1 |
Temperature Range | -10℃(Lights OFF) to 45℃ | 1 |
Humidity Range | 30% RH to 90% RH (Lights off) | 1 |
White Color LED Lights Panel with Full-spectrum | Spectrum: 400nm to 700 nm Colour: White Intensity: 1600μmol /m²/s Size(L×W×H): 590×510×55 mm | 1 |
White Color LED Lights Panel with Full-spectrum | Spectrum: 400nm to 700 nm Colour: White Intensity: 1000μmol/m²/s Size(L×W×H): 530×350×8mm | 1 |
White Color LED Lights Panel with Full-spectrum | Spectrum: 400nm to 700 nm Colour: White Intensity: 300/700μmol/m²/s Size(L×W×H): 530×350×8mm | 1 |
Blue Color LED Lights Panel | Spectrum: : 450nm ± 5 nm Colour: Blue Intensity: 400μmol/m²/s Size(L×W×H): 590×510×55 mm | 1 |
Red Color LED Lights Panel | Spectrum: 660nm ± 5mm Colour: Red Intensity: 300μmol/m²/s Size(L×W×H): 530×350×8mm | 1 |
Far Red Color LED Lights Panel | Spectrum: 735nm ± 5nm Colour: Far Red Intensity: 110PFD Size(L×W×H): 530×350×8mm | 1 |
Four Colors (Red/Blue/Far Red/White) LED Lights Panel | Spectrum: 660nm, 450nm, 735nm (± 5mm), 400nm to 700 nm Colour: Red, Blue, Far Red, White Intensity: 800/1200μmol/m²/s Size(L×W×H): 530×350×8mm / 590×470×8mm | 1 |
Four Colors (Red/Blue/Far Red/Green) LED Lights Panel | Spectrum: 660nm, 450nm, 735nm (± 5mm), 525nm Colour: Red, Blue, Far Red, Green Intensity: 600/1300μmol/m²/s Size(L×W×H): 530×350×8mm / 590×470×8mm | 1 |
Eighteen Colors LED Light Panel | Spectrum: Spectrum: (365-375)nm, (385-395)nm, (395-405)nm, (410-420)nm, (435-445)nm, (450-455)nm, (460-465)nm, (500-510)nm, (520-530)nm, (550-560)nm, (585-595)nm, (600-610)nm, (620-630)nm, (660-665)nm, (735-745)nm, (810-820)nm, (840-850)nm, (940-950) nm Total Intensity: 2000μmol/m²/s Size(L×W×H): 530×350×55mm1 | 1 |
LED Lighting Controller (Handheld Model) | - | 1 |
LED Lighting Controller (Table Model) | - | 1 |
Plant Growth Chamber EZL-PG414 is used in agricultural, biotechnology, pharmaceutical, and academic research facilities to cultivate plants for growth studies, seed testing, tissue culture, and climate simulation experiments.
