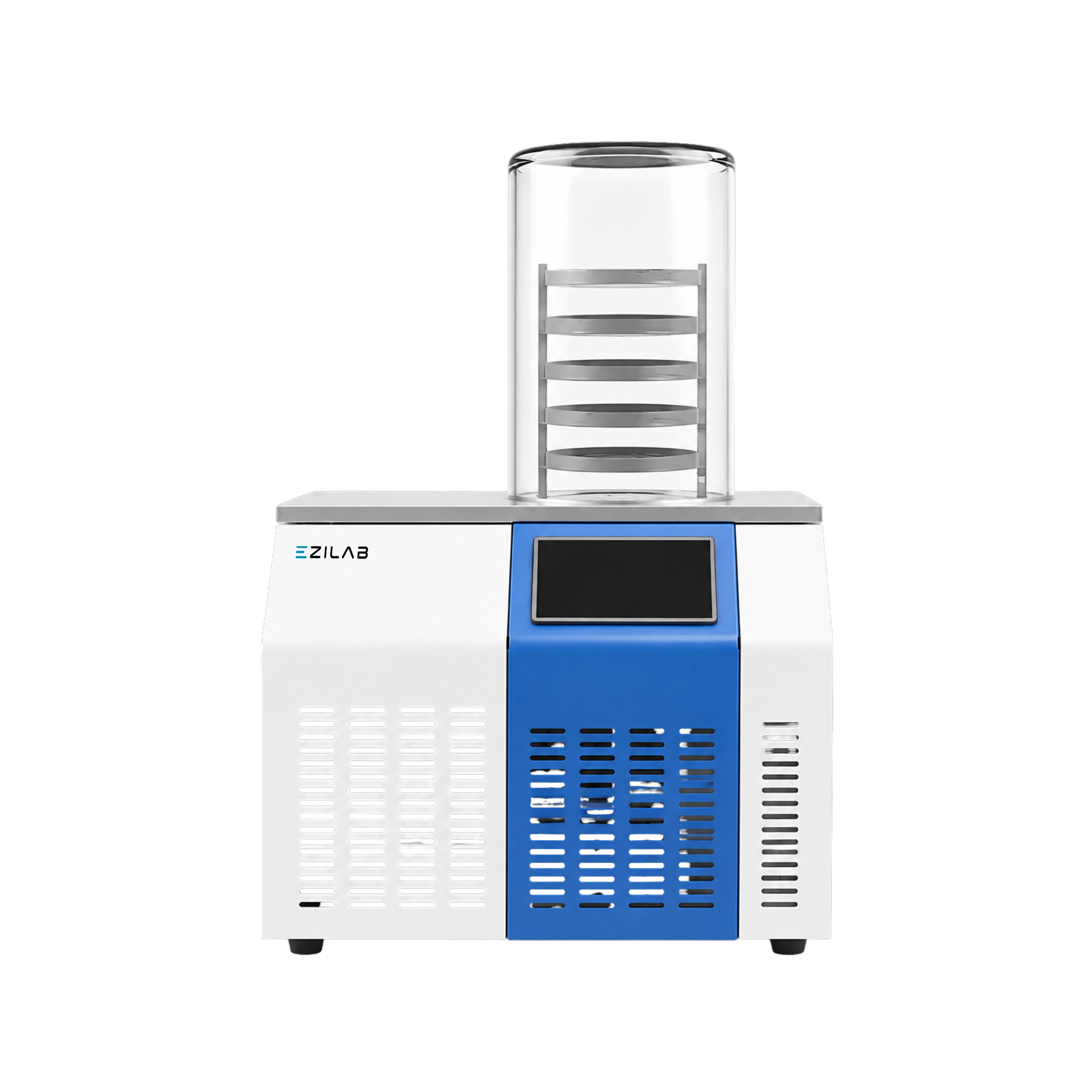

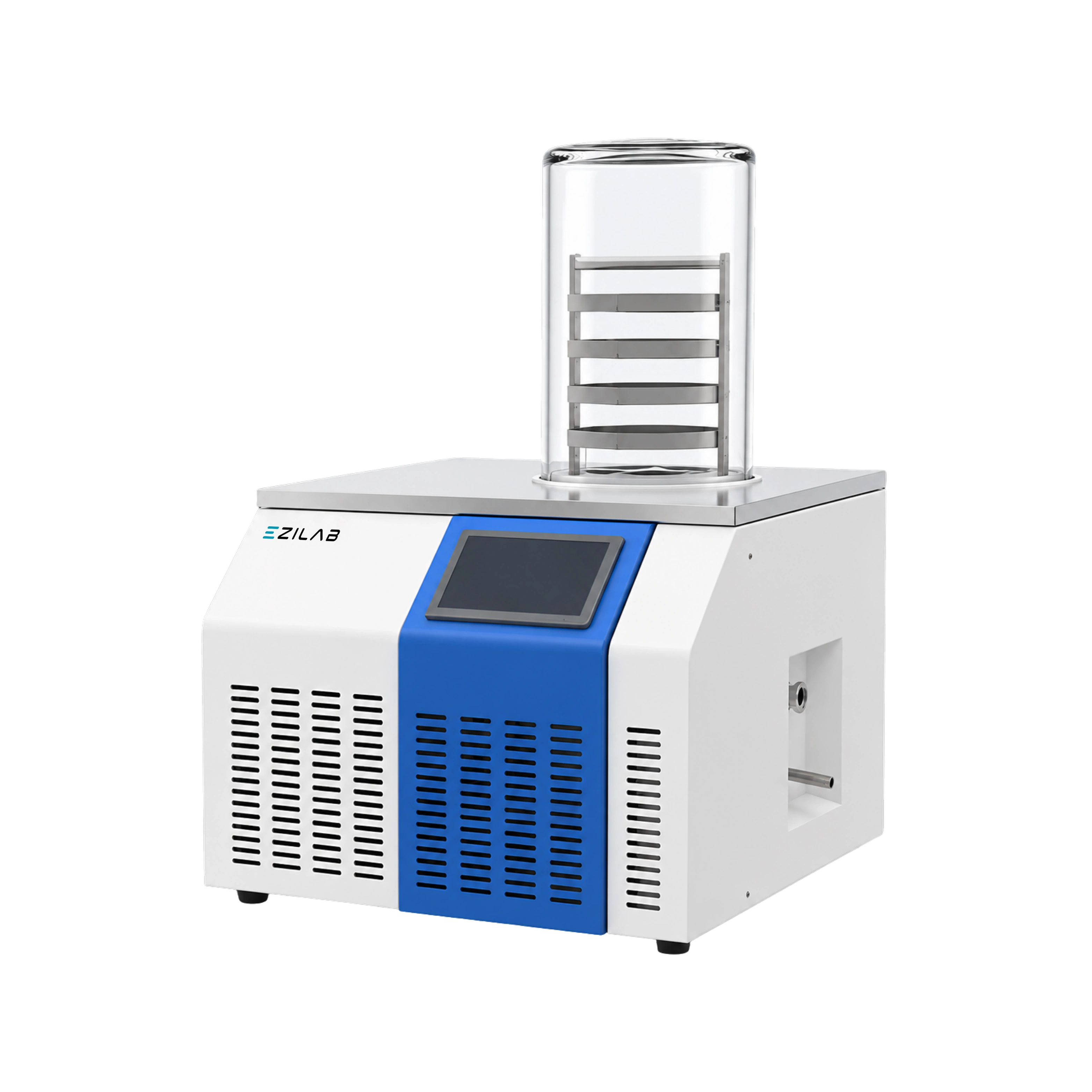

EziLab offers the Standard Freeze Dryer EZL-FDF101, a benchtop lyophilizer with a -80°C condenser and vacuum below 10 Pa. Its cold trap captures 3 to 4 kg of ice per 24 hours across a 0.12 m² drying area built from four 200 mm trays spaced 70 mm apart. Bulk loads reach 1.2 L, or 820 vials of 12 mm diameter. An anti-corrosion cold trap, oil mist filtration, and easy-clean surfaces keep upkeep low. Without a top press mechanism, the open trays suit bulk liquids, pastes, and mixed sample formats as well as vials, and the optional 8-port manifold with flasks from 50 to 1000 ml adds shell-frozen samples. This laboratory freeze dryer preserves enzymes, proteins, microbial cultures, vaccines, and plant extracts through gentle sublimation, and food researchers use it to keep texture and nutritional value intact. Pharmaceutical and biotechnology companies run it as lyophilization equipment for formulation trials and stability samples, while university core facilities share one lab freeze dryer across several research groups. Contract labs and food testing facilities value the mix of tray and flask drying. Mixed-format labs get the most flexibility from this unit. Whether your batches run to a few dozen vials or the full 820, size the purchase from the Freeze Dryer category before narrowing to the Standard Freeze Dryer range.
| Condenser Temperature | -80 ℃ |
|---|---|
| Drying Area | 0.12 m² |
| Vacuum Degree | < 10 Pa |
| Condenser Capacity kg/24 hours | 3 to 4 kg / 24 hour |
| Sample Tray | Φ200 mm × 4 layers |
| Shelf Spacing | 70 mm |
| Bulk Liquid Capacity | 1.2 L |
| Vial Capacity Φ12mm | 820 pieces |
| Vial Capacity Φ16mm | 460 pieces |
| Vial Capacity Φ22mm | 244 pieces |
| Optional Manifold | 8 ports |
| Optional Flask | 1000, 500, 250, 100, 50 ml |
| Vacuum Pump Flow Rate | 2 L / S, 7.2 m³ |
| Voltage | 220 V, 50 Hz |
| Power | 970 W |
| Dimension | 565 × 420 × 790 mm |
| Weight | 70 kg |
| Feature Area | Description |
| Condenser | -80 °C condenser temperature with 3 to 4 kg per 24 hours capacity and an anti-corrosion cold trap. |
| Drying Area | 0.12 m² drying area with four Φ200 mm sample trays at 70 mm shelf spacing. |
| Loading | 1.2 L bulk liquid capacity, or 820 Φ12 mm, 460 Φ16 mm or 244 Φ22 mm vials. |
| Vacuum | Vacuum level below 10 Pa with a 2 L/s pump flow rate and an oil mist filtration system. |
| Manifold Option | Optional 8-port manifold with 1000, 500, 250, 100 and 50 ml flasks. |
The Standard Freeze Dryer EZL-FDF101 is designed to handle a wide range of biological, pharmaceutical, and food samples. The system efficiently removes moisture while preserving structural integrity, making it suitable for delicate materials like enzymes, proteins, or microbial cultures. It is equally effective for food research, where texture and nutritional value must be maintained. This adaptability ensures support both routine laboratory operations and specialized research studies.
Ezilab’s Standard Freeze Dryer EZL-FDF101 is equipped with a digital control system and clear display that simplifies monitoring of the drying process. Operators can easily set drying parameters and check progress without requiring advanced technical skills. Automated safety features reduce the chance of operational errors, making it a practical choice even for first-time users. This ease of use helps labs save time and improve overall workflow efficiency.
The Standard Freeze Dryer EZL-FDF101 is built with safety in mind, featuring systems that prevent overheating, pressure imbalance, and power failure risks. The equipment is designed to maintain stable working conditions even during long drying cycles. These safeguards not only protect sensitive samples but also ensure the operator’s safety during use. Reliable safety features make the instrument suitable for academic, pharmaceutical, and industrial environments.
Our Standard Freeze Dryer EZL-FDF101 is engineered for reproducibility, allowing laboratories to achieve consistent drying outcomes across multiple runs. The precise temperature and vacuum control minimize variations that could otherwise impact results. This reliability is particularly important in pharmaceutical and clinical applications where batch-to-batch consistency is critical. By ensuring stable performance, it helps maintain confidence in experimental and production outcomes.
The Standard Freeze Dryer EZL-FDF101 requires minimal routine maintenance, primarily involving cleaning of sample chambers and periodic checks of the vacuum system. Easy-access design ensures that users can perform basic upkeep without professional assistance. Regular maintenance extends the instrument’s service life and ensures stable performance over time. With simple care, it remains a reliable tool for many years of laboratory use.
Ezilab’s Standard Freeze Dryer EZL-FDF101 maintains precise control over temperature and pressure to avoid thermal or structural damage to delicate materials. By using gentle sublimation, moisture is removed without affecting biological activity or chemical composition. This makes it especially useful for proteins, vaccines, and plant extracts that require structural preservation. The system’s reliability ensures samples remain intact for accurate research or long-term storage.
