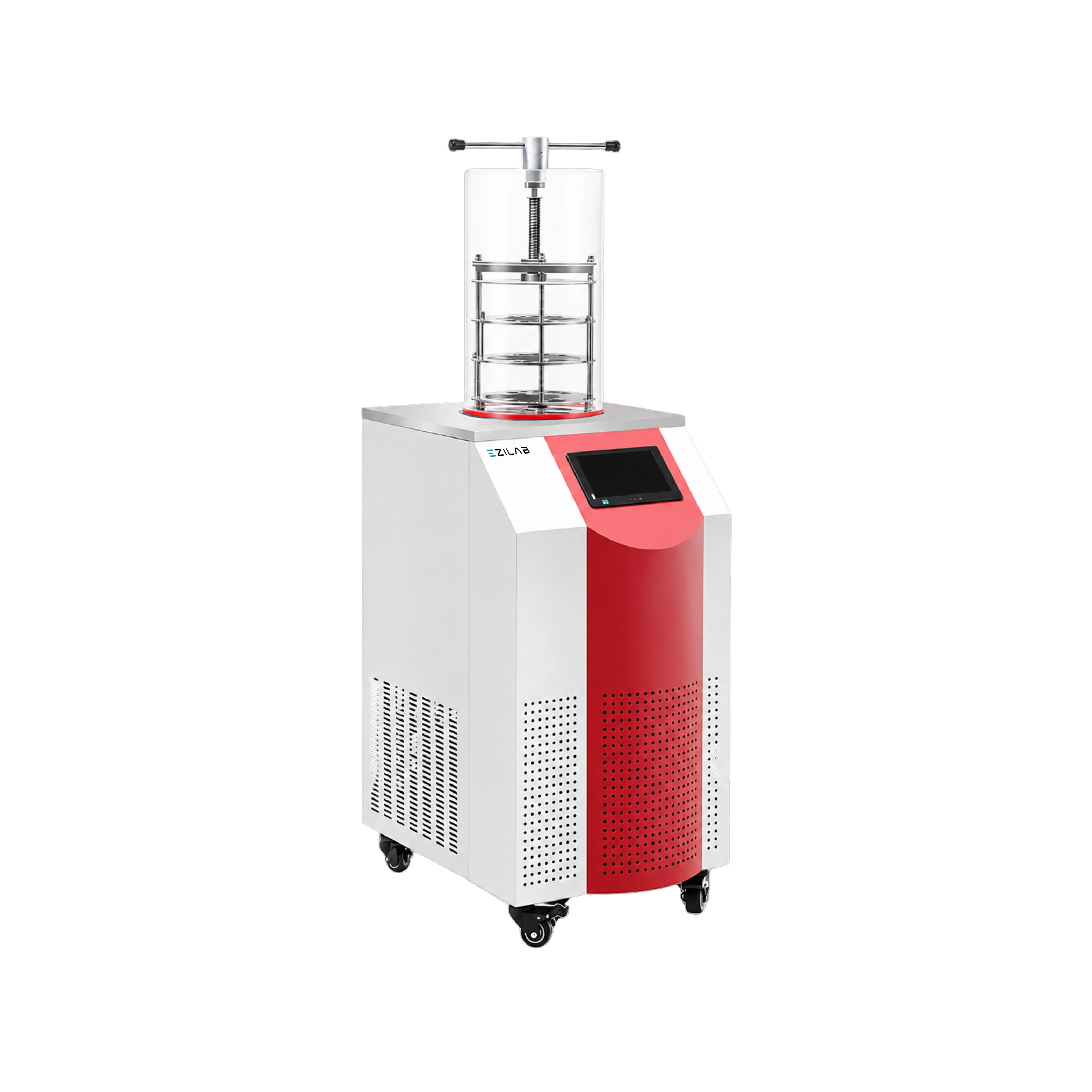

EziLab Top Press Freeze Dryer EZL-FDF201 operates with 10 Pa vacuum and 0.09m2 freeze drying area, offering a freeze dryer with -55°C or -80°C condenser options, 9L condenser volume, 4kg per 24-hour ice capacity, three shelves for 900ml total loading, and touchscreen control with USB data transfer. The 0.09m2 drying area supports compact batch loads with stable lyophilization across the work zone. Dual condenser temperature options support flexible drying setups, while three-shelf arrangement supports multi-batch loading for pharmaceutical research, biotechnology workflows, enzyme preservation, and microbiology studies via Lab Equipment and EziLab's full range of freeze dryers for lab workflow integration.
| Final Condenser Temperature | -55°C or -80°C |
|---|---|
| Vacuum Degree | <10 Pa |
| Condenser Volume | 9 L |
| Freeze Drying Area | 0.09 m2 |
| Ice Condenser Capacity | 4 Kg/24h |
| Quantity of Shelf | 3 |
| Material Loading Capacity/Shelf | 300 ml |
| Material Loading Capacity | 900 ml |
| Freeze Drying Time | 24 h |
| USB Interface | Y |
| Drying Chamber (Standard) | Transparent Acrylic |
| Vacuum Pump | Speed: 2L/S |
| Control System | Microprocessor, Touch Screen |
| Penicillin Bottle Φ 22 | 195 |
| Penicillin Bottle Φ 16 | 360 |
| Penicillin Bottle Φ 12 | 690 |
| Power Supply | 220V/50HZ, 60Hz |
| Exterior Dimension (W × D × H) | 560 × 710 × 950/1390 mm |
| Weight | 129 Kg |
Touchscreen with USB interface
Adjustable rack temperature
International standard vacuum port
Thermal insulation cover
Pre-freezing shelf
Adjustable product shelf
High-performance SECOP compressor
Stainless steel chamber
Oil mist filter (exhaust) Dust filter (front) Cold trap electric frost function Nitrogen charging valve (-80) degree cold trap function 12T drying drum D8C Vacuum pump 8M3/H (Germany Leybold brand) D16C Vacuum pump 17M3/H (Germany Leybold brand)
Our Top Press Freeze Dryer is used in laboratories and industrial applications in preserving pharmaceuticals, biological samples, and food products by removing moisture and maintaining structural integrity and potency.
The Top Press Freeze Dryer EZL-FDF201 is widely used in pharmaceuticals, biotechnology, and research labs where sensitive biological or chemical samples need long-term preservation. The system helps maintain sample integrity by removing moisture without damaging delicate structures. It is suitable for processing proteins, enzymes, vaccines, and plant extracts. The dryer also finds applications in food testing and environmental analysis. This versatility makes it valuable for both routine lab work and advanced research studies.
Our Top Press Freeze Dryer EZL-FDF201 maintains precise temperature and vacuum levels, ensuring that samples do not degrade during the drying process. Its condenser can reach temperatures as low as -80°C, which is ideal for preserving sensitive biological materials. The top press design ensures stable sample positioning and reduces the risk of contamination. Additionally, built-in safety systems protect against pressure fluctuations. This provides peace of mind to laboratories handling valuable or irreplaceable samples.
Ezilab’s Top Press Freeze Dryer EZL-FDF201 is designed with user-friendly controls that simplify setup and monitoring. The system allows clear visualization of drying progress, making it straightforward for researchers and technicians to operate. Automated vacuum regulation and condenser temperature control reduce manual intervention. Its compact structure saves bench space while offering powerful performance. These usability features help laboratories increase productivity and minimize errors.
Ezilab’s Top Press Freeze Dryer EZL-FDF201 is built with durable components that can withstand repeated freeze-drying cycles. The condenser and drying system are engineered for consistent performance, even under demanding workloads. Its design reduces wear and tear on the vacuum pump, ensuring stable pressure over time. Routine maintenance is simple, further extending equipment life. This reliability makes it a cost-effective choice for research and production environments.
Our Top Press Freeze Dryer EZL-FDF201 requires standard care to ensure consistent performance. Regular cleaning of the condenser and shelves helps maintain drying efficiency. The vacuum pump is equipped with an oil return system to minimize leakage and extend service life. Users should also inspect connections and seals periodically to avoid air leaks. With these simple maintenance steps, laboratories can keep the system running smoothly for years.
The Top Press Freeze Dryer EZL-FDF201 is compatible with a variety of vials, flasks, and trays, giving users flexibility in processing different sample types. This adaptability makes it useful for labs that work with both small-scale research samples and larger preparation batches. The secure top press function ensures containers remain stable during drying. This feature helps reduce the risk of spillage or uneven results. As a result, the system can meet the diverse needs of modern laboratories.
