EziLab Upright Freeze Dryer EZL-FDF501 operates with 0.18m2 freeze drying area and -50°C cold trap, offering a laboratory freeze dryer with 5 Pa vacuum pressure, 6kg per 24-hour water capture, 12-hole manifold for 100ml to 1000ml bottles, and electric defrosting. The 0.18m2 drying area supports medium batch loads with stable lyophilization across the work zone. 6kg per 24-hour water capture supports high-throughput drying cycles, while the 12-hole manifold supports flexible bottle accommodation for pharmaceutical research, biotechnology workflows, enzyme preservation, and microbiology studies via Lab Equipment and EziLab's full range of freeze dryers for lab workflow integration.
| Freeze Drying Area | 0.18 m² |
|---|---|
| Standard Cold Trap Temperature | -50℃ |
| Optional Cold Trap Temperature | -80℃ |
| Vacuum Pressure | ≤ 5 Pa |
| Water-Capture Capacity | 6 Kg/24h |
| Number of Holes | 12 holes |

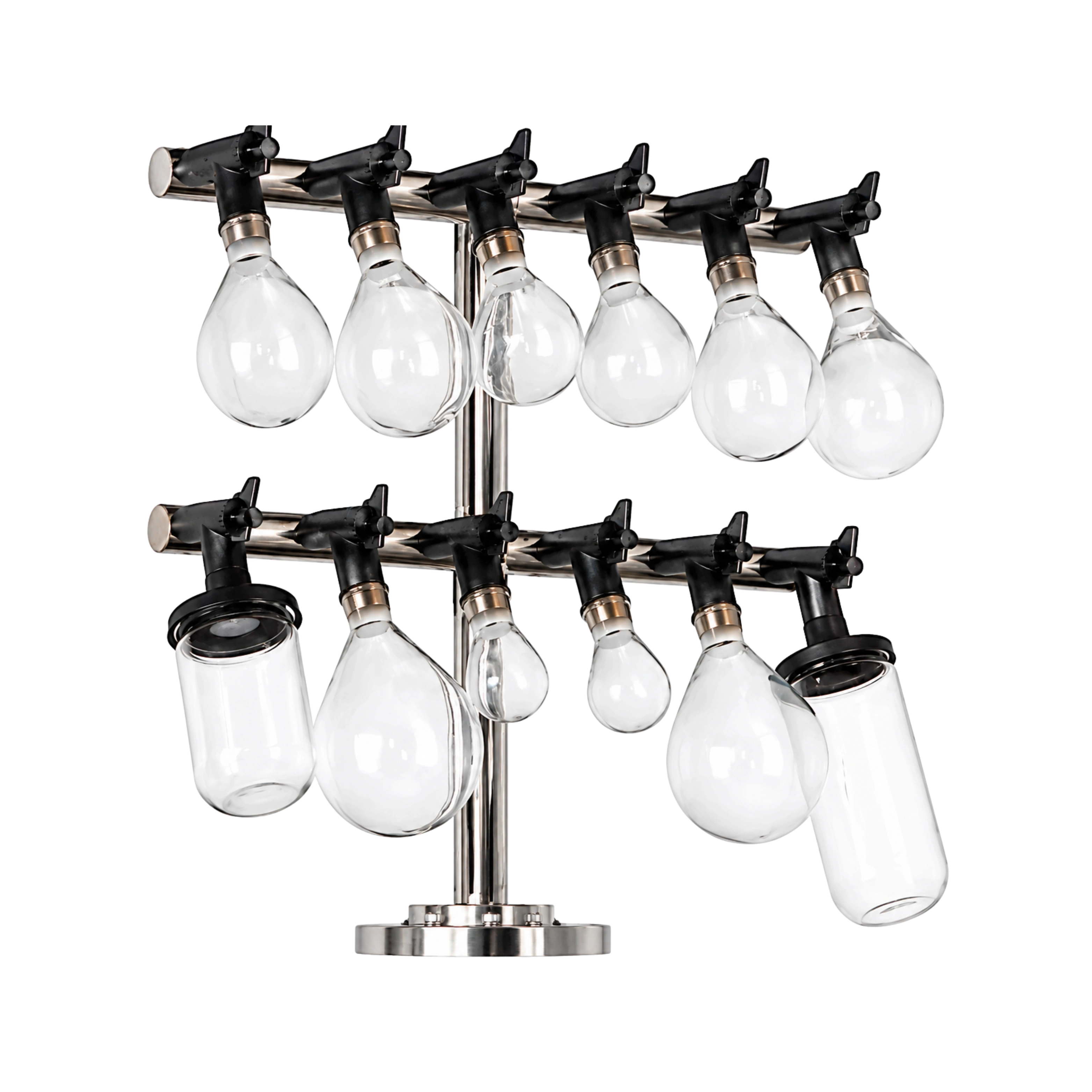

| Eggplant-Shaped Bottles | 100ml × 3, 250ml × 3, 500ml × 3, 1000ml × 3 |
| Main Frame Size | 810 × 580 × 950 mm |
| Defrosting Mode | Electric Defrosting |
| Vacuum Pump Capacity | 240 L |
| T-shaped Frame Dimensions | 800 × 600 × 780 mm |
| Vacuum Pump Dimensions | 680 × 280 × 550 mm |
| Power Consumption | 1400 W |
| Dimensions | 630 × 580 × 970 mm |
| Weight | 105 kg |
Integrated PID controller
Enables CFC-free refrigeration
Includes pre-freezing capability
Available communication interface
Adjustable program during operation
Host × 1pc Vacuum Pump × 1pc T-Shaped Frame × 1pc Power Cord × 1pc Eggplant Flask (100/250/500/1000ml) × 3pcs Each Rubber Valve × 12pcs Vacuum Connection Pipe × 1pc Quick Connector × 2pc Vacuum Grease × 1pc Vacuum Regulator × 1pc
-80℃ Cold Trap × 1pc 600ml Spare Wide-Mouth Bottles × 12 Pcs 480L/Min Vacuum Pump × 1pc
Upright Freeze Dryer removes moisture from samples by freezing them and using vacuum sublimation and is widely used in pharmaceuticals, biotechnology, food processing, research labs, agriculture, and environmental testing industries.
