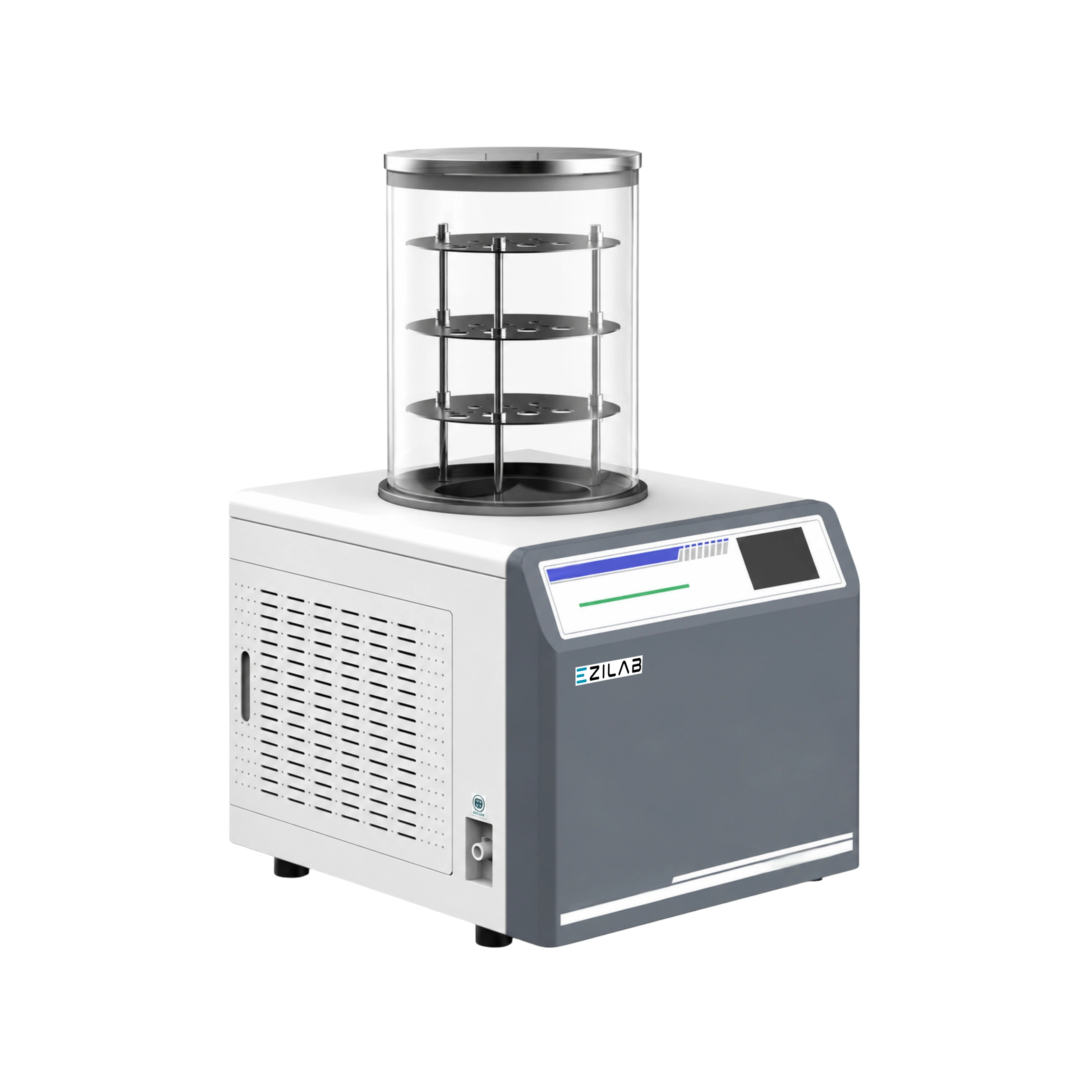

Standard Freeze Dryer EZL-FD100 offers a condenser temperature of –90°C ensuring reliable freeze-drying performance. It includes one-touch auto defrost and automatic pressure relief to protect samples during processing. Equipped with LCD touch screen for easy operation and real time monitoring. Its Automatic pressure relief prevents damage to samples by ensuring stable airflow. Our Standard Freeze Dryer is ideal for research, pharmaceuticals, and where safe and efficient preservation of samples is required.
| Condenser Temperature | -90 ℃ |
|---|---|
| Ice Condenser Capacity kg/24 hours | 8 Kg |
| Sample Shelf Diameter | Φ260mm |
| Shelf Area | 0.55 m² |
| Number of sample shelf levels | 3 to 10 layers |
| Cold Trap Volume | 10L |
| Vacuum control Accuracy | ≤0.1mbar |
| Vacuum measurement range | 0.001mbar to 1000mbar |
| Ambient Temperature | +10°C to +25°C |
| Extreme vacuum | ≤0.01mbar |
| Pumping Capacity | 8 m³/h |
| Power Consumption | 1500 W |
| Power Supply | 220 V / 50 Hz |
| Dimensions | 510 × 570 × 500 mm |
| Weight | 65 Kg |
Durable vacuum system
Efficient sample preservation
Durable vacuum system
Automatic pressure relief
Advanced vacuum control
| 1 | Two-stage Rotary Vane Pump I | Ultimate Vacuum: 5 × 10-3 mbar Pumping Rate: 8 m3/h |
| 2 | Two-stage Rotary Vane Pump II | Ultimate Vacuum: 5 × 10-3 mbar Air extraction Rate: 10 m3/h |
| 3 | Two-stage Rotary Vane Pump III | Ultimate Vacuum: 2 × 10-3 mbar Pumping Rate: 6 m3/h |
| 4 | Two-stage Rotary Vane Pump 1V | Ultimate Vacuum: 2 × 10-3 mbar Pumping Rate: 5.7 m3/h |
| 5 | Chemical Corrosion-proof Vacuum Pump | Ultimate Vacuum: 2 × 10-3 mbar Pumping Rate: 8 m3/h |
| 6 | Chemical Hybrid pump | Ultimate Vacuum: 2 × 10-3 mbar Air extraction Rate: 5.9 m3/h |
| 7 | Scroll Dry Pump | Ultimate Vacuum: 2 × 10-2 mbar Pumping Rate: 6.2 m3/h |
| 8 | Vacuum Pump Oil (5 L) | 5 L/barrel |
| 9 | Stainless steel sample tray | Experimental |
| 10 | Electric heated shelves | Փ 200 mm |
| 11 | Capping device (vial) | Vial |
Standard Freeze Dryer EZL-FD100 is ideal for lyophilizing pharmaceuticals, biological samples, and heat-sensitive materials. It is especially suitable for processing organic solvents and corrosive substances in research, medical, and industrial labs.
Two-stage Rotary Vane Pump I (Ultimate Vacuum: 5 × 10-3 mbar, Pumping Rate: 8 m3/h) × 1
The Standard Freeze Dryer EZL-FD100 is widely used for preserving biological samples, pharmaceuticals, and research specimens. The system enables long-term stability of sensitive materials by removing moisture while retaining their structural and functional integrity. It is particularly useful in laboratories that handle enzymes, vaccines, proteins, and culture samples. This ensures consistent drying results, making it a dependable tool for academic, clinical, and industrial research environments.
Our Standard Freeze Dryer EZL-FD100 is designed with a clear display and intuitive controls, ensuring smooth day-to-day operation. Its transparent drying chamber provides direct visibility, allowing operators to monitor the process without interruption. Features like precise vacuum control and reliable temperature performance contribute to reproducible results. This user-centered design reduces the learning curve for new users and minimizes operator errors.
Ezialb’s Standard Freeze Dryer EZL-FD100 is versatile and can process a wide range of sample types, including biological materials, pharmaceuticals, and food products. Its design accommodates various container formats such as flasks and vials, making it suitable for diverse research needs. The system’s efficient freeze-drying capacity ensures that both small and medium sample volumes are processed effectively. This flexibility allows laboratories to optimize workflows without requiring multiple units.
The Standard Freeze Dryer EZL-FD100 is engineered to reduce the burden of frequent maintenance. Its vacuum pump oil return device maintains stable pressure and reduces the risk of system malfunctions caused by oil leakage. The integrated filtration system ensures cleaner operation, reducing the frequency of pump maintenance. With straightforward design and fewer consumables, this helps laboratories minimize downtime and operating costs, keeping workflows efficient and predictable.
The Standard Freeze Dryer EZL-FD100 features a transparent acrylic chamber that allows direct visibility of the freeze-drying process. This helps operators monitor the status of samples without disrupting the cycle or opening the system. Real-time observation is particularly useful in research environments where process adjustments or troubleshooting may be needed. This design not only adds convenience but also ensures greater accuracy and confidence in sample management.
Ezilab’s Standard Freeze Dryer EZL-FD100 is a reliable choice for R&D laboratories that require stability and reproducibility in sample preservation. Its ability to handle a variety of materials ensures flexibility for ongoing experiments and development work. With consistent drying outcomes, researchers can replicate results and build reliable data for publication or product development. This dependability supports long-term studies, ensuring that preserved samples remain stable and usable for future analysis.
