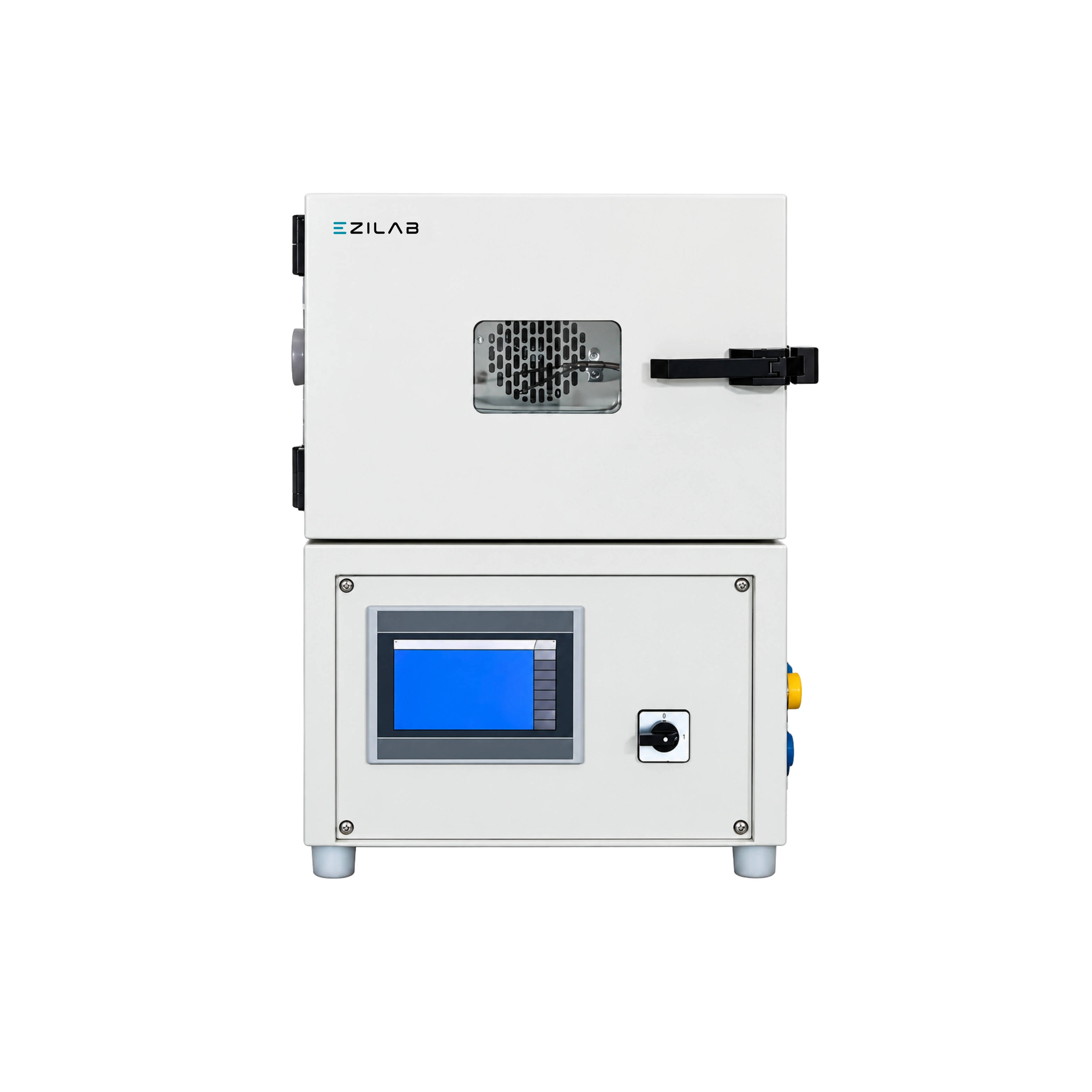

EziLab supplies the Temperature Test Chamber EZL-TC156 for electronics testing centers and materials science departments that need thermal cycling capability at the smallest end of the bench-scale range. At 12L capacity spanning -40°C to 150°C with a SUS304 stainless steel inner chamber, this climate chamber handles single small components or a handful of test specimens rather than batch loads, making it the more space-efficient option where the 36L model in this line would be more chamber than the actual test volume requires. That 12L footprint is the deciding factor for labs working with individual electronic components, small material samples, or single-part endurance testing where dedicating a larger chamber's bench space and energy draw to a small load doesn't make sense. The SUS304 stainless steel interior carries the same corrosion resistance and cleanability as the larger chambers in this range, so smaller labs aren't trading build quality for the reduced size. Electronics R&D teams running frequent single-component thermal stress tests, rather than full assembly batches, get the most practical use out of this capacity. See the Climate Chamber 12L and Temperature Test Chamber ranges for compact single-component thermal testing needs across USA electronics and materials laboratory settings.
| Internal volume | 12 L |
|---|---|
| Temperature Range | - 40˚C to +150 ℃ |
| Temperature fluctuation | ≤ ± 0.5℃ |
| Temperature uniformity | ≤ ± 2.0℃ |
| Temperature deviation | ≤ 1.5℃ |
| Heating rate | +25℃ to +130℃ ≤ 30 minutes |
| Cooling rate | +25℃ to -40℃ ≤ 45 minutes |
| Inner chamber material | SUS304 stainless steel plate |
| Exterior Material | Reinforced Steel plate with electrostatic spraying |
| Insulation | Superfine fiberglass wool/polyurethane foam |
| Refrigeration mode | Refrigeration Compressors, air cooling |
| Controller | 7” Programmable touchscreen controller |
| Heating System | NiCr heater, independent system |
| Internal dimensions (D×W×H) | 310 × 230 × 200 mm |
| External dimensions (D×W×H) | 500 × 540 × 650 mm |
| Net Weight | 89 Kg |
| Gross Weight | 110 Kg |
Uniform air circulation
Low noise operation
User friendly interface
Interior anticorrosive coating
Touch screen controller
Temperature Test Chamber EZL-TC156 is widely used in the electronic, semiconductor, and plastics manufacturing industries for testing product durability, reliability, and performance under controlled temperature conditions.
