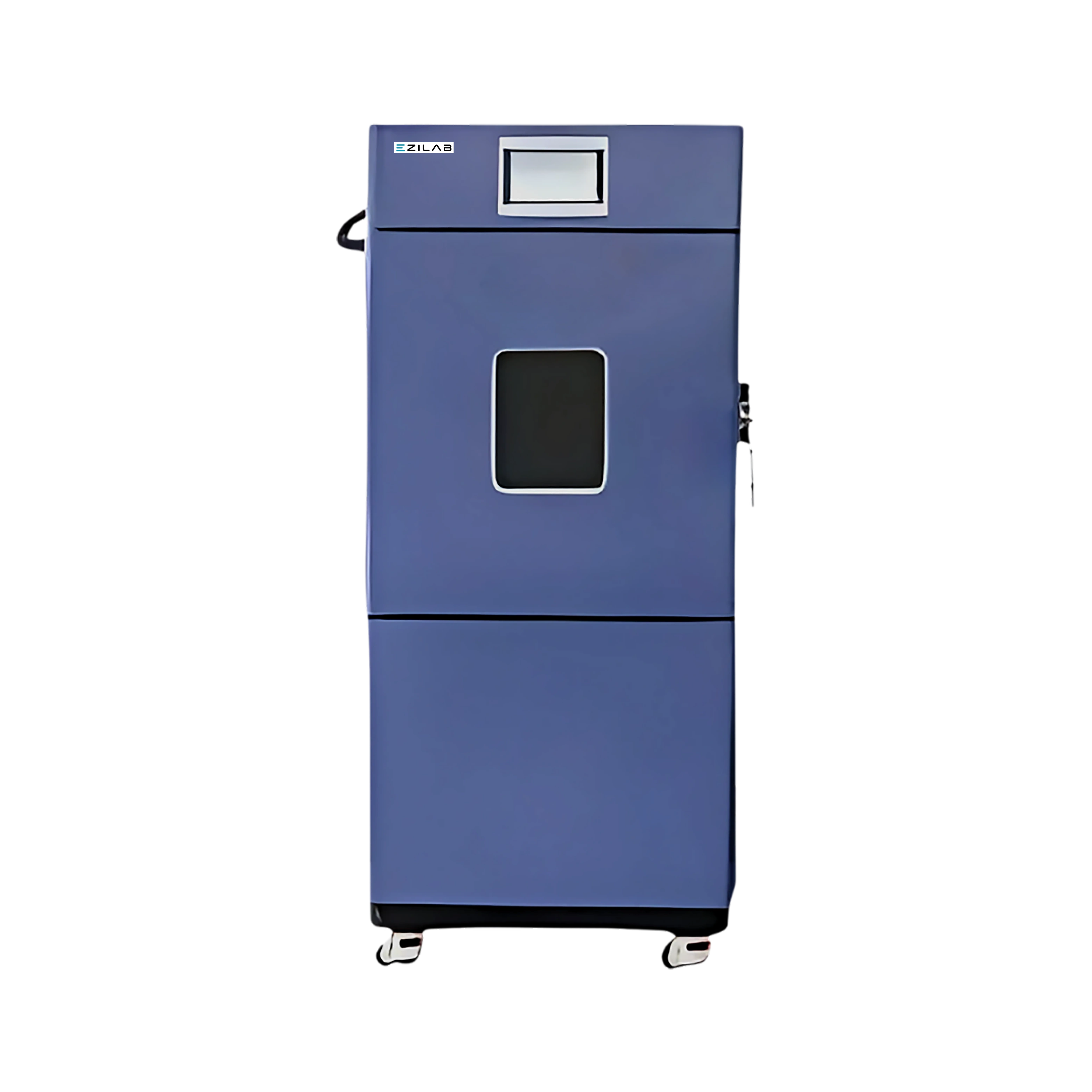

EziLab supplies the Temperature Test Chamber EZL-TC151 for electronics and materials laboratories that need mid-size capacity between the 64L unit and the larger 235L and 420L chambers in this catalog. At 150L capacity reaching 150°C with mechanical refrigeration, this humidity chamber fills the gap for labs whose testing needs exceed the 64L chamber's bench-scale capacity but don't require the larger installations built for bigger batch testing or extreme-range aerospace work. Mechanical refrigeration is the standard cooling method specified here, distinct from the cascade refrigeration used on the extreme-range -70°C aerospace chambers in this catalog, appropriate for this unit's more moderate temperature range where single-stage compression provides adequate cooling without the added complexity cascade systems require for reaching deeper sub-zero extremes. The 150L capacity suits electronics and materials testing programs running moderate batch sizes — multiple components or a meaningful sample set — without needing the largest available chamber volume in this catalog. Electronics and materials science labs whose testing volume has outgrown compact bench-scale chambers but doesn't require large-capacity or extreme-range equipment get a practically sized mid-tier option here. See the Humidity Chamber and Temperature Test Chamber ranges for mid-size electronics and materials thermal testing needs across USA laboratory settings.
| Internal volume | 150L |
|---|---|
| Floor Space | 0.98 m² |
| Temperature Range | -20˚C to 150 ℃ |
| Ambient Temperature | +5˚C to 35˚C |
| Humidity Range | 20 to 98 % RH |
| Temperature fluctuation | ± 0.5℃ |
| Temperature uniformity | ≤ 2.0℃ |
| Temperature deviation | ± 2.0℃ |
| Heating rate | -20˚C to +100℃, Average 3℃/min |
| Cooling rate | + 20˚C to -20℃, Average 3℃/min |
| Inner chamber material | SUS304 stainless steel plate |
| Refrigeration mode | Mechanical compression, two-stage refrigeration |
| Refrigerant | R404A |
| Blower | Centrifugal Blower |
| Cooling mode | Air cooling |
| Controller | Programmable controller, colour LCD touch screen |
| Communication interface | RS485, USB or LAN interface (Optional) |
| Heater | Armored high quality heater with SSR control |
| Power Consumption | 5 KW |
| Internal dimensions ( W ×H ×D) | 600 × 600 × 460 mm |
| External dimensions (W ×H ×D) | 800 × 1715 × 1230 mm |
Low noise operation
Condensation prevention system
Reliable cooling system
User-friendly controls
Real-time data monitoring
Accessories | Quantity | Unit |
Observation Window light | 1 | Set |
Mobile casters (with foot cups) | 4 | Pieces |
Lead holes (50 mm with silicone plugs) | 2 | Units |
Sample racks | 2 | Layers |
Internal lighting | 1 | Set |
Power cord | 5 | Meters |
Temperature Test Chamber EZL-TC151 is ideal in product development, quality checks, and standard compliance by replicating real-world temperature and humidity conditions, ensuring products meet performance, safety, and durability expectations across environments.
