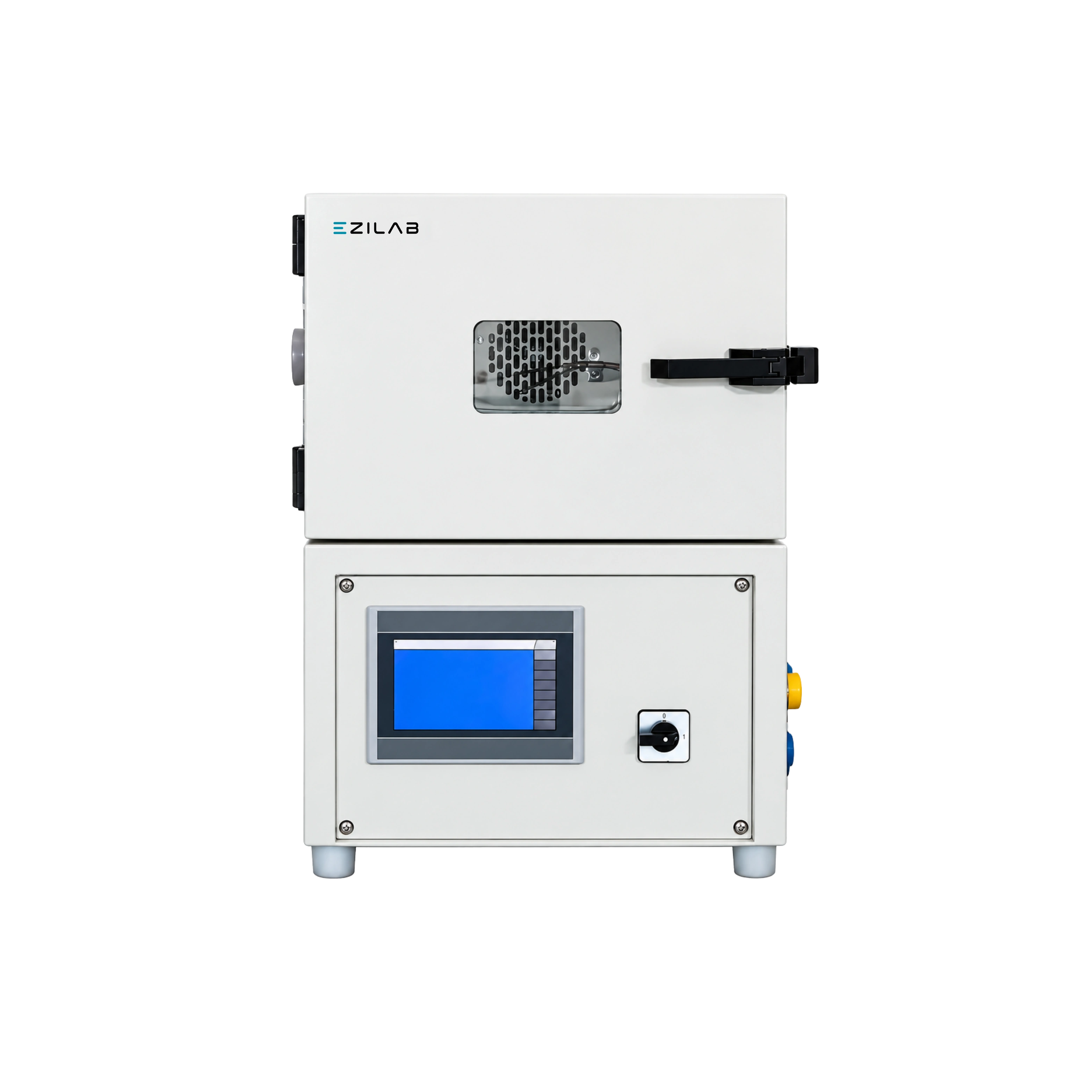

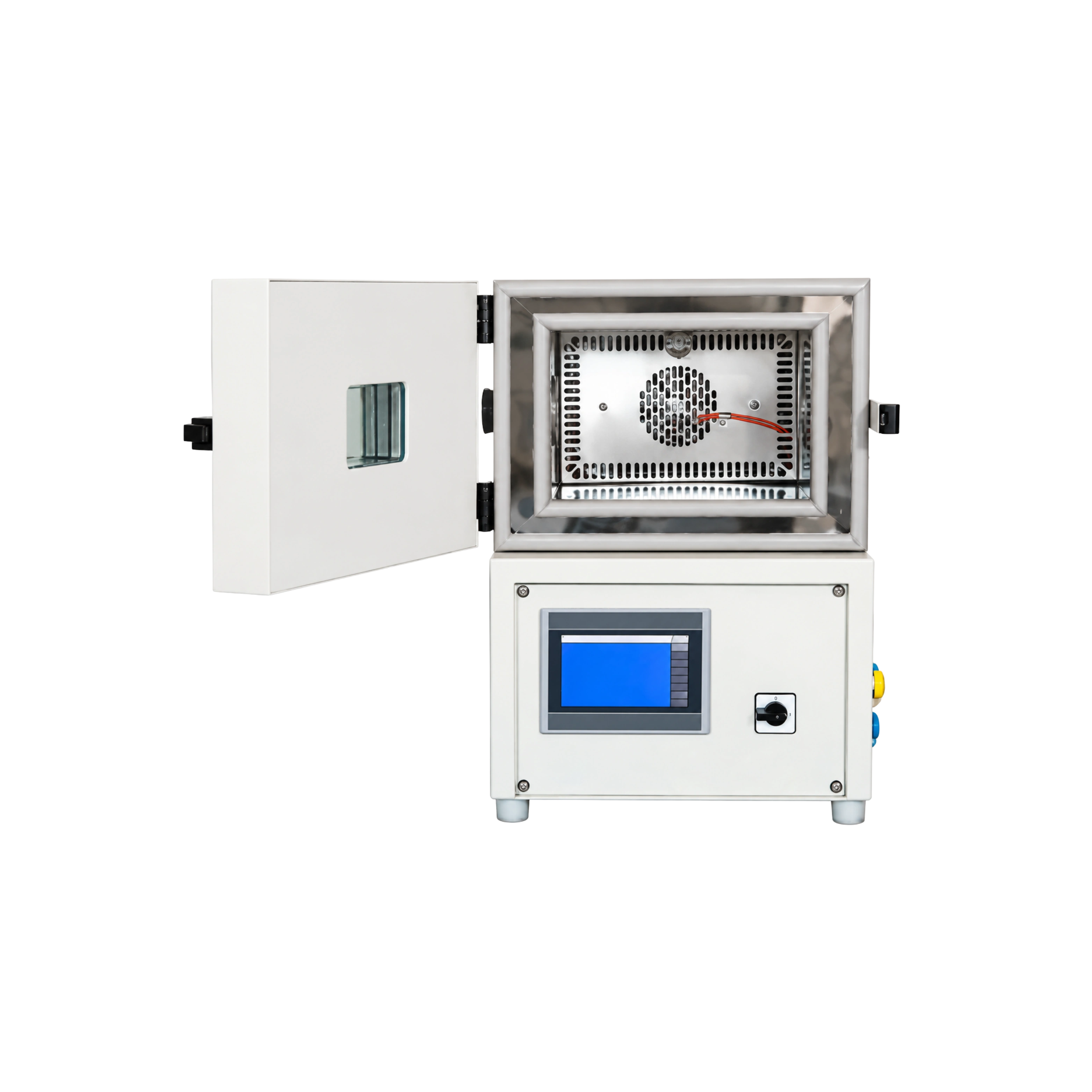

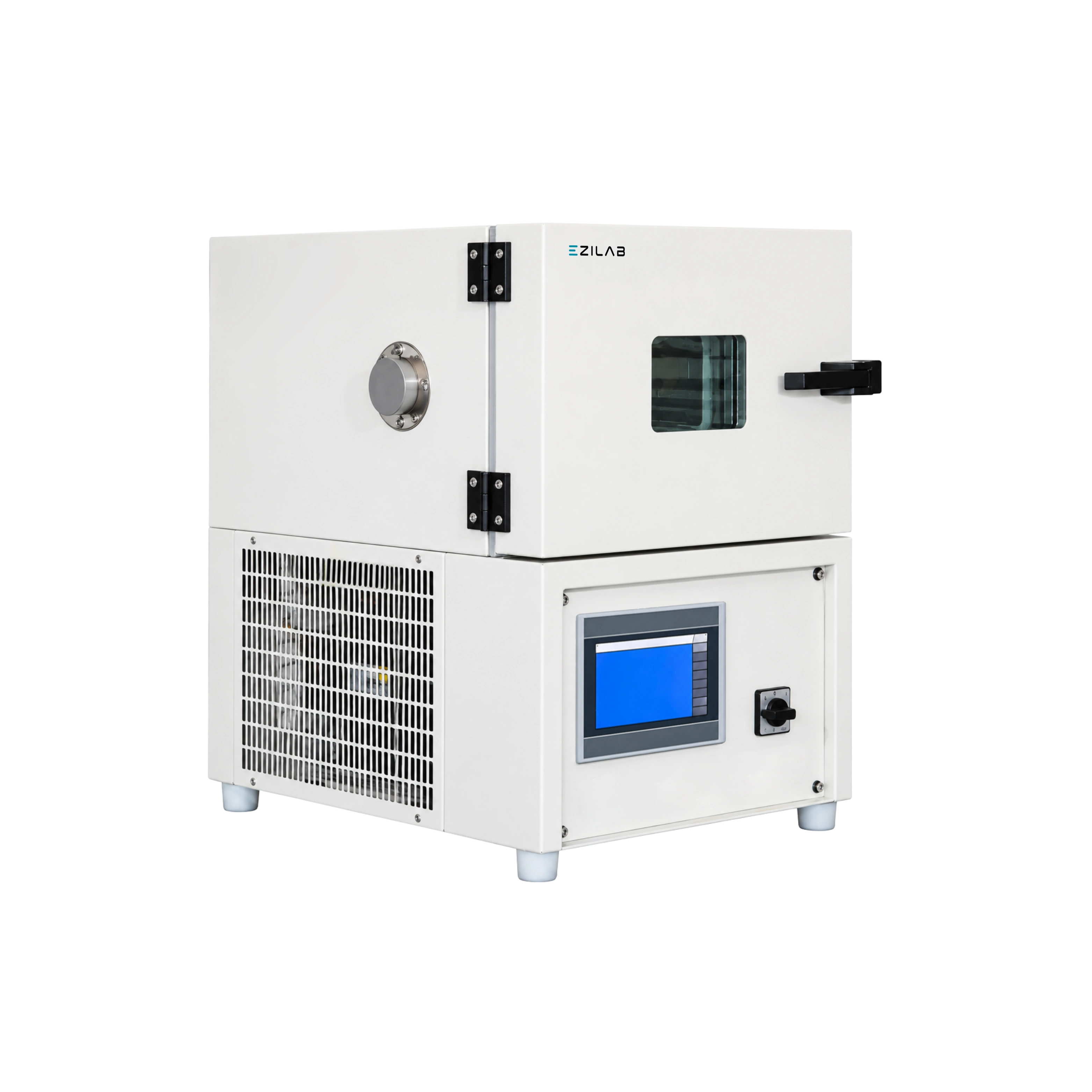

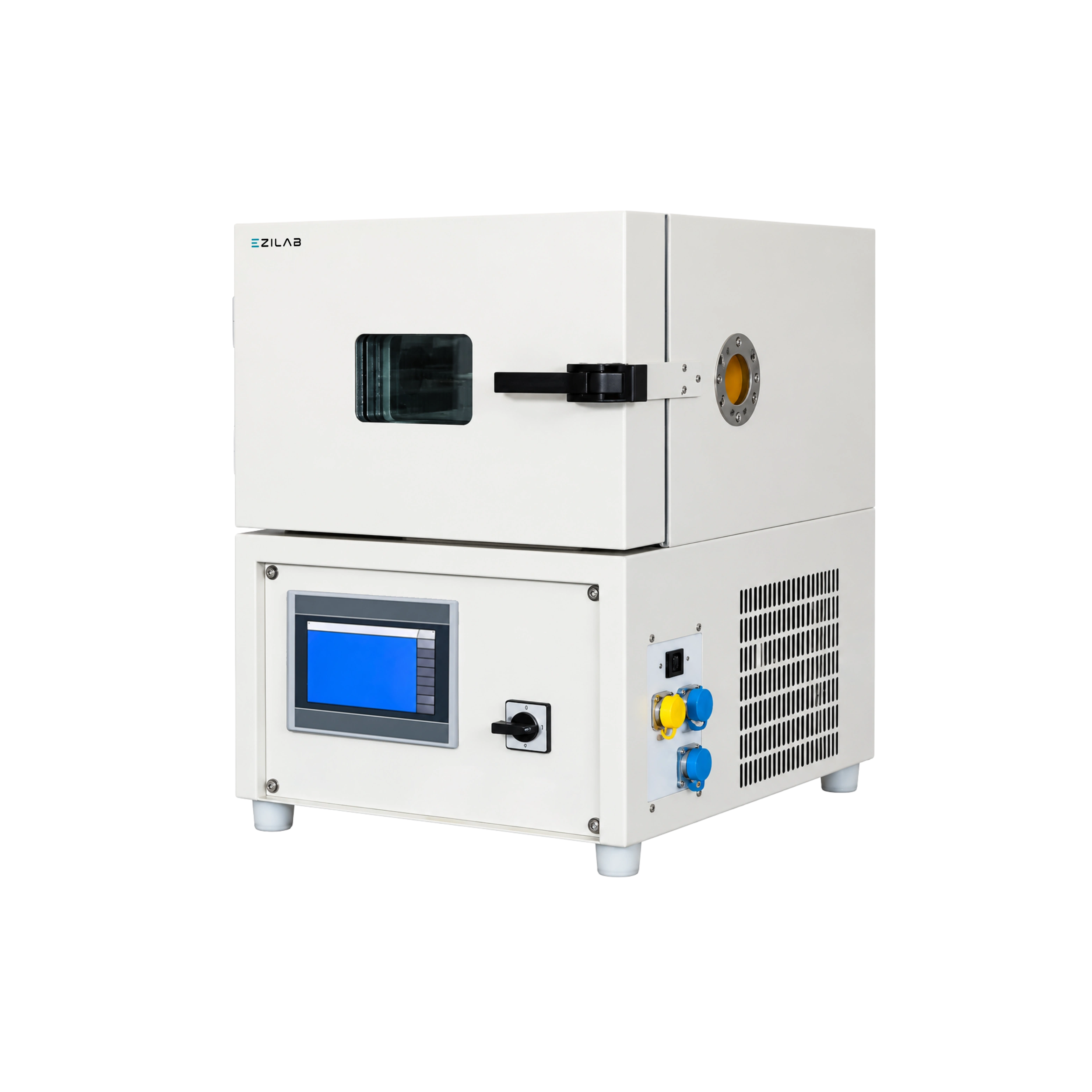

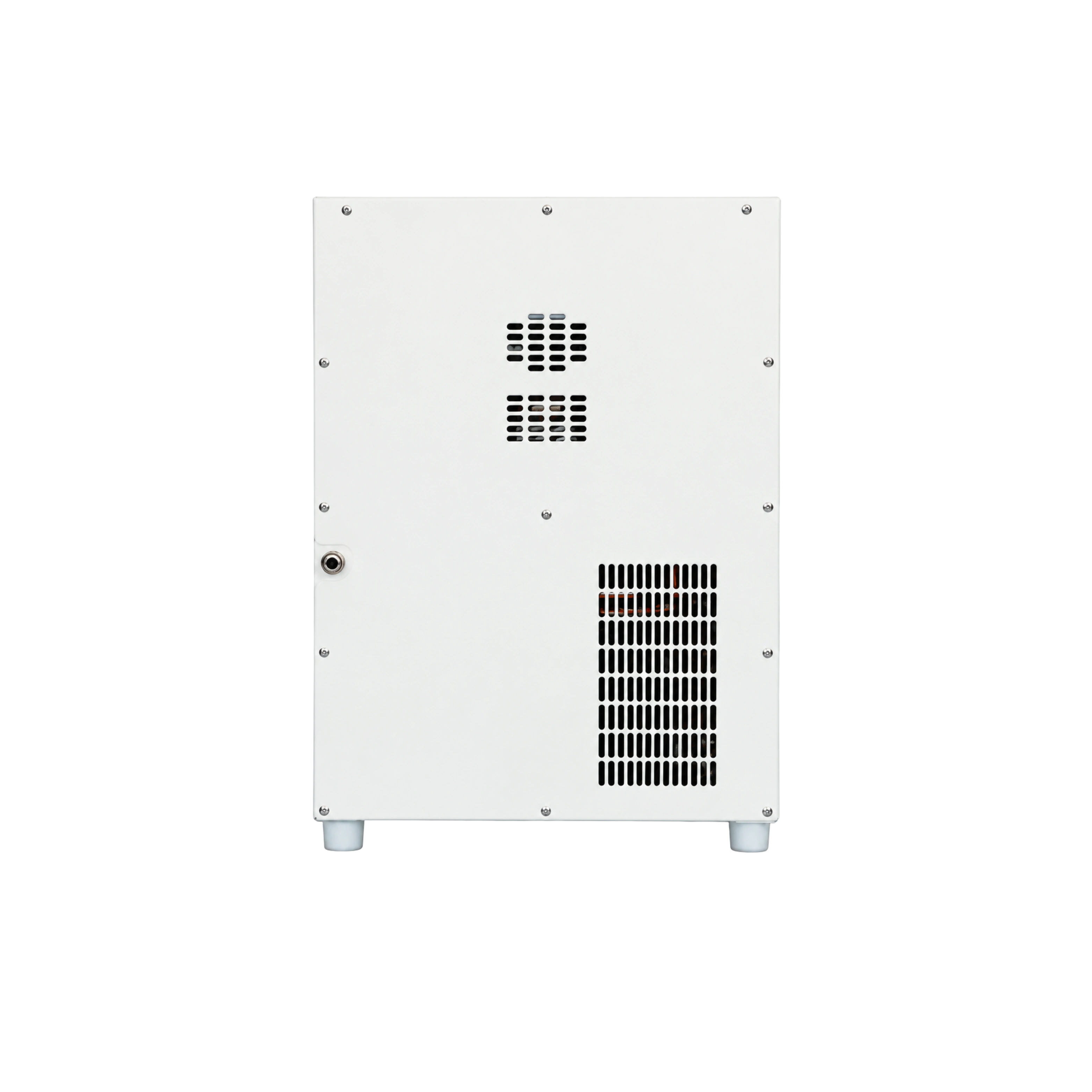

EziLab Temperature Test Chamber EZL-TC158 operates across -40°C to 150°C with a 36L SUS304 stainless steel inner chamber, delivering a climate chamber built for controlled thermal testing of materials and components in laboratory and industrial environments. The SUS304 stainless steel construction ensures corrosion resistance throughout repeated heating and cooling cycles, maintaining chamber integrity during long-term operation. A 7-inch programmable touchscreen controller enables precise cycle programming, allowing operators to set multi-step temperature profiles and monitor performance in real time. The NiCr independent heating system delivers stable and uniform heat distribution across the chamber volume, reducing temperature deviation during critical test sequences. Reinforced steel exterior with electrostatic spraying finish provides structural durability and resistance to routine laboratory handling. Explore EziLab's temperature test chambers and climate test chambers for related requirements.
| Internal volume | 36 L |
|---|---|
| Temperature Range | - 40˚C to +150 ℃ |
| Temperature fluctuation | ≤ ± 0.5℃ |
| Temperature uniformity | ≤ ± 2.0℃ |
| Temperature deviation | ≤ 1.5℃ |
| Heating rate | +25℃ to +130℃ ≤ 30 minutes |
| Cooling rate | +25℃ to -40℃ ≤ 45 minutes |
| Inner chamber material | SUS304 stainless steel plate |
| Exterior Material | Reinforced Steel plate with electrostatic spraying |
| Insulation | Superfine fiberglass wool/polyurethane foam |
| Refrigeration mode | Refrigeration Compressors, air cooling |
| Controller | 7” Programmable touchscreen controller |
| Heating System | NiCr heater, independent system |
| Power supply | AC 110V/220V/230V , 50Hz / 60Hz |
| Internal dimensions (D×W×H) | 400 × 400 × 300 mm |
| External dimensions (D×W×H) | 640 × 730 × 970 mm |
Compact bench design
Stable temperature performance
Energy-efficient insulation
Adjustable shelves included
User friendly interface
Temperature Test Chamber EZL-TC158 is widely utilized in electronics, automotive, aerospace, defense, research institutions, and various industrial sectors for testing product durability, reliability, and performance under controlled temperature conditions.
