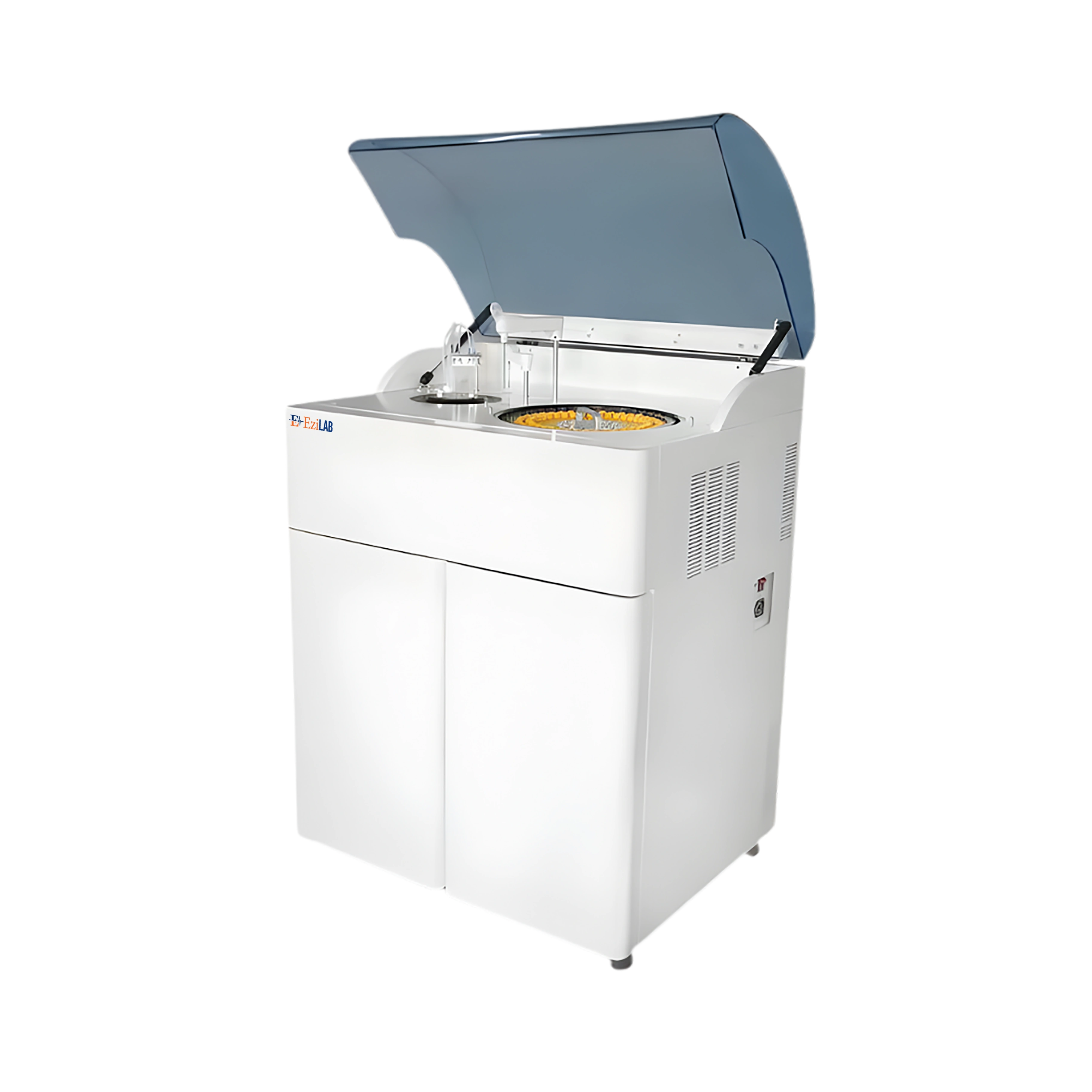

Automatic Biochemistry Analyzer EZL-ABA100 delivers a testing throughput of up to 200 tests per hour ensuring fast and efficient biochemical analysis for high-volume laboratories. It offers real-time display of running status for continuous monitoring. Its multi-point calibration capability supports up to 8 points for improved measurement precision. The alarm log automatically records all alarms with detailed explanations during the running process. Our Automatic Biochemistry Analyzer is used in laboratories for biochemical studies, pharmacology, and biomarker detection.
| Throughput | 200 test per hour |
|---|---|
| Repeatability | CVs 3% |
| Sample Volume | 2 to 30 µL, step by 0.1µL |
| Reagent Volume | 20 to 300 µL |
| Sample Position | 40 |
| Sample Cup Type | Micro cup and test tube |
| Reagent Position | 80 |
| Reagent Consumption | 150 µL |
| Reaction Tray | 44 high quality plastic cuvettes |
| Reaction Volume | 150 to 350 µL |
| Reaction Time | Less than equal to 15 minutes |
| Test Principle | Colorimetric method, turbidimetric |
| Test Method | 1 point end, 2 point end, Fixed time, Kinetics |
| Caliberation Type | Linear and nonlinear |
| Temperature | 37 ± 0.1℃ |
| Absorbance | 0 to 4 Abs |
| Resolution | 0.0001 Abs |
| Operation System | Windows XP, Windows 7, Windows 8 |
| Power Supply | AC 110 / 220V, 50/60 Hz |
| Dimension | 650 × 700 × 1200mm |
Easy operation software
Automatic sample dilution
Reagent tray monitoring
Internal memory storage
Auto-calibrator dilution
Automatic Biochemistry Analyzer EZL-ABA100 is widely used in clinical laboratories, hospitals, and diagnostic canters to analyse blood and body fluid samples for critical biochemical parameters such as glucose, liver enzymes, renal markers, lipids, and electrolytes.
