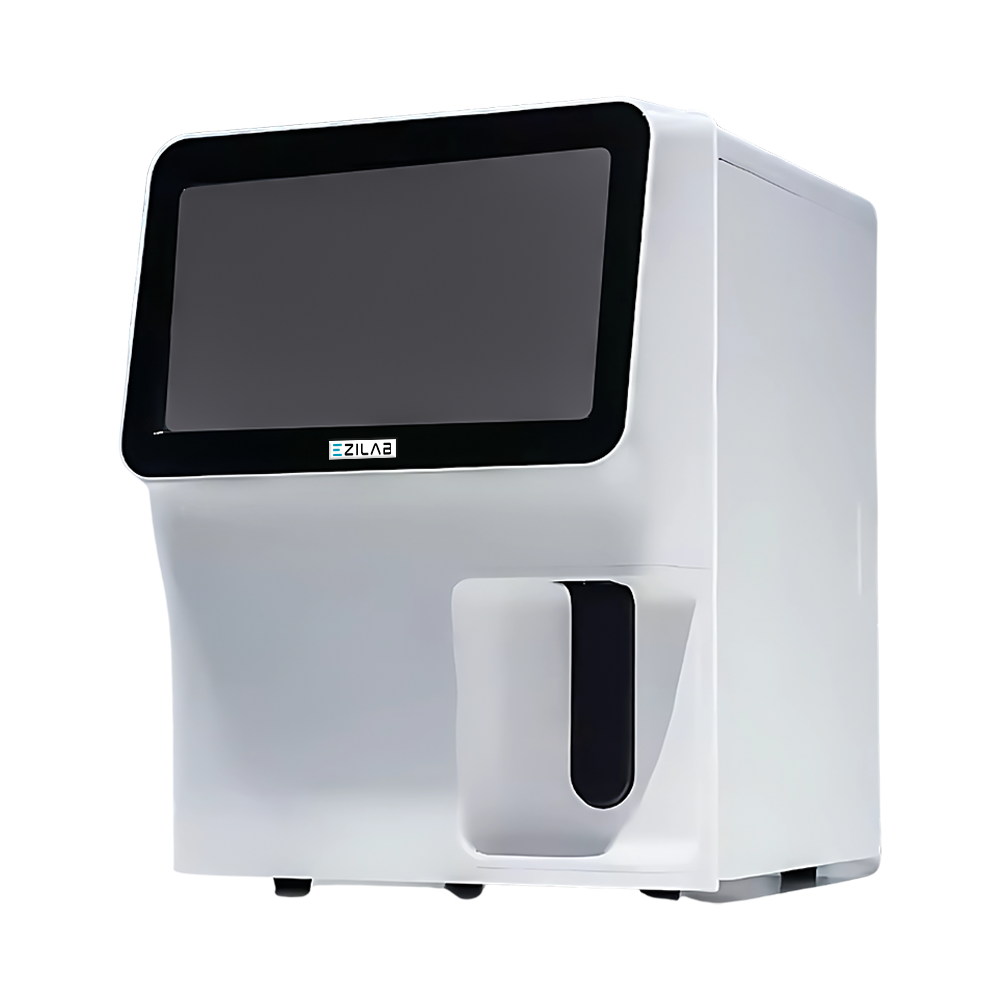

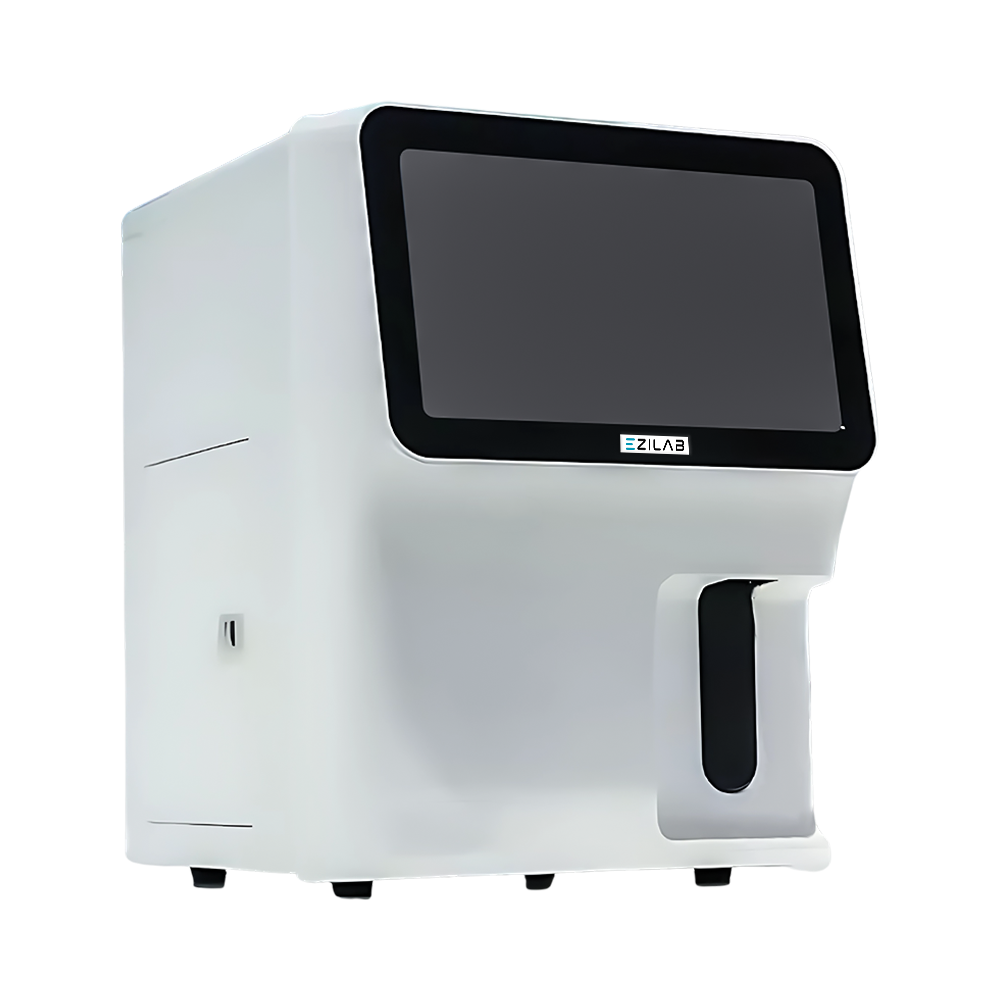

Hematology Analyzer EZL-HA103 is an innovative and revolutionary 5-part differential analyzer that can be used in any testing locations and applications where high-quality CBC results are desired. Accurate results with regular and micro-sampling collection tubes with only 20µl blood required and results appear in less than a minute with use of a simple operating touchscreen panel. The device can run 60 tests per hour, has 29 reportable parameters and can save up to 10,000 data points including histograms.

Sample Volume CBC+DIFF mode: ≤20 µl CBC mode: ≤10 µl
Throughput 60 tests/hour
Assay Items 5 parts, 29 parameters, 3 histograms
Storage 1,00,000 results storage including histogram, scatter gram and patient information
Measuring Principle Tri-angle laser, Flow cytometry method, 3D scatter gram analysis, Impedance
Test Mode CBC mode, CBC+DIFF mode, Venous whole blood, Capillary whole blood and Pre-diluted
Testing Items Regular Parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, PDW, MPV, PCT, P-LCC, P-LCR, NEU#, NEU%, LYM#, LYM%, MON#, MON%, EOS#, EOS%, BAS#, BAS%, 4 Research Parameters: ALY#, ALY%, IG#, IG%
Linearity Range 0 - 300×109/L, 0 – 8.00×1012/L, 0 – 250 g/L, 0 - 3000×109/L
Interface 4 USB ports, 1 LAN port Bi-direction LIS, support HL7 protocol, Internal RFID reader
Power Supply AC220V±10% 50/60Hz, 400VA
Package Size (W×D×H) 670×590×790 mm
Reagent Package Size (W×D×H) 320×320×290 mm
Gross Weight 53 kg
Reagent Gross Weight 22 kg
  • Accurate results with regular and micro-sampling collection tubes with only 20µl blood required and results in less than 1minute
  • Large touchscreen with specially designed user interface for non-experienced operators
  • Easy, safe and biohazard free on-board integrated reagent pack
  • Fast and reliable, user friendly, portable and cost effective
  • Large storage capacity: 1,00,000 results
  • 3D holographic scatter gram displays the accurate 5 part differentiation of WBC
  • This instrument is suitable for many testing scenarios such as Satellite laboratories, Clinics and routine laboratories and Medical fields to do white blood cells count, complete blood counts, and reticulocyte analysis.
