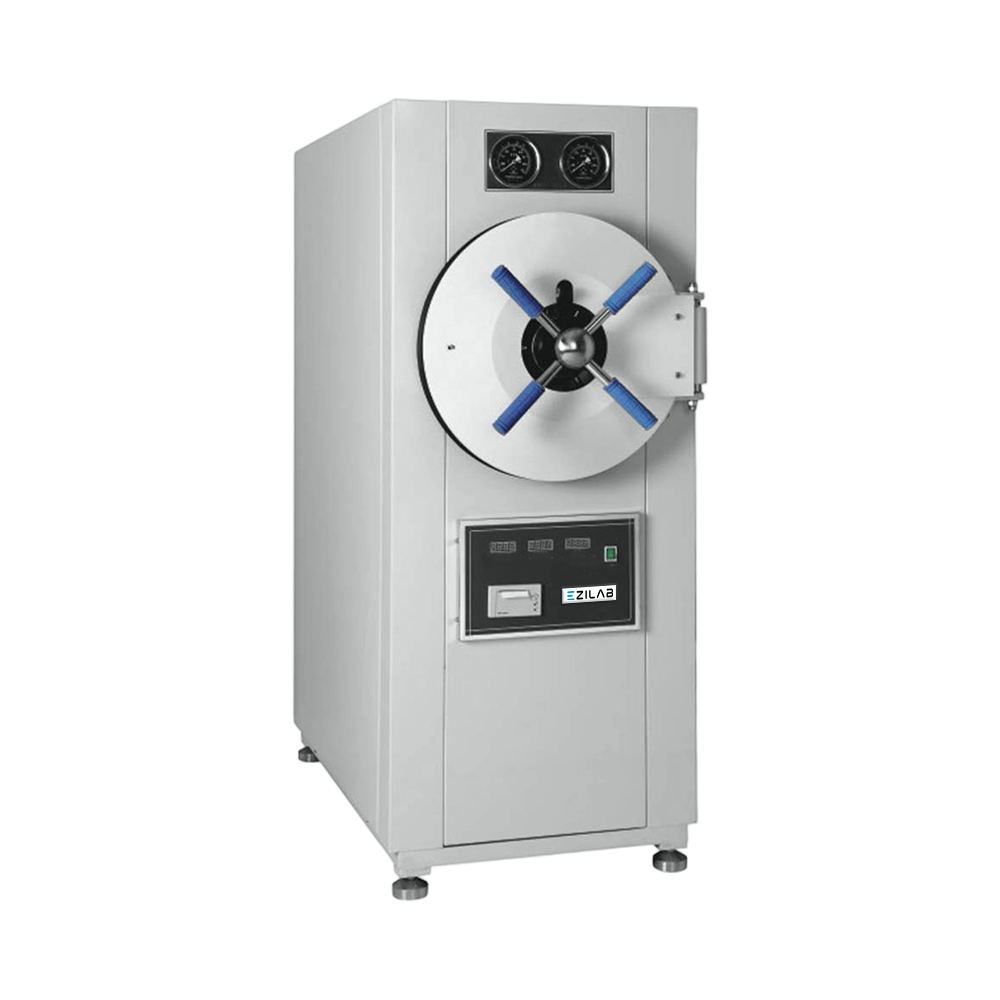

EziLab offers the Horizontal Pressure Steam Sterilizer EZL-HS83, an XL autoclave for lab use with a 280 L chamber that sterilizes at 134 °C and 0.22 MPa, with temperature adjustable from 40 °C to 134 °C and uniformity within ±2 °C. A digital display runs the automatic cycle, sterilization and drying timers set from 0 to 99 minutes, cool air purges automatically, a gasket seals the stainless steel chamber, and 12 kW heats it. A safety door lock holds the door shut, low-water cut-off protects the heater, an audible alert flags an incomplete cycle, and the mini printer records each run. The cabinet measures 1520 by 910 by 1900 mm and weighs 462 kg. Choose it over the 150 L and 200 L siblings when loads outgrow 200 L. Hospitals sterilize instrument trays in it, clinical laboratories process waste and glassware, food plants preserve packaged product, and research institutes prepare culture media. Routine cycles cover bottle sterilization, liquid waste, porous loads, and Class B packs. Check the lab’s floor drain, water supply and 12 kW feed before delivery; smaller chambers are listed in Autoclave and Horizontal Autoclave.
| Sterilizing Chamber Volume | 280 L |
|---|---|
| Working Pressure | 0.22MPa |
| Working Temperature | 134°C |
| Adjustable Temperature Range | 40° - 134°C |
| Sterilization Time | 0 – 99 min |
| Drying Time | 0 – 99 min |
| Heat Average | ≤± 2°C |
| Power | 12 KW |
| Chamber Dimension (ɸ×D) | 600×1000 mm |
| Dimension (L×W×H) | 1520×910×1900 mm |
| Package Dimension (L×W×H) | 1680×1080×2100 mm |
| Net Weight | 462 Kg |
| Gross Weight | 570 Kg |
Automatic controlled sterilizing process
High grade stainless steel chamber
Standard operation via a digital display
High-efficiency and easy to use
Exhausts the cool air automatically
Leak-proof sealing with gasket design
Provides clean and dry environment for sterilization
Safety door lock system
Automatic low level water cut off mechanism
Built-in mini printer to record the sterilizing information
Audible indication in case when cycle is incomplete
User friendly control panel
It is ideal for material tests like pressure vessel test, quality control, and class B program cycles. As well for food preservation, culture media preparation, sterilization of waste in liquids, bottles, instruments, porous materials, synthetic materials and glass ware in hospitals, food industries, clinical laboratories, medical institutes, science and research organizations etc.
