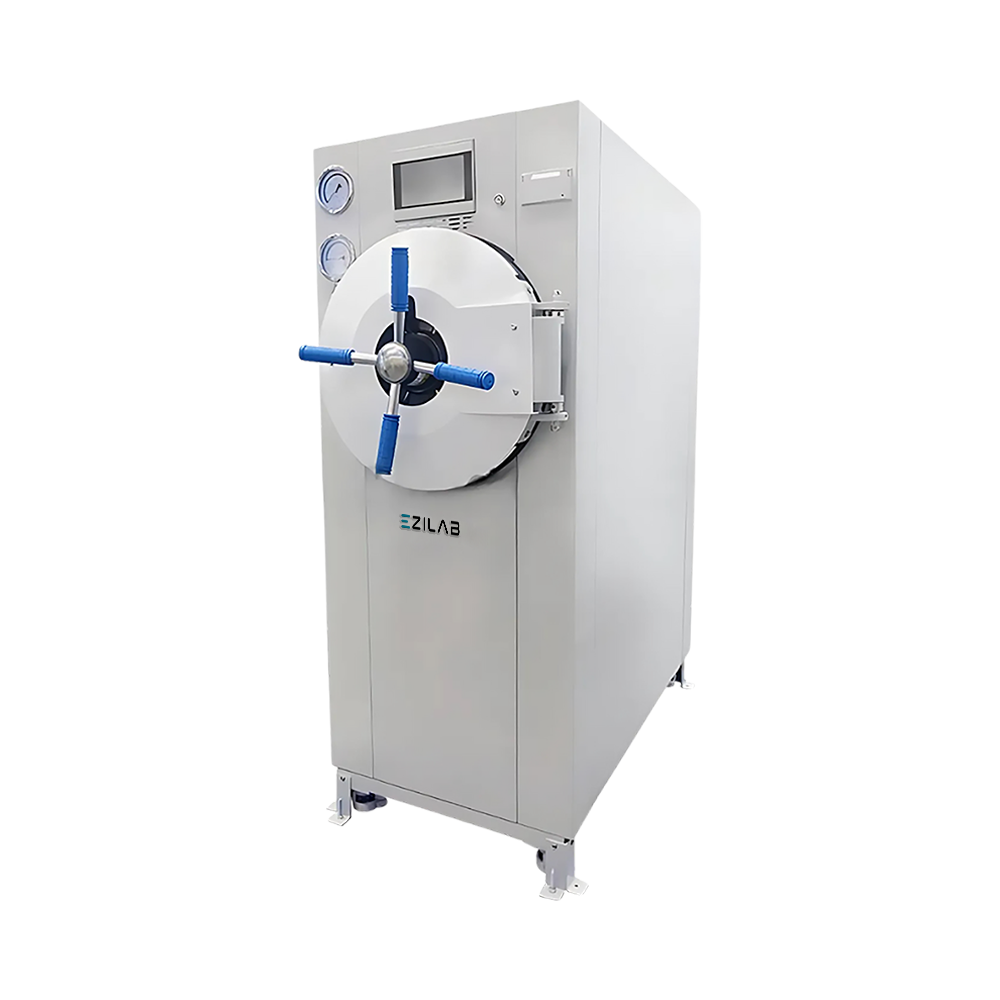

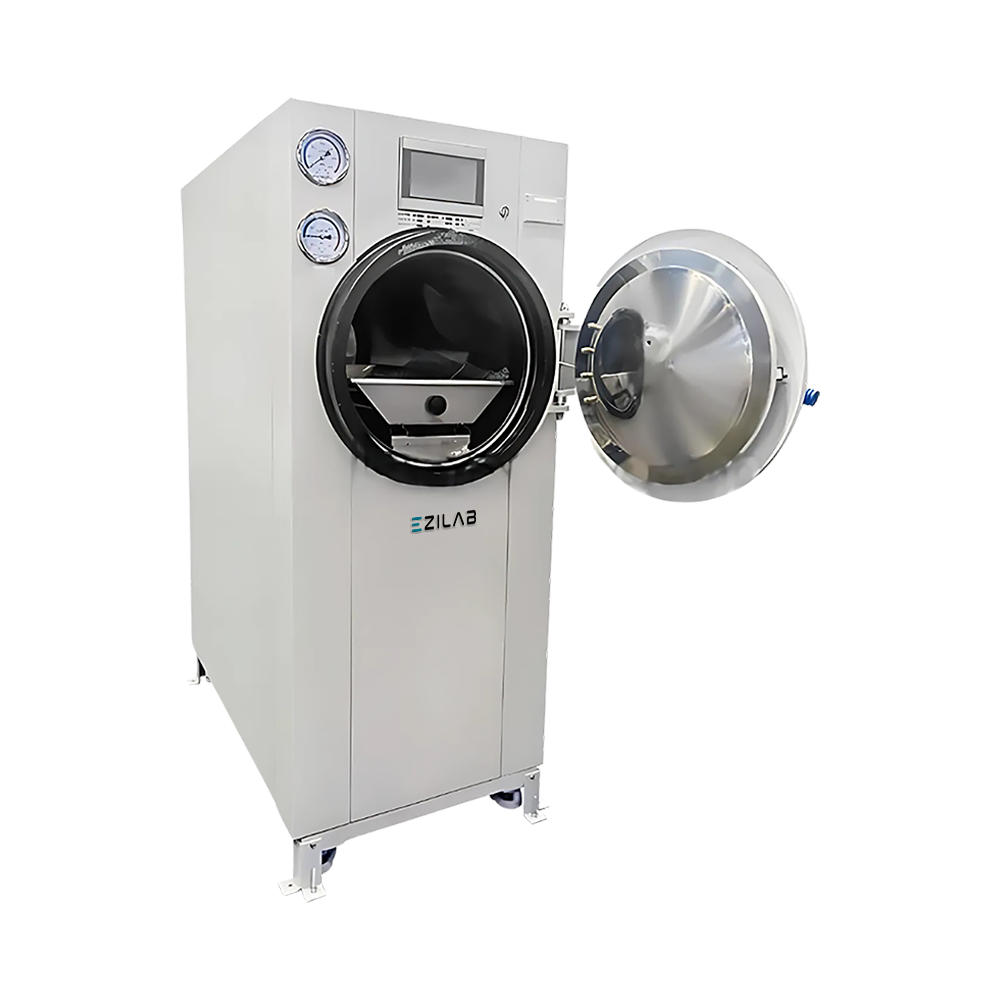

EziLab Rectangular Horizontal Autoclave EZL-RH103 delivers 200L sterilizing capacity at 0.22MPa working pressure and 134°C with 10KW/380V power and -0.08MPa vacuum limit for high-volume sterilization in clinical and industrial labs. The lab autoclave supports 0 to 99 min sterilization and drying cycles with working temperature range of 115°C to 134°C and 2°C heat average for consistent thermal performance across load types. Chamber dimensions of 515×1000mm with external footprint of 1400×750×1740mm and 370kg net weight support stationary installation in hospital central sterile supply departments, pharmaceutical production, and laboratory sterilization workflows via Lab Equipment and EziLab's full range of autoclaves for lab workflow integration.
| Capacity | 200 L |
|---|---|
| Working Pressure | 0.22MPa |
| Maximum Temperature Range | 134°C |
| Working Temperature | 115° to 134°C |
| Sterilization Time | 0 to 99 min |
| Drying Time | 0 to 99 min |
| Vacuum Limit | -0.08MPa |
| Heat Average | ≤± 2°C |
| Power Consumption | 10 KW |
| Chamber Dimension (ɸ×D) | 515×1000 mm |
| Dimension (L×W×H) | 1400×750×1740 mm |
| Packaging Dimension (L×W×H) | 1560×910×1880 mm |
| Net Weight | 370 Kg |
| Gross Weight | 460 Kg |
Water level safety lock
High-resolution screen
Over-temperature & over-pressure protection
Automatic microcomputer control
Enhanced air removal
Rectangular Horizontal Autoclave EZL-RH103 is used for sterilizing medical instruments, glassware, culture media, and laboratory waste, ensuring contamination-free processing. It is commonly used in hospitals, clinics, research labs, pharmaceutical industries, food processing units, and biotech facilities, where high-capacity and efficient sterilization are essential.
