EziLab Semi-Automatic Microtome EZL-SM201 provides controlled sectioning with motor-assisted feed for pathology diagnostics, histological preparation, research laboratories, and medical institute applications. Minimum section thickness reaches 0.25 um for fine slicing, while LCD display allows clear parameter visibility during automated microtome operation. Adjustable trimming and sectioning ranges enhance flexibility across varied specimen types, and stable mechanical design ensures consistent results throughout extended cutting sessions. Compact structure fits histology labs without requiring excessive floor space or dedicated installation. EziLab's Lab Equipment and microtomes list the full automated microtome and semi-automatic sectioning range for pathology and research use.
| Mode | Semi-automatic without intelligent sensing |
|---|---|
| Specimen Horizontal Stroke | 28 mm |
| Specimen Vertical Stroke | 52 mm |
| Specimen Orientation | XY – 8°C, rotation 360°C |
| Minimum Sectioning Thcikness | 0.25 µm |
| Maximum Specimen Size | 50×70 mm |
| Whole Layer Clearance Distance | 10 – 6000 µm (10, 12, 15, 20……6000, after 15 µm the increment is 5 µm) |
| Sectioning Thcikness Range (0 to 60 µm) | { |
| Trimming Thickness Range (1 to 900 µm) | { |
| Feed Speed | 450 µm/s |
| Precision | ±5% |

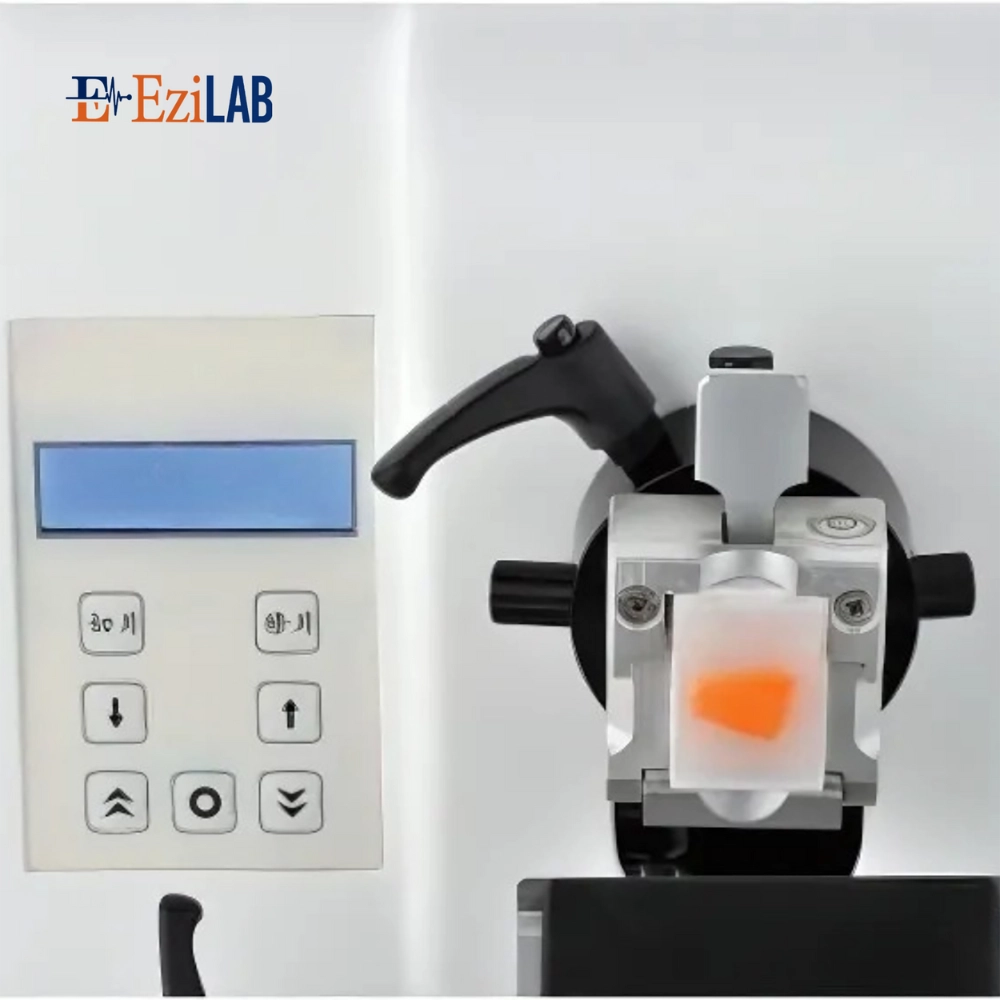

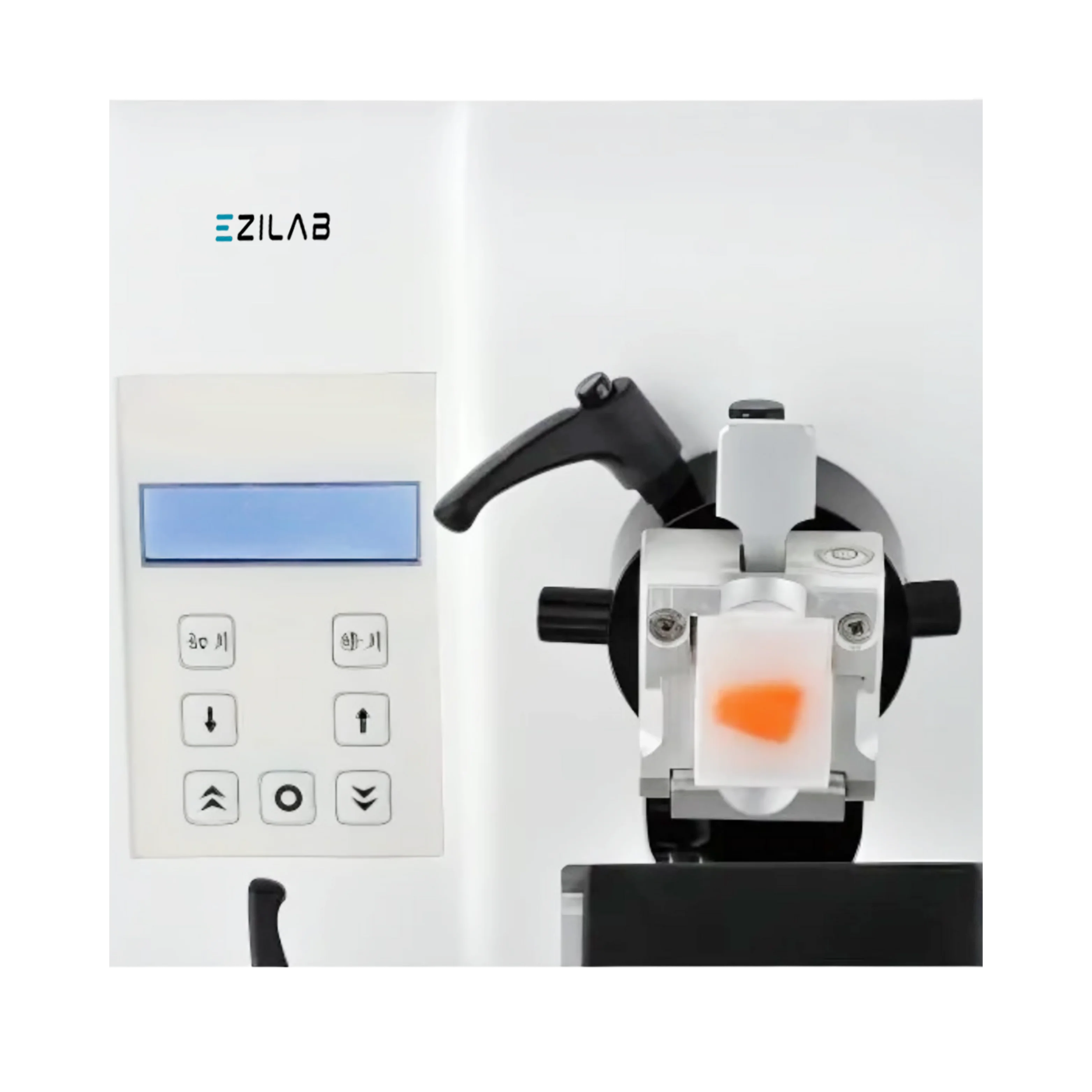

| Display | LCD Display |
| Power Consumption | 100 W |
| Power Supply | AC 110/220V ± 10%, 50/60Hz |
| External Dimension (W×D×H) | 585×410×305 mm |
| Package Dimension (W×D×H) | 670×550×480 mm |
| Gross Weight | 45 Kg |

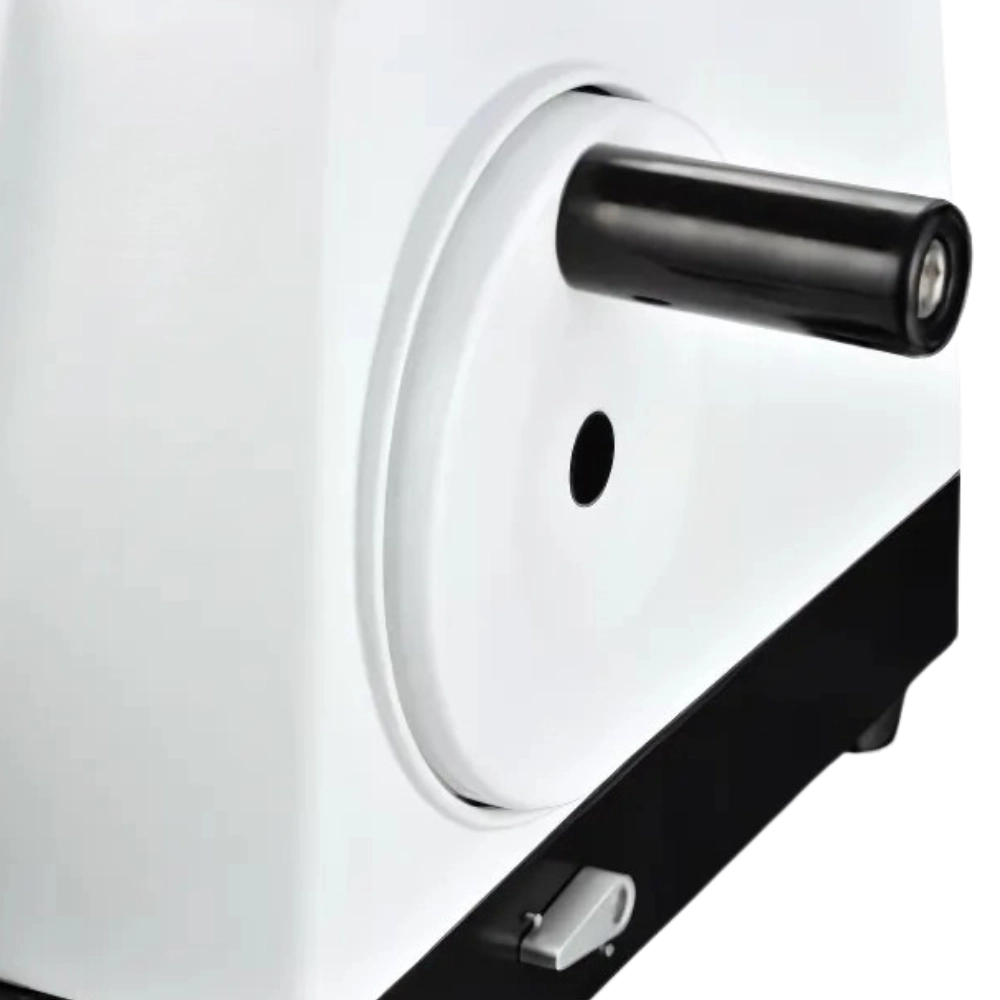

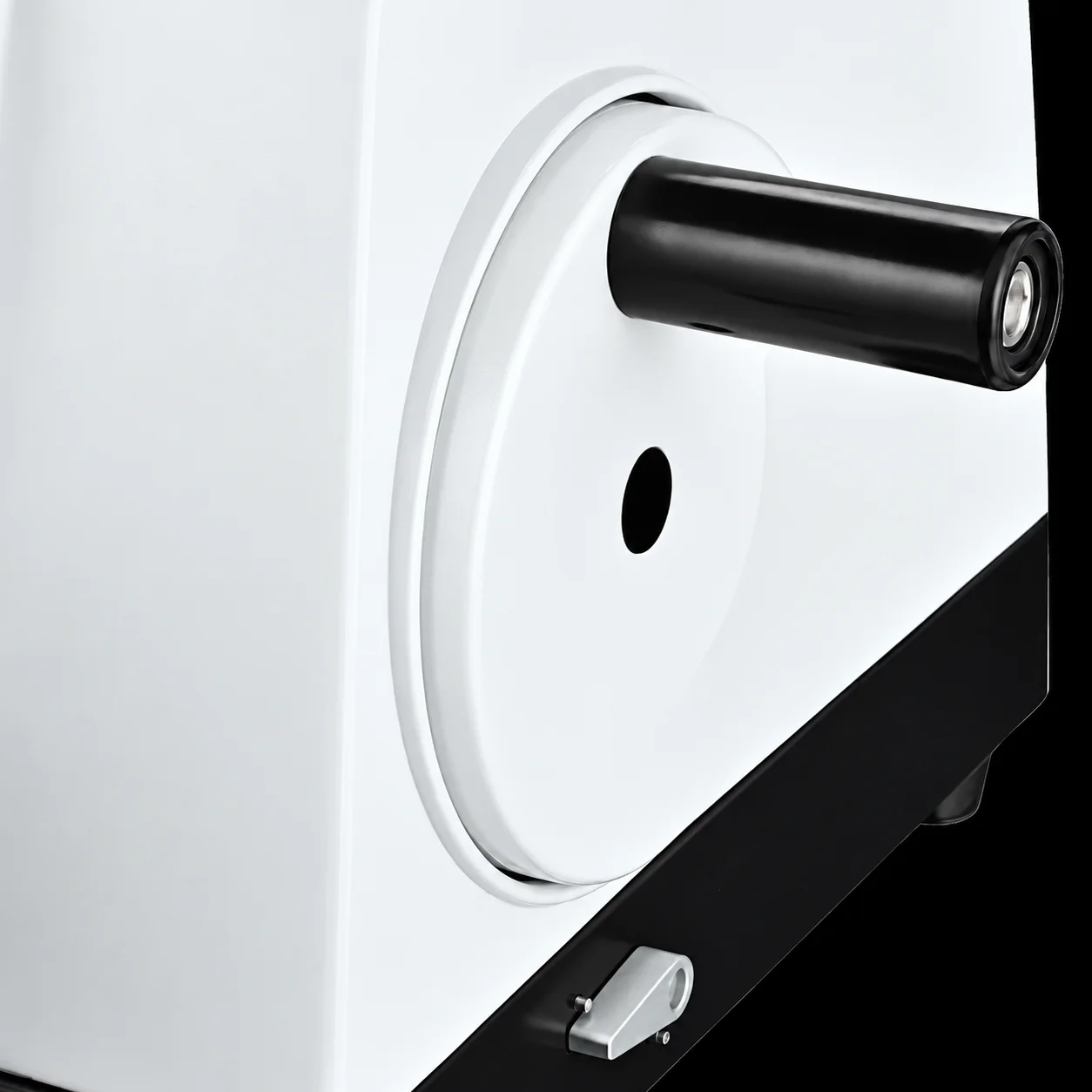

Smooth running hand wheel
Provides optimal tactile response
Specimen trimming feature speeds up productivity
Automatic sectioning speed is adjustable by gentle button
Fast switching between paraffin block clamp and cassette clamp
Auto slicing control ensures fast trimming and slicing switching
Safety and emergency braking systems
3 mode control system: conventional mode, intelligent sensing mode and whole layer cutting mode
Lateral displacement of blade holder base enables better sectioning
Provides work flow flexibility
The precise positioning system not only easy to use, but also provides accurate X and Y axis adjustment
Imported guide rails for cross-rollers and high-precision screw motion mechanisms
Large-volume removable waste tray, on the top of the housing

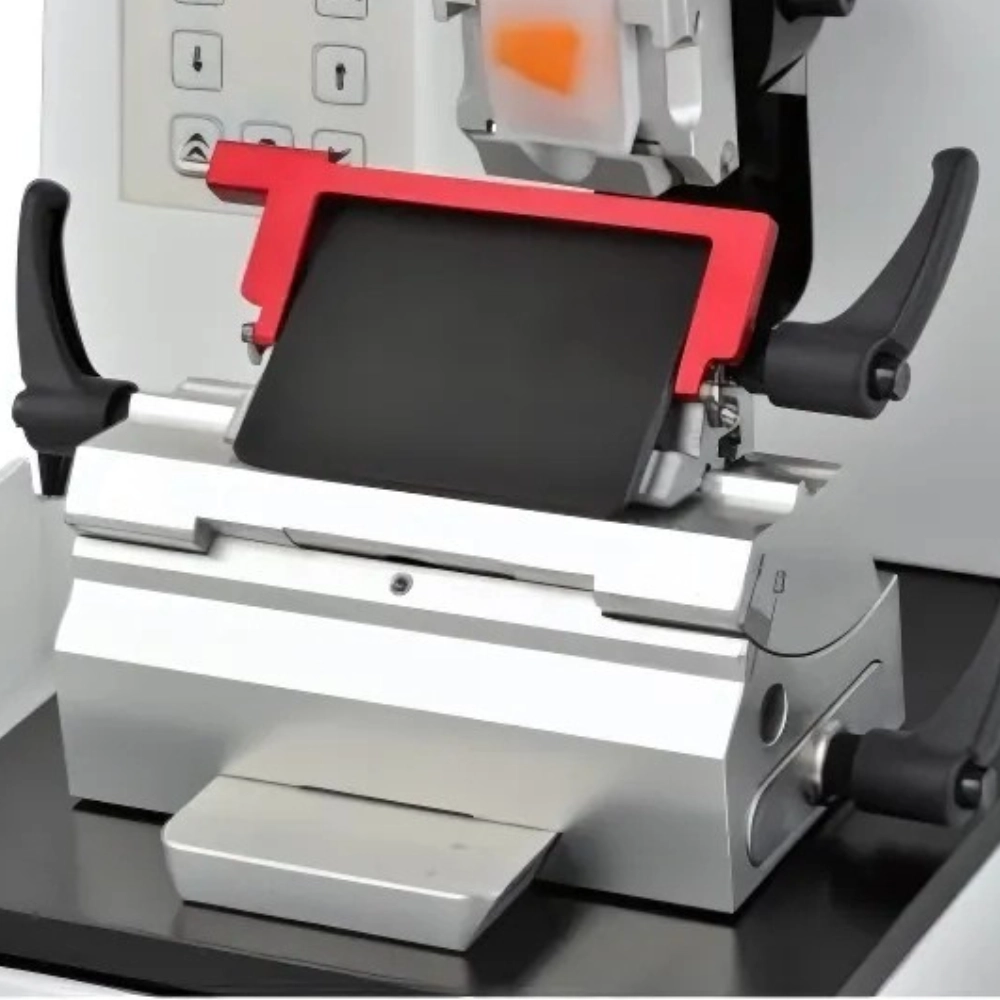

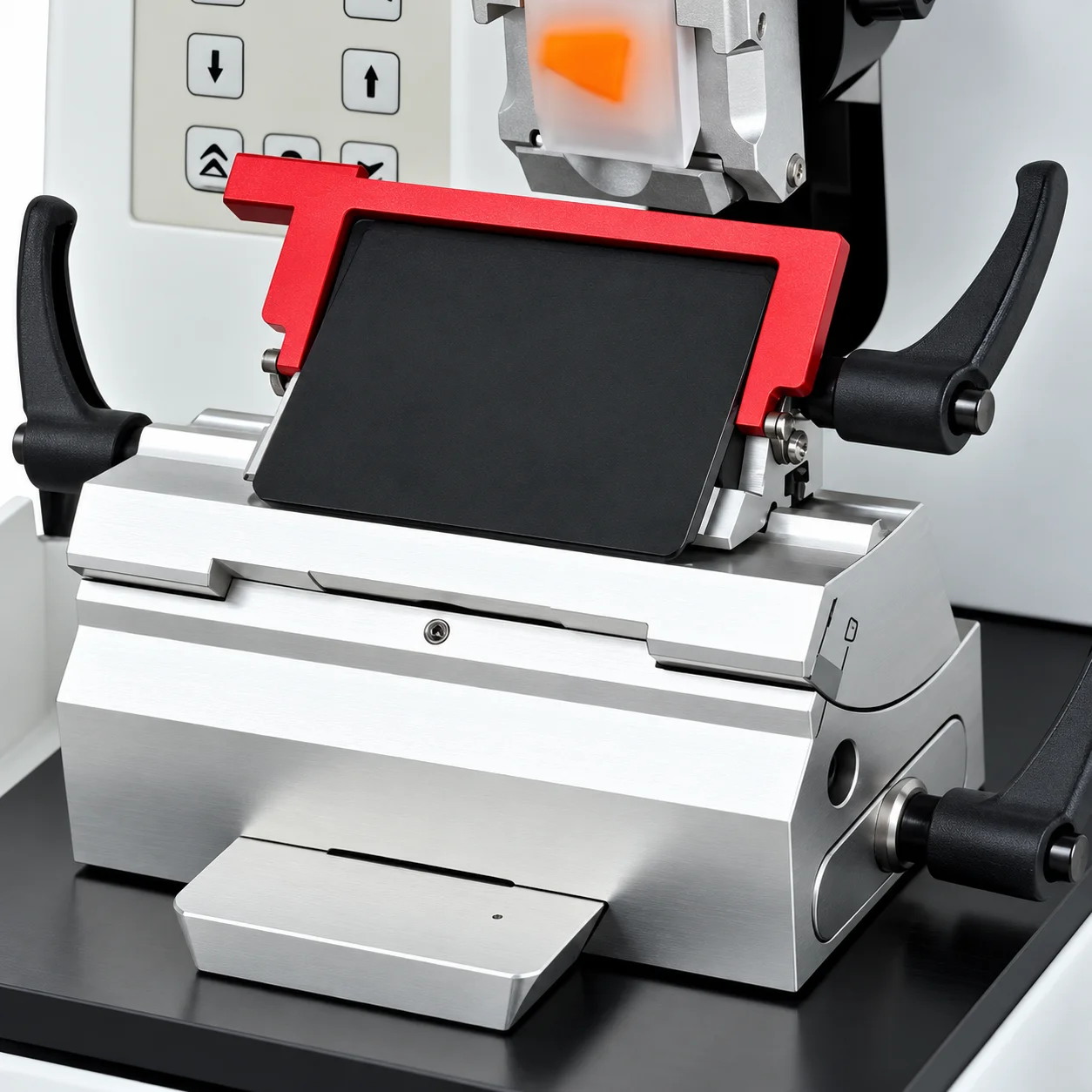

Red bar on the blade holder covers the whole length of blade to protect the user and enables easy changing of the blade
Safety and emergency breaking systems
Blade holder can be laterally moved without direct contact, enabling use of the entire length of blade
Manual microtomes are extensively used in Clinical fields, Research laboratories, Industrial laboratories, Pathology labs, Medical Institutions, Histology and Biology labs and many Medical science applications
