EziLab offers the Automatic Microtome EZL-AM301, a motorized rotary microtome that cuts sections from 0.25 to 100 µm and trims from 1 to 600 µm, holding thickness within 5%. The specimen head travels 28 mm horizontally and 70 mm vertically, accepts blocks up to 70 by 70 mm, and orients 8° on the X and Y axes with 90° rotation either way. Feed runs at 1500 or 3500 µm per second, and retraction adjusts from 0 to 50 µm. Cross-roller guide rails, a smooth hand wheel, and an LED display round out the 150 W unit. Three control modes cover conventional cutting, intelligent sensing, and whole layer cutting, while auto slicing switches between trimming and sectioning. Technicians swap paraffin block and cassette clamps quickly, shift the blade holder sideways for a fresh edge, and clear debris with a large removable waste tray. A red guard covers the blade, and emergency braking halts the wheel. Pathology and hospital histology labs cut paraffin tissue for diagnosis, while research labs prepare biology and medical science samples. Medical institutions train students on this histology microtome, and industrial quality labs section materials for inspection. A hand wheel turned for each section adds up over a shift, so estimate your daily block count before weighing motorized cutting across the Microtome category and Automatic Microtome range.
| Sectioning Thcikness Range (0.25 to 100 µm) | { |
|---|---|
| Trimming Thickness Range (1 to 600 µm) | { |
| Whole Layer Clearance Distance | 10 – 6000 µm (10, 12, 15, 20……6000, after 15 µm the increment is 5 µm) |
| Retraction Range | 0 – 50 µm |
| Specimen Horizontal Stroke | 28 mm |
| Specimen Vertical Stroke | 70 mm |
| Specimen Orientation | XY – 8°C, rotation ±90°C |
| Minimum Sectioning Thcikness | 0.25 µm |
| Maximum Specimen Size | 70×70 mm |
| Feed Speed | 1500 µm/s, 3500 µm/s |
| Precision | ±5% |
| Display | LED Display |
| Power Consumption | 150 W |
| External Dimension (W×D×H) | 580×475×340 mm |
| Package Dimension (W×D×H) | 680×570×500 mm |
| Gross Weight | 60 Kg |

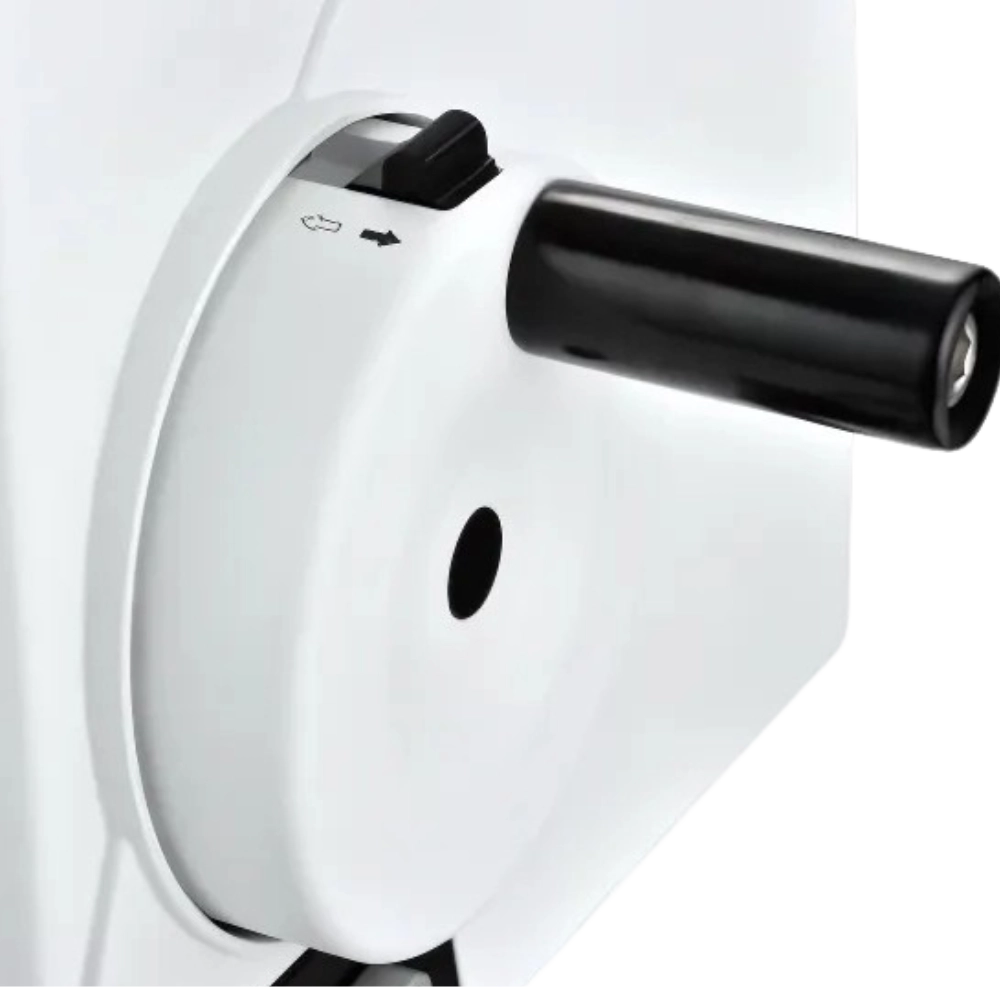

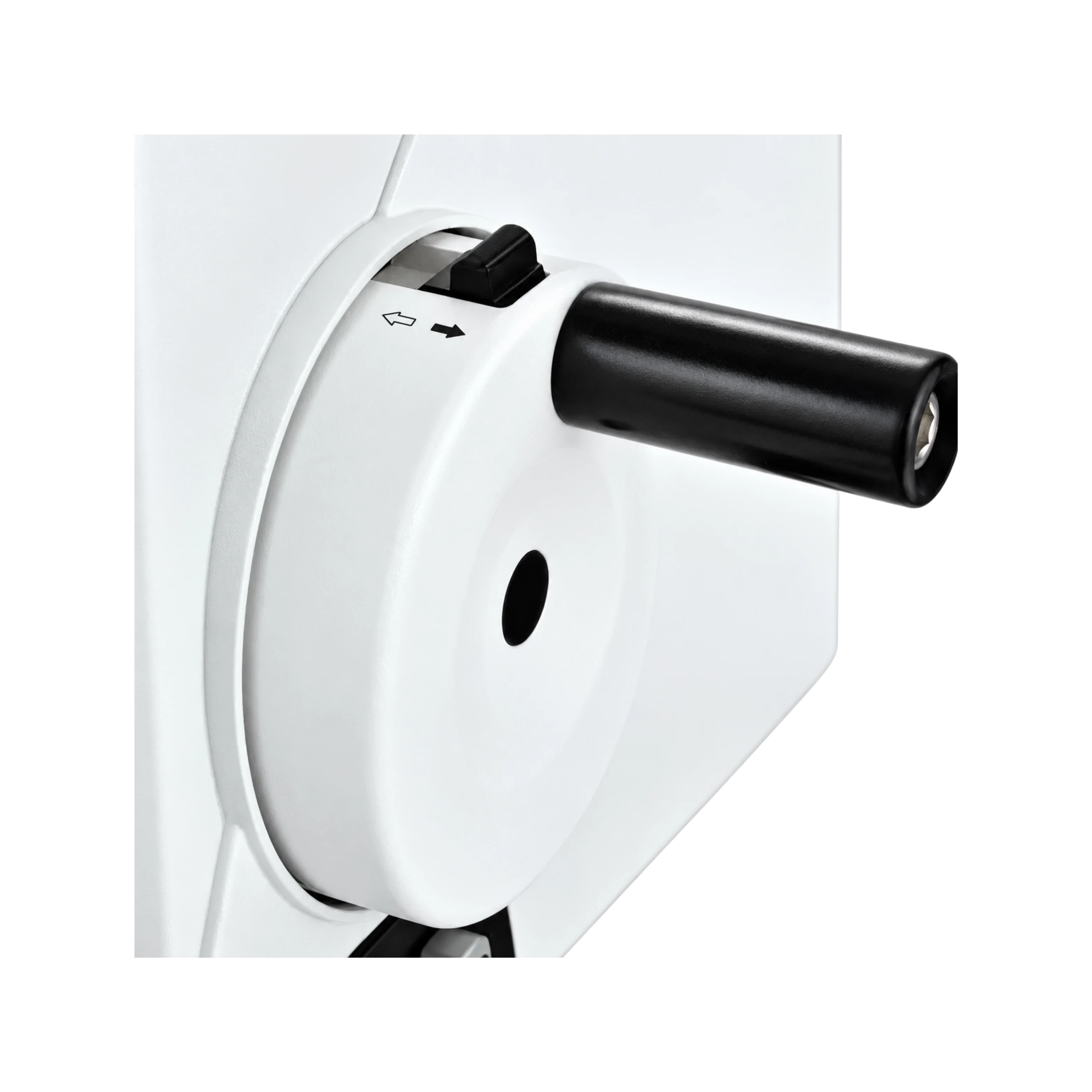

Smooth running hand wheel
Provides optimal tactile response
Specimen trimming feature speeds up productivity

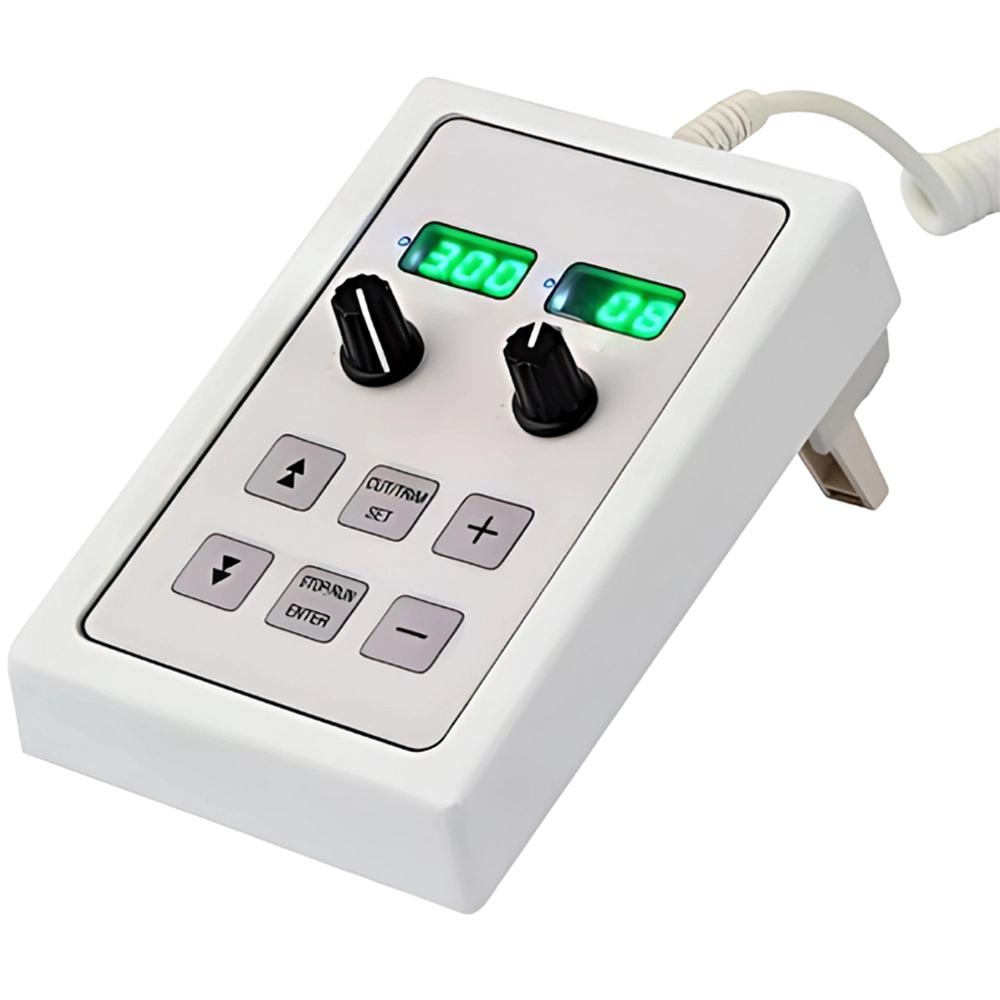

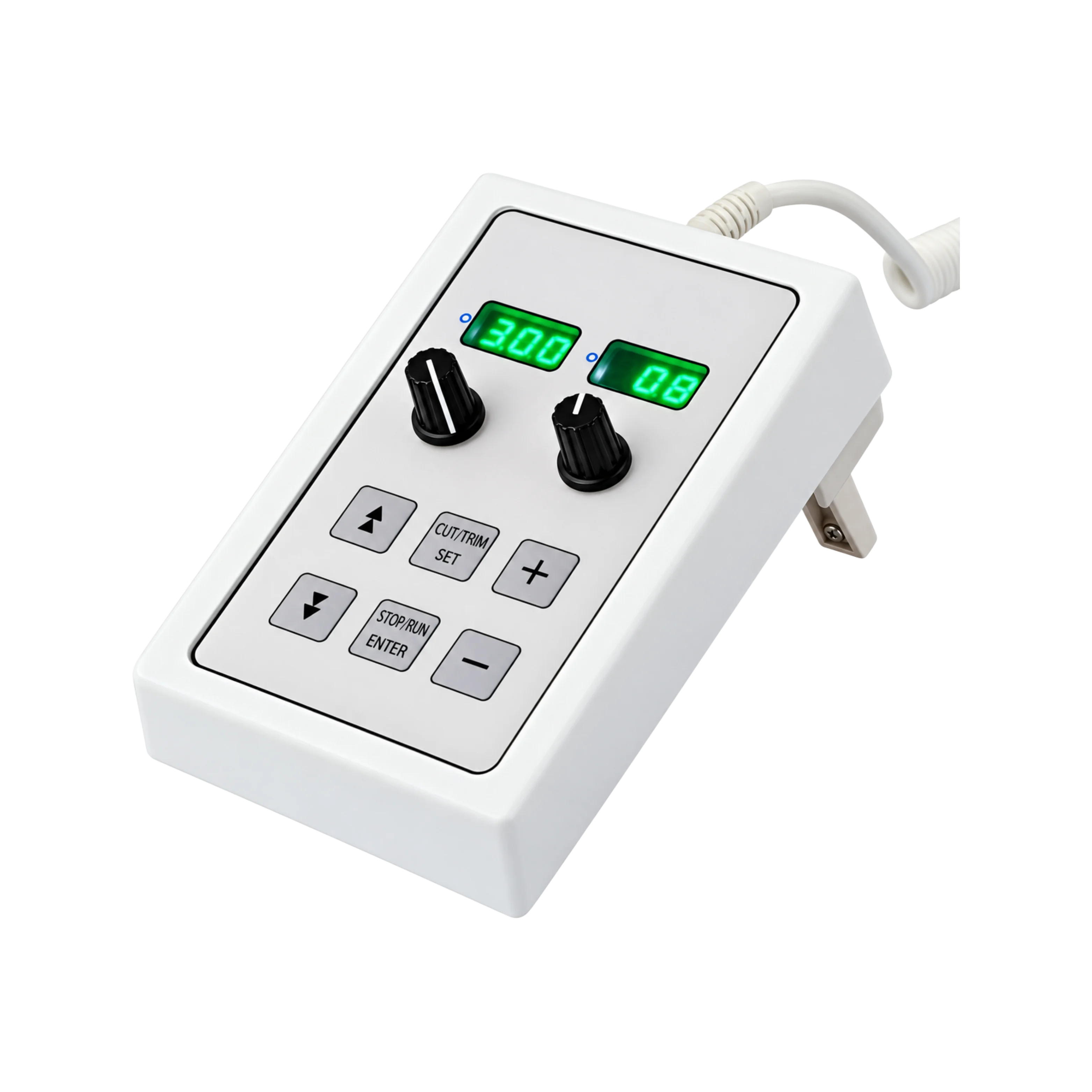

Automatic sectioning speed is adjustable by gentle button
Fast switching between paraffin block clamp and cassette clamp
Auto slicing control ensures fast trimming and slicing switching

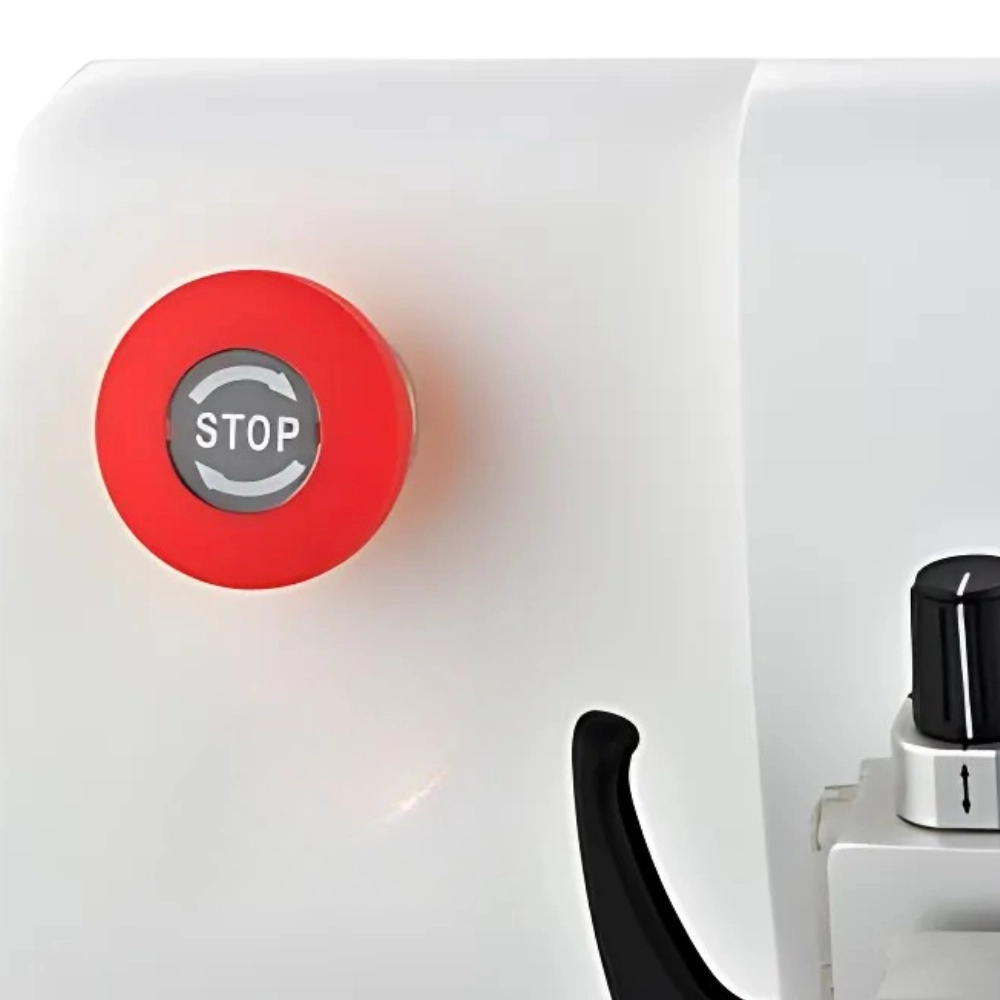

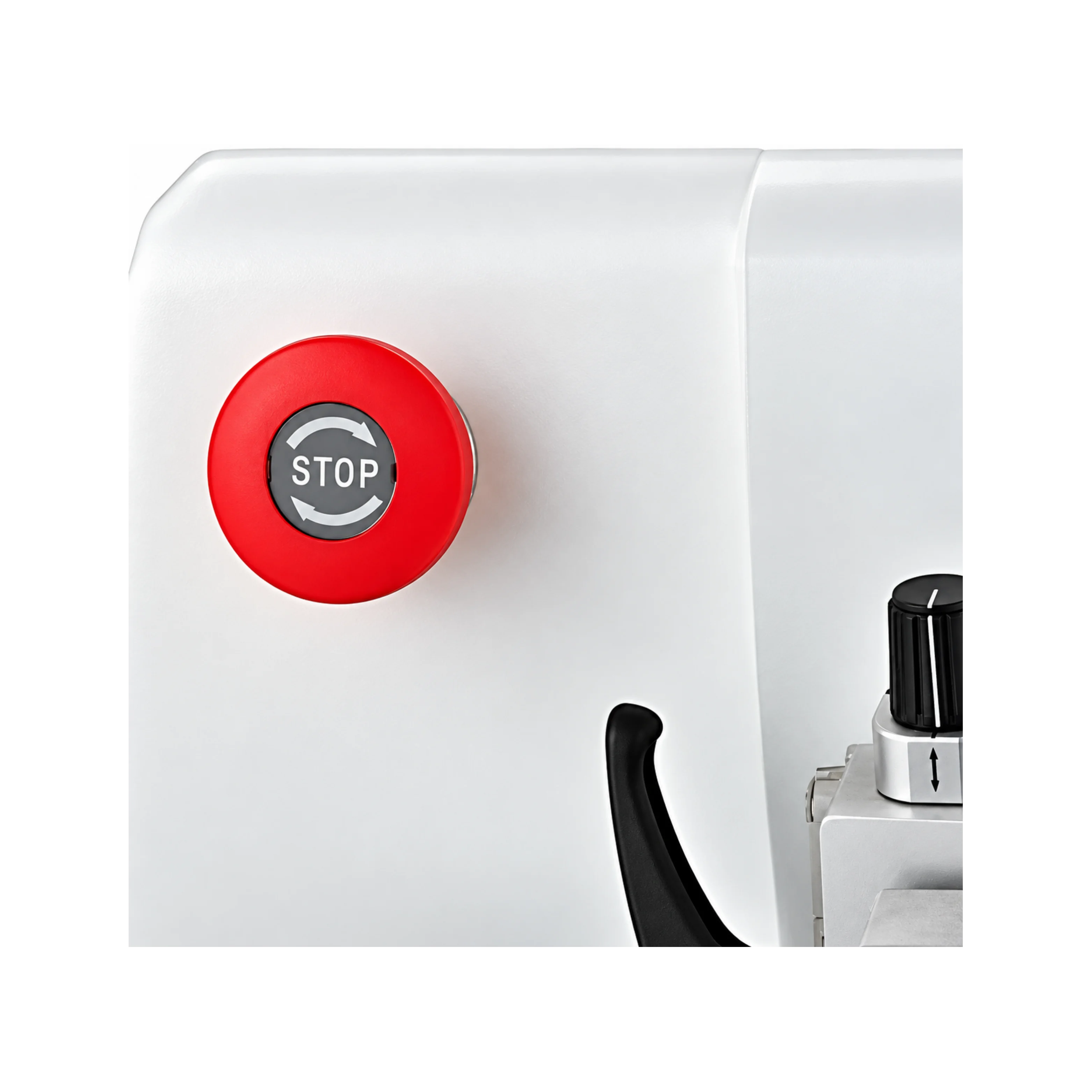

Safety and emergency braking systems
3 mode control system: conventional mode, intelligent sensing mode and whole layer cutting mode
Lateral displacement of blade holder base enables better sectioning
Provides work flow flexibility

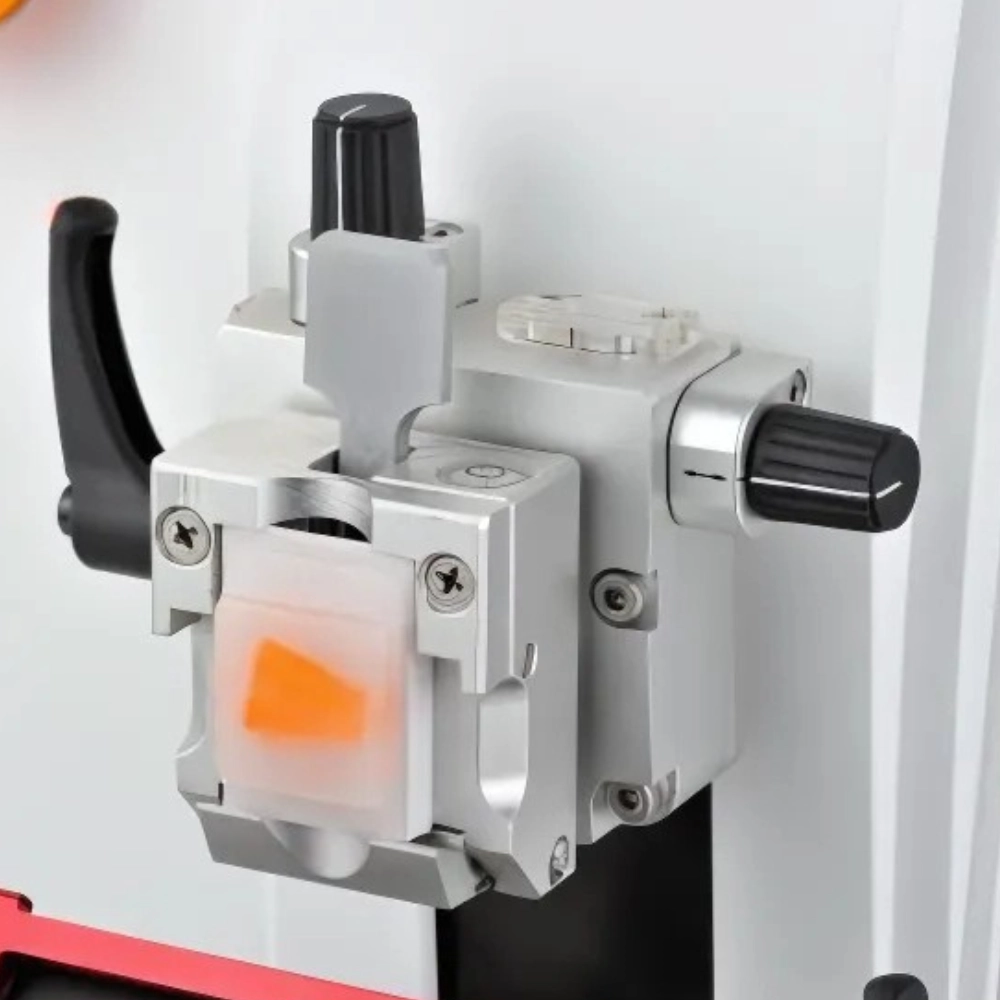

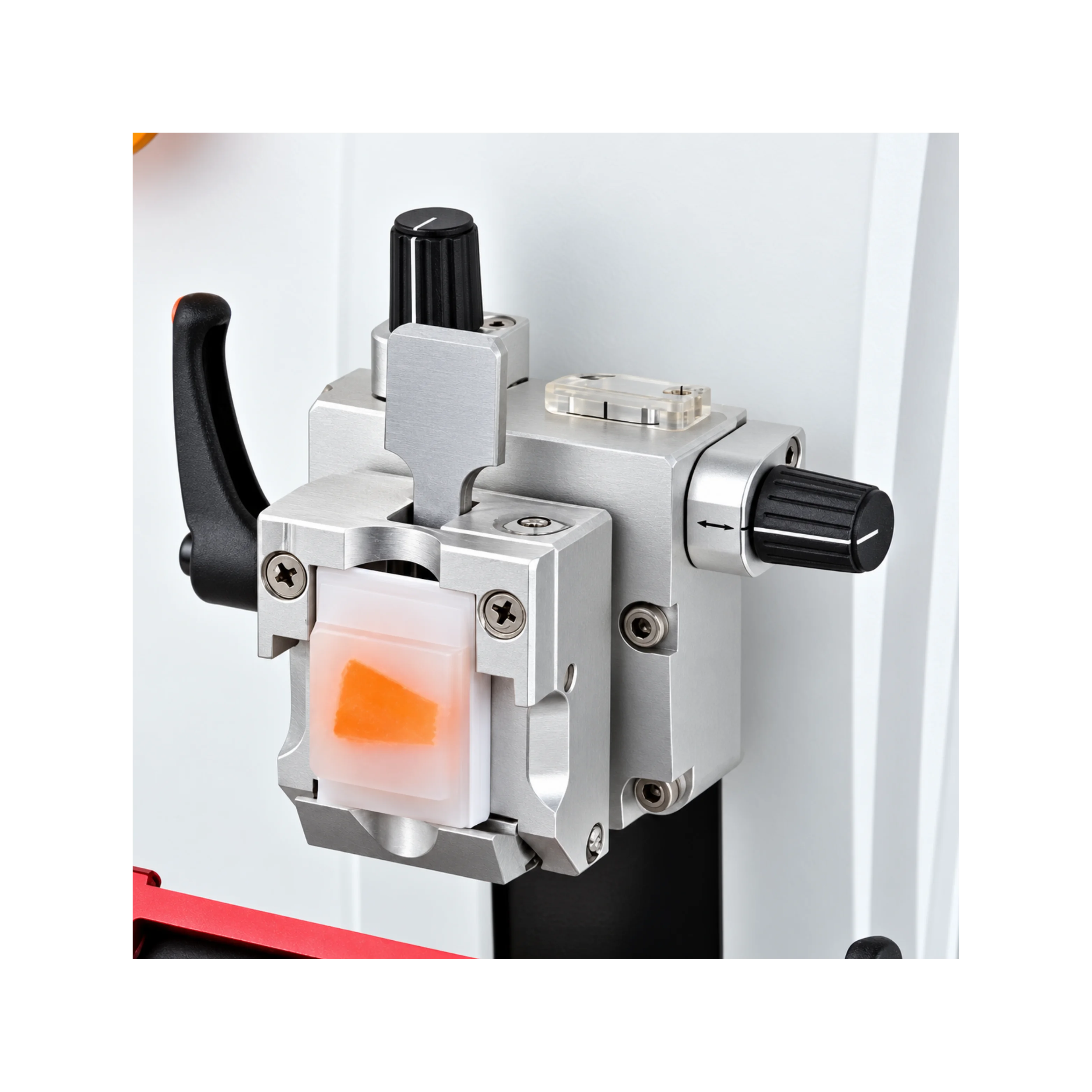

The precise positioning system not only easy to use, but also provides accurate X and Y axis adjustment
Imported guide rails for cross-rollers and high-precision screw motion mechanisms
Large-volume removable waste tray, on the top of the housing
Red bar on the blade holder covers the whole length of blade to protect the user and enables easy changing of the blade
Safety and emergency breaking systems
Blade holder can be laterally moved without direct contact, enabling use of the entire length of blade
| • | Cutting paraffin tissue sections for diagnosis in pathology and hospital histology laboratories. |
| • | Preparing thin sections from 0.25 to 100 µm for biology and medical science research. |
| • | Cutting full-face sections of specimen blocks in histology laboratories with the whole layer cutting mode. |
| • | Trimming specimen blocks before sectioning in clinical laboratories. |
| • | Sectioning materials for inspection in industrial laboratories. |
