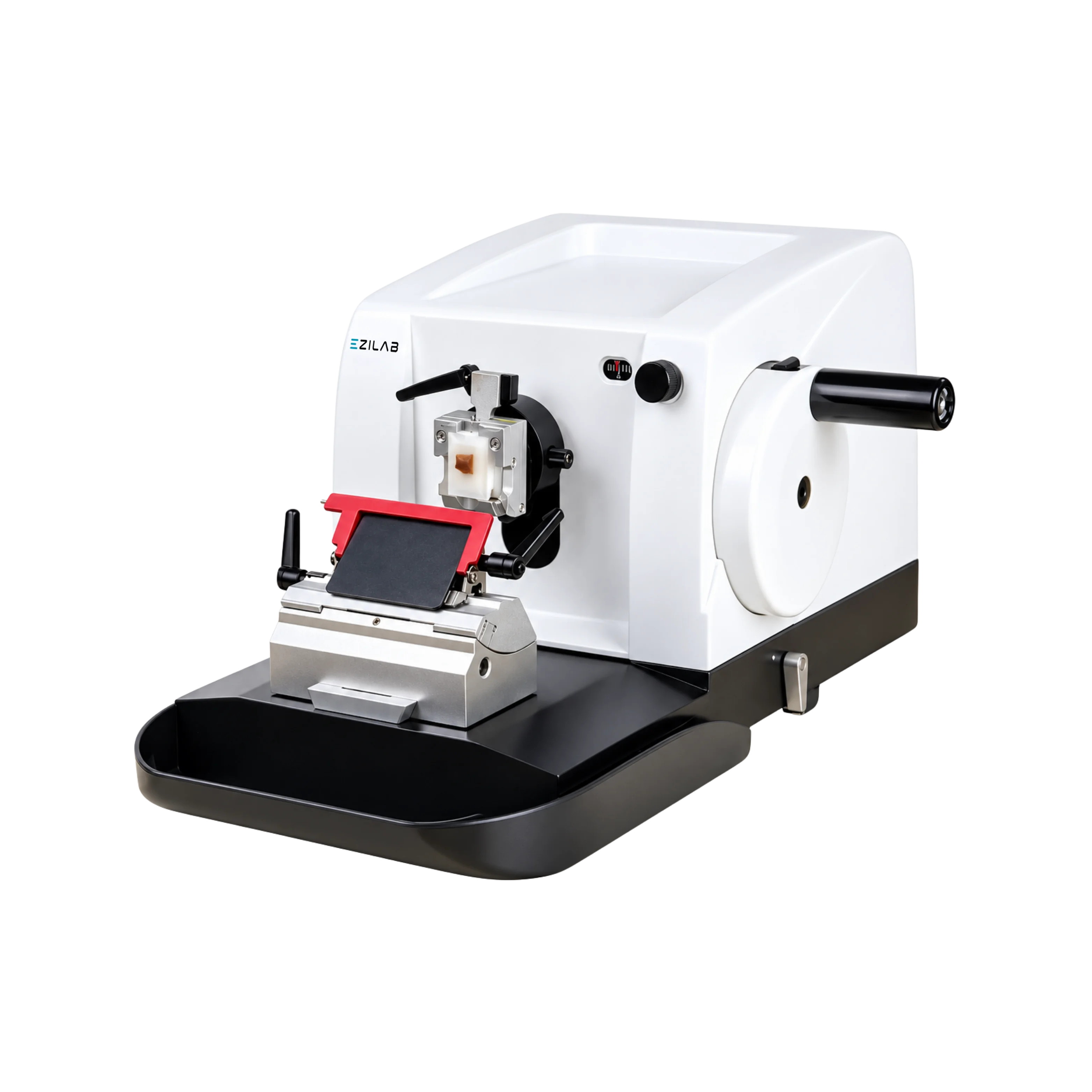

EziLab offers the Manual Microtome EZL-MM101, a histology microtome that cuts sections as thin as 0.5 µm and trims from 0 to 60 µm. It holds specimens up to 50 × 70 mm, with a 28 mm horizontal stroke, a 52 mm vertical stroke, and 8° XY orientation for aligning the block face. A micro-drive feed system advances the specimen within ±5%, while imported cross-roller guide rails keep the stroke smooth. Controls sit in a comfortable position to reduce arm fatigue, and a heavy power base limits vibration during cutting. Users switch quickly between a paraffin block clamp and a cassette clamp, and a red blade holder bar and large removable waste tray keep the work area safe and clean. This paraffin microtome turns embedded tissue into thin ribbons for slides, so technicians can trim blocks, cut serial sections, and prepare samples for H&E staining and microscopy. Hospital pathology and clinical labs section biopsies and surgical specimens for diagnosis. Histology and biology labs prepare plant and animal tissue, research labs study cell and tissue structure, industrial labs section polymers and materials, and medical schools train students in tissue preparation. See the Manual Microtomes and Manual Microtome pages for full specifications.
| Trimming Thickness Range | 0 to 60 µm |
|---|---|
| Minimum Sectioning Thcikness | 0.5 µm |
| Maximum Specimen Size | 50×70 mm |
| Specimen Horizontal Stroke | 28 mm |
| Specimen Vertical Stroke | 52 mm |
| Sectioning Thcikness Range (0 to 60 µm) | { |
| Specimen Orientation | XY- 8° |
| Precision | ±5% |
| External Dimension (W×D×H) | 565×440×285 mm |
| Package Dimension (W×D×H) | 620×530×450 mm |
| Gross Weight | 40 kg |
Smooth running and conveniently positioned to reduce arm fatigue
Provides optimal tactile response
Specimen trimming feature speeds up productivity
Advanced high-precision micro-drive feed system enables stable and high-precision sectioning
Provides work flow flexibility
The precise positioning system not only easy to use, but also provides accurate X and Y axis adjustment
Fast switching between paraffin block clamp and cassette clamp
Imported guide rails for cross-rollers and high-precision screw motion mechanisms
Large-volume removable waste tray, easy to use on the top of the housing
Red bar on the blade holder covers the whole length of blade to protect the user and enables easy changing of the blade
Cassette clamp can be locked at any position along each of the three axes
Protects user from accidental exposure to the blade
Large and comfortably shaped for efficient removal of paraffin waste
Power base minimizes vibration during sectioning
Increases contrast between specimens and paraffin to show where the tissue is, to prevent cutting away a small biopsy
Accurate alignment of the block face to the blade, which is crucial for recuts
Manual microtomes are extensively used in Clinical fields, Research laboratories, Industrial laboratories, Pathology labs, Medical Institutions, Histology and Biology labs and many Medical science applications.
